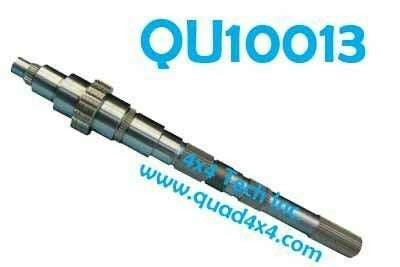

QU10013 4x2 Fully Splined Mainshaft 1994-2004 Dodge NV4500HD

Torque King
No reviews yet Write a Review
$218.98
SKU:
10013
UPC:
198345079864
Condition:
New
Shipping:
Calculated at Checkout
In Stock & Ready To Ship!
Availability: Stocking Item, usually ships within 1-2 business days
Current Stock:Only left:

Description

QU10013 4x2 Fully Splined Mainshaft 1994-2004 Dodge 4x2 NV4500HD Transmissions is fully-splined mainshaft with a 3-piece thrust washer to isolate the mainshaft fifth gear from the mainshaft fifth gear nut. A popular and effective shaft for minimizing the dreaded NV4500 5th Gear Loss. 31 Spline output spline. Fits any NV4500HD 4x2 transmission in 1994-2004 Dodge Ram 2500, Ram 3500 trucks. Made in Taiwan.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
QU10013 Specs
Not a Press Fit
Tech Articles
Cummins Diesel
Matching Mainshaft Gears
Matching Synchronizer Parts
Matching Bearings and Kits
Matching Small Parts and Kits
NV4500 Tools
Conversion Applications Table
Matching Parts
Applications

Tech Note 1: QU10013 Specs
QU10013 is a 4x2 31 spline mainshaft with a full-length 5th gear spline. QU10013 is grooved behind the 5th gear splines for an included, 1/8" wide, 3 piece Thrust Washer Set.
QU10013 Specifications  and Approximate Dimensions:
Overall Length: 24-1/2"
Output Spline: 1.61" x 31
3-4 Synchro Hub Spline: 1.45" x 28
1-2 Synchro Hub Spline: 3.365" x 20
Reverse Clutch Spline: 2.285" x 45
Fifth Gear Spline: 1.79" diameter x 1-7/8" long by 35 spline
Width of 3 Piece Thrust Washer: 1/8"

Tech Note 2: Not a Press Fit
There is currently no available NV4500 mainshaft from any supplier that will have a press fit for the 3-4 synchro, mainshaft 5th gear, or the rear output bearing. They are specifically designed and machined this way to speed assembly. The only shafts that had a press fit were the original equipment New Venture shafts and our Torque King shafts, both of which are long out of production and no longer available.

Tech Note 3: Tech Articles
For more information about NV4500 5th gear failures, see:
5th Gear Failures and Solutions
NV4500 Cast Iron Tailshaft Housings

We no longer make the Torque King® Mainshaft and Retrofit Kits as described in the 5th Gear Failures and Solutions article which leaves full spline shafts the only choice currently available for Dodge NV4500HD transmissions. While full spline shafts do not actually cure the 5th gear issue, they do greatly reduce the chances of the nut backing off.

Tech Note 4: Cummins Diesel
Ever since the Cummins Diesel was introduced in the 1989 Dodge Ram, people have been modifying the engines to crank out more horsepower. Unfortunately, all the manual transmissions used behind the Cummins Diesel (Getrag G360 (1989-1993), NV4500HD (1994-2004), NV5600 (1999-2005), and G56 (2005 to current) are only rated for around stock engine torque. When you increase your power output, you also increase the chance of having a major transmission failure. While some reasonably effective steps can be taken to increase the torque ratings of specific components, there is no practical way I know of to really make your Ram manual transmission "bulletproof" for big torque increases.

There are claims that cryogenically treating NV4500 gears will increase gear strength as much as 30%. Unfortunately, there does not seem to be any peer-reviewed documentary evidence to support those claims. Cryogenically treating gears is primarily a cold-hardening process that changes the molecular structure of steel to decrease wear while retaining or increasing hardness. If properly done, it is probable the cryogenic treatment process does slightly increase the impact and fatigue resistance of NV4500 gears, but not enough to significantly increase the ability of an NV4500 transmission to reliably handle more than 600 Lb.-Ft. of input torque especially considering the maximum factory torque rating of the NV4500HD transmission is only 460 Lb.-Ft..

Tech Note 5: Matching Mainshaft Gears
Matching Mainshaft Gear Part Numbers for QU10013 Mainshaft are:

Dodge
NV4500HD
Application
Mainshaft 3rd Mainshaft 2nd Mainshaft 1st Mainshaft Reverse Mainshaft 5th
1994-1996

QU10201 QU10035 QU10075 QU10171 QU10067
1997-2004 QU10201 QU10035 QU10075 QU10022
or
QU10085
QU10067



Tech Note 6: Matching Synchronizer Parts
Matching Synchronizer Parts for QU10013 Mainshaft are:

Gear Synchronizer
Assembly
Synchronizer
Hub
Synchronizer
Slider
Strut
Kit
Synchronizer
Clutch
1st-2nd QK1058 QU10038 QU10081 QK1100 Part of Gears
3rd-4th QU10732 QU10122 QU10021
or QU10206
QK1099 4th QU10049
or QU10702
Reverse
1994-1996
Not
Available
Part of Gear QU10039 QK1099 QU10710
or QU10204
Reverse
1997-2004
QK1056 Part of Gear QU10039 QK1099 QU10710
or QU10204



Tech Note 7: Matching Bearings and Kits
Matching Bearings and Bearing Kits for QU10013 Mainshaft are:

Bearing Individual
Bearing
1994-2004
TK10237
Taper Bearing Kit
1994-2004
QK1136
Primary Bearing Kit
1994-1996 QU10001
Master Bearing Kit
1997-2004 QU10005
Master Bearing Kit
Input
Pocket
To Main
QU10133 NO YES YES YES
Input to
Main Thrust
QU10134 NO YES YES YES
3rd QU10135 NO NO YES YES
2nd QU10055 NO NO YES YES
1st QU10055 NO NO YES YES
Reverse QU10058 NO NO YES YES
Mainshaft
Rear Cup
QU10118 YES YES YES YES
Mainshaft
Rear
Bearing
QU10119 YES YES YES YES



Tech Note 8: Matching Small Parts and Kits
Matching Small Parts and Small Parts Kits for QU10013 Mainshaft are:

Bearing Individual
Part Number
Sub
Kit
QU10221
Basic Small
Parts Kit

TKA1179
Main Case
Small
Parts Kit
QK1010
Complete
Small
Parts Kit
3rd Gear Teflon Ring  QU10313 QK1098 No YES YES
3rd Gear
Snap Ring
QU10301 QK1102 YES YES YES
3rd Gear
Thrust Washer
QU10302 NO NO YES YES
1-2 Synchro
Snap Rings
QU10305 QK1103 YES YES YES
Reverse Clutch
Snap Ring
QU10300 QK1102 YES YES YES
Reverse Gear
Thrust Washer
QU10303 NO NO YES YES
Basic Mainshaft
Shim Kit
QU10009B NO YES NO YES
Complete Mainshaft
Shim Kit
QA10009 NO NO NO YES



Tech Note 9: NV4500 Tools
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated TM1003 NV4500 Rebuild Manual.

You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.

TOOLS for SPECIFIC NV4500 MODELS

Component 23 Spline
Dodge 4x4
NV4500LD
29 Spline
Dodge 4x4
NV4500HD
30 Spline
Dodge 4x2
NV4500LD
31 Spline
Dodge 4x2
NV4500HD
32 Spline
GM 4x4
35 Spline
GM 4x2
Mainshaft Nut QT2002 QT2001
QT2036
QT2002 QT2001
QT2036
QT2002
QT2028
1-1/2" Hex
Socket
Mainshaft Holding NLA QT2000 NLA QT2011 N/A N/A
5th Gear Nut
Torx® Cross Bolt
N/A QT9205 N/A QT9205 N/A N/A
Output Seal Installer N/A QT1801 N/A QT2058
CALL
Not Used Not Used
Tailshaft Bushing Remover and Installer Not Used Not Used Not Used QT2044 Not Used Not Used

TOOLS For ALL NV4500 MODELS

Countershaft
Front Bearing Cup Installer
QT1802 Use with QT1101 or QT1119 Driver Handle. Also can use flat side to install Dodge 4x4 Rear Output Seal
Countershaft Front Bearing Installer QT2004 Can also use to press 3-4 Synchro Hub on original equipment mainshafts
Input Bearing & Countershaft Rear Bearing Installer QT2005 Can also use to install Input Seal
Input Bearing Cup Installer QT1801 Use with QT1100, QT1101, QT1116, or QT1119 Driver Handle.
Countershaft Support QT2006 Use to support front of countershaft when installing countershaft rear bearing
1-2 Synchronizer Support QT2008 Use to support 1-2 synchronizer hub during synchronizer assembly
10mm 1/2" Drive 12 Point Socket QT1020 USA Made Impact Socket for Factory Tailshaft Housing Bolts
Long Shank Punch for Shift Lug QT9300 3/16" x 8" Shank for 5th Gear Shift Lug Roll Pin



Tech Note 10: Conversion Applications Table
NV4500 Transmissions are frequently used for conversion applications. The Table below lists the most popular rear output applications and their associated parts.

Component 23 Spline
Dodge 4x4
29 Spline
Dodge 4x4
31 Spline
Dodge 4x2
w/Speedo
31 Spline
Dodge 4x2
No Speedo
32 Spline
GM 4x4
35 Spline
GM 4x2
Short*
35 Spline
GM 4x2
Long*
Mainshaft  QU10214 QA1045 or
QU10011
QU10013 QU10013 QU10098 QU10719 QU10212
Rear Housing QU10057 QU10057 QU10024 QU10083 QU10716 QU10233 QU10217
5th Gear** QU10007
QU10086
QU10067 QU10067 QU10067 QU10007
QU10086
QU10007
QU10086
QU10007
QU10086
5th Gear
Nut Set
QK1093
QU10097
QU10069 QU10069 QU10069 QK1093
QU10097
See Yoke
Nut
See Yoke
Nut
Speedometer
Drive
Not Used Not Used QU10027
QK1143
Not Used Not Used QU10177 QU10177
Speedometer
Snap Ring
Not Used Not Used QU10330
QK1143
Not Used Not Used Not Used Not Used
Speedometer
Sender
Not Used Not Used Contact
Dealer
Not Used Not Used QU10228 QU10228
Speedometer
O-Ring
Not Used Not Used QU10678 Not Used Not Used incl. with
QU10228
incl. with
QU10228
Spacer Not Used Not Used Not Used Not Used QU10172
QU10173
Not Used QU10738
Bushing or
Bearing
Not Used Not Used QU10025 QU10025 Not Used QU50155 QU50155
Bearing
Snap Ring
Not Used Not Used Not Used Not Used Not Used QU10319 QU10319
Output Seal QU10123 QU10123 QU10023 QU10023 Not Used QU10720 QU50204
Gasket TK10519 TK10519 Not Used Not Used TK30052 Not Used Not Used
Yoke Not Used Not Used QU40700
QU40354
QU40495
QU40700
QU40354
QU40495
Not Used QU10184
QU10727
QU30094
QU40902
Yoke
Spline Seal
Not Used Not Used QU10026 QU10026 Not Used QU30009 QU30009
Yoke Washer Not Used Not Used Not Used Not Used Not Used QU30095 QU30095
Yoke Nut See 5th
Gear Nut
See 5th
gear Nut
See 5th
Gear Nut
See 5th
Gear Nut
See 5th
Gear Nut
QU10181 QU10181

 *Electronic, Screw-In Speedometer Sensor
**22 Tooth Mainshaft 5th Gears listed for 1992-2005 Dodge and 1995-2007 GM with 5.61:1 1st gear ratio. 1992-1994 GM with 6.34:1 first gear ratio use 19 Tooth QU10728 Gear. QU10728 is NOT compatible with Dodge 29 and 31 Spline Output Shafts.

Tech Note 11: Matching Parts
Other Matching Parts for QU10013 Mainshaft are:
QK1143 Speedometer Drive Gear Kit for 1994-1997
QU40700 Driveshaft Slip Yoke 1996-1997
QU40354 Driveshaft Slip Yoke 1998-2002
QU40495 1485 Series Driveshaft Slip Yoke 2003-2004
QU10069 Mainshaft Nut Set
QU10076 Rebuilder Spec 1-1/4" x 10 Spline Input Shaft
QU10199 Replacement 1-1/4" x 10 Spline Input Shaft
QU10261 Upgrade 1-3/8'x 10 Spline Input Shaft Kit
QU90003 Anaerobic Sealant
QU90006 3.35 oz Ultra Black RTV Sealant
QU90005 0.5 oz Ultra Black RTV Sealant
S24200 6ml Medium Strength Blue Threadlocker
S9978 1 gram Medium Strength Blue Threadlocker
S9979 1 gram High Strength Red Threadlocker
S24026 High Temperature Threadlocker for Mainshaft Nut
QU90020 NV4500 Manual Transmission Oil
TM1003 NV4500 Shop Manual
VSG1003DVD NV4500 Overhaul Video
QT2011 31 Spline Shaft Wrench
QT2001 Mainshaft Nut Wrench, 1/2" Drive
QT2036 Mainshaft Nut Wrench, 3/4" Drive

Applications
Dodge and Ram:
Ram 2500, Ram 3500 with 4x2 New Venture NV4500HD Transmission: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Warranty

Tools, New Parts, and Torque King® products in a kit or sold individually are warranted to the original purchaser to be free from defects in materials and workmanship for a period of one year from the date of sale. Certain Products, such as Warn® Hubs may be covered by additional manufacturer's warranties. THERE ARE NO OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. THE EXCLUSIVE REMEDIES FOR A WARRANTY CLAIM HEREUNDER IS RETURN OF THE GOODS TO TORQUE KING 4X4 FOR REPAIR, REPLACEMENT, OR REPAYMENT OF THE PURCHASE PRICE. ALL CLAIMS FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES ARE HEREBY EXCLUDED FROM THIS LIMITED WARRANTY.
