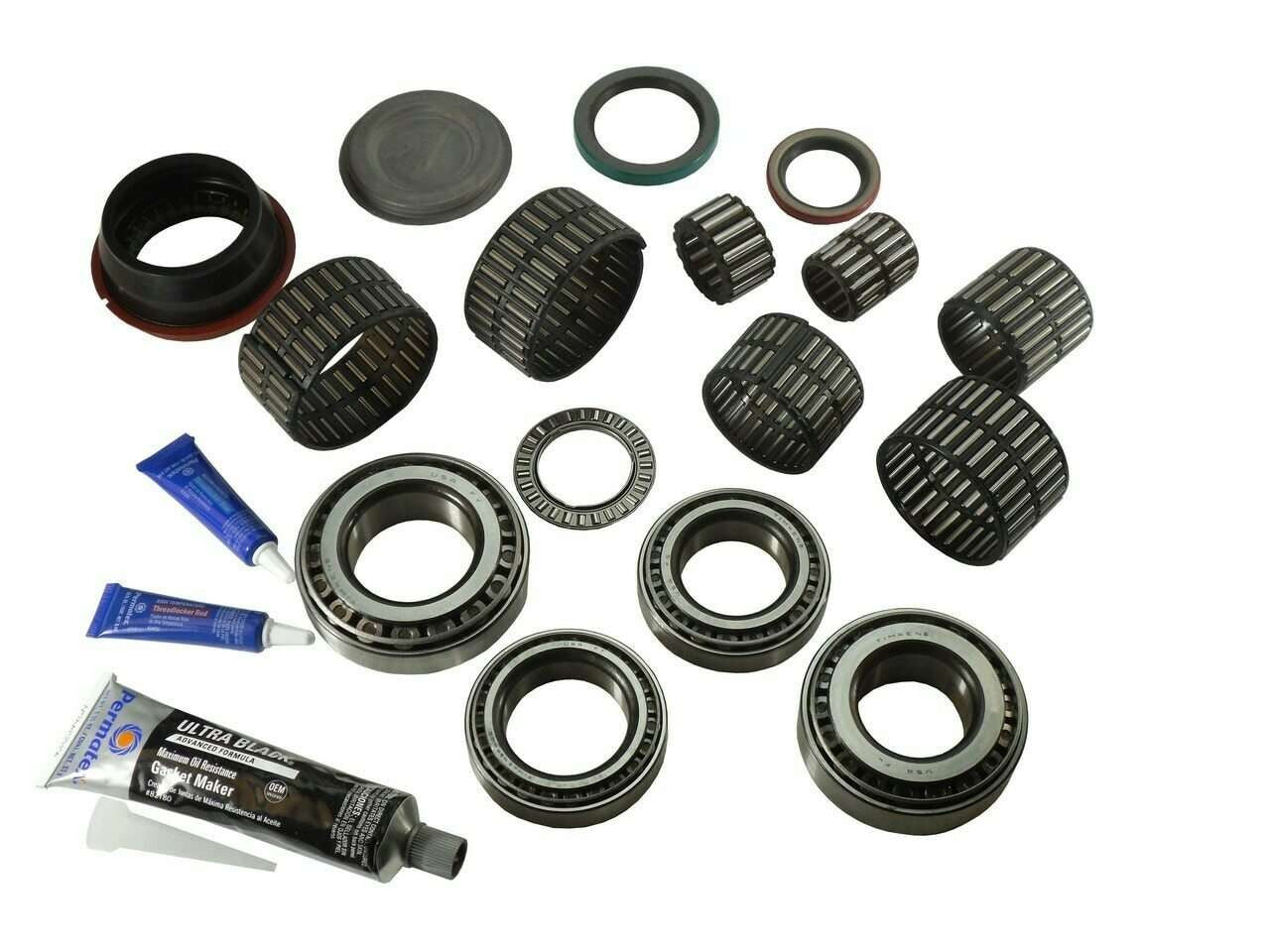

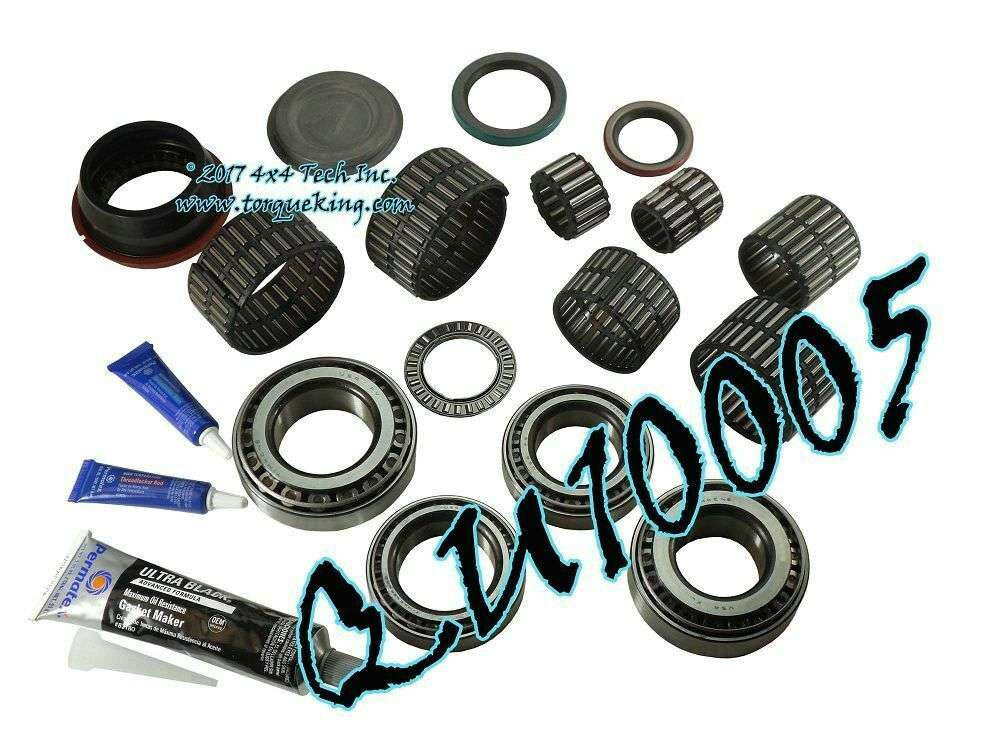

QU10005 1997-2005 Complete NV4500 Bearing and Seal Kit for Dodge

QU10005 Torque King® Premium Complete Bearing and Seal Kit for 1997-2005 Dodge NV4500 5 Speed Manual Transmissions include all original equipment quality taper, needle, roller, and thrust bearings plus countershaft, input, and output seals needed to restore your hard working 1997-2005 Dodge NV4500 4x4 or 4x2 5 speed manual transmission to like new performance. The best quality complete Bearing Kit on the market bar none. Restore critical mainshaft and countershaft end-play with genuine Timken® high performance series tapered bearings! Kit also includes RTV sealant and 2 types of Threadlocker. Contains USA and imported components. Fits 1997-2005 Dodge NV4500 Transmissions with 5.04:1 Reverse Gear Ratio.

QU10005 1997-2005 Dodge NV4500 4x4 or 4x2
Includes ALL Bearings and Seals for 1997-2005 Dodge NV4500s
Except:
NV4500LD Gas V8 4x2:
(30 Spline Output, 1-11/16" Slip Yoke OD) Order QU10005 + QU10178 Rear Seal

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Ratio Change
High Performance Bearings
Optional Gasket
Optional Seal
Tools
Parts Included
Lubricants, Sealants, Threadlockers
Matching Parts
Applications

Tech Note 1: Ratio Change
In 1997, New Venture changed the NV4500 reverse gear ratio from 5.61:1 to 5.04:1. The reverse idler gear bearings are different for the two ratios. QU10001 and QU10005 Bearing Kits are identical except for the reverse idler gear bearings. This change applies to both the NV4500LD transmissions used in gas V8 trucks and NV4500HD models found in trucks powered by Cummins Diesel or gas V10 engines.

Tech Note 2: High Performance Bearings
Six of the eight taper bearing numbers used by New Venture in the NV4500 transmission are Timken® high performance parts. While these bearings and cups are dimensionally the same as standard bearing numbers, the materials and finish are superior. The countershaft and input taper bearings/cups included in our Kits are the exact, high performance Timken® numbers specified by New Venture. These bearings can be identified by a one or two letter suffix after the base bearing part number. It is important to use the correct bearings in your NV4500 transmission as substituting standard bearings for high performance bearings will reduce the torque rating and longevity of your transmission.

Tech Note 3: Optional Gasket
QU10005 Kit includes QU10123 4x4 Rear Output Seal for 1994-2005 Dodge NV4500LD and 1994-2004 Dodge NV4500HD transmissions. 1992-1993 Dodge NV4500 4x4 transmissions did not use a rear output seal, but they do REQUIRE optional TK10519 Gasket. 1994-2005 Dodge 4x4 models did not use a gasket between the transmission and transfer case as both gearboxes are sealed, however, you can install optional TK10519 Gasket if you desire.

Tech Note 4: Optional Seal
QU10005 Kit includes QU10023 4x2 Rear Output Seal with a 2-13/64" ID for 1994-2004 Dodge NV4500HD transmissions in Cummins Diesel or gas V10 trucks. The Rear Output Seal for 1992-1993 Dodge NV4500 and 1994-2005 Dodge NV4500LD 4x2 transmissions is NOT included. You can order separately either QU10178 Unbooted Seal or QU10264 Booted Seal. Both are 1-11/16" ID.

Tech Note 5: Tools
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated NV4500 Rebuild Manual.

You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.

Tech Note 6: Included and Optional Bearings, Seals, and Parts for Dodge NV4500 Complete Bearing and Seal Kits:

Tech Note 7: Lubricants, Sealants, Threadlockers
Early production NV4500 Transmissions used an anaerobic sealant (QU90003) to seal between the main case and input bearing retainer, top cover, and rear housing. Mid-production units used anaerobic sealant just on the input retainer and RTV for everything else. Later production transmissions used black RTV Sealant (QU90006 or QU90005) for everything. Either type of sealant works fine (except the PTO covers ALWAYS should be sealed with RTV), but I prefer RTV for all components. Regardless of which sealant you use, make sure excess sealant does not block the lube access hole at the top of input retainer pilot that fits into the transmission case! Also, the threaded holes in the main case for the four retainer bolts and 12 PTO bolts are open ended, so you must use new bolts with factory applied threadlocker or apply Threadlocker (S24200) to your existing bolts to prevent oil seepage past the bolt threads. See my TM1003 NV4500 Shop Manual or VSG1003DVD NV4500 Overhaul Video for more information.

Lubricant and Chemical List for NV4500 Transmissions:
QU90020 NV4500 Manual Transmission Oil
QU90003 Anaerobic Sealant
QU90006 3.35 oz Ultra Black RTV Sealant
QU90005 0.5 oz Ultra Black RTV Sealant
S24200 6ml Medium Strength Blue Threadlocker
S9978 1 gram Medium Strength Blue Threadlocker
S9979 1 gram High Strength Red Threadlocker
S24026 High Temperature Threadlocker for Mainshaft Nut

Tech Note 8: Matching Parts
QK1104 NV4500 Mainshaft and Countershaft Thrust Washer Kit
QK1101 NV4500 Reverse Idler Gear Thrust Washer Kit
QK1098 Teflon Bearing Spacer Kit
QK1099 NV4500 Synchro Strut and Spring Kit use for 3-4, 5th, or Reverse
QK1100 NV4500 Synchro Strut and Spring Kit for 1st-2nd Synchro
QK1094 Shift Fork Pad Kit 1992-1997.5
QK1095 Shift Fork Pad Kit 1997.5-2005
QU10131 Shift Tower Boot for 1992-1997
QU10157 Shift Tower Spacer Plate for 1998-2005
QA10008 Series Countershaft Shim Kits
QA10009 Series Mainshaft Shim Kits
QK1109 NV4500 Main Case Roll Pin Kit
QU10097 Mainshaft Nut Set for 1992-1993 NV4500 and 1994-2005 NV4500LD
QU10069 Mainshaft Nut Set for 1994-2004 NV4500HD
QK1102 Lock Ring Kit
QK1103 1-2 Synchro Snap Ring Kit
QU10180 4x2 Tailshaft Bushing for 1992-2005 NV4500LD
QU10025 4x2 Tailshaft Bushing for 1994-2004 NV4500HD
TK10519 Transmission to Transfer Case Adapter Gasket
QK1136 Primary Bearing and Seal Kit for Dodge NV4500 Transmission
TK10237 Taper Bearing Only Kit
TKA1182 and QU50473 Needle Bearing Kits for 1992-1996
TKA1180 and TKA1187 Needle Bearing Kits for 1997-2007

Applications:
Dodge:
All New Venture NV4500 Transmissions: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
