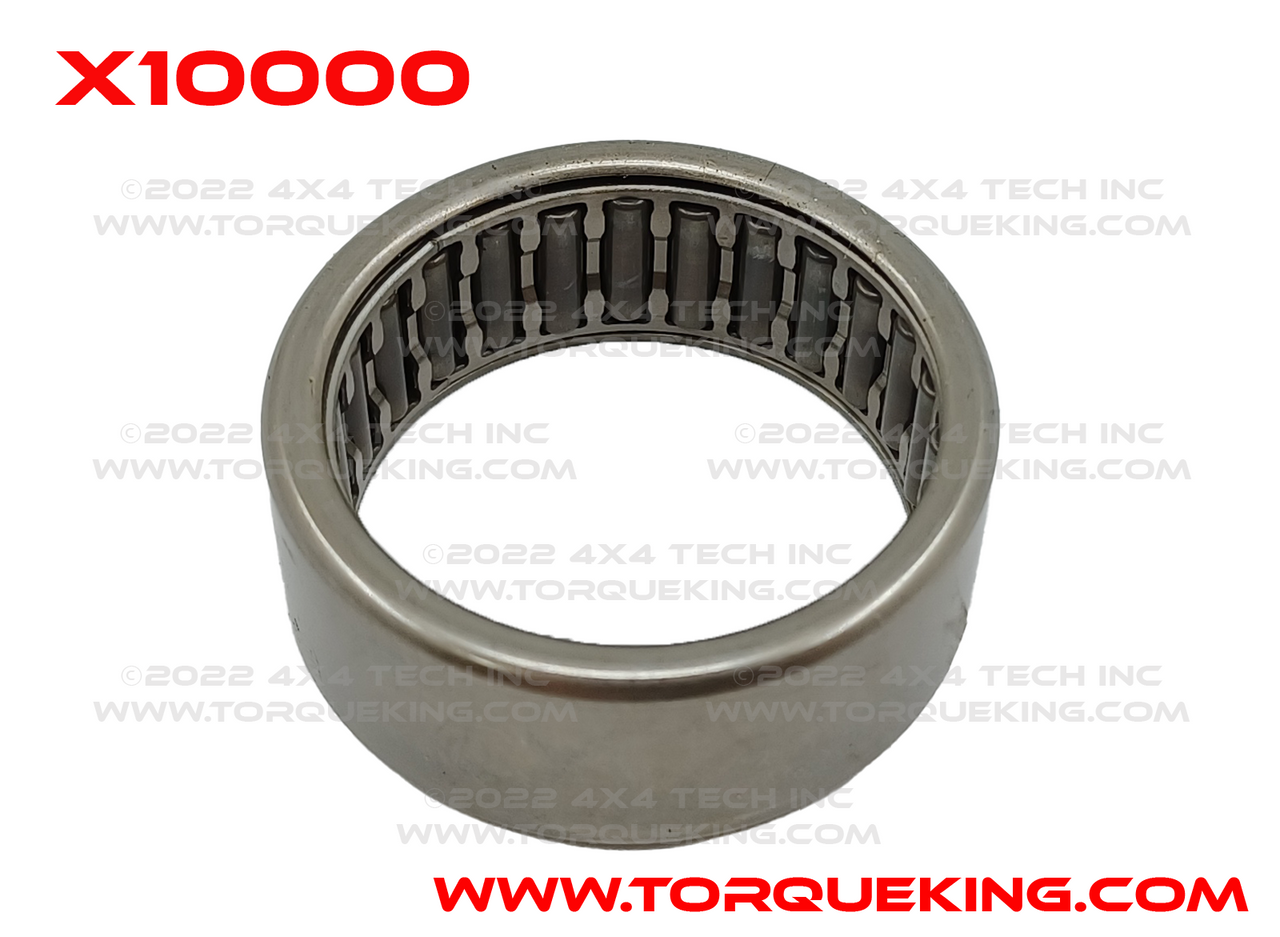

X10000 Input to Mainshaft Needle Bearing for New Process Transfer Cases

Quad 4x4
No reviews yet Write a Review
$13.98
SKU:
9910000
UPC:
198345467135
Condition:
New
Shipping:
Calculated at Checkout
In Stock & Ready To Ship!
Availability: Stocking Item, usually ships within 1-2 business days
Current Stock:Only left:

Description

X10000 Optional, Mainshaft Front Pilot Bearing is used with QU50083 Cup Type Soft Plug. Both the X10000/QU50083 combo and QU50114 1 Piece bearing were used in original equipment applications and are functionally interchangeable. This Bearing fits in the back of the input shaft to support the front of the mainshaft (rear output shaft) USA Made.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Interchangeable Bearing Options
Installation
Matching Parts for Dodge 1994-2002 NP241DHD Transfer Case
Matching Parts for Dodge 1994-2002 NP241DLD Transfer Case

Future Use
Future Use
Applications

Tech Note 1: Interchangeable Bearing Options
Some transfer cases will have this cup and X10000 bearing and some will have QU50114 one piece bearing and cup. The one piece design of QU50114 simplifies installation but it is more expensive than the combined cost of QU50083 and X10000. Both types were used in original equipment applications and are fully and functionally interchangeable.

Tech Note 2: Installation
First, clean the inside of the input shaft bearing bore. Next, to minimize the chance of any oil seepage, apply a light film of S64000 Sleeve Retaining Compound to the bearing bore and outside diameter of the cup. Install QU50083 Cup Type Soft Plug to a depth of about 9/16" below the the lead-in chamfer to the bearing bore. Wipe off any excess Sleeve Retainer from the inside of the bore. Install X10000 Bearing to flush with, or just below the lead-in chamfer of the input shaft. When properly installed, the bearing will contact QU50083 cup and push it in slightly deeper than it was originally set.

Tech Note 3: Matching Parts for Dodge 1994-2002 NP241DHD Transfer Cases
Exploded View XV4000 1994-1996.5 Dodge Ram NP241DHD Transfer Case
Exploded View XV4001 1996.5-1997 Dodge Ram NP241DHD Transfer Case
Exploded View XV4003 1998-2002 Dodge Ram NP241DHD Transfer Case
QU11039 Planetary Lock Plate
QU50873 Input Ball Bearing, 15/16" Thick
QU10814 Snap Ring, Input to Planetary
QU10857 Input Seal
QU10572 Input Shaft to Planet Thrust Washer (uses 2)
QU50494 Planetary Assembly, most 1994-1996 NP241DHD and all 1997-2002
QU50150 Range Sliding Sleeve
QU10893 Input Shaft Snap Ring
Mopar® 68218057AB ATF+4 Transfer Case Fluid, Requires 3-1/4 Quarts to Fill

Tech Note 4: Matching Parts for Dodge 1994-2002 NP241DLD Transfer Cases
Exploded View XV4002 1994-1997 Dodge Ram NP241DLD Transfer Case
Exploded View XV4004 1998-2002 Dodge Ram NP241DLD Transfer Case
QU11039 Planetary Lock Plate
QU50873 Input Ball Bearing, 15/16" Thick
QU10814 Snap Ring, Input to Planetary
QU10857 Input Seal
QU10572 Input Shaft to Planet Thrust Washer (uses 2)
QU50153 Planetary Assembly, most 1994-1996 NP241DLD and all 1997-2002
QU50152 Range Sliding Sleeve
QU10893 Input Shaft Snap Ring
Mopar® 68218057AB ATF+4 Transfer Case Fluid, Requires 2.31 Quarts to Fill

Tech Note 5: Future Use
Future Use

Tech Note 6: Future Use
Future Use

Applications:
(Incomplete, more will be added as time permits)

Chevy/GMC:
NP241 Transfer Cases
NP263 Transfer Cases

Dodge:
NP241DLD Transfer Cases: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
NP241DHD Transfer Cases: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
