QK3010 1310 Greaseable CV Rebuild Kit with Replacement CV Ball & Socket

QK3010 1310 Series Greaseable CV Rebuild Kit with Replacement CV Ball and Socket fits many popular 1967-1986 4x4 vehicles with Spicer 1310 x 1310 Double Cardan Constant Velocity Driveshafts including 1969-1977 Blazer/Jimmy/Pickup, 1975 Dodge,1970-1978 Ford Bronco, 1974-1979 Ford F-Series, and 1971-1986 Jeeps. QK3010 Kit includes 3 greaseable 1310 Series USA made universal joints, CV Ball/Socket, CV Ball Seal, and threadlocker for the CV attaching bolts.

Also See:
QK3047 1310 CV Joint Rebuild Kit with 2 Greaseable U-Joints and Greaseable CV Centering Yoke
QK3048 1310 CV Joint Rebuild Kit with 2 Greaseable U-Joints plus Replacement CV Ball and Socket
QK3008 Greaseable 1310 CV Driveshaft Rebuild Kit with 3 Greaseable U-Joints CV Centering Yoke
TK3049 1310 CV Joint Rebuild Kit with 2 Torque King® U-Joints and Greaseable CV Centering Yoke (No longer available)
TK3061 1310 CV Driveshaft Rebuild Kit with 3 Torque King® U-Joints and Greaseable CV Centering Yoke

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Kit Components
U-Joint Specs
Centering Yoke Kits
Tool
Ball Stud Tube Yoke
Includes
Greaseable
1987-1994 Jeeps
Modified/Replaced Driveshaft
Tech Help
Matching Parts
Applications

Tech Note 1: Kit Components

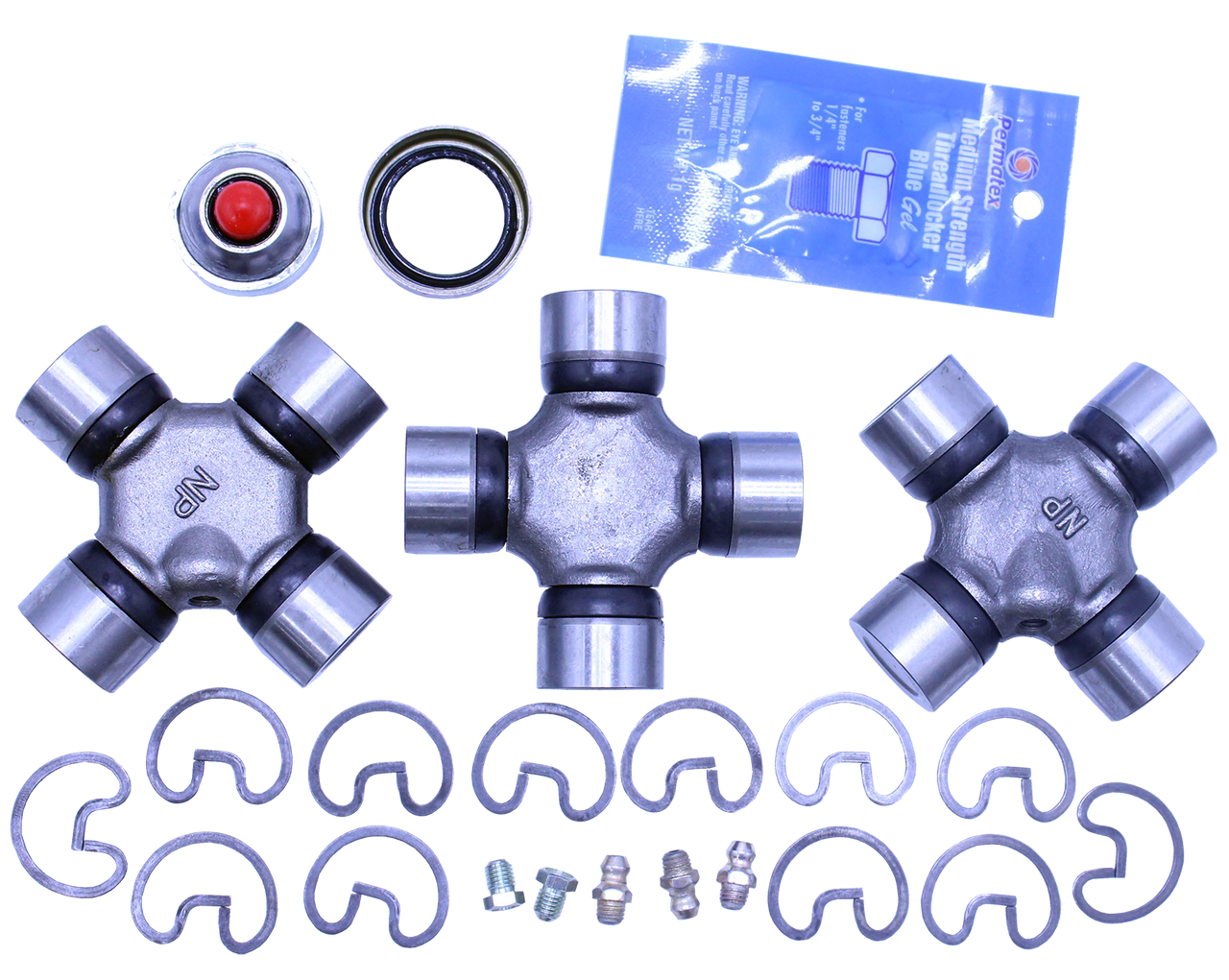

QK3010 1310 Series CV Rebuild Kit includes:
(3) QU40784 Greaseable Universal Joints
(2) QU40780 Cup Type Zerk Fittings for the 2 u-joints in the CV Head
QU40743 Replacement CV Ball and Socket Kit for YOUR Greaseable CV Centering Yoke Casting
S9978 Threadlocker

Tech Note 2: U-Joint Specs
QK3010 Kit fits greaseable, 1310 x 1310 Spicer type Double Cardan Constant Velocity Driveshafts with 3 external snap ring universal joints made to Spicer 1310 series specifications. The u-joint cup diameter is 1-1/16". The overall width is 3-7/32".

Tech Note 3: Centering Yoke Kits
If your CV Flange casting is OK, you can save money by replacing just the worn ball and seat with this Kit. Be advised you will need a 1"-1¼" blind hole bearing puller to remove the old seat and a hydraulic press for installation. We also have QK3008 and TK3061 Kits available which include the CV centering yoke with factory installed Ball and Seat Kit.

Tech Note 4: Tool
Installing this CV Kit can be challenging unless you have an install tool. A good, makeshift tool to use to press against the Socket. is your old, worn out socket without the ball.

Tech Note 5: Ball Stud Tube Yoke
To successfully rebuild your CV driveshaft with this Kit, the 1/2" diameter stud on your Ball Stud Tube Yoke MUST be in good shape. If it is not, the bearing rollers contained inside the CV Ball of your new centering kit will either fall out or break apart in short order. Besides having your 4x4 broke down again, this type of failure is something we can NOT replace under warranty. Another fairly common no warranty problem is to break a needle bearing by inadvertently dislodging one or more needles during assembly and then forcing the yoke into place.

Tech Note 6: Includes
QK3010 CV Rebuild Kit now includes two QU40780 Cup Type Grease Fittings for the two u-joints in the CV Head. These fittings provide more clearance to access the grease fittings once your shaft is installed in your 4x4.

Tech Note 7: Greaseable
QK3010 fits 1994 and earlier 1310 series CV driveshafts that originally had a greaseable CV centering yoke. We do not recommend you use this kit to replace a non-greaseable centering yoke due to possible interference issues caused by differences in the greaseable and nongreaseable Ball Stud Tube Yoke Deflector or Seal.

Tech Note 8: 1987-1994 Jeeps
For 1987 to 1994 Jeeps, you need to verify if your original CV Centering Kit is greaseable or not greaseable. While most greaseable Jeep CV joints of this era will have a lube access hole in the center H Yoke, you may also find some non-greaseable shafts with the same yoke. The real determining factor is if the Ball Stud Tube Yoke has a steel or rubber splash shield/seal. Greaseable Type Shafts have QU40341 steel Splash Shield while non-greaseable shafts use QU40704 outer rubber Dust Seal.

Tech Note 9: Modified/Replaced Driveshaft
Given the age of the vehicles that originally had Greaseable Spicer 1310 CV driveshafts, it is not unusual to find the original CV shaft has been replaced or modified with non-stock parts. If you believe your driveshaft has been modified/replaced with non-stock parts OR the description of our Kit parts does not match what is on your shaft, contact us. We can usually figure out what you have if you send us some photos.

Tech Note 10: Tech Help
Need help with disassembly or assembly? Constant Velocity service procedures are covered in my TM3000 Driveshaft and Universal Joint Manual or TSB3503 Spicer Style External Snap Ring Constant Velocity Service.

Tech Note 11: Matching Parts
Matching Parts for QK3010 CV Rebuild Kit:
QU40801 1310 Series CV Center H Yoke
QU50619 32 Spline 1310 CV Output Yoke for NP205 Transfer Case
QU40511 10 Spline 1310 CV Output Yoke for some Early NP203, NP205C Transfer Cases
QU40423 Hardened Hex Head Bolt to Attach CV Yoke to Transfer Case Yoke
QU40341 Steel Splash Shield for Ball Stud Tube Yoke
QU95105 5/16" Certified Grade 8 USA Made Split Lockwasher for QU40423 Yoke Bolt
QU40785 6" Long x 16 Spline 1310 Series Slip Yoke
QU40753 6-7/8" x 16 Spline 1310 Series Slip Yoke
QU40927 8-7/8" Long x 16 Spline 1310 Series Slip Yoke
QU40849 26 Spline Dana 44 1310 Series Pinion Yoke
QU40847 29 Spline Dana 60, Dana 61, Dana 70 1310 Series Pinion Yoke
QU50813 30 Spline Pinion Yoke for GM 10 Bolt, 8.5" Front or Rear Axles
QU90018 Pyroplex® Plus Synthetic Grease
For U-Joint Service Tools, See our U-Joint Tools Web Page.

Applications

Chevy and GMC:
Blazer, Jimmy, Suburban, 1/2 and 3/4 Ton Truck: 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, to early 1976
Blazer, Jimmy, Suburban, 1/2 and 3/4 Ton Truck with Spicer 1310 Series Front CV Driveshaft: 1977, 1978

Dodge:
With Spicer Double-Cardan Front CV Driveshaft: 1974, 1975, 1975.5

Ford:
Bronco Front and Rear CV Drive Shafts: 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
F-100 Front CV Drive Shafts: 1974, 1975, 1976
F-250 with NP203 Transfer Case Front and Rear CV Drive Shafts: 1974, 1975, 1976, 1977, 1977.5
F-150 Front and Rear CV Drive Shafts: 1976
F-150 with Front and/or Rear Spicer 1310 x 1310 Series CV Drive Shafts: 1977, 1978
Bronco with Front and/or Rear Spicer 1310 x 1310 Series CV Drive Shafts: 1978

Jeep:
Wagoneer and J-Series Truck Front CV Drive Shafts: 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Cherokee Front CV Drive Shafts: 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
CJ-7 Front CV Drive Shafts: 1974, 1975, 1976, 1977, 1978, 1979
Cherokee, Comanche, XJ Wagoneer with Spicer 1310 Series Greaseable Front CV Driveshaft: 1984, 1985, 1986
