Description

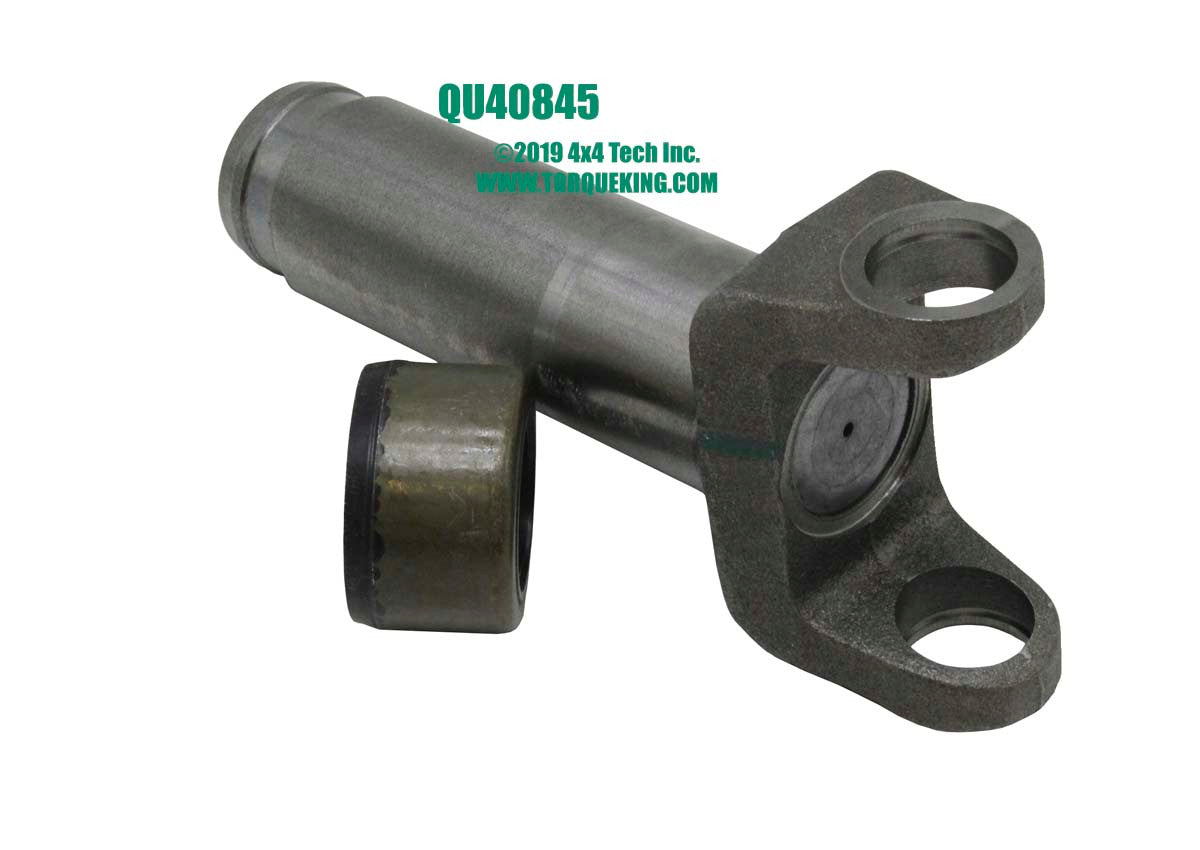

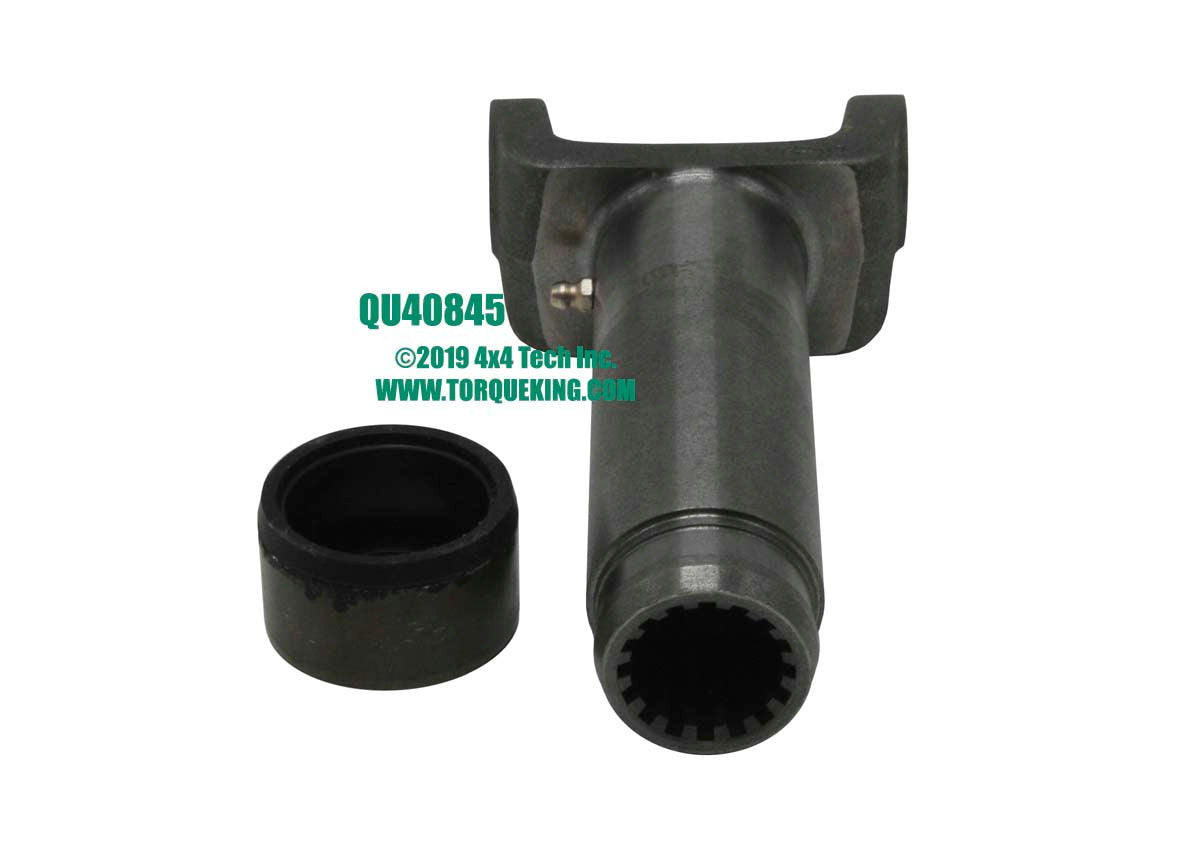

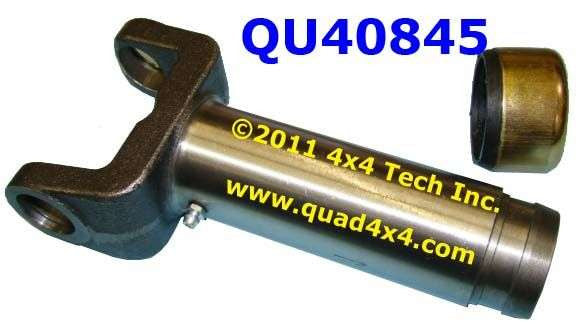

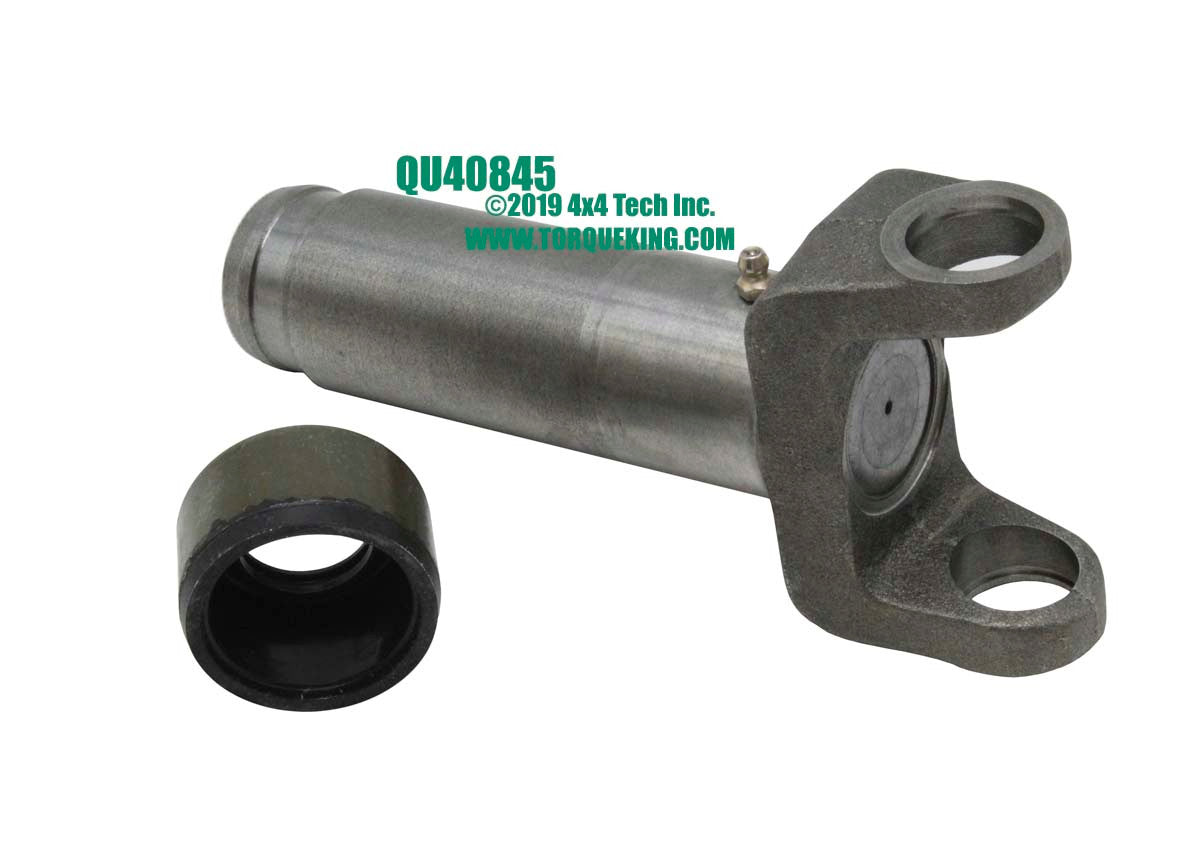

QU40845 Greaseable, Long Reach 1330 Series 16 Spline Slip Yoke is used for both Ford original equipment slip yoke replacement applications and as a part of the new 16 spline slip joint set when replacing both the slip stub and yoke on numerous other vehicles that take 1330 or 1330 conversion universal joints. Includes press on seal.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
QU40845 Specs
Matching Slip Stub
Seal Installation
In Phase
Matching Parts
Applications
Tech Note 1: QU40845 Specs
QU40845 Slip Yoke takes external snap ring type universal joints made to Spicer 1330 series dimensional specifications. The u-joint cup diameter is 1-1/16". The overall width is 3-5/8". For greaseable 1330 u-joints, see QU40774, for Torque King® u-joints, see TK40721. Most 1978 and later Ford applications that used this yoke as original equipment on one piece driveshafts will use a special 1330F u-joint that has two 1-1/16" diameter cups for the slip yoke and two 1-1/8" diameter cups to fit the end yoke. For greaseable 1330F u-joints, see QU40776, for Torque King® u-joints, see TK40723.
Tech Note 2: Matching Slip Stub
QU40845 typically mates to 16 spline slip stubs that have 1.375" outside diameter partial length splines (spline length is usually 2.25" to 3"). The yoke measures 7-1/2" from the center of the u-joint hole to the end of the spline.
Tech Note 3: Seal Installation
Install the press-on seal BEFORE trying to install the Slip Yoke on the splined slip stub.
Tech Note 4: In Phase
The Slip Yoke and weld Yoke at the opposite end of the tube MUST be in phase (See TM3000 Driveshaft Manual).
Tech Note 5: Matching Parts
Matching Parts for QU40845 Slip Yoke:
QU40774 and TK40721 1330 series Universal Joints
QU40776 and TK40723 1330F series Universal Joints
QU40618 Greaseable Press-On Slip Yoke Seal
QU40740 16 Spline Slip Stub for 2" Front CV Driveshafts in full size 4x4s to 1993
QU90018 Pyroplex® Protection ES NLGI #2 GC-LB Water Resistant Synthetic Grease
Tech Note 6: Matching Parts
Numerous Ford and Conversion Applications
