Description

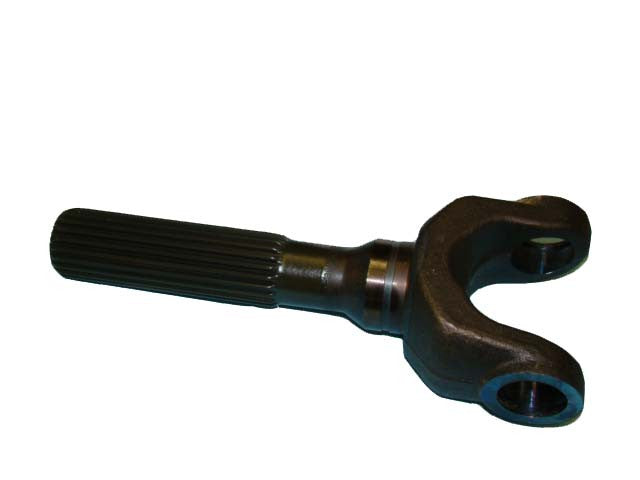

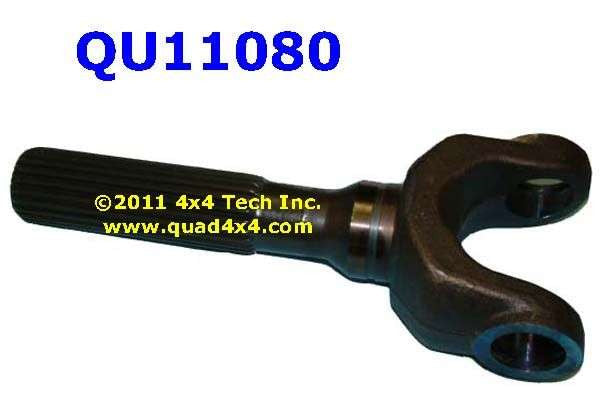

QU11080 Dodge Ram Front CV Driveshaft 1350 Series Splined Yoke Shaft is a genuine original equipment part that was first used in some 2006 to 2009 Ram 2500, Ram 3500 trucks, and is was used on all the 2010-2013 TYPE 2 Cummins Diesel Dodge Ram 2500, Ram 3500 4x4 1350 series front Double Cardan Constant Velocity driveshafts. Takes 1350 series u-joint with external snap rings. (1-3/16" cap size, 3-5/8" overall installed width) Made in China.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Before Installing
Matching Parts
Applications
Tech Note 1: Before Installing
This Splined Yoke is designed to be used with a protective boot so it does not have provisions for lubricating it after it is installed. You MUST coat the splines of the yoke and female slip sleeve with QU90018 Pyroplex® Plus Synthetic Grease or other quality, water resistant NLGI #2 GC-LB grease during assembly.
Tech Note 2: Matching Parts
Exploded View XV508 2003-2013 Ram 2500 and Ram 3500 Front CV Driveshaft
QU10806 Grade 8 Driveshaft Bolt
QU40803 CV Flange Yoke
QU40829 CV Ball Seal
QU40835 CV Joint Tension Spring
QU40744 CV Ball and Seal Kit
TK40719 Premium 1350 Series U-Joint
QU40731 Greaseable 1350 Series U-Joint
QU40800 1350 Series CV Center Yoke
QU40704 CV Joint Ball Seal
QU40810 Greaseable Ball Stud Tube Yoke
TK11386 Premium 1350 Front CV Head with Greaseable Ball
QU40846 Greaseable 1350 Front CV Head
QU40832 2.5" x 0.095" Driveshaft Tubing
TK40985 Slip Joint Assembly
QU11051 Boot Clamp
QU11382 Boot with Clamps
QU11052 Front CV Flange Yoke
QU70008 Hex Head Bolt, Driveshaft to Axle Flange
TK3108 Master Rebuild Kit
QK3114 Custom Rebuild Kit
Applications
Dodge:
some Ram 2500, Ram 3500 trucks: 2006, 2007, 2008, 2009
Ram 2500, 3500 TYPE 2 Cummins Diesel 4x4 with Double Cardan CV driveshafts: all 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
