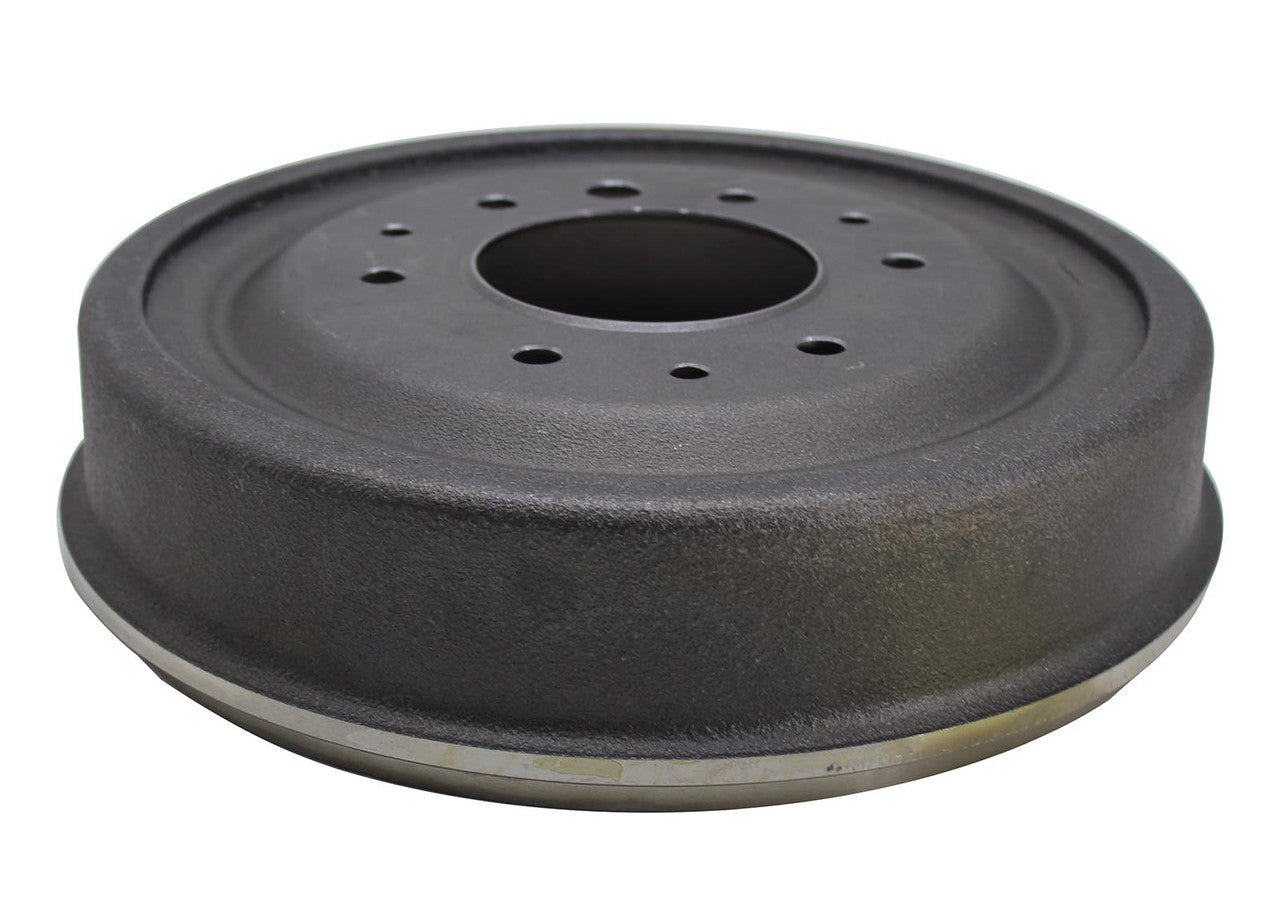

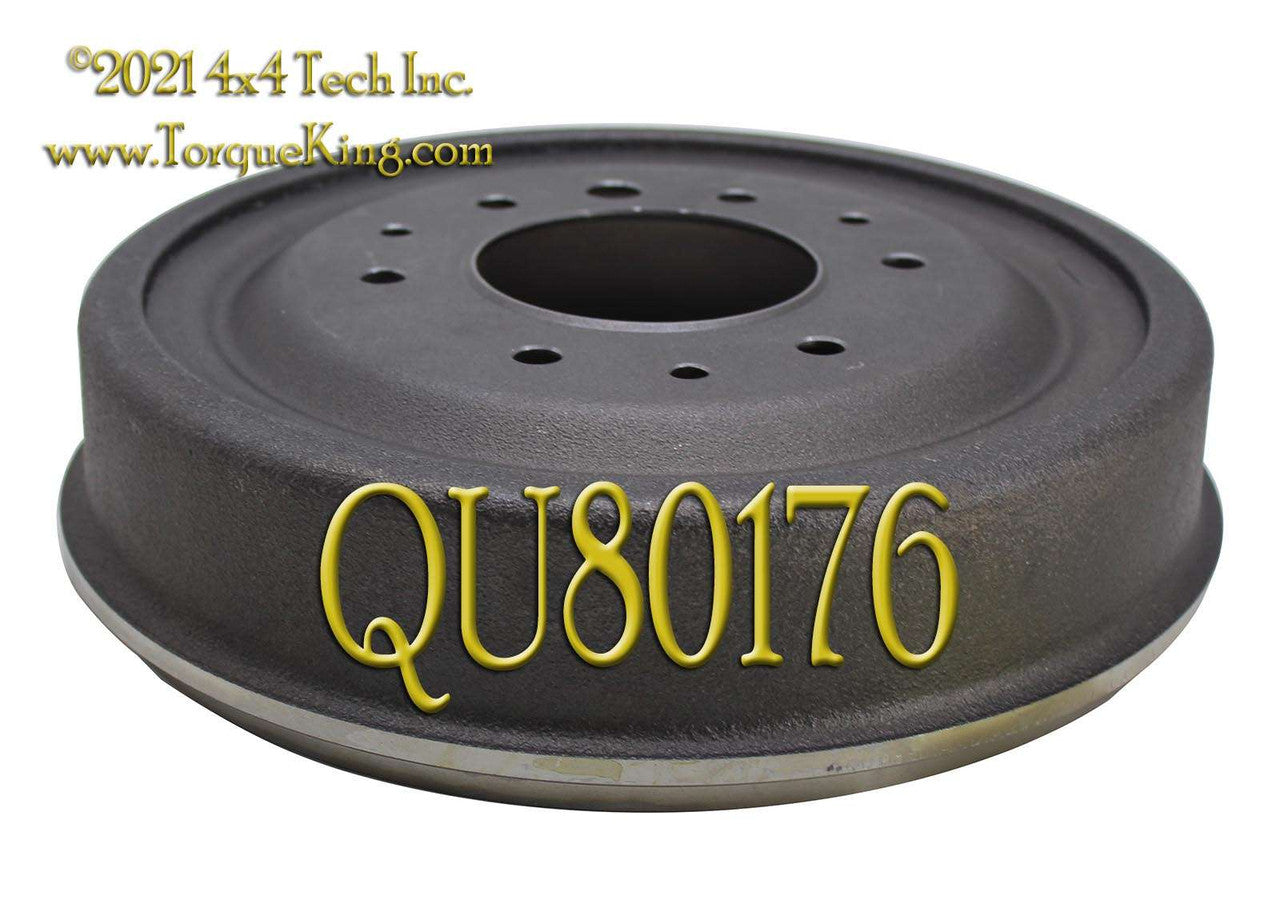

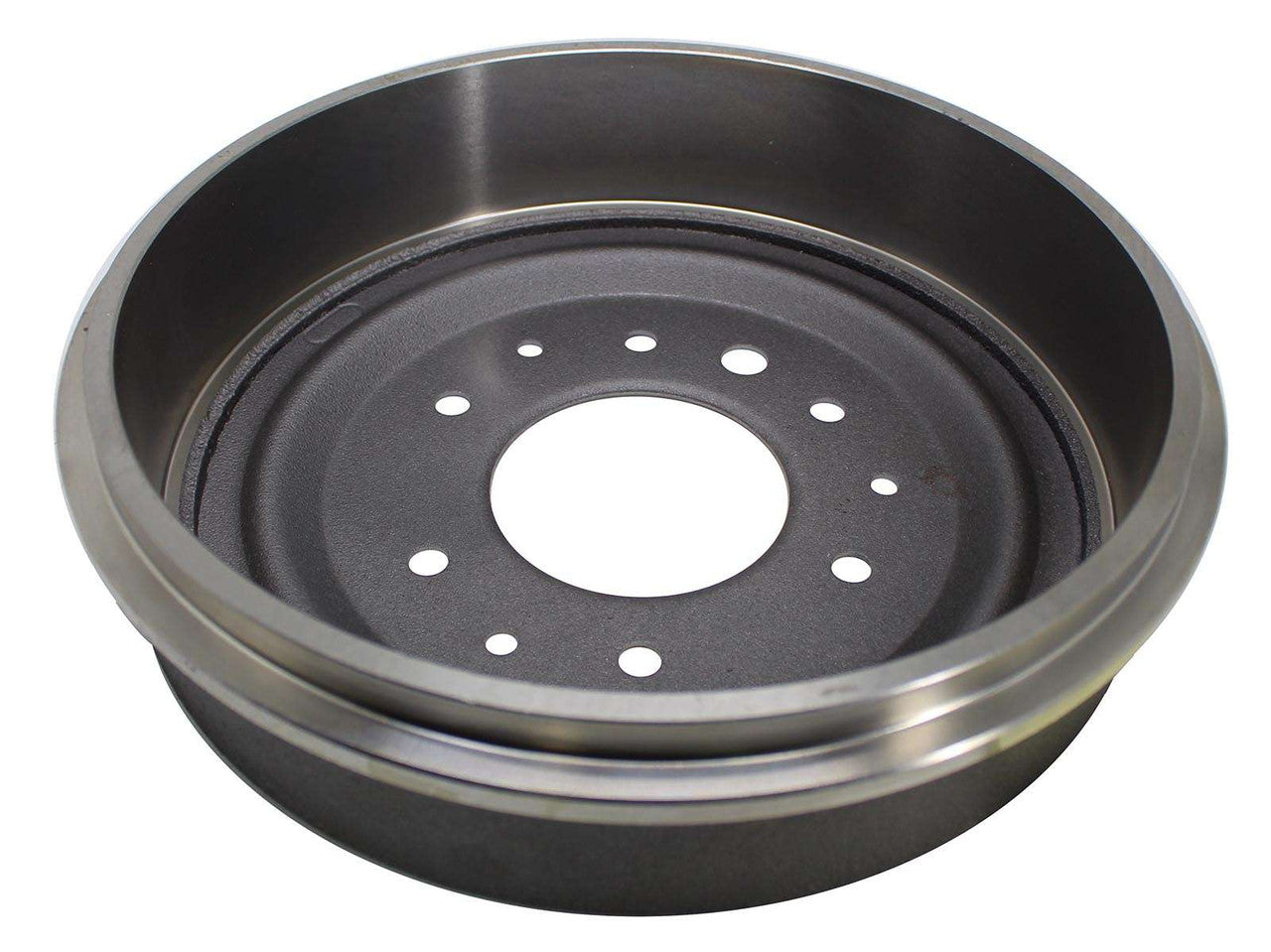

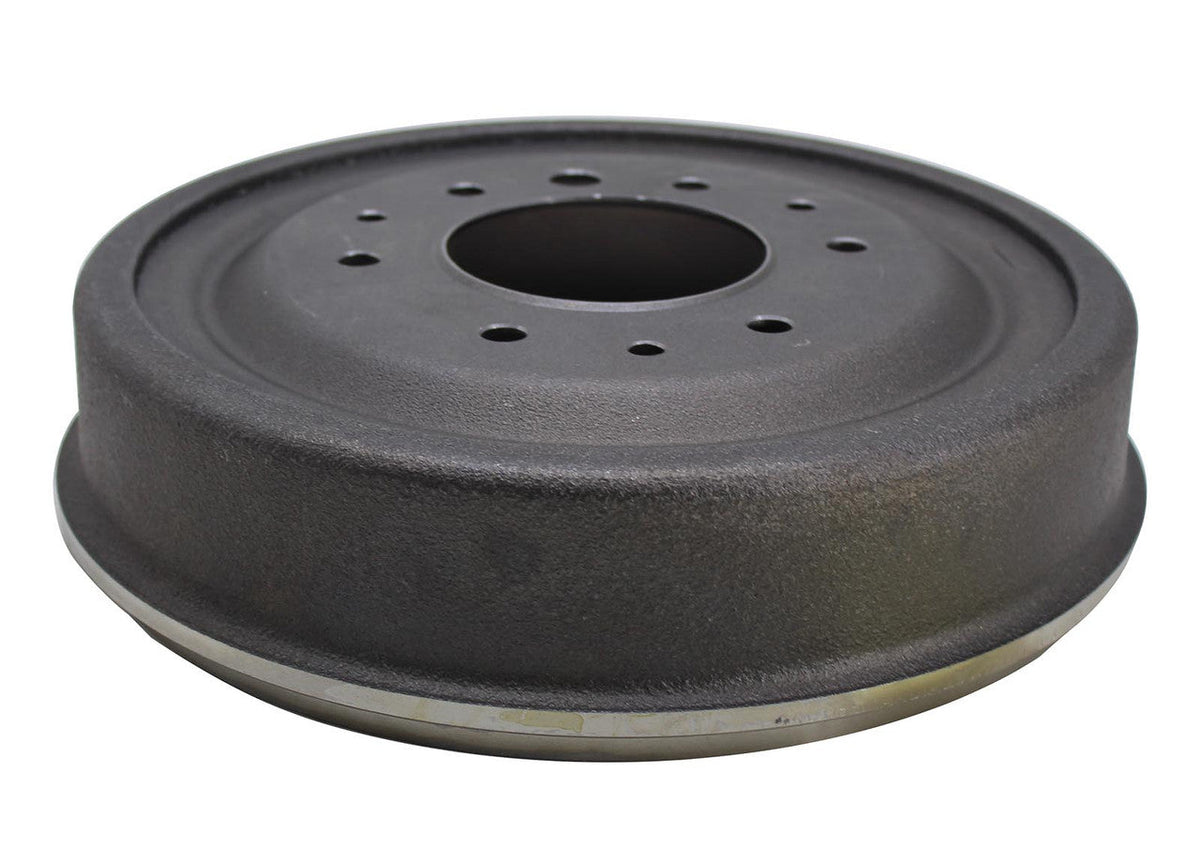

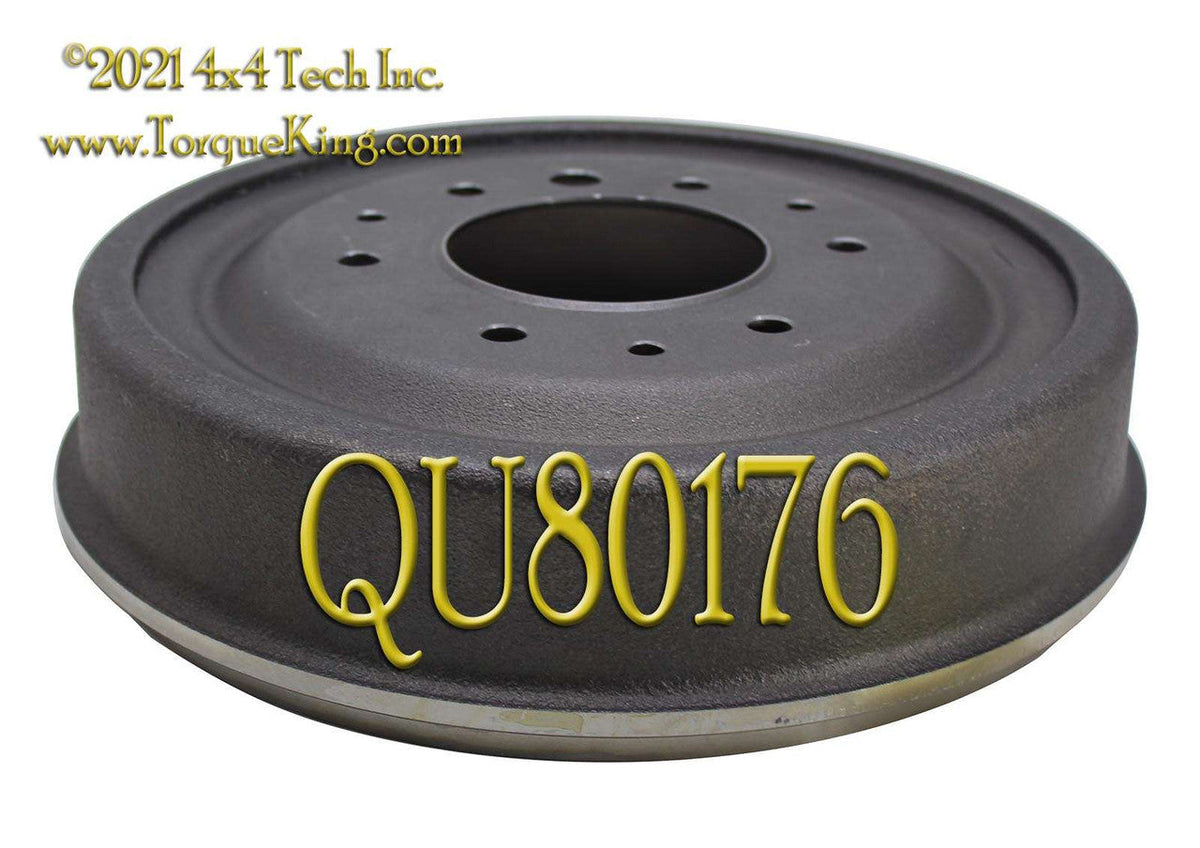

QU80176 11x2 Front Brake Drum for GM and Jeep

QU80176 11x2 Front Brake Drum for GM and Jeep trucks.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Specs
Matching Parts
Applications

Tech Note 1: Specs
Brake Drum Thickness: 3.05"
Inside Diameter: 11"
Number of Mounting Holes: 6
Outside Diameter: 12.37"
Pilot Diameter: 90.56mm

Tech Note 2: Matching Parts
QU80126 1-1/8" Right Front Wheel Cylinder
QU80127 1-1/8" Left Front Wheel Cylinder
QU80128 Bleeder Screw
QU8096030 5/16-18 Grade 8 Coarse Thread Hex Head Bolt
QU80129U Used Push Rod for Wheel Cylinders
QU80177 11x2 Front Brake Shoes
QU80133U Used Brake Shoe Guide Plate
QU80158 Drum Brake Hold Down and Spring Kit
QU80159 Right Self Adjuster Kit
QU80160 Left Self Adjuster Kit
QU80150 Front Brake Hose, 1969-1970 GM

Applications:(Applications Incomplete)

GM:
Dana 44 Closed Knuckle Front Axles: 1967, 1968, 1969
