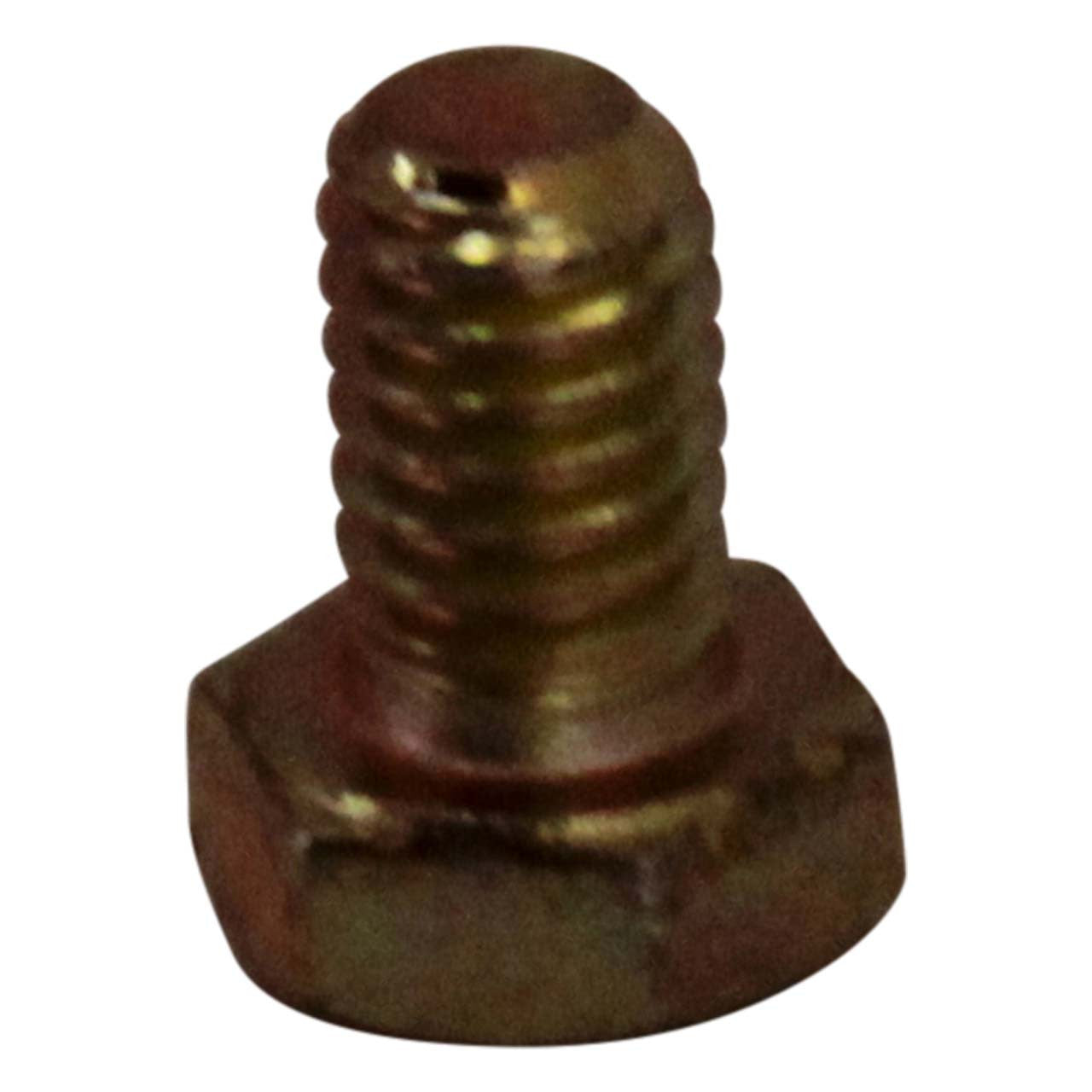

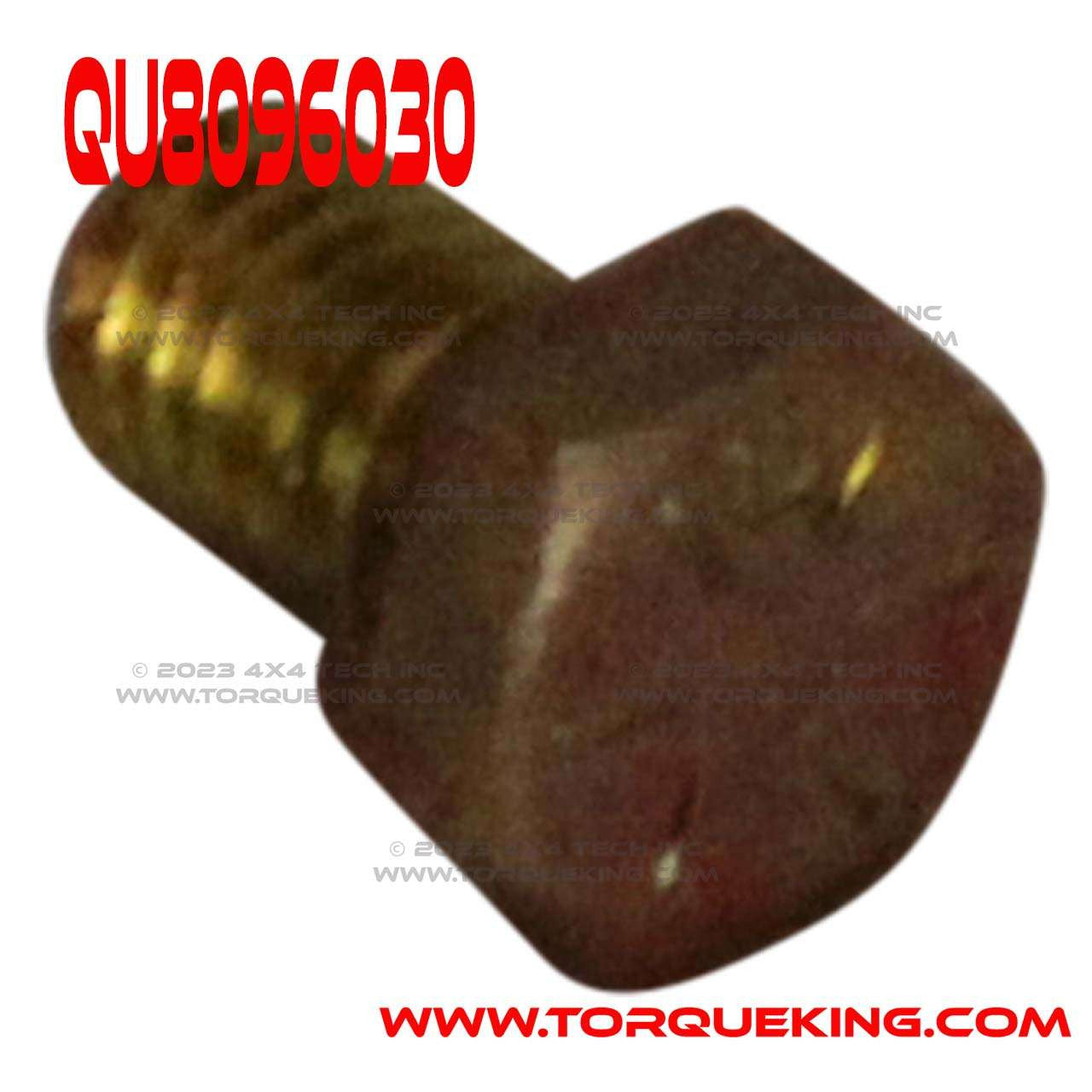

QU8096030 5/16-18 x 1/2 UNC Grade 8 Coarse Thread Hex Head Bolt

QU8096030 5/16-18 x 1/2 USA Made Grade 8 Coarse Thread Hex Head Bolt is a USA made hardened Bolt for multiple applications. On 4x4s, SUVs, and Light Trucks, QU8096030 is most commonly used along with QU90055 5/16" Star Washer to secure Drum Brake Wheel Cylinders to Brake Backing Plates for both front and rear axles.

• Made of heat treated alloy steel
• Tensile strength: minimum 150,000 psi
• Cold rolled, Class 2A threads, washer faced, machine pointed
• Rockwell hardness: C32-38
• Meets SAE J429 Grade 8, ASTM A354 and ANSI B18.2.1 specifications
• Yellow zinc plated for corrosion resistance
• Mil Spec Equiv.: UNC - NASM90728
• Size: 5/16-18 x 1/2
