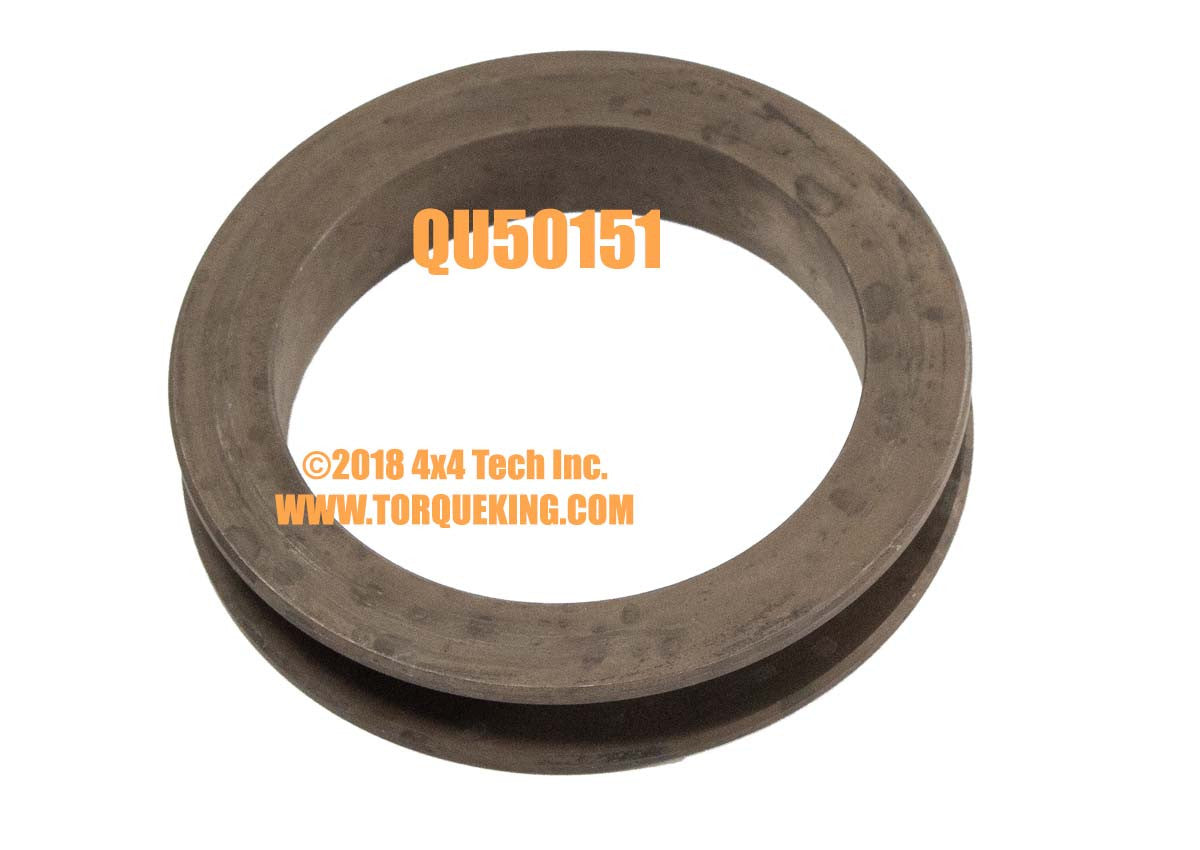

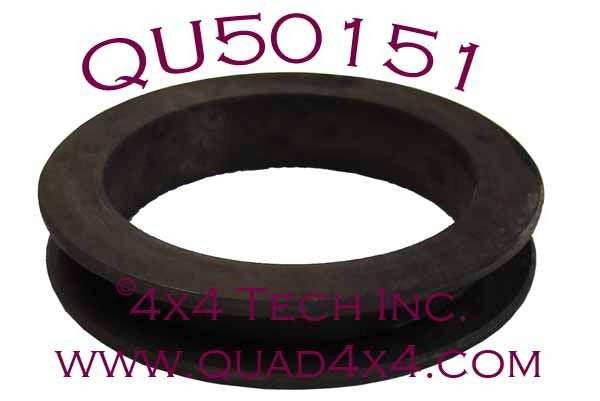

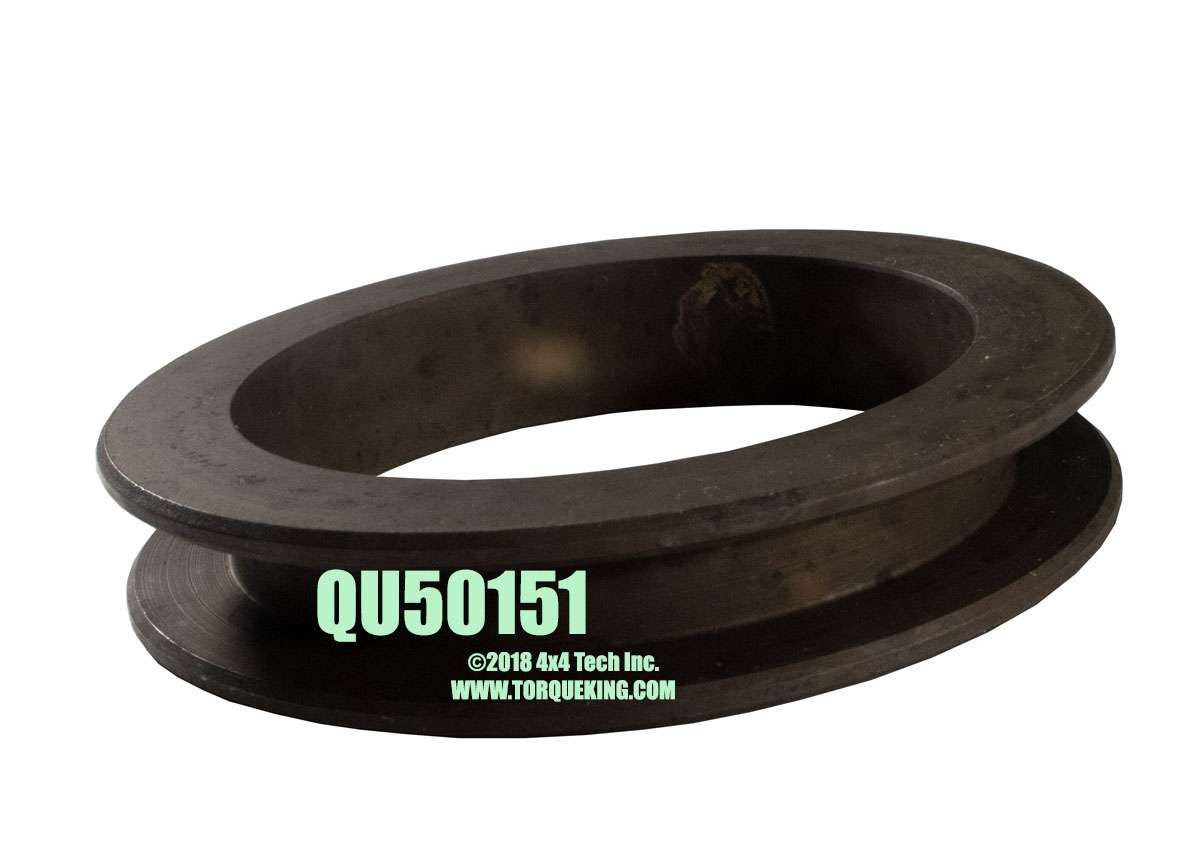

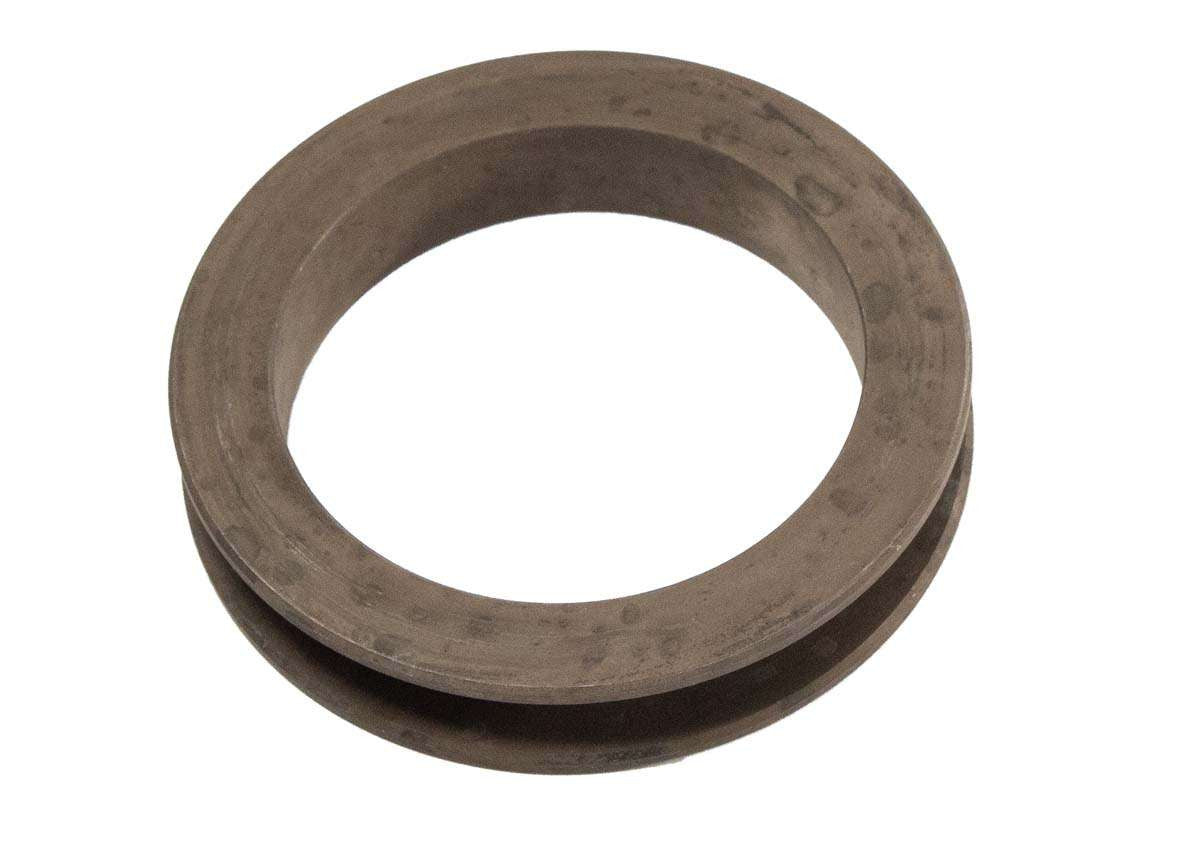

QU50151 NP241DHD Transfer Case Shift Fork Hub

QU50151 Transfer Case Shift Fork Hub is one of the most common NP241DHD hard parts needing replacement in cases where the transfer case is jumping out of gear or there are lubrication problems. QU50151 Shift Fork Hub rides on the Range Sleeve QU50150. It is retained by QU50080 Snap Ring. Genuine New Process Gear original equipment replacement part. QU50151 Shift Fork Range Hub fits all 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, and 2002 Dodge Ram 2500 4x4 trucks with NP241DHD transfer cases plus all 1994, 1995, 1996, and 1997, 1998, 1999, 2000, 2001, and 2002 Dodge Ram 3500 4x4 trucks with NP241DHD Transfer Cases. USA Made.

Also See: QU50151U Used Shift Fork Hub available while supplies last

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Matching Parts
Applications

Tech Note 1: Matching Parts
Exploded View XV4000 1994-1996.5 Dodge Ram NP241DHD Transfer Case
Exploded View XV4001 1996.5-1997 Dodge Ram NP241DHD Transfer Case
Exploded View XV4003 1998-2002 Dodge Ram NP241DHD Transfer Case
QU11039 Planetary Lock Plate
QU50873 Input Ball Bearing, 15/16" Thick
QU10814 Snap Ring, Input to Planetary
QU10857 Input Seal
QU10572 Input Shaft to Planet Thrust Washer (uses 2)
QU50494 Planetary Assembly, most 1994-1996 NP241DHD and all 1997-2002
QU50150 Range Sliding Sleeve
QU11047 Range Sliding Sleeve
QU10893 Input Shaft Snap Ring
QU50201 Planetary Bearing
QU50080 Retaining Ring

Applications
Dodge:
NP241DHD Transfer Cases in Ram 2500 and Ram 3500 trucks: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
