D441975 Ring Gear Bolt, Pinion Nut, Pinion Washer Set, D30, D44
Non-Stock Special Order 3-5 Days
Description
D441975 Ring Gear Bolt, Pinion Nut, and Pinion Washer Set is an exact fit, Grade 9, genuine Dana-Spicer replacement part for most Dana 44 axles from the mid-1970's on. It also fits most Dana 30 and some Dana 35 axles. The ring gear bolts, have a serrated inner face resists loosening better than smooth-faced, aftermarket or first design Dana original equipment bolts. The bolts have locking teeth under the hex head to prevent loosening under any load conditions. QU40209 also works great for retrofitting older axles in place of the original bolt as long as you use torque spec given below. USA Made.

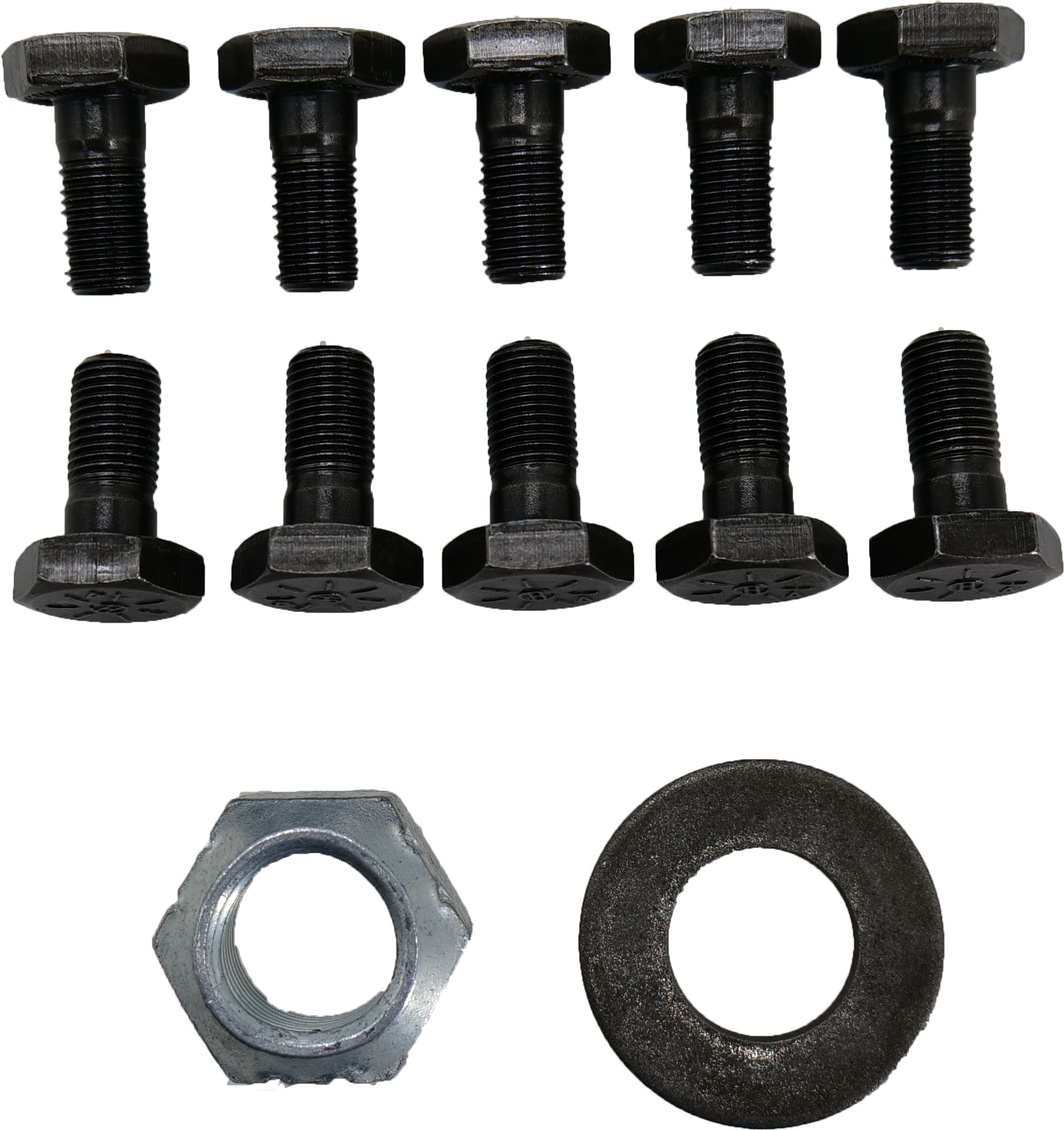

Kit Includes:
10 QU40209 Ring Gear Bolts
QU40009 Pinion Nut
QU40010 Pinion Washer
Dan The Gear Man® Safety Note: Ring Gear Bolts and Pinion Lock Nuts are designed for a single use. They must be replaced after they are removed!!!
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Single Use Only
Factory Torque
Threadlocker
Matching Parts
Applications
Tech Note 1: Single Use Only
For your safety, always replace Ring Gear Bolts!! They are designed for a single use. They must be replaced after they are removed!!!
These lock nuts are designed to be used only once. The locking ability of the nut is at its maximum on the initial installation. When setting up an axle, I use the old nut until the pinion depth and pinion preload is set. I then apply medium strength Threadlocker (see S9978, S24200) to a new nut and install it with a 1-1/8" socket. See my color illustrated Technical Manual TM4400 Pinion and Differential Bearing Service on Dana-Spicer Monobeam Axles or your Factory Shop Manual for the correct torque or tightening procedure.
Tech Note 2: Factory Torque
The factory recommended torque for QU40209 Bolt is 80-85 lb.-ft. (108-115 N-m). Tighten Bolts in a Crisscross pattern.
Tech Note 3: Threadlocker
Apply 242 Blue Threadlocker to the Bolt threads before installation.
Tech Note 4: Matching Parts
Exploded View XV1085 1976-1977 Ford F-100/F150 Dana 44 Front Axles
Exploded View XV1084 1978-1979 Ford Bronco, F150 Regular Cap Dana 44 Front Axles
QU40002 Outer Pinion Slinger
QU40448 Inner Pinion Cup Oil Baffle
QU40028 Inner Pinion Bearing Slinger
QU40214 Dana 44 Cover Gasket
QU42028 Reusable Dana 44 Cover Gasket
S82194 RTV Sealant
QU40311 Dana 44 Differential & Pinion Shim Kit
QU40215 Dana 44 Pinion Seal for 1950's-1990's axles using shims for pinion bearing preload
Front Inner Axle Seals will vary by year/model, see our axle specific main page
QT1044 Inner Pinion Bearing Installer
QT1812 Outer Pinion Bearing Cup Installer
QT1818 Inner Bearing Cup Installer
QT1032 Differential Case Spreader
Applications:
Chevy/GMC Front Axle:
Dana 44 Closed Knuckle: 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969
Dana 44HD Closed Knuckle: 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969
Dana 44 Open Knuckle: 1969, 1970, 1971, 1972
Dana 44 Open Knuckle: 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
Dodge Front Axle:
Dana 44 Closed Knuckle: 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971
Dana 44HD Closed Knuckle: 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971
Dana 44 Open Knuckle: 1972, 1973, 1974, 1975
Dana 44 Live Spindle: 1974, 1975, 1976, 1977, 1978, 1979
Dana 44 Open Knuckle: 1980, 1981, 1982, 1983, 1984
Dana 44 Open Knuckle and Central Axle Disconnect: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Ram 1500 Dana 44: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Ram 2500 Dana 44: 1994, 1995, 1996, 1997
W150 with Dana 44 1978
Ford Front Axle:
Dana 44 Closed Knuckle: 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
Dana 44HD Closed Knuckle: 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
Bronco, F-100, F-150 Dana 44 Open Knuckle: 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
F-250 Dana 44 Open Knuckle: 1976, 1977, 1978, 1979
Dana 35IFS: 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
IHC Front Axle:
Dana 44 Closed Knuckle: 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
Dana 44HD Closed Knuckle: 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Dana 44 Open Knuckle: 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
IHC Rear Axle:
Dana 44: 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Jeep Front Axle:
Dana 44 Closed Knuckle: 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973
Dana 44 Open Knuckle: 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
JK Series Dana Super 30: 2007-Up
Jeep Rear Axle:
CJ Dana 44: 1972, 1973, 1974, 1975, and 1986
J-Series Dana 44: 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
SUV Dana 44: 1986-Up
