QT1818 Taper Bearing Cup Installer

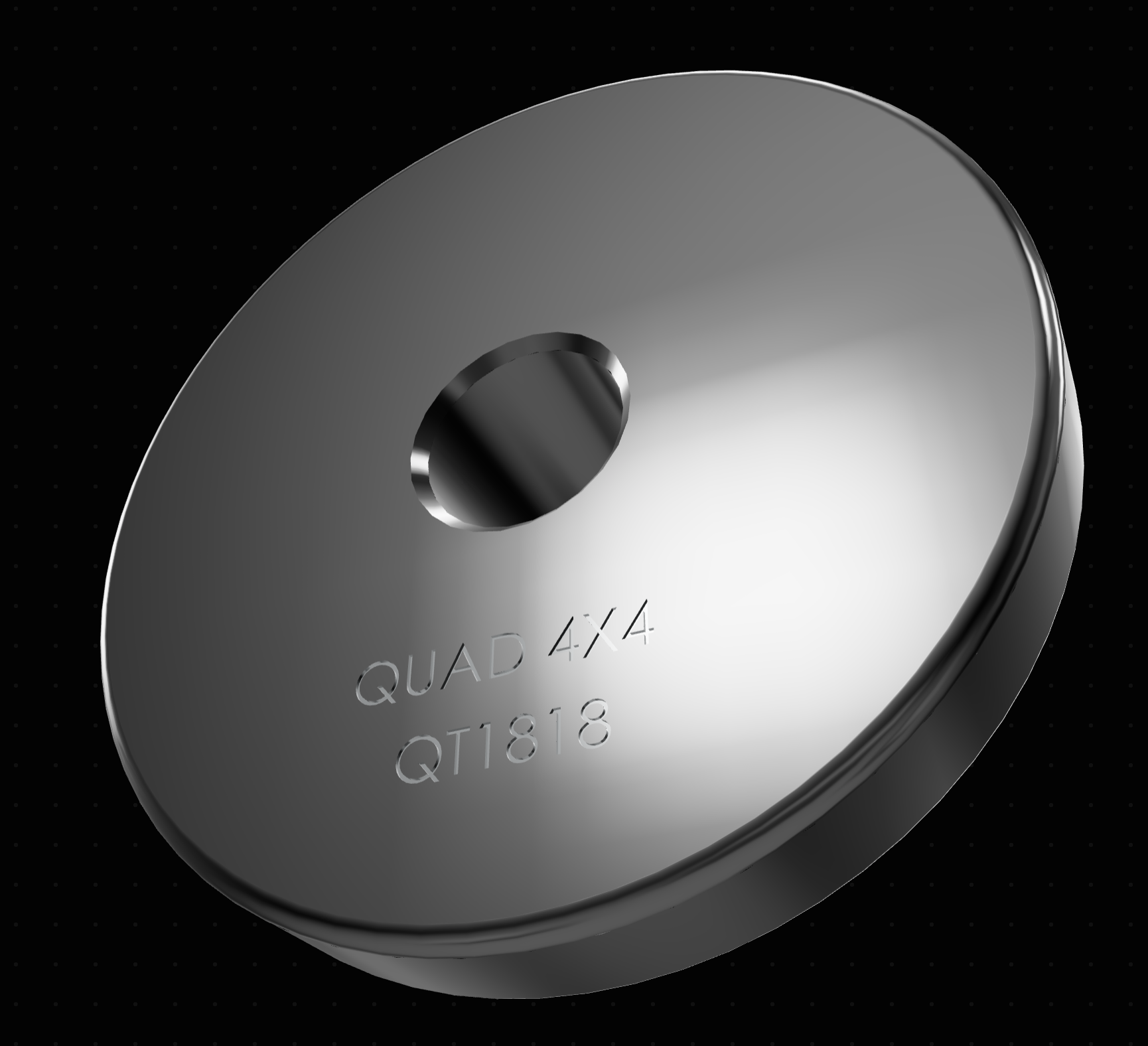

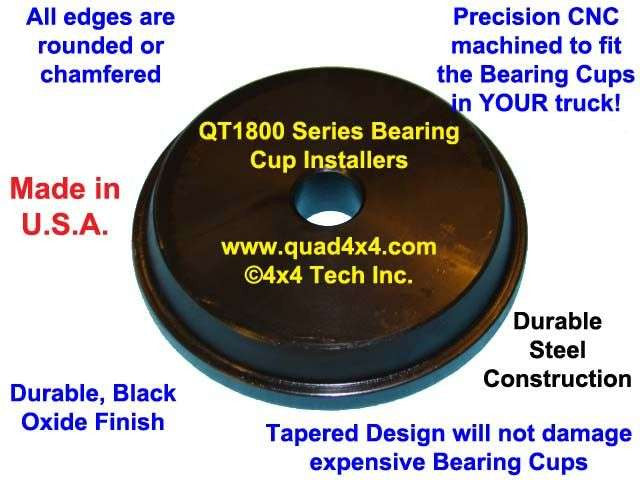

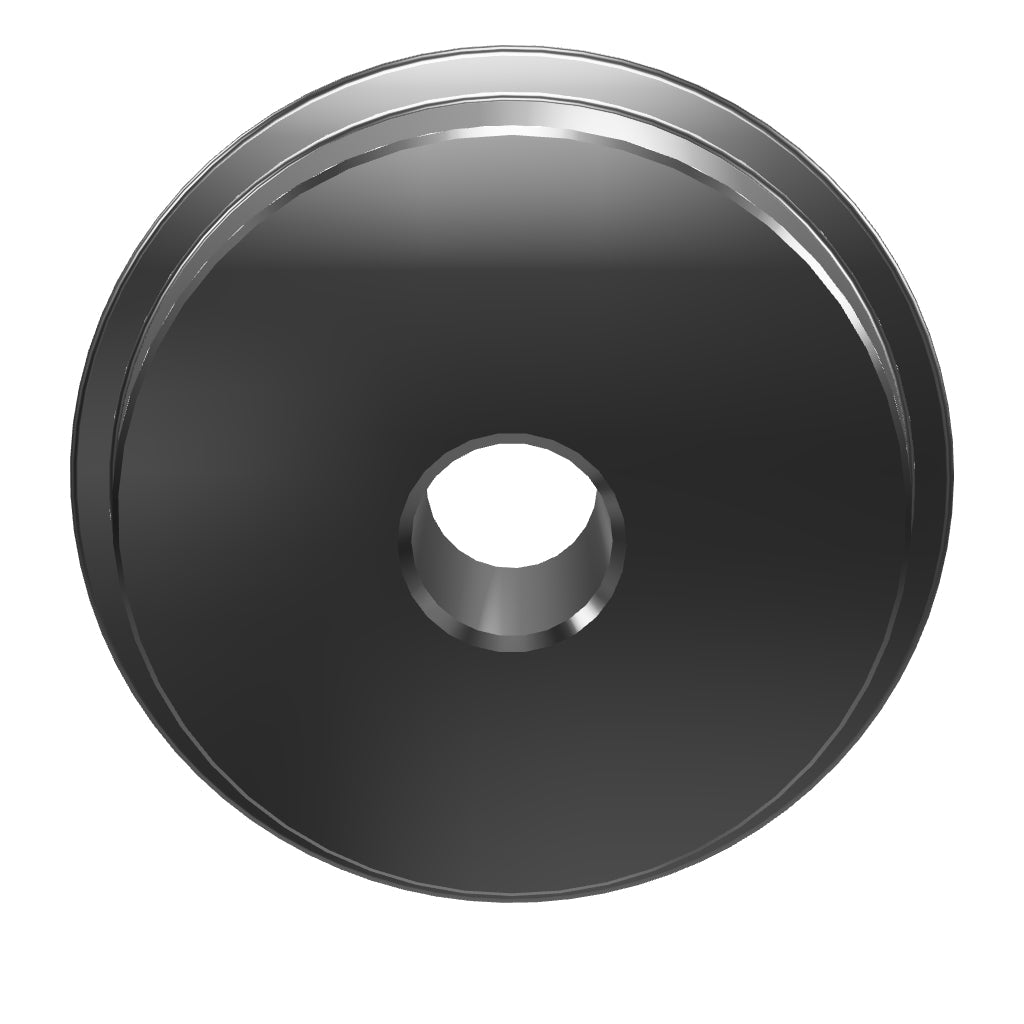

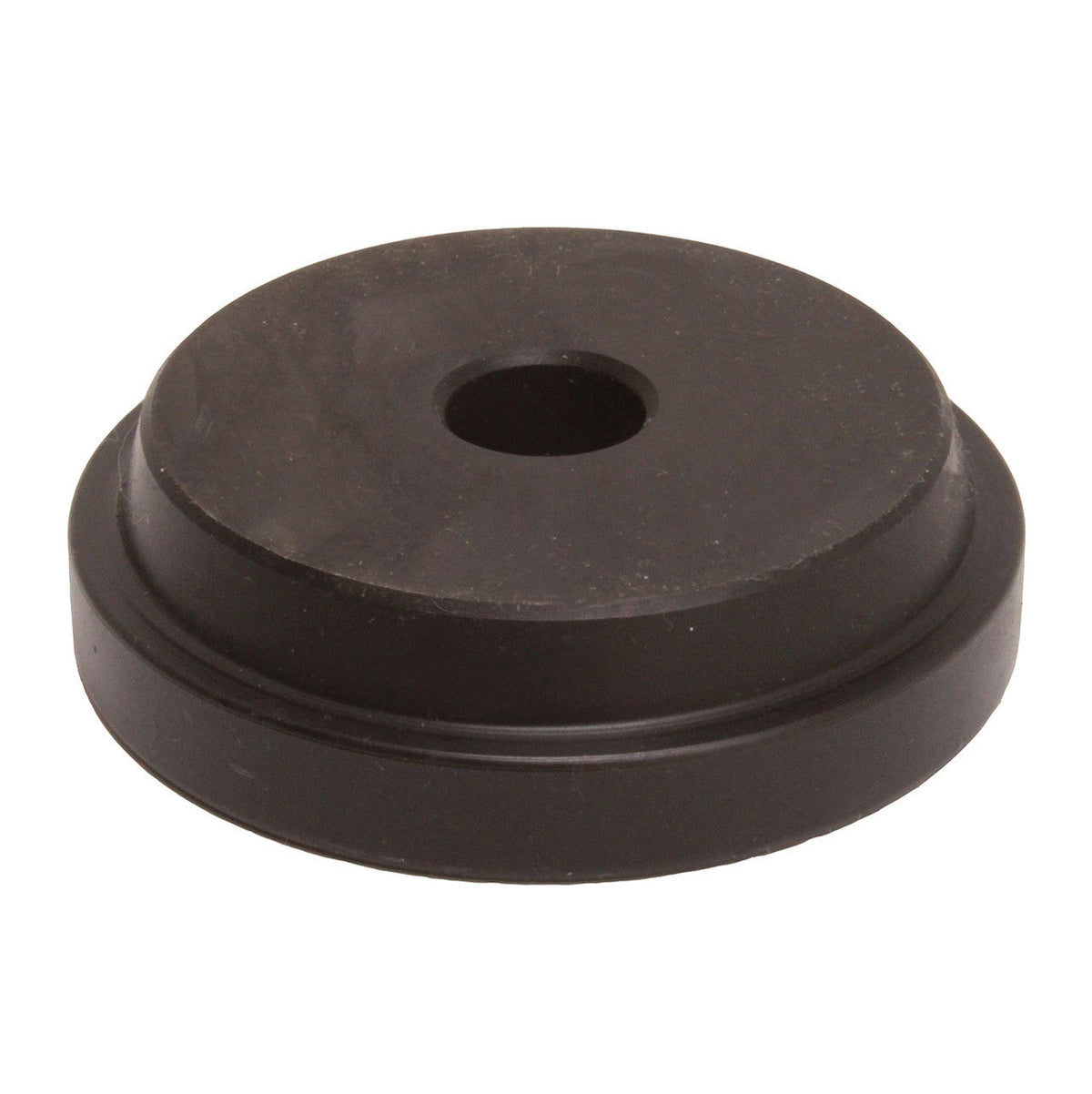

QT1818 Taper Bearing Cup Installer for installing QU50535 (Inner Pinion Bearing Cup), and QU50558 (Outer Pinion Bearing Cup), TK50346 (NP200, NP201, NP205 Transfer Cases) bearing cups in many 4x4 applications. QT1818 is also used to install QU52364 Roxor Front Inner Wheel Bearing Cups. Precision CNC machined solid steel tool is drilled to accept any driver handle with a 5/8" tip. USA Made.

Note: QT1818 replaces QT1830.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Installs without Damage
Tool Handles
Applications
Video

Tech Note 1: Installs without Damage
Using a Bearing Cup Installer not only saves time, but, more importantly, also allows you to install the bearing cup without damaging either the cup or bearing bore. Bearing Cup Installers are the key to damage free bearing cup installation. With one, you can completely seat those bearing cups without nicks or dings. Using the proper Cup Installer and Handle completely eliminates one of the most common causes of premature bearing failure, namely installation with punches or other makeshift tools.

Tech Note 2: Tool Handles
I recommend an 8" handle (QT1100, QT1116) for most applications and a 14" handle (QT1101, QT1119) for deep set inner pinion, rear hub and transmission bearing cups.

Applications

Use QT1818 Cup Installer for These Inner Pinion Bearing Cup Applications

Chevy and GMC:
HO33 Rear Axle: 1953, 1954, 1955, 1956
HO35: 1961, 1962, 1963, 1964
HO35 8-7/8" Rear Axle: 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979

Dana-Spicer:
All Model 44: 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Jeep 1956-current

Ford:
9" Heavy Duty: 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976

Jeep:
All with Dana 25 Front Axle: 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Dana 25 Rear Axle: 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961

Use QT1818 Cup Installer for These Rear Outer Pinion Bearing Cup Applications

Ford:
1/2 and 3/4 Ton Rockwell A150 Axles: 1953, 1954, 1955

Use QT1818 Cup Installer for These Transfer Case Bearing Cup Applications

New Process Gear:
NP200 Idler Gear
NP201 Idler Gear
NP205 Idler Gear 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

Use QT1818 for These Front Inner Wheel Bearing Cup Applications:

Mahindra:
Roxor: 2018, 2019, 2020, 2021, 2022, 2023
