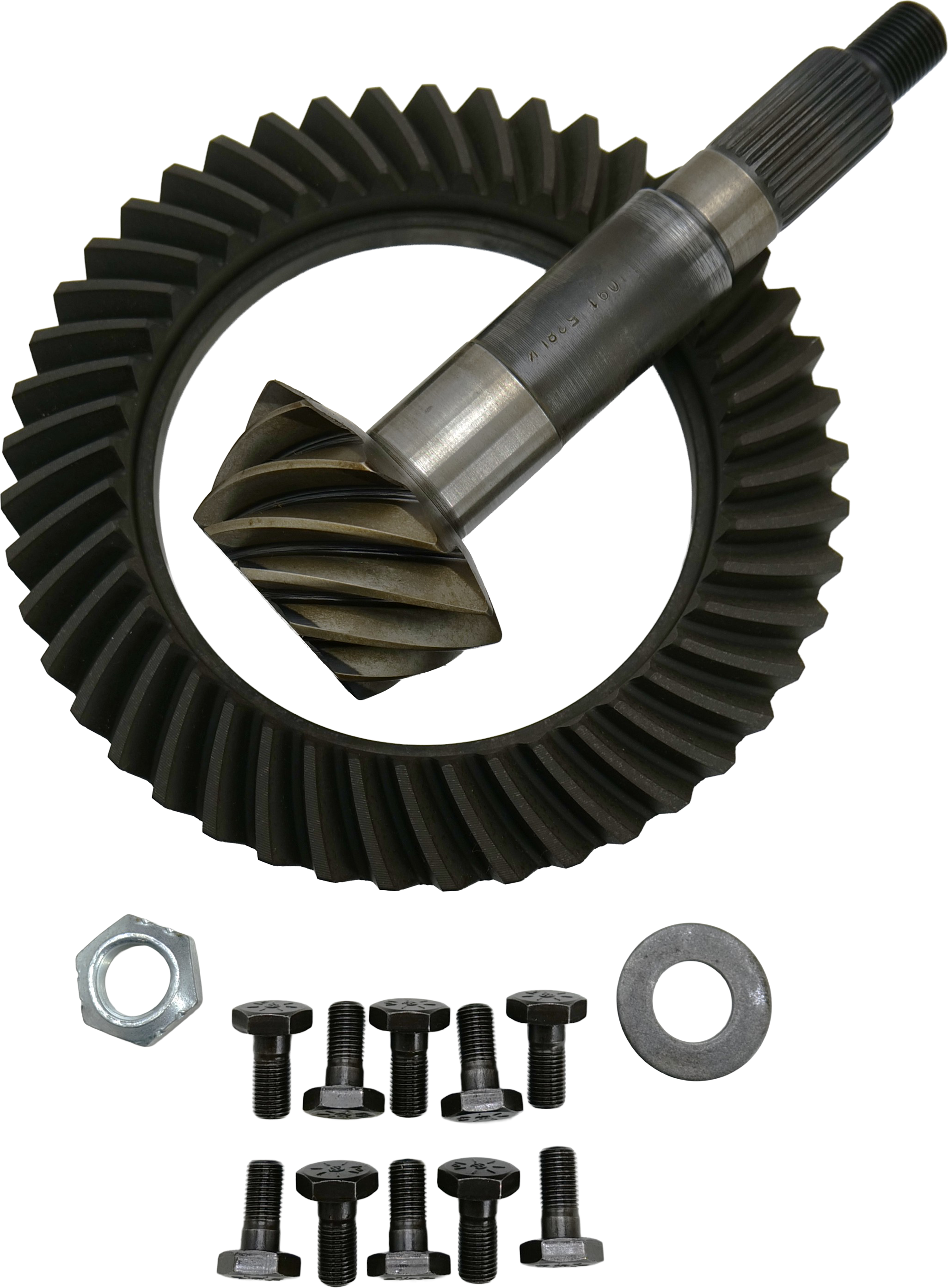

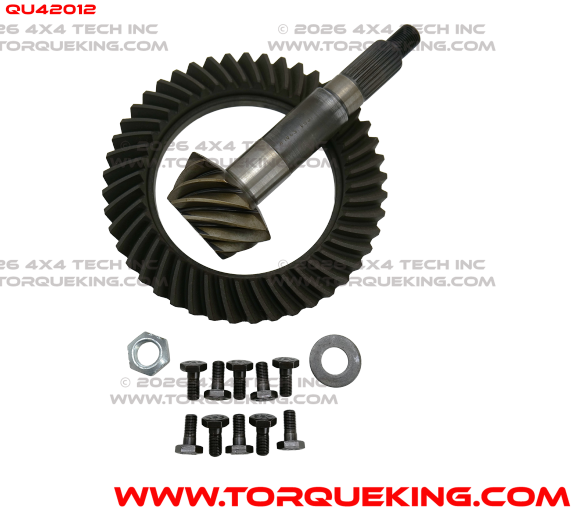

QU42012 D44 4.09 Ratio Reverse Spiral Ring and Pinion Set
Description
QU42012 D44 4.09 Ratio Reverse Spiral Ring and Pinion Set for 1966-1996 Ford Dana 44 and Dana 44IFS front axles with pinions located above the axle center line. Pinion stem has 26 splines.
See QU42012U Used 4.09 Ratio Ring and Pinion Set while supplies last
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Reverse Spiral
Matching Parts
Applications
Tech Note 1: Reverse Spiral
These ring and pinion gear sets have a reverse cut or spiral compared to the conventional Dana 44 gear sets. The engineering reason for this is the pinion gear is located above the axle center line. Reverse spiral gear sets are NOT interchangeable with standard Dana 44 gear sets.
Tech Note 2: Matching Parts
Exploded View XV1085 1976-1977 Ford F-100/F150 Dana 44 Front Axles
Exploded View XV1084 1978-1979 Ford Bronco, F150 Regular Cap Dana 44 Front Axles
QU40343 Differential Cap Bolt
D441975 Ring Gear Bolts, Pinion Nut, and Pinion Washer Set
D441967 Pinion Seal and Slinger Set
QU50576 mid 1960's-mid 1990's Dana 44 Front Axle Differential Bearing and Seal Kit
QK4647 Inner Axle Seal Remover Tool Set
QU52181 3.92-up True-Trac Limited Slip Differential
Applications:Ford:
F100/F150 with Dana 44 Front Axles: 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
Bronco: 1978, 1979
F150/Bronco with Dana 44 IFS Front Axles: 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
