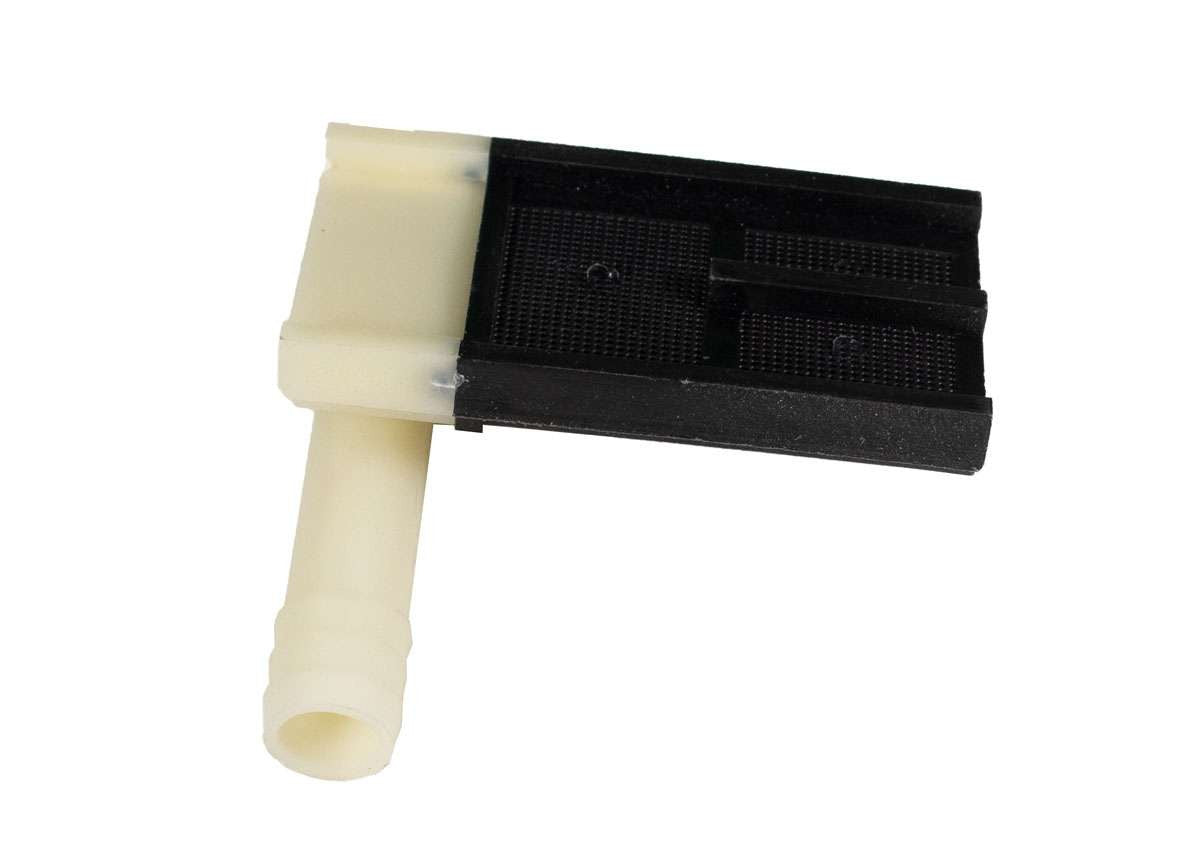

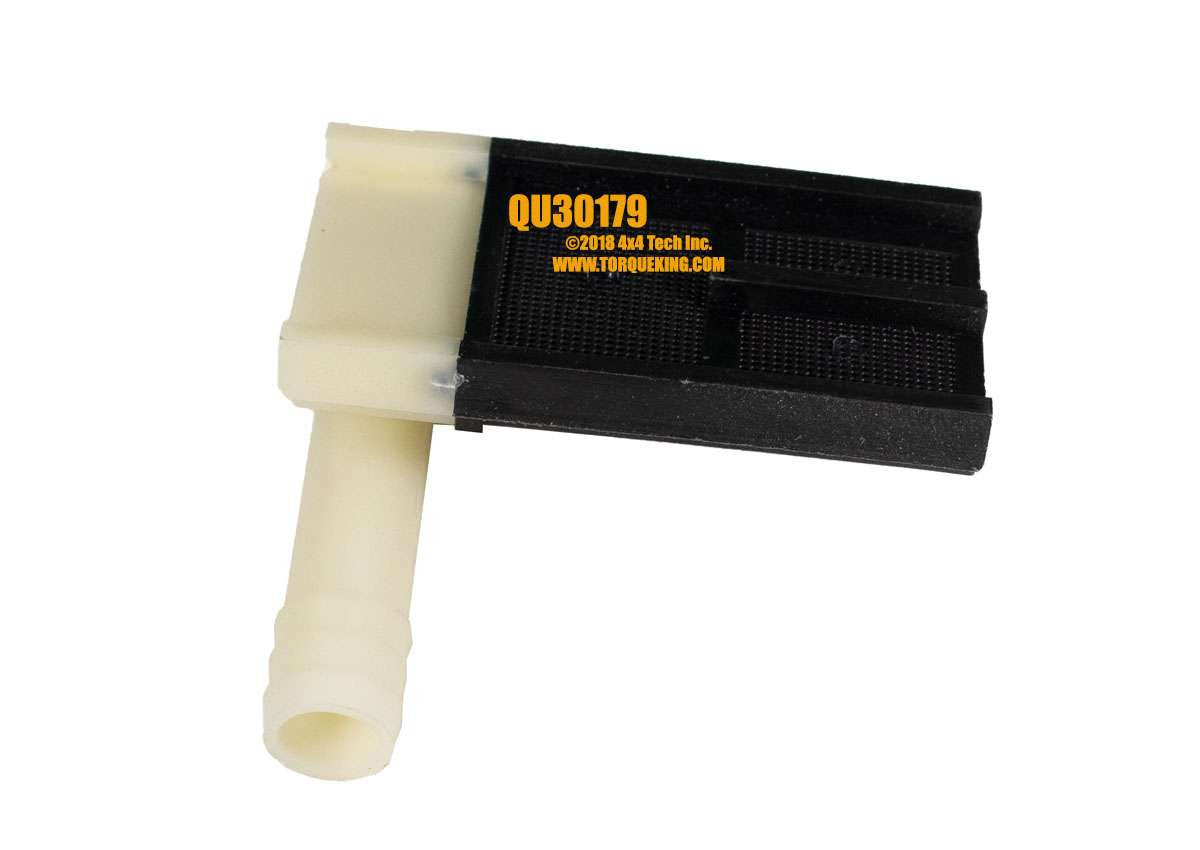

QU30179 NV273GM Oil Feed Suction Screen

QU30179 NV273GM Oil Feed Suction Screen is a genuine New Venture original equipment Oil Pickup Screen for NV273GM Electric Shift Transfer Cases in 2005-2009 C4500/C5500 Chevy Kodiak and GMC Top Kick 4x4 medium duty trucks.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Wear
Replacement
Matching Parts
Applications

Tech Note 1: Wear
I recommend you replace the Oil Feed Screen when rebuilding your transfer case, even if the old screen looks OK. Screen replacement is doubly important if the screen is damaged in any way or if metal particles are embedded in the plastic.

Tech Note 2: Replacement
Replace the rubber Oil Tube Connectors when replacing the Screen.

Tech Note 3: Matching Parts
Matching Parts for QU30179 Oil Pump Sump Screen:
QU30181 Upper Connector Hose
QU30199 Lower Connector Hose
QU30184 Oil Pump Gear Kit
QU30025 Oil Pump Inlet O-Ring
QU50191 Chip Magnet
Chevy/GM Shop Manuals

Applications
Chevy and GMC:
C4500/C5500 Chevy Kodiak and GMC Top Kick 4x4 medium duty trucks: 2005, 2006, 2007, 2008, 2009
