QU10305 NV4500 1-2 Synchro Snap Ring

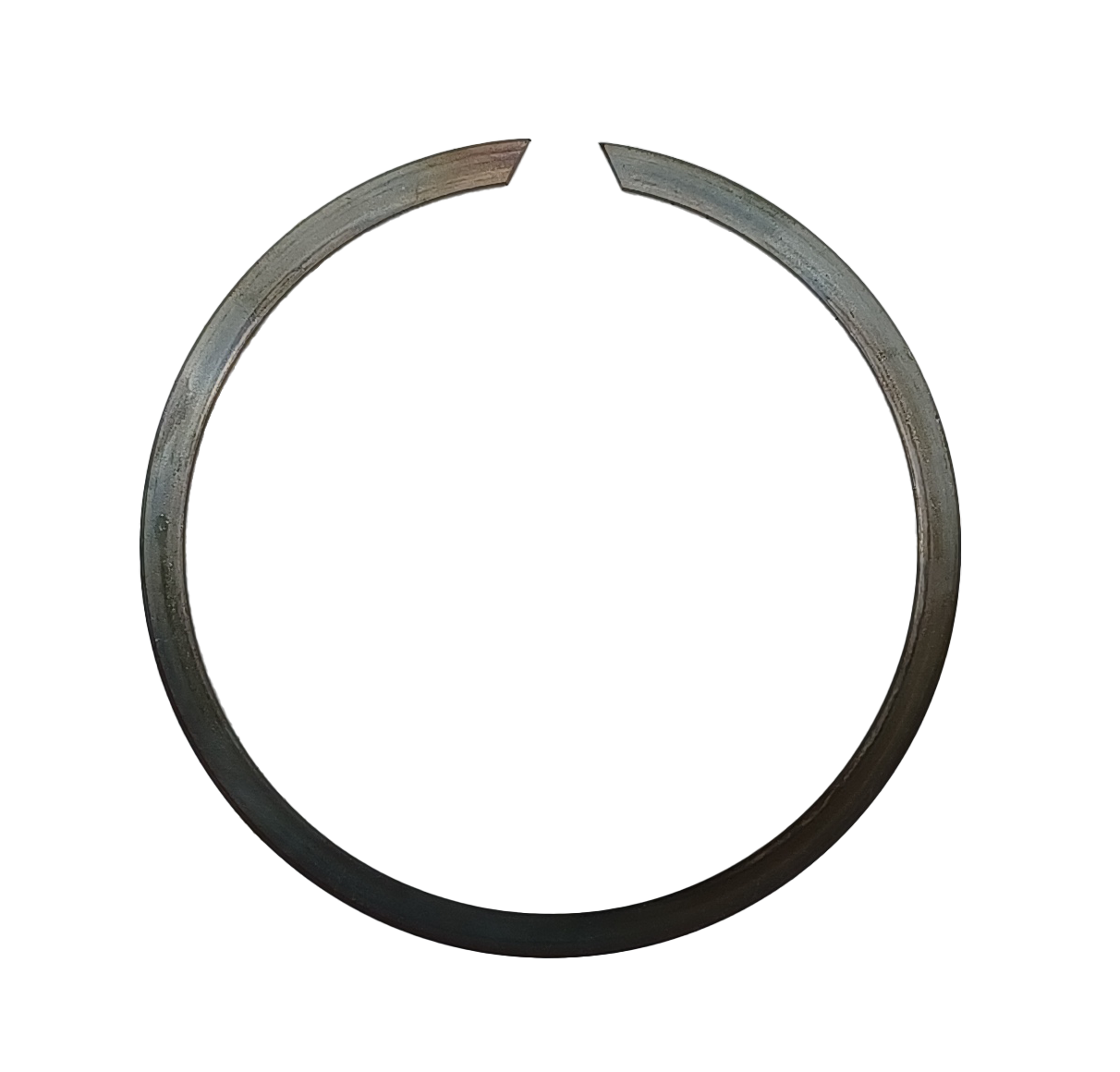

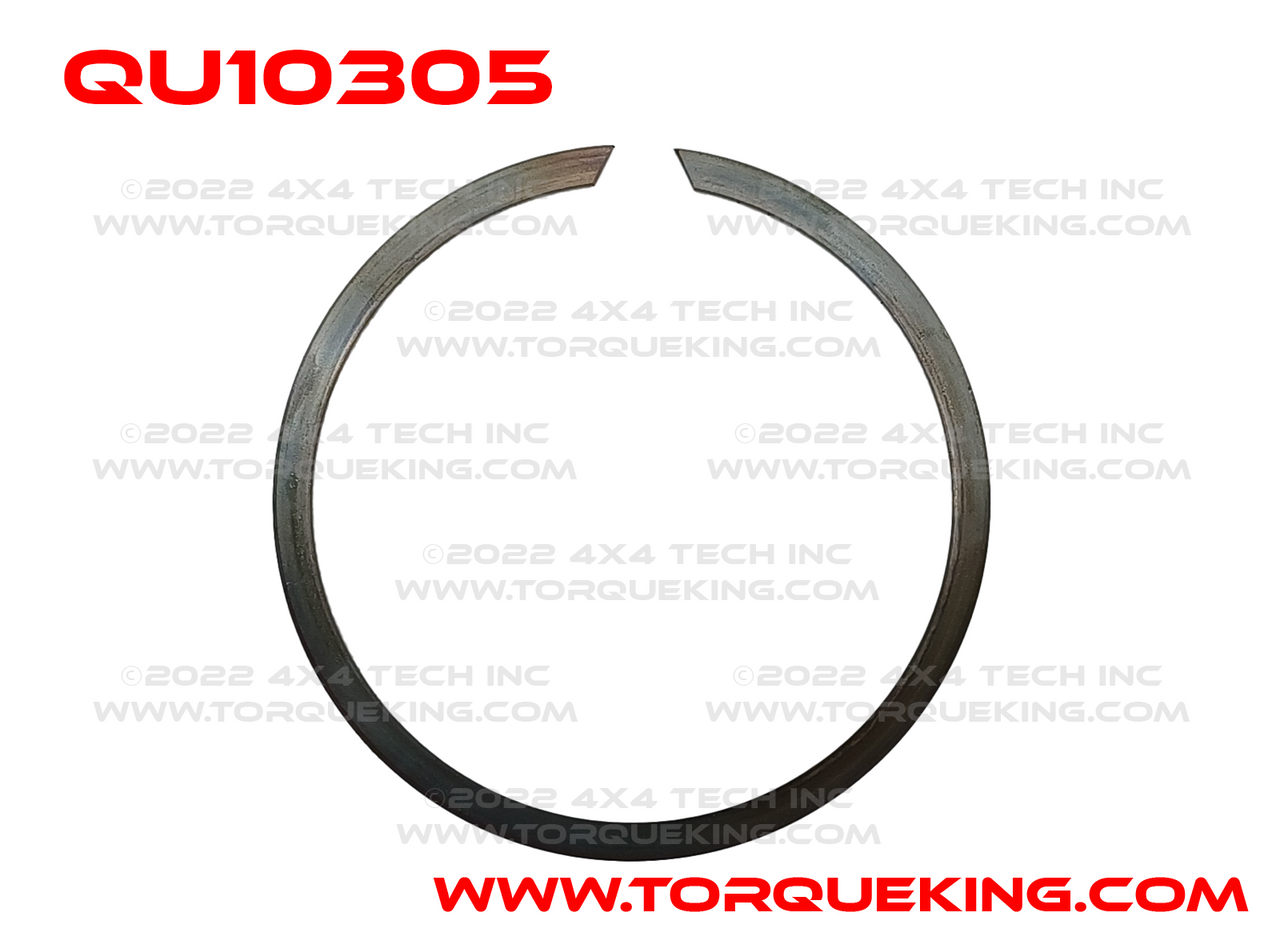

QU10305 NV4500 1-2 Synchro Snap Ring fits all 1992-2007 New Venture NV4500 Transmissions. Order 4 Rings per transmission.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Inner/Outer Steel Synchro Rings
Matching Parts
Main Case Small Parts Kits
Lubricants, Sealants, Threadlockers
NV4500 Tools
Applications

Tech Note 1: Inner/Outer Steel Synchro Rings
The New Venture NV4500 5 speed transmission uses a triple cone synchronizer design for 1st and 2nd gears. It is advisable, but not required you replace QU10014 Inner Steel Rings and QU10015 Outer Steel Rings at the same time you replace QU10002 Center Friction Rings. To reuse QU10014 and QU10015 Rings, the condition of the friction surfaces on those rings must be good. If the polished steel finish is pitted, scored, or heat discolored (bluish color), you should replace them.

Tech Note 2: Matching Parts
Matching Parts for QU10305 1st-2nd Synchronizer Snap Ring:
QK1103 4 Piece 1-2 Synchro Snap Ring Kit
QU10038 1-2 Synchro Hub
QU10081 1-2 Synchro Slider
QK1100 Synchro Strut Kit
QU10014 Synchronizer Ring, Inner Steel
QU10015 Synchronizer Ring, Outer Steel
QU10002 Syncchronizer Ring, Center Friction
QU10075 39 Tooth Mainshaft 1st Gear
QU10035 37 Tooth Mainshaft 2nd Gear
QU90020 NV4500 Manual Transmission Oil
TM1003 NV4500 Shop Manual
V1003DVD NV4500 Overhaul Video
Chevy & GMC Shop Manuals
Dodge & Ram Shop Manuals

Tech Note 3: Main Case Small Parts Kits
Included and optional parts for Main Case Small Parts Kits

Tech Note 4: Lubricants, Sealants, Threadlockers
Early production NV4500 Transmissions used an anaerobic sealant (QU90003) to seal between the main case and input bearing retainer, top cover, and rear housing. Mid-production units used anaerobic sealant just on the input retainer and RTV for everything else. Later production transmissions used black RTV Sealant (QU90006 or QU90005) for everything. Either type of sealant works fine (except the PTO covers ALWAYS should be sealed with RTV), but I prefer RTV for all components. Regardless of which sealant you use, make sure excess sealant does not block the lube access hole at the top of input retainer pilot that fits into the transmission case. Also, the threaded holes in the main case for the four retainer bolts and 12 PTO bolts are open ended, so you must use new bolts with factory applied threadlocker or apply Threadlocker (S24200) to your existing bolts to prevent oil seepage past the bolt threads. See my TM1003 NV4500 Shop Manual or V1003DVD NV4500 Overhaul Video for more information.

Tech Note 5: NV4500 Tools
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated TM1003 NV4500 Rebuild Manual.

You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.

Applications:

Chevy and GMC:
All with New Venture NV4500 Transmission: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

Dodge and Ram:
All with New Venture NV4500 Series Transmissions: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
