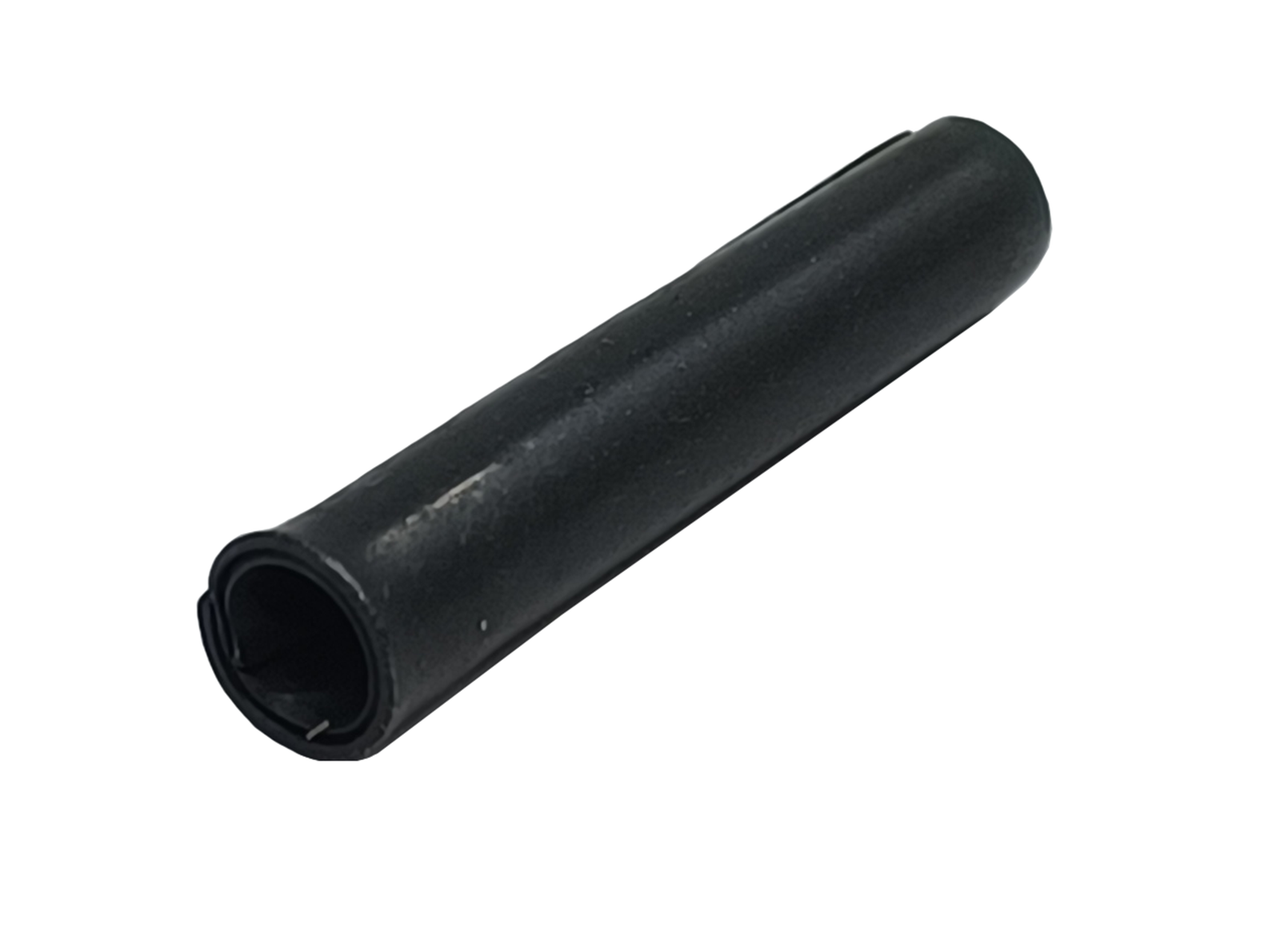

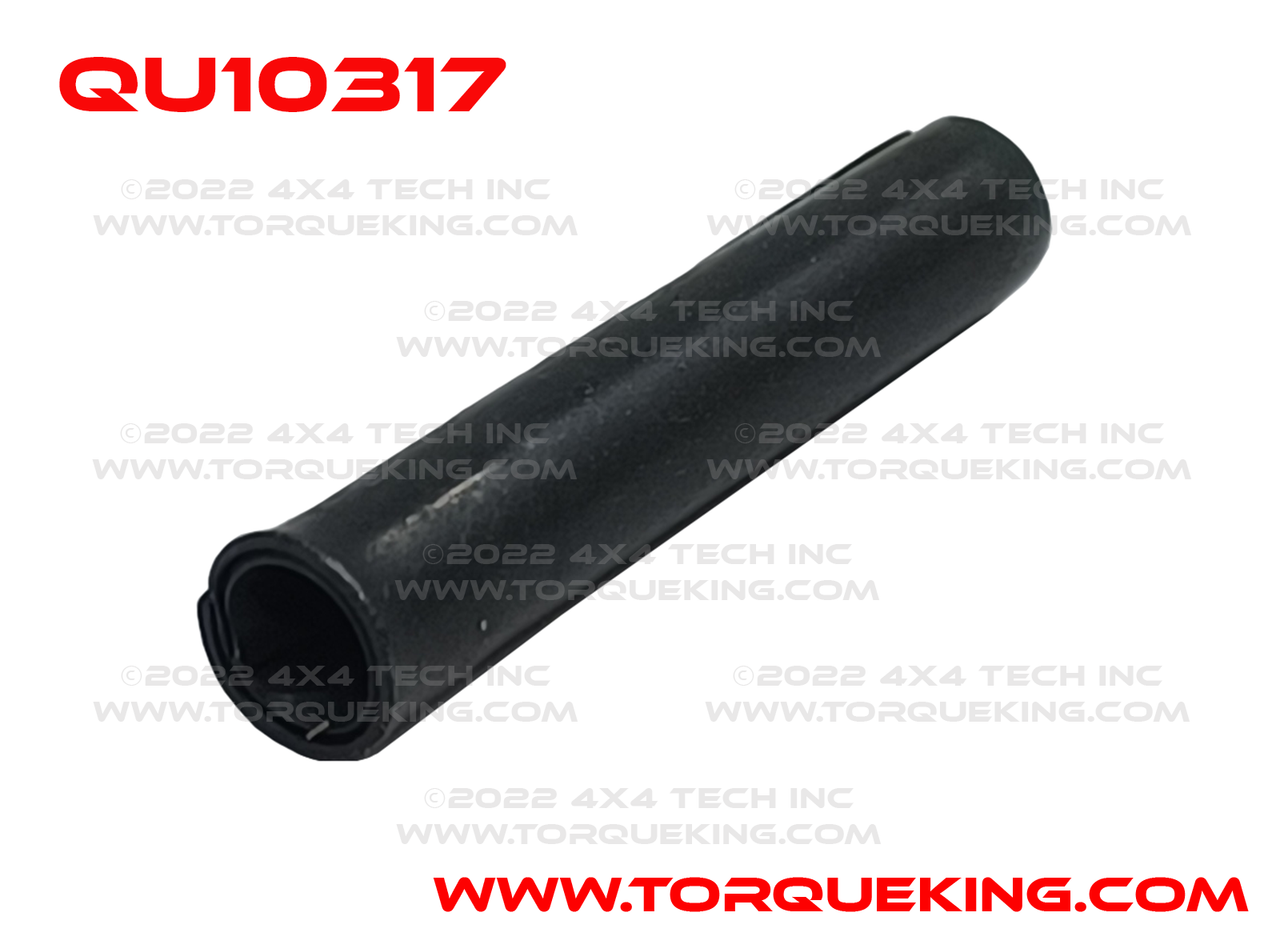

QU10317 NV4500 Roll Pin for 5th Gear Fork
Stocking Item, usually ships within 1-2 business days
Description
QU10317 NV4500 Roll Pin for 5th gear fork.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Special Tools
Applications
Tech Note 1: Special Tools
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated TM1003 NV4500 Rebuild Manual.
You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.
TOOLS for SPECIFIC NV4500 MODELS | ||||||
| Component |
23 Spline Dodge 4x4 NV4500LD |
29 Spline Dodge 4x4 NV4500HD | 30 Spline Dodge 4x2 NV4500LD |
31 Spline Dodge 4x2 NV4500HD |
32 Spline GM 4x4 |
35 Spline GM 4x2 |
| Mainshaft Nut | QT2002 |
QT2001 QT2036 | QT2002 |
QT2001 QT2036 |
QT2002 QT2028 | 1-1/2" Hex Socket |
| Mainshaft Holding | NLA | QT2000 | NLA | QT2011 | N/A | N/A |
|
5th Gear Nut Torx® Cross Bolt | N/A | QT9205 | N/A | QT9205 | N/A | N/A |
| Output Seal Installer | N/A | QT1801 | N/A | QT2058 CALL | Not Used | Not Used |
| Tailshaft Bushing Remover and Installer | Not Used | Not Used | Not Used | QT2044 | Not Used | Not Used |
TOOLS For ALL NV4500 MODELS | ||||||
|
Countershaft Front Bearing Cup Installer | QT1802 | Use with QT1101 or QT1119 Driver Handle. Also can use flat side to install Dodge 4x4 Rear Output Seal | ||||
| Countershaft Front Bearing Installer | QT2004 | Can also use to press 3-4 Synchro Hub on original equipment mainshafts | ||||
| Input Bearing & Countershaft Rear Bearing Installer | QT2005 | Can also use to install Input Seal | ||||
| Input Bearing Cup Installer | QT1801 | Use with QT1100, QT1101, QT1116, or QT1119 Driver Handle. | ||||
| Countershaft Support | QT2006 | Use to support front of countersahft when installing countershaft rear bearing | ||||
| 1-2 Synchronizer Support | QT2008 | Use to support 1-2 synchronizer hub during synchronizer assembly | ||||
| 10mm 1/2" Drive 12 Point Socket | QT1020 | USA Made Impact Socket for Factory Tailshaft Housing Bolts | ||||
| Long Shank Punch for Shift Lug | QT9300 | 3/16" x 8" Shank for 5th Gear Shift Lug Roll Pin | ||||
Applications:
Chevy, GMC, Dodge with NV4500 5-speed Manual Transmissions
