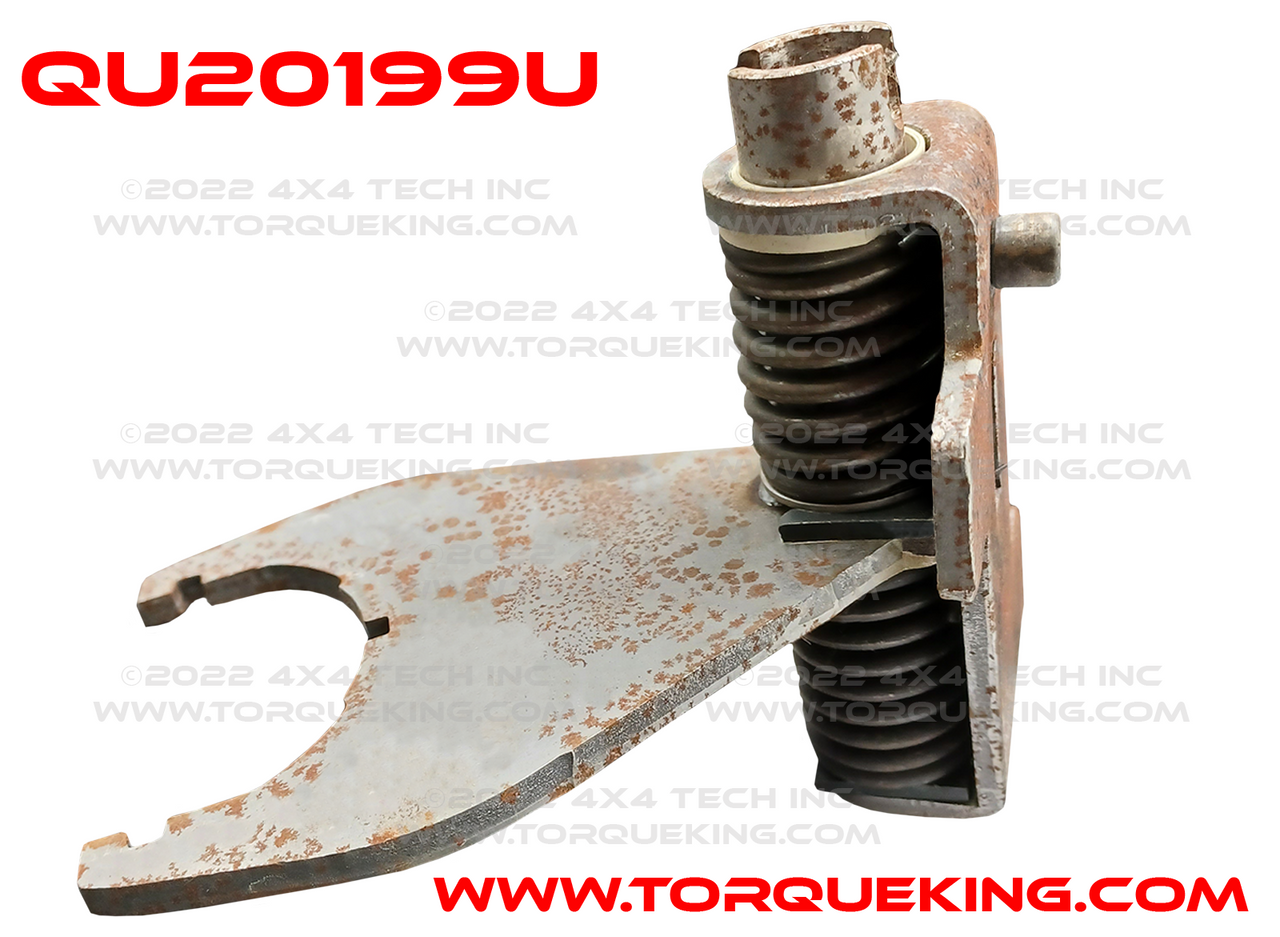

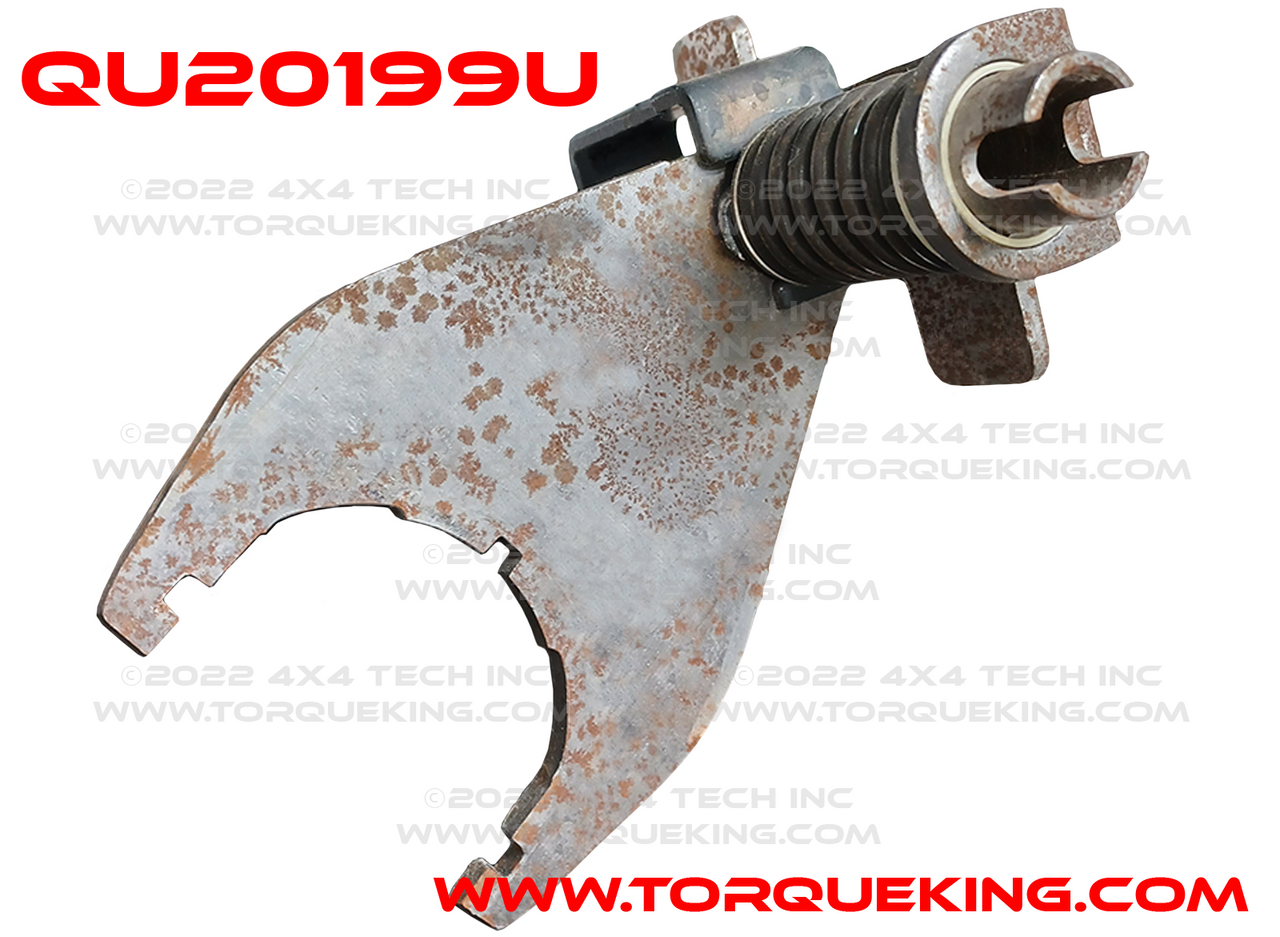

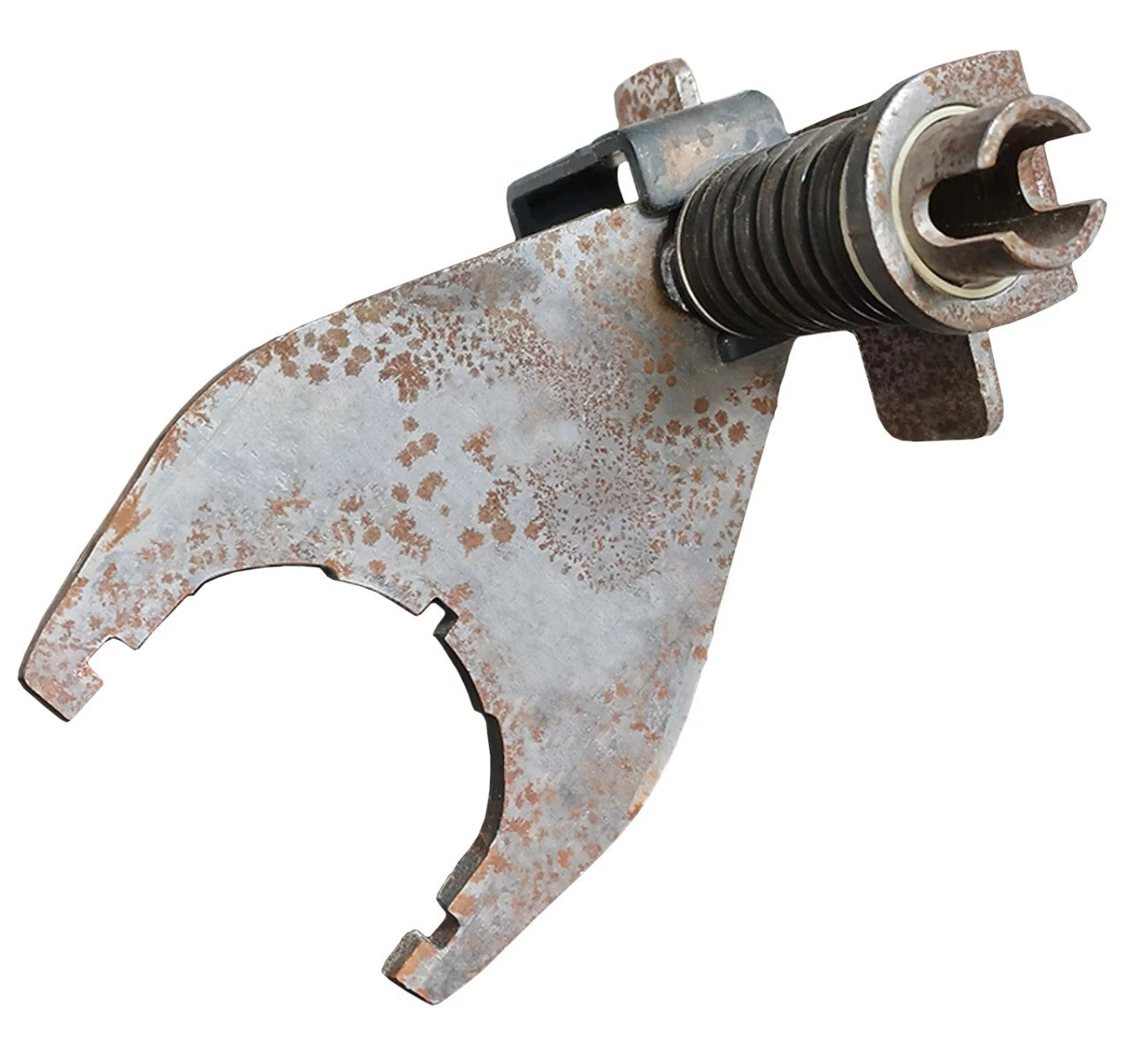

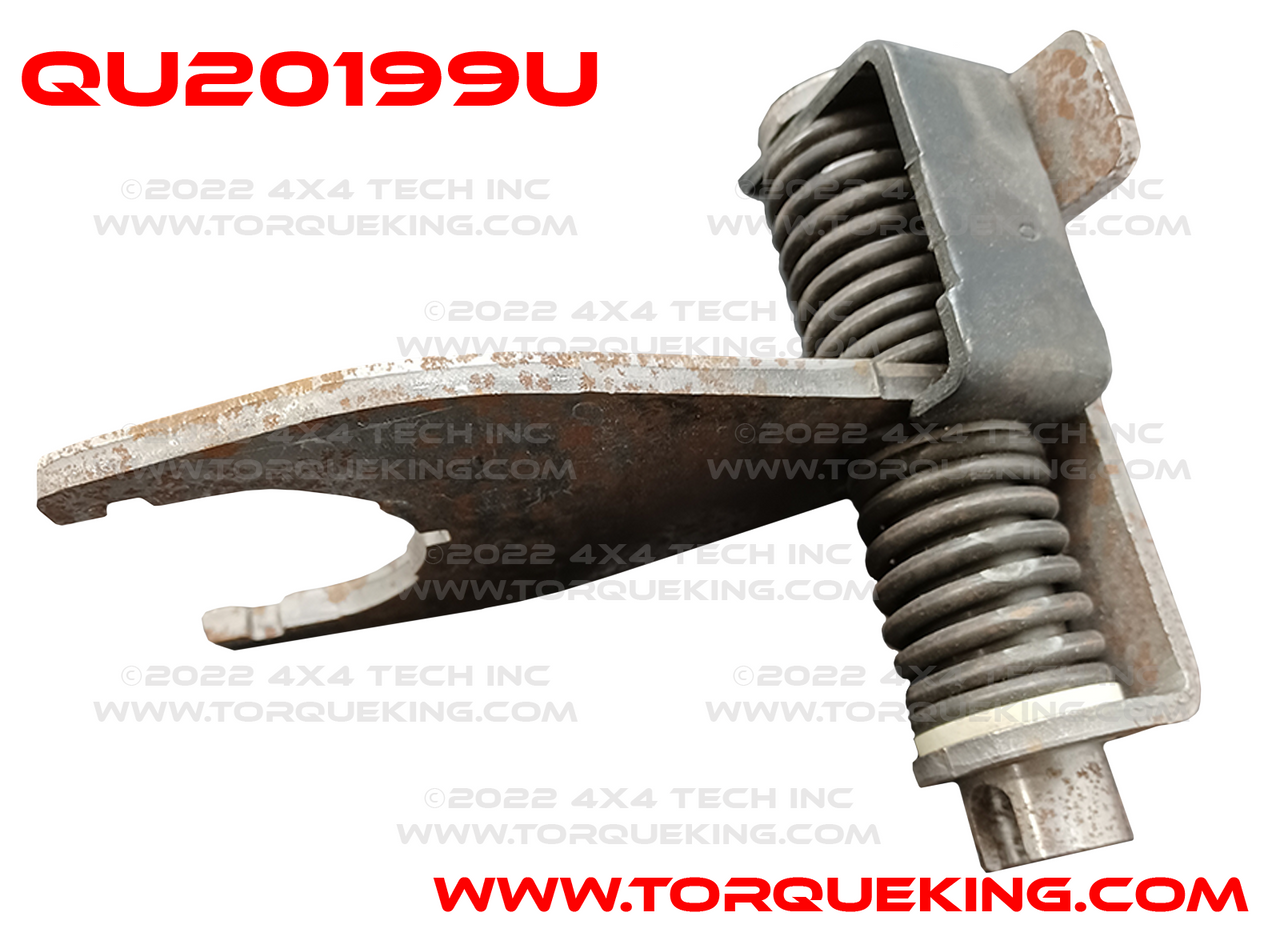

QU20199U USED Late Range Shift Fork for Ford NV273F Transfer Cases

Used
No reviews yet Write a Review
$49.98
SKU:
5520199
UPC:
198345002817
Condition:
New
Shipping:
Calculated at Checkout
In Stock & Ready To Ship!
Availability: When in stock, this part will have a live Add To Cart Button
Current Stock:Only left:

Description

QU20199U USED Late Range Shift Fork for Ford NV273F Transfer Cases is a used Range Fork with two QU10951 Shift Pads for Ford NV273F Electric Shift Transfer Cases in 2001.5-2005 Excursion and 2001.5-2010 F-250, F-350, F-450, F-550 Super Duty 4x4 trucks. Available while supplies last.

Also See QU20199 New Late Range Shift Fork for Ford NV273F
Also See QU20217 Rear Output Shaft and Range Fork Update Kit

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Verify Fork
Common Cause of Fork Failure
Matching Parts
New Venture/New Process/Magna

Applications

Tech Note 1: Verify Fork
All 1999-2001 Ford NV273F transfer cases that have an assembly number that begins with "F81A" will have a Fork using QU10164 and QU50673 Pads unless the factory shift update Kit (which uses QU10951 Pads) has been installed. Mid 2001-2004 Ford Parts Lists indicate most cases will also use the earlier Fork with QU10164 and QU50673 Pads, but the fact is almost all use this QU20199 Fork. So if you have a 1999-2004 Excursion or Super Duty, before ordering a new Fork, disassemble the Transfer Case to see what you have as QU20199 Fork will not work directly replace a 1999-2001 Fork using three pads.

Tech Note 2: Common Cause of Fork Failure
Range Forks typically fail when the Plastic Shift Fork Pads wear away. While there can be several causes of Pad wear, high on the list is dirty or low oil. Check and change your Transfer Case oil on a regular basis! Replace any Range Shift Fork that shows visible wear.

Tech Note 3: Matching Parts
Matching Parts for QU20199U Range Fork are:
QU10951 Range Fork Shift Pads (uses 2)
QU11000 Planetary Assembly

Tech Note 4: New Venture/New Process/Magna
When Ford (1999 models) and Dodge (2003 models) first used NV271 and NV273 transfer cases, New Process Gear (NPG) of East Syracuse N.Y was part of New Venture Gear (NVG). When NVG dissolved, NPG continued on under Chyrsler. Chyrsler subsequently sold the production rights to Magna, a Canadian automotive parts company. All these name changes are confusing, but the important thing to know is a specific assembly number for any 271F, 271D, 273D, and 273F transfer case is the same and uses the same replacement parts regardless of it was built by New Venture, New Process, or Magna.

Applications

Ford:
2001.5, 2002, 2003, 2004, 2005 Excursion with NV273F Electric Shift Transfer Cases
2001.5, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 F-250, F-350, F-450, F-550 Super Duty 4x4 Trucks with NV273F Electric Shift Transfer Cases

Warranty

Used parts are sold As-IS with no warranty. However, Used Parts may be returned for any reason within 30 days of purchase.
