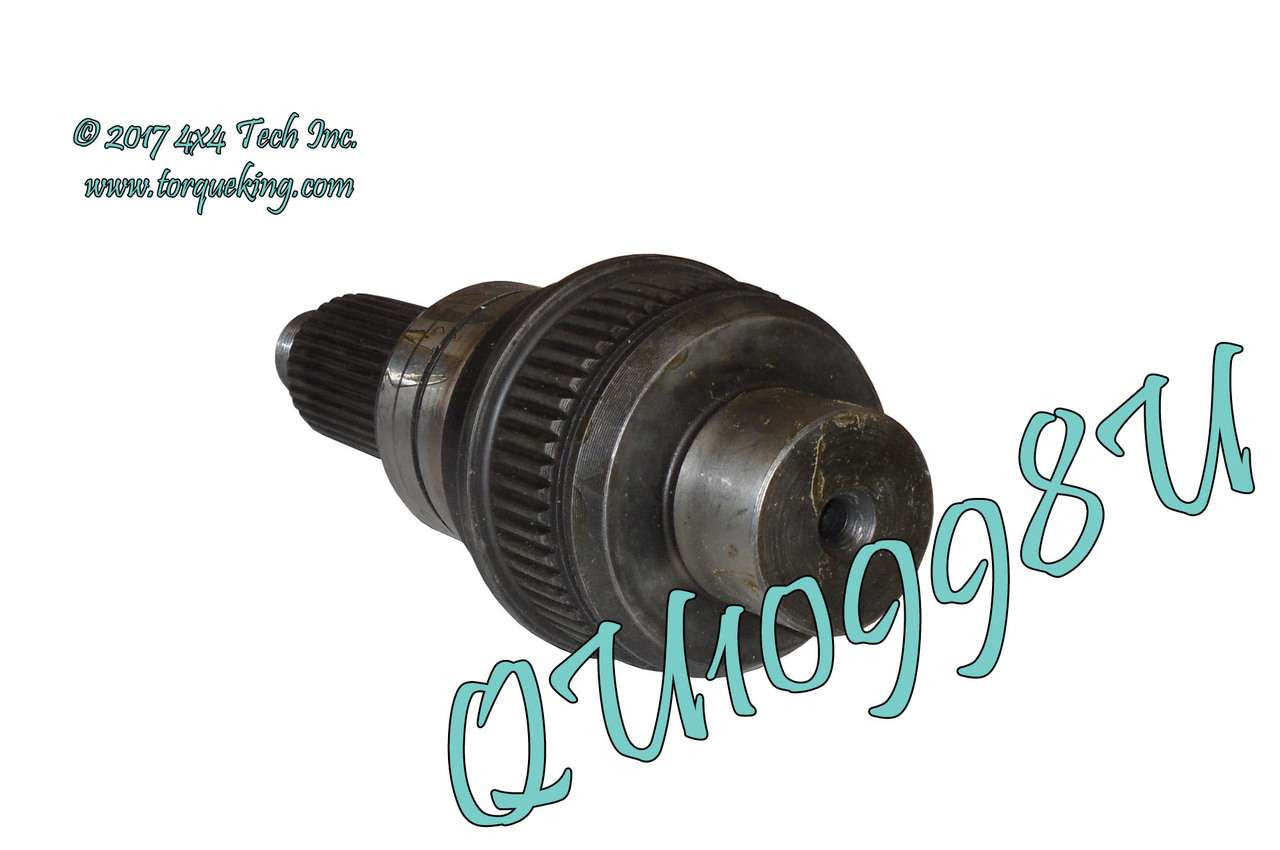

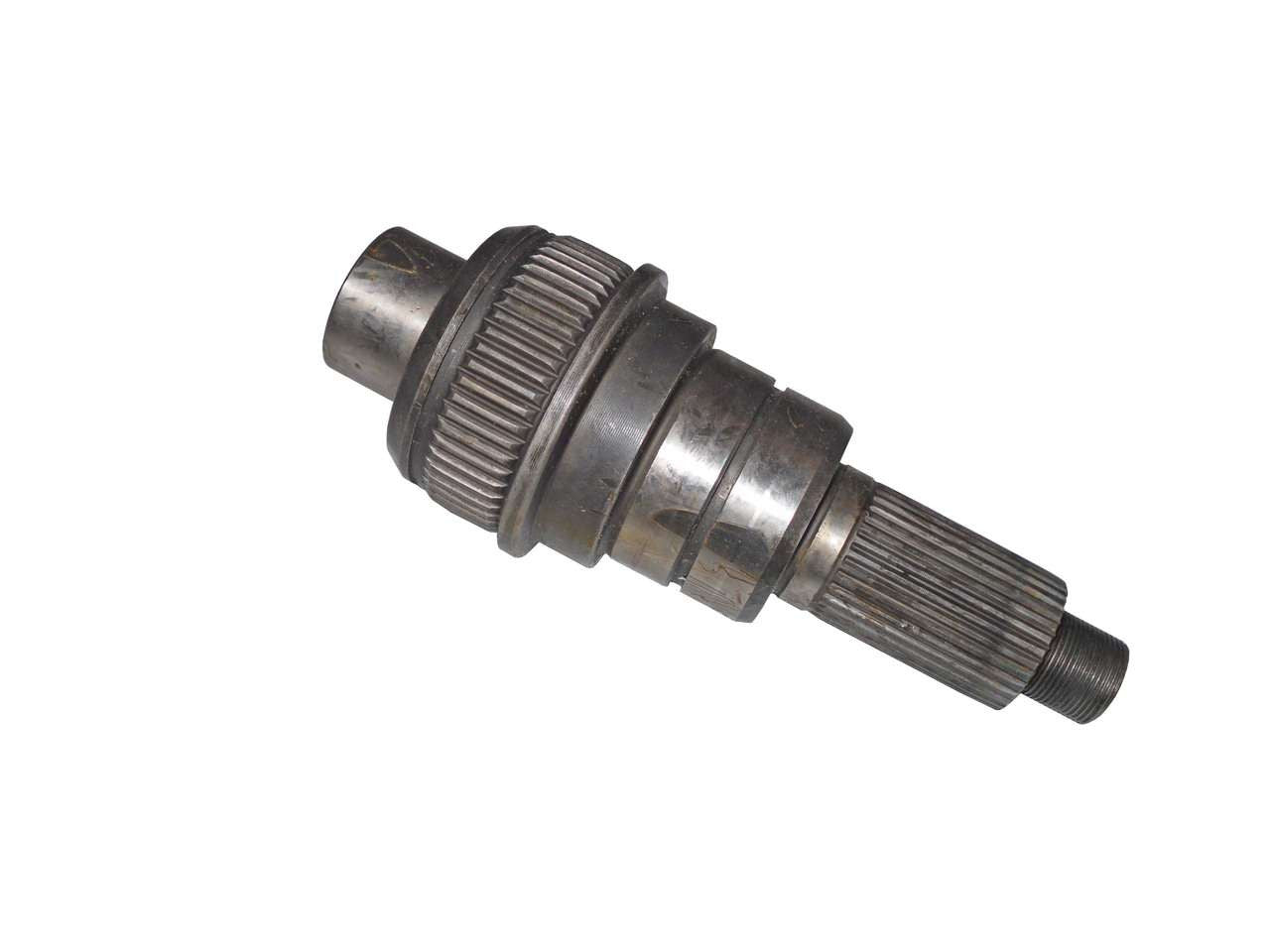

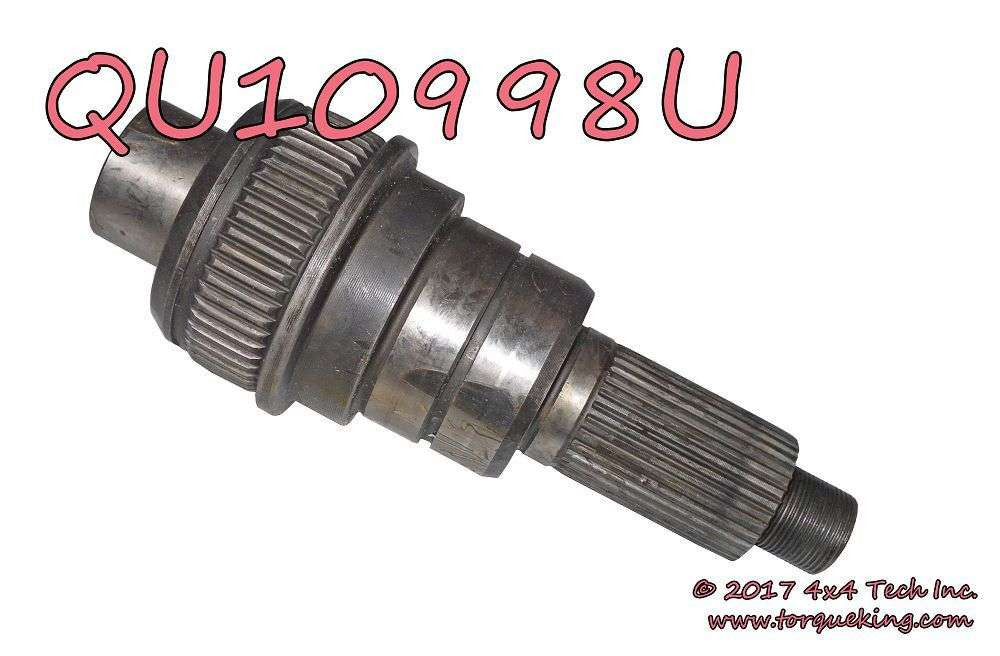

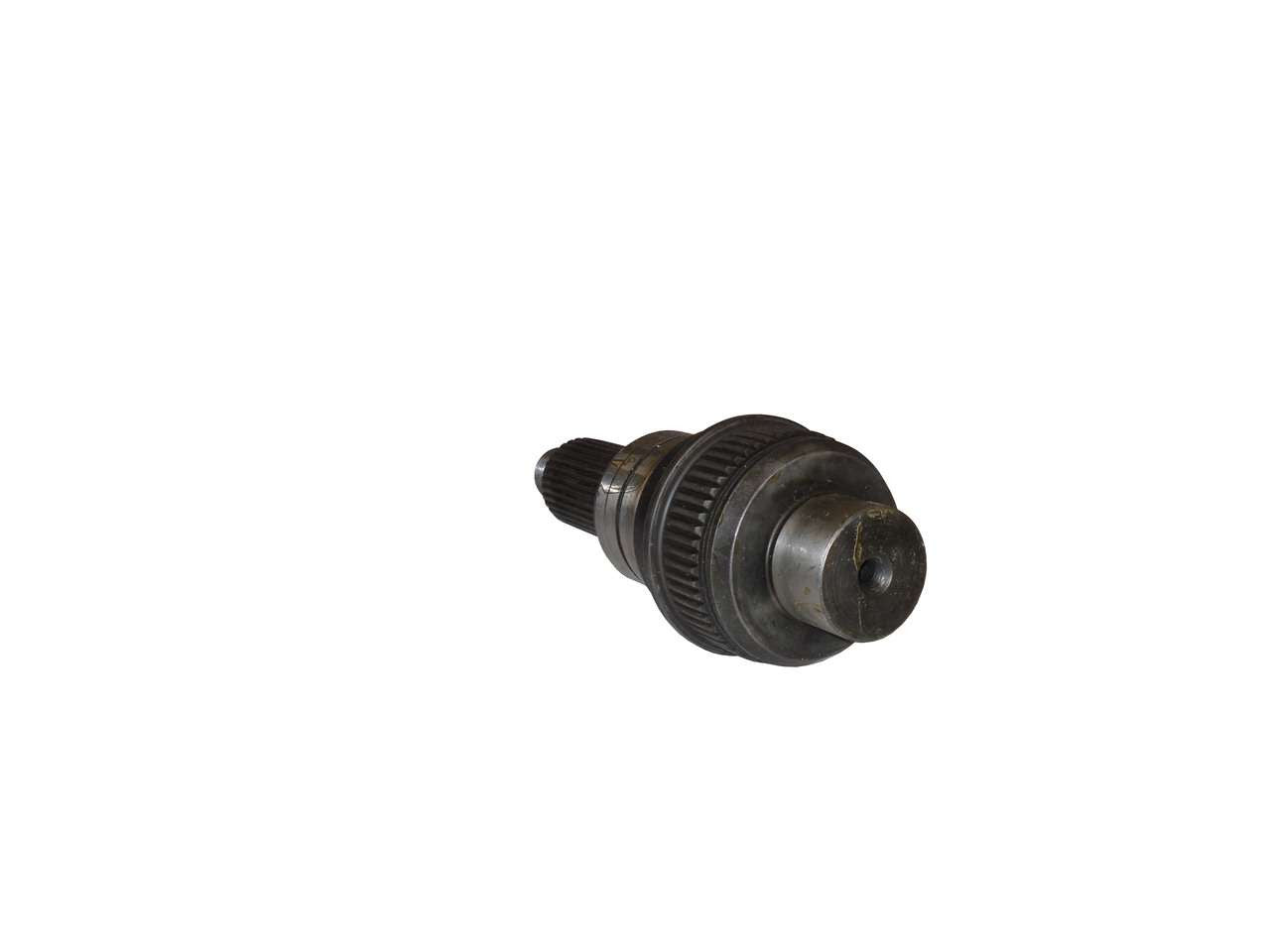

QU10998U Used 32 Spline Front Output Shaft for NV271 & NV273 Transfer Cases

WHEN UNAVAILABLE. SEE QU10998 NEW

QU10998U Good Used 32 Spline Front Output Shaft for New Process NV271D, NV271F, NV273D, NV273F, NV273GM Transfer Cases fits both Dodge and Ford Transfer Case NV271 Manual Shift and NV273 Electric Shift models plus Chevy and GMC NV273 transfer cases. Available while supplies last.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Design Change
Flange Yoke Install
Lubricants
Matching Parts
NPG-NVG-MPT
Applications

Tech Note 1: Design Change
Front output shafts were built in an early and late version. While they are functionally interchangeable if you also replace the sprocket snap ring, I feel the 1999-2004 Front Output Shaft is preferred for competition or really heavy-duty use, due to the full length spline and the early Sprocket Snap Ring is significantly thicker than the one used with the later shaft. The difference between the two shafts is the spline length, diameter of machined area between the sprocket and front output bearing, and the thickness of the snap ring groove. Early production, QU50672u (No Longer Available) 1st design Shafts have longer splines, a larger diameter machined area and a wider Snap Ring Groove compared to the later QU10998 2nd design shafts. The changeover between the two interchangeable shaft designs occurred in 2004-2005.

Tech Note 2: Flange Yoke Install
Your front output yoke should be a press fit for the last 3/8" on your front output shaft. If you can fully seat your new output flange by hand, replace the front output shaft and/or yoke as needed.

Tech Note 3: Lubricants
Recommended Lubricants & Capacities for Your Transfer Case:
Ford NV271F, NV273F: Ford Transfer Case Fluid
Dodge Ram NV271F, NV273F: Mopar ATF+4 2 quarts (1.89 Liters)
Chevy and GMC:

Tech Note 4: Matching Parts
QU10906 Front Output Front Ball Bearing
QU50502 Front Output, Rear Needle Bearing
QU80048 Dodge Front Output Seal
QU20041 Ford Front Output Seal 1999-2007
QU20195 Ford Front Output Seal 2008-2010
QU10512 Front Output Nut
QU11012 Dodge Front Output Flange
QU20196 Ford Front Output Flange
QU10993 Sprocket
QU10902 Sprocket Snap Ring
Chevy & GMC Shop Manuals
Dodge & Ram Shop Manuals
Ford Shop Manuals

Tech Note 5: NPG-NVG-MPT
When Ford (1999 models), Dodge (2003 models), and GM (2005 models) first used NV271 and NV273 transfer cases, New Process Gear (NPG) of East Syracuse N.Y was part of New Venture Gear (NVG). When NVG dissolved, NPG continued on under Chrysler. Chrysler subsequently sold the production rights to Magna, a Canadian automotive parts company. All these name changes are confusing, but the important thing to know is a specific assembly number for any 271F, 271D, 273D, and 273F transfer case is the same and uses the same replacement parts regardless of it was built by New Venture, New Process, or Magna.

Applications:

Chevy and GMC:
C4500, C5500 Kodiak and TopKick: 2005, 2006, 2007, 2008, 2009

Dodge and Ram:
Ram 2500, Ram 3500: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
Ram 4500, Ram 5500: 2008, 2009, 2010, 2011, 2012

Ford:
Super Duty F250, F350, F450, F550: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Excursion: 2000, 2001, 2002, 2003, 2004, 2005
Super Duty F450, F550: 2011-up
