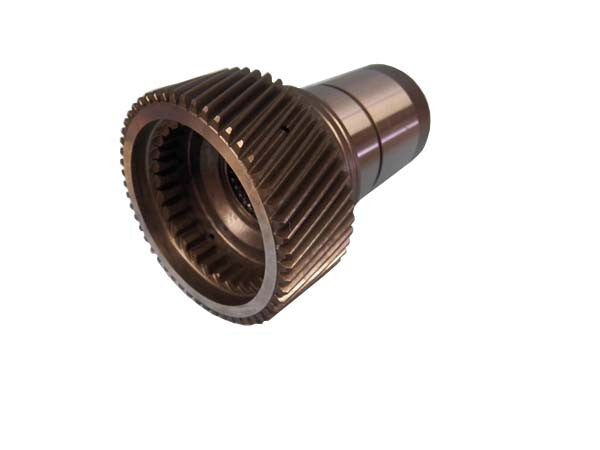

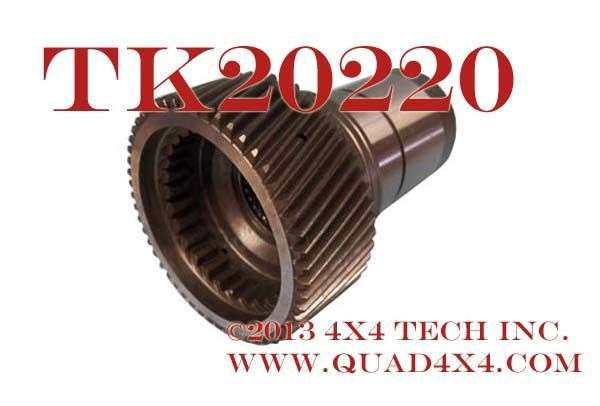

TK20220 Torque King 34 Spline Input Shaft for Ford NV271F, NV273F

TK20220 Torque King 34 Spline Input Shaft for Ford NV271F, NV273F Transfer Cases is a genuine, original equipment New Venture Transfer Case Input Shaft for New Process/New Venture NV273F Electric Shift or NV271F Manual Shift Transfer Cases. TK20220 fits these Ford vehicle models: 2003-2004 Ford Super Duty® F-250, F350, F450, F550 4x4 trucks with either 6 speed manual transmissions or 5W110 5 speed automatic transmissions. Also fits all NV271F and NV273F transfer cases in 2005 to 2010 Ford Super Duty trucks with all engine/transmission/model combinations. Also fits 2011-2016 Ford Super Duty trucks with NV271F transfer cases and 5-speed automatic transmissions. TK20220 is a new takeout part from brand new transfer cases we disassembled for parts. USA Made.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Includes
Matching Parts
New Venture/New Process/Magna
Applications

Tech Note 1: Includes
TK20220 includes factory installed QU10904 Needle Bearing.

Tech Note 2: Matching Parts
Matching Parts for TK20220 31 Spline Input Shaft are:
QU11001 Planetary Assembly
QU10900 Outer Planetary Thrust Washer
QU10572 Inner Planetary Thrust Washer
QU50667 Planetary Lock Plate (Outer Metal Thrust Washer)
QU10814 Plantary Snap Ring
QU50250 Input Bearing
QU10952 Input Bearing to Input Shaft Snap Ring
QU50254 Input Seal

Tech Note 3: New Venture/New Process/Magna
When Ford (1999 models) and Dodge (2003 models) first used NV271 and NV273 transfer cases, New Process Gear (NPG) of East Syracuse N.Y was part of New Venture Gear (NVG). When NVG dissolved, NPG continued on under Chyrsler. Chyrsler subsequently sold the production rights to Magna, a Canadian automotive parts company. All these name changes are confusing, but the important thing to know is a specific assembly number for any 271F, 271D, 273D, and 273F transfer case is the same and uses the same replacement parts regardless if it was built by New Venture, New Process, or Magna.

Applications
Ford:
Super Duty® trucks with either 6 speed manual transmissions or 5W110 5 speed automatic transmissions: 2003, 2004
Super Duty® trucks with NV271F Transfer Cases: 2005, 2006, 2007, 2008, 2009, 2010
Super Duty® trucks with NV273F Transfer Cases: 2005, 2006, 2007, 2008, 2009, 2010
Super Duty® trucks with NV271F Transfer Cases and 5 speed automatic transmissions: 2011, 2012, 2013, 2014, 2015, 2016
