TK12006 Torque King Premium Complete NV5600 Bearing and Seal Kit

TK12006 Torque King® Premium Complete NV5600 Bearing and Seal Kit for New Venture NV5600 6 speed manual transmissions in 1999 to 2005 Dodge Ram 2500 and Ram 3500 trucks. Kit includes original equipment quality tapered roller bearings and needle bearings as specified by New Venture/MTM. Many of the tapered roller bearings are Timken; the pilot bearing may be Timken or Koyo. Needle bearings are mostly supplied by Torrington. Mostly made in U.S.A. However, some pieces are imported.

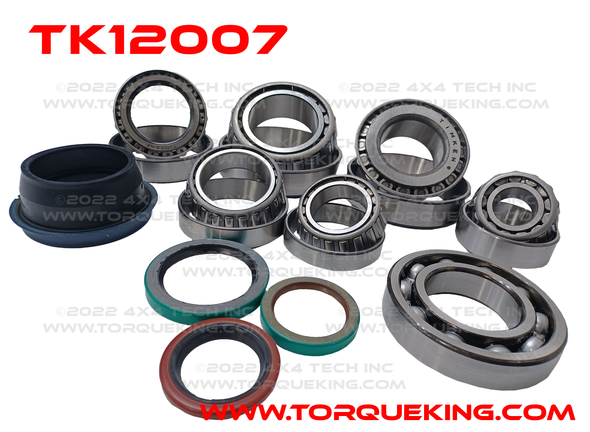

Also See TK12007 premium Torque King® Taper Bearing and Seal Kit
Also available: QU50470 Custom Aftermarket Taper Bearing Kit and QU12027 Needle Bearing Kit

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Kit Quality
Input Seals
Rear Output Seals
Inner Needle Bearing Races
Gasket
Wear
Kit Contents
Applications

Tech Note 1: Kit Quality
Common Question: "Is there a real difference in quality between your Torque King® and Custom Kits? The answer is yes. The difference is the consistently precise fit and outstanding quality control that are hallmarks of Timken Original Equipment Bearings. The components in our Torque King® Kits meet or exceed the original equipment New Venture specs because most components are the exact makes and part numbers used by New Venture. Our Custom Kits use parts from well-known aftermarket suppliers. They are quality parts, but since these are aftermarket parts, they do not have to meet original equipment specs.

Tech Note 2: Input Seals
This Kit includes two Input Seals. The Outside Diameter is the same for all years, but the 1999 and 2000 transmissions use a Seal with a smaller Inside Diameter compared to the Seal required for 2001-2005 units with the 1-3/8" input shaft.

Tech Note 3: Rear Output Seals
This Kit includes Rear Output Seals for both 4x2 and 4x4 NV5600 transmissions.

Tech Note 4: Inner Needle Bearing Races
The Inner Needle Bearing Races are replaceable for 1st, 4th, and reverse gears. These three Races are NOT included in this Kit! Order QU12041 1st, QU10421 4th, and QU12042 reverse steel inner races as needed. All the other needle bearings ride directly on the shafts, so if a shaft bearing surface is damaged beyond what can be polished up by a machine shop, you will need to replace the entire shaft.

Tech Note 5: Gasket
Dodge did not use a gasket or gasket sealer between the transmission and transfer case and none is needed as both the transmission and transfer case are sealed. If you would like to install a gasket, order TK10519.

Tech Note 6: Wear
Accelerated bearing wear or major bearing failures on NV5600 transmissions are usually caused by lubrication related issues. Low oil levels are real bearing killers, as is contaminated or incorrect oil. The heavy and complex NV5600 is not a cheap or super easy transmission to rebuild. To maximize bearing life install a QK1015 Filter Kit plus check and change your oil regularly.

Tech Note 7: Kit Contents
TK12006 Includes:
QU12016 Input Shaft Bearing
QU12017 Input Shaft Bearing Cup
QU12020/QU12021 Mainshaft to Input shaft Pocket Bearing/Race
QU50378 Mainshaft Center Bearing
QU50377 Mainshaft Center Bearing Cup
QU50435 Mainshaft Rear Bearing
QU50630 Countershaft Front Bearing
QU50629 Countershaft Front Bearing Cup
QU50538 Countershaft Center Bearing
QU50973 Countershaft Center Bearing Cup
QU12046 Countershaft Rear Bearing
QU12048 Countershaft Rear Bearing Cup
2 QU12039 Mainshaft 1st Gear, 2nd Gear Needle Bearing
2 QU10055 Mainshaft 3rd Gear, 4th Gear Needle Bearing
QU12015 Mainshaft 6th Gear Needle Bearing
QU10058 Mainshaft Rev. Gear Needle Bearing
2 QU12040 Reverse Idler Bearing
QU12005 Input Seal for 1-3/8" Input Shafts
QU10126 Input Seal for 1-1/4" Input Shafts
QU10023 Rear Ouptut Seal for 4x2
QU10123 Rear Output Seal for 4x4

Applications:
Dodge:
All Ram 2500, Ram 3500 trucks with NV5600 6 Speed Manual Transmissions: 1999, 2000, 2001, 2002, 2003, 2004, 2005
