Description

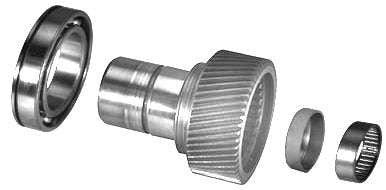

XV-402 1994-1997 NP241DHD Transfer Case Input Shaft and Related Parts Charts and Notes for 1994-1997 Dodge Ram 2500 and Ram 3500 4x4 Trucks with New Process NP241DHD (Dodge Heavy Duty) Transfer Cases. The NP241DHD was used in some 1994-2002 Ram 2500 and most 1994-1997 Ram 3500 trucks. It differs from the NP241DLD (Dodge Light Duty) Transfer Case in 3 ways.
A) NP241DHD Includes a mounting pad and drive gear for an optional 6 bolt Power Take Off (PTO)
B) NP241DHD has 1-1/2" wide Drive Chain compared to 1-1/4" for the DLD
C) ALL DLD models and 1994-1996.5 DHD units have a 1-3/8" x 32 spline rear output shaft. 1996.5 and later DHD models have a 1-5/8" x 31 spline rear output shaft.
NOTE: XV402 no longer features an Input Shaft Exploded View. It has been superseded by XV4000 Complete 1994-1996.5 NP2421DHD Exploded View and XV4001 1996.5-1997 NP241DHD Exploded View.
Links To:
Chart 1: Stock Application Input Shafts
Chart 2: All Engines Manual Transmission to Automatic Transmission Conversions
Chart 3: Diesel and V10 Auto Transmission to Manual Transmission Conversions
Chart 4: V8 Auto Transmission to Manual Transmission Conversions
Chart 5: Notes
Also See:
IDN-400 NP241D Planetary Tooth Differences
IDN-401 NP231, NP233, NP241, NP242 Input Bearing Width Tech Help
IDN-402 Input Shaft High Range Clutch Teeth
IDN-403 NP231/NP241 Input Shaft Chart
IDN-404 ID My 1994-2002 Dodge NP241DLD or NP241DHD Transfer Case.
XV-400 1998-2002 Dodge NP241DHD Input Shaft and Related Parts
XV-401 1998-2002 Dodge NP241DLD Input Shaft and Related Parts
XV-403 1994-1997 Dodge NP241DLD Input Shaft and Related Parts
|
Chart 1 | ||||
| Transfer Case
| Fits |
Specifications See Notes: 1 (Spline) 2 (Length) 3 (Bearing Width) 4 (Planetary Tooth Width) | USA | Import |
| 52099036 | 1994-1995 All Engines RH Series Auto (also some 1994 Gas V8 NV4500LD) |
23 Spline 5-3/64" Wide Bearing Wide Planet Teeth | QU51201 see Note 6 | |
| 52108505 | 1994.5-1996 Gas V8 NV4500LD | 23 Spline 5-3/64" Wide Bearing Narrow Planet Teeth | QU51201 | |
| 52095091 |
1995-1997 Gas V8 NV4500LD |
23 Spline 5-3/64" Narrow Bearing Narrow Planet Teeth | QU50638OE | QU50638 |
| 52095093 | 1996-1997 All Engines RE Series Auto |
23 Spline 4-5/16"" Narrow Bearing Narrow Planet Teeth | QU52100 | |
| 52098534 52099037 | 1994-1995 Cummins Gas V10 NV4500HD | 29 Spline 5-3/64" Wide Bearing Wide Planet Teeth | QU11480 (NLA, use QU50477) |
QU50477 see Note 6 |
| 52098512 52098678 |
1995-1997 Cummins Gas V10 NV4500HD | 29 Spline 5-3/64" Wide Bearing Narrow Planet Teeth | QU10889 | QU50477 |
| 52105092 52105314 | 1996-1997 Cummins Gas V10 NV4500HD | 29 Spline 5-3/64" Narrow Bearing Narrow Planet Teeth | QU10699 | QU11464 |
| | ||||
|
Chart 2 1994-1997 Dodge Ram 2500, Ram 3500 New Process NP241DHD Transfer Case Input Shaft Fitment Chart for Manual Transmission to Automatic Transmission Conversions All Engines See Note 5 | ||||
| Transfer Case
| Convert From | Convert To |
USA Made Shaft See Note 10 |
Import Aftermarket Shaft See Note 10 |
| 52098505 52108677 | 23 Spline-Long 5-3/64" Wide Bearing Narrow Planet 1994.5-1996 Gas V8 NV4500LD | 23 Spline-Short 4-5/16" Narrow Bearing Narrow Planet 1996-1997 Any Engine 46RE Auto 47RE Auto | ||
| 52095091 52105513 | 23 Spline-Long 5-3/64" Narrow Bearing 1995-1997 Gas V8 NV4500LD | 23 Spline-Short 4-5/16" Narrow Bearing 1996-1997 Any Engine 46RE Auto 47RE Auto |
QU50640 | QU52100 |
| 52098534 52099037 |
29 Spline-Long 5-3/64" Wide Bearing Wide Planet 1994-1995 Cummins I6 Gas V10 NV4500HD |
23 Spline-Long 5-3/64" Wide Bearing Wide Planet 1994-1995 All Engines RH Series Auto | QU50639 |
QU51201 see Note 6 |
| 52098534 52099037 | 29 Spline-Long 5-3/64" Wide Bearing Wide Planet 1994-1995 Cummins I6 Gas V10 NV4500HD | 23 Spline-Short 4-5/16" 1996-1997 Narrow Bearing Narrow Planet Any Engine 46RE Auto 47RE Auto |
QU50640 + QU50874 see Note 6 |
QU52100 + QU50874 see Note 6 |
| 52098512 52098678 |
29 Spline-Long 5-3/64" Wide Bearing Narrow Planet 1994-1995 Cummins I6 Gas V10 NV4500HD | 23 Spline-Short 4-5/16" 1996-1997 Narrow Bearing Any Engine 46RE Auto 47RE Auto |
QU50640 + QU50874 |
QU52100 + QU50874 |
| 52105092 52105314 | 29 Spline-Long 5-3/64" Narrow Bearing Narrow Planet 1994-1995 Cummins I6 Gas V10 NV4500HD |
23 Spline-Short 4-5/16" 1996-1997 Narrow Bearing Any Engine 46RE Auto 47RE Auto | QU50640 | QU52100 |
|
Chart 3 1994-1997 Dodge Ram 2500, Ram 3500 New Process NP241DLD Transfer Case Input Shaft Fitment Chart for Automatic Transmission to Manual Transmission Conversions In Cummins Diesel and Gas V10 Powered Trucks See Note 5 | ||||
|
Transfer Case Tag Number
| Convert From | Convert To |
USA Made Shaft See Note 10 |
Import Aftermarket Shaft See Note 10 |
| 52099036 | 23 Spline Long 5-3/64" Wide Bearing Wide Planet 1994-1995 All Engines RH Series Auto | 29 Spline-Long 5-3/64" Wide Bearing Wide Planet 1994-1997 Cummins I6 Gas V10 NV4500HD | QU11480 (NLA, use QU50477) |
QU50477 see Note 6 |
| 52095093 52098153 52105315 |
23 Spline Short 4-5/16" Narrow Bearing Narrow Planet 1996-1997 All Engines RE Series Auto |
29 Spline-Long 5-3/64" Narrow Bearing Narrow Planet 1994-1997 Cummins I6 Gas V10 NV4500HD | QU10699 | QU11464 |
|
Chart 4 1998-2002 Dodge Ram 2500 New Process NP241DLD Transfer Case Input Shaft Fitment Chart for Automatic Transmission to Manual Transmission Conversions In Gas V8 Powered Trucks See Note 5 | ||||
|
Transfer Case Tag Number
| Convert From | Convert To |
USA Made Shaft See Note 10 |
Import Aftermarket Shaft See Note 10 |
| 52099036 |
23 Spline Long 5-3/64" Wide Bearing Wide Planet 1994-1995 All Engines RH Series Auto |
23 Spline Long 5-3/64" Wide Bearing Wide Planet 1994-1997 Gas V8 NV4500LD | No Changes | No Changes |
| 52095093 52098153 52105315 |
23 Spline Short 4-5/16" Narrow Bearing Narrow Planet 1996-1997 All Engines RE Series Auto |
23 Spline Long 5-3/64" Narrow Bearing Narrow Planet 1994-1997 Gas V8 NV4500LD |
QU50638OE is NLA see Note 7 for Options |
QU50638 |
| Chart 5 | |
 Click Here for Detailed Image | Note 1: Stock NP241DHD Transfer Case Input Spline Count for all automatic transmission equipped 1994-2002 Ram 2500, Ram 3500 4x4s is 23. For manual transmission equipped 4x4 models with gas V8 engines, all 1994-1997 models used a 23 spline input. Diesel and V10 powered trucks with NV4500HD 5 speed manual transmissions all have 29 spline transfer case input shafts. |
 Click Here for Photo. | Note 2: NP241DHD Transfer Case Input Shaft Length: For the 1996-1997 model years, an input shaft with an approximate over all length of 4-5/16” is used with all 46RE and 47RE automatic transmissions. 1994-1995 RH series automatic transmission AND ALL 1994-1997 Manual transmission applications have input shafts that are about 5-3/64” long. To provide a simpler reference dimension, some of our parts descriptions and notes may refer to the 4-5/16" shaft as a 4-1/4" shaft. Likewise, a 5-3/64" shaft may be referred to as a 5" or 5-1/8" shaft length. |
| Note 3: Input Bearing Width: NP241DHD Transfer Cases were built with input shafts using either a narrow (5/8” wide) or wide (15/16” wide) Input Ball Bearing. While a narrow bearing cannot be used on an input made for the wide bearing and visa-versa, the combined matching bearings and shafts are totally interchangeable. For example, If you are doing a manual transmission swap on a 1998 Automatic transmission equipped Cummins powered truck with NP241DHD Assembly number 52098153, you can replace the original QU50640 23 Spline Input Shaft/QU50874 Narrow Bearing with QU10889 29 Spline Input Shaft/QU50873 Wide Bearing. See IDN-401 for more information. |
 Click Here for Detailed Photo | Note 4: Planetary Tooth Width: Most 1994-1995 and possibly some very early 1996 Dodge New Process NP241DHD transfer cases have a wide cut planetary gear set. While the planetary gear tooth profile is visibly different from the 1994-2002 narrow tooth planetary gears, the diameters of the 3 pieces (Input, Planetary, Annulus) are also slightly different. The 1994-1995 NP241DHD Wide Tooth Planetary is QU11482. The narrow tooth planetary used through 2002 is QU50494. See IDN-400 for more information. |
| Note 5: 1994-1997 Only: The conversion chart covers transfer case input changes for 1994-1997 model year transmission swaps in Dodge Ram trucks with NV4500, 46RH, 47RH, 46RE, and 47RE transmissions. Other applications may require different parts. |
