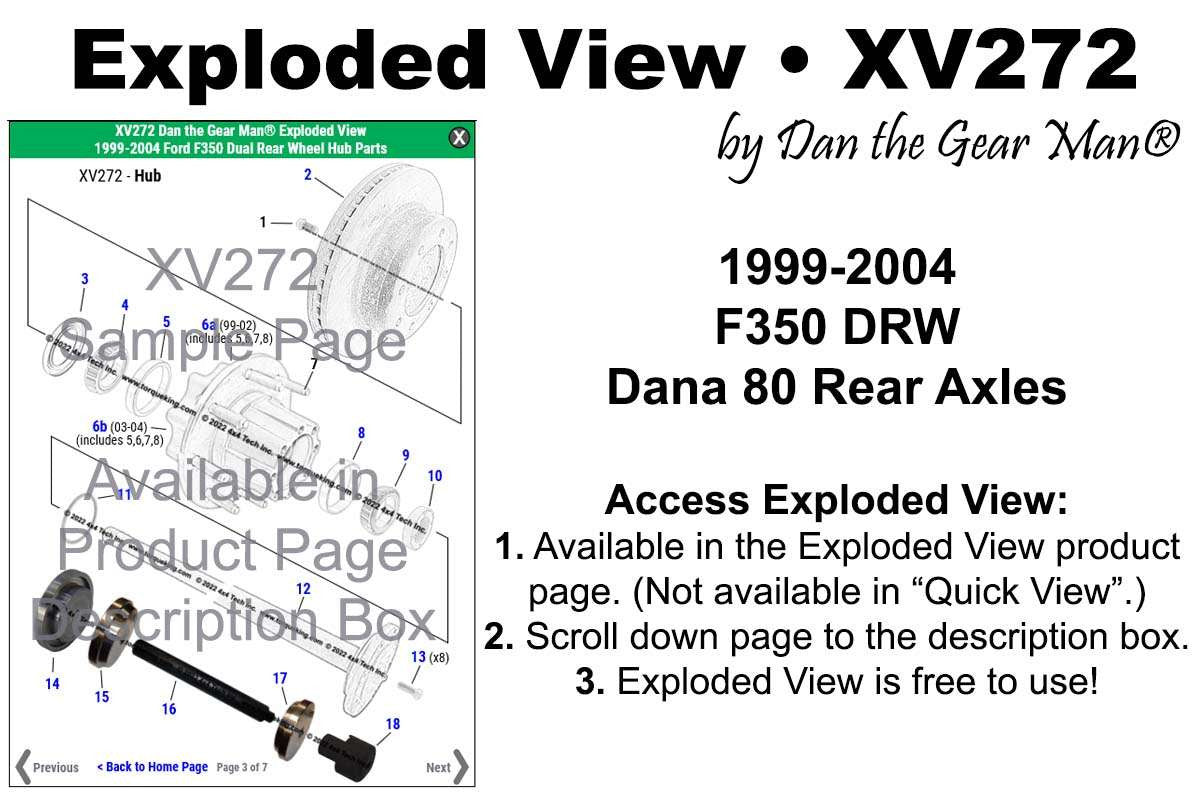

XV272 1999-2004 Ford F350 Dana 80 Dual Rear Wheel Hub Exploded View
Loading parts catalog…
Parts List & Reference
Full part numbers & descriptions for every page
XV272 1999-2004 Ford F350 Dual Rear Wheel Hub
Interactive parts catalog for XV272 1999-2004 Ford F350 Dual Rear Wheel Hub. Browse exploded diagrams, find part numbers, and order replacement parts.
XV272 1999-2004 Ford F350 Dual Rear Wheel Hub
Information and Resources
XV272
Tools, Kits and Lubrication
XV272 Hub
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 21266 | QU21266 Rear Rotor to Hub Bolt for 2005-2010 F350 DRW Dana 80 | Torque King | 8 |
| 2 | 80296 | QU80296 Drw Rear Brake Rotor For 1999 2004 F350 | 1 |
| 3 | 40449 | QU40449 Flanged Rear Wheel Seal for Dodge & Ford Dana 60, 70, 80 Axles | 1 |
| 4 | 50399 | QU50399 Timken® Tapered Wheel and Differential Bearing | 1 |
| 5 | 50396 | QU50396 Timken 3-13/16" OD Taper Wheel or Diff Bearing Cup | 1 |
| 6a | 20185 | QU20185 1999-2002 F-350 Dana 80 DRW Hub | 1 |
| 6b | 20186 | QU20186 Dually Rear Hub for 2003-2004 Ford Super Duty® F-350 Dana 80 | 1 |
| 7 | 21294 | QU21294 14mm Fine Thread DRW Stud for 2003-2016 Ford F350 | Torque King | 8 |
| 8 | 50411 | QU50411 Timken Taper Wheel Bearing Cup for Front and Rear Axles | 1 |
| 9 | 50412 | QU50412 Timken Taper Wheel Bearing for Front and Rear Axles | 1 |
| 10 | 40102 | QU40102 Right Hand Thread Ratchet Type Rear Axle Spindle Nut | 1 |
| 11 | 20084 | QU20084 Axle Shaft to Hub Sealing O-Ring for Many Ford F350 Rear Axles | 1 |
| 12 | 20300 | QU20300 37-3/8" 35 Spline Right Rear Axle Shaft for 99-16 F350 Chassis-Cab | 1 |
| 12 | 20301 | QU20301 38-3/4" 35 Spline Left Rear Axle Shaft for 99-16 F350 Chassis-Cab | 1 |
| 12 | 20469 | QU20469 Right Axle Shaft 38-7/8" | 1 |
| 12 | 20470 | QU20470 Left Axle Shaft 40.24" | 1 |
| 13 | 42308 | QU42308 Rear Axle Shaft to Hub Bolt for Dana 80, Dana S110, Dana S111 | Torque King | 8 |
XV272 Tools, Kits and Lubrication
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 8002 | TK8002 Master 99-04 and 06.5-16 F350 DRW Rear Wheel Bearing Kit with Tools | 1 |
| 2 | 8003 | TK8003 Master 99-04 and 06.5-16 F350 DRW Rear Wheel Bearing Kit NO Tools | 1 |
| 3 | 8380 | QK8380 Hub Service Kit for 99-up F350 DRW Dana 80 Rear Axles | 1 |
| 4 | 5500 | QT5500 Wheel Bearing Packer | 1 |
| 5 | LG100-2 | LG100 Wheel Bearing Greases | 1 |
| 6 | 851 | Motorcraft SAE 75w140 Synthetic Rear Axle Lubricant | 1 |
| 7 | 811 | Motorcraft XG1E1 Grease | 1 |
