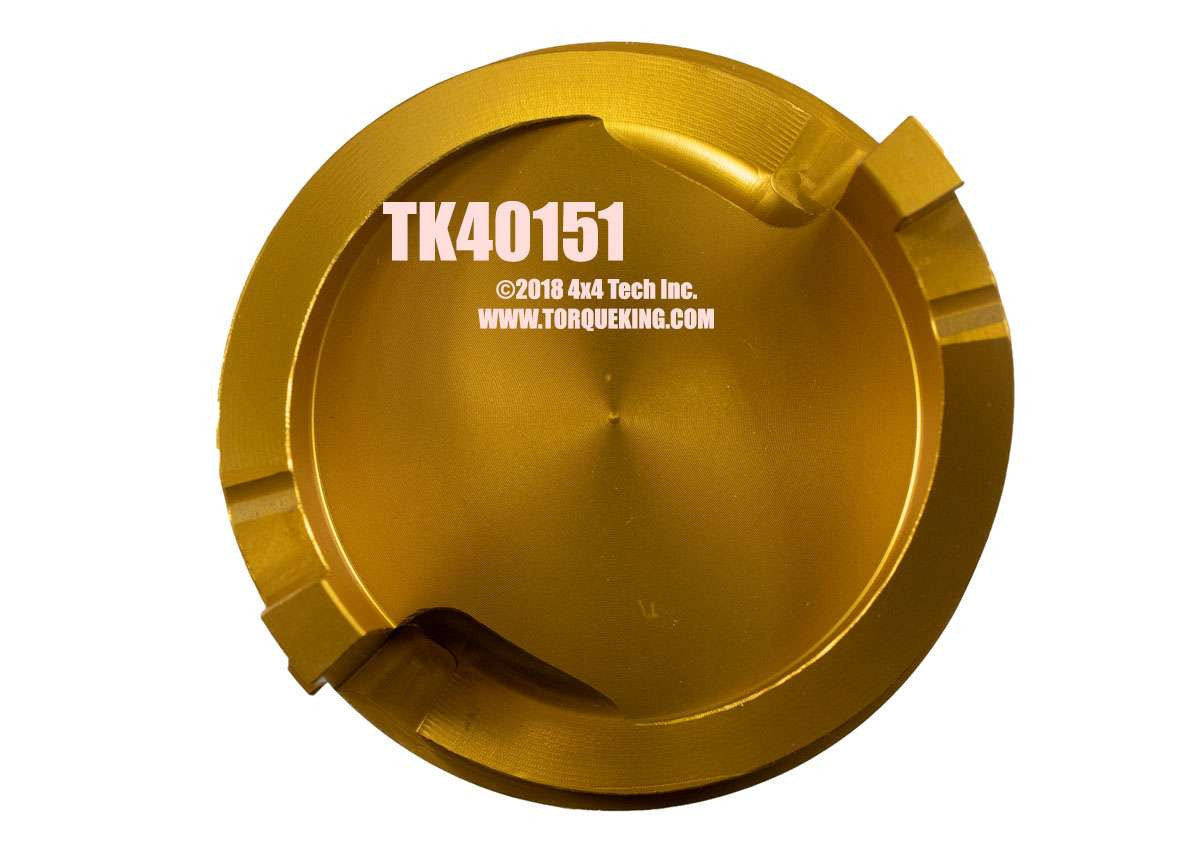

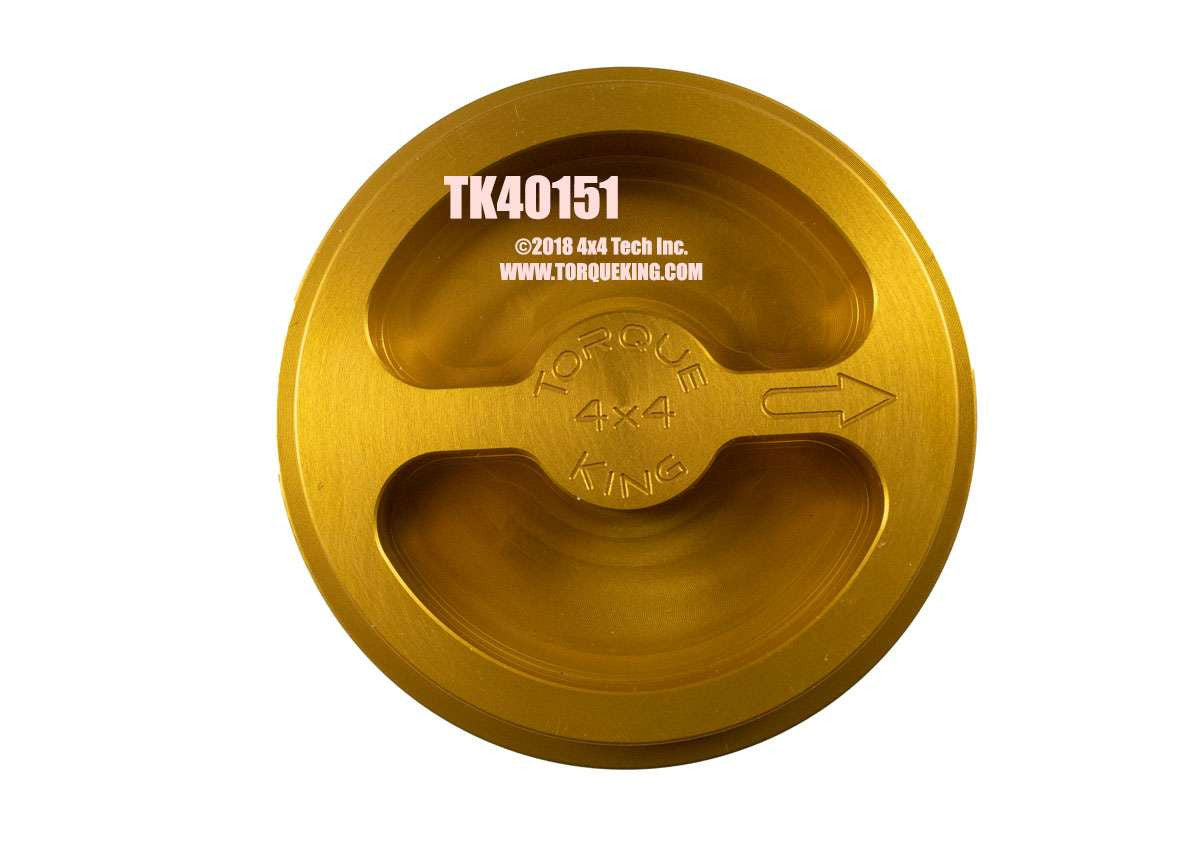

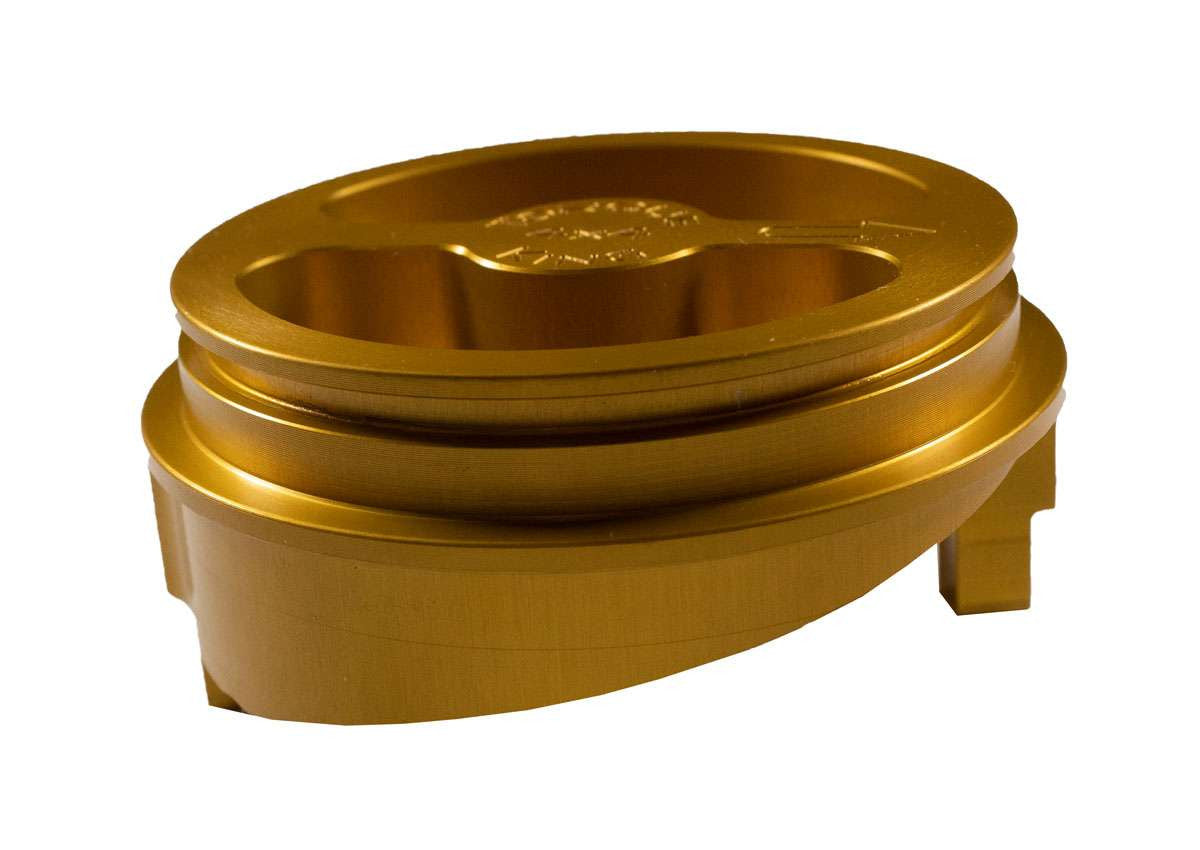

TK40151 Gold Torque King® HD Anodized Aluminum Replacement Hub Dial

TK40151 Gold Torque King® Heavy-Duty Anodized Aluminum Replacement Hub Dial for 1977-1981 Chevy and GMC 1 Ton 4x4s for Dana 60 Spline Mount, Aluminum Dial Locking Hubs is a precision made, CNC machined anodized aluminum replacement for plastic factory equipment hub dials on 1977-1981 Chevy K30 and GMC K35 1 ton 4x4s. Can also be used to replace Red Hub Dial on 1978-1979 Ford F250 plus 1979 Ford F350 4x4 trucks with Dana 60 Front Axles. USA Made. Sold individually.

Also see TK20750 Red Dana 60 Ford Hub Dial

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Parts Availability
Lubrication
Matching Parts
Applications

Tech Note 1: Parts Availability
Spicer supplied Dana 60 spline mount, Face Tooth Design, Hub Locks to both General Motors and Ford for a very short time before Warn M256 series hubs replaced Spicer hubs as original equipment for both Ford (1980) and GM (1982). While Spicer hub locks were durable, by now, most 1977-1981 trucks have either been crushed or have had the original Spicer Hubs replaced by Warn 11690 (M256) or aftermarket hubs. Spicer Dana 60 hub parts production ended in 1981 so parts stocks are nearly exhausted. Check the torqueking.com web site for current parts availability.

Tech Note 2: Lubrication
To insure proper hub operation and also protect against corrosion, apply a very THIN film of a quality grease to the internal hub components. Spicer recommended Moly XL hi-speed grease for the internals and Parker "O" Ring Lube (now O-Lube) for the o-rings. Since I did not have ready access to either product, I always used the same grease type as the wheel bearings. The specific grease is probably not as important as the proper quantity. Not enough grease will will lead to both corrosion and metal to metal wear. Too much grease will hinder the locking function of the hubs especially in cold climates.

Tech Note 3: Matching Parts
Exploded View XV1006 1977-1991 Chevy & GMC Dana 60 Front Axle
TKA4962 Front Wheel Hub for GM
QU40330 30 Spline Outer Axle Shaft for GM
QU56011 Warn M256 Hub Set
QU56111 Mile Marker Stainless Steel Hub Set
TK20750 Red Torque King® 1978-1979 Dana 60 Ford Hub Dial

Applications

Chevy and GMC
K30, K35: 1977, 1978, 1979, 1980, 1981
