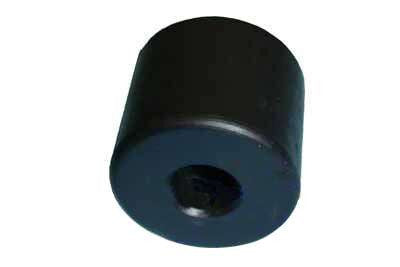

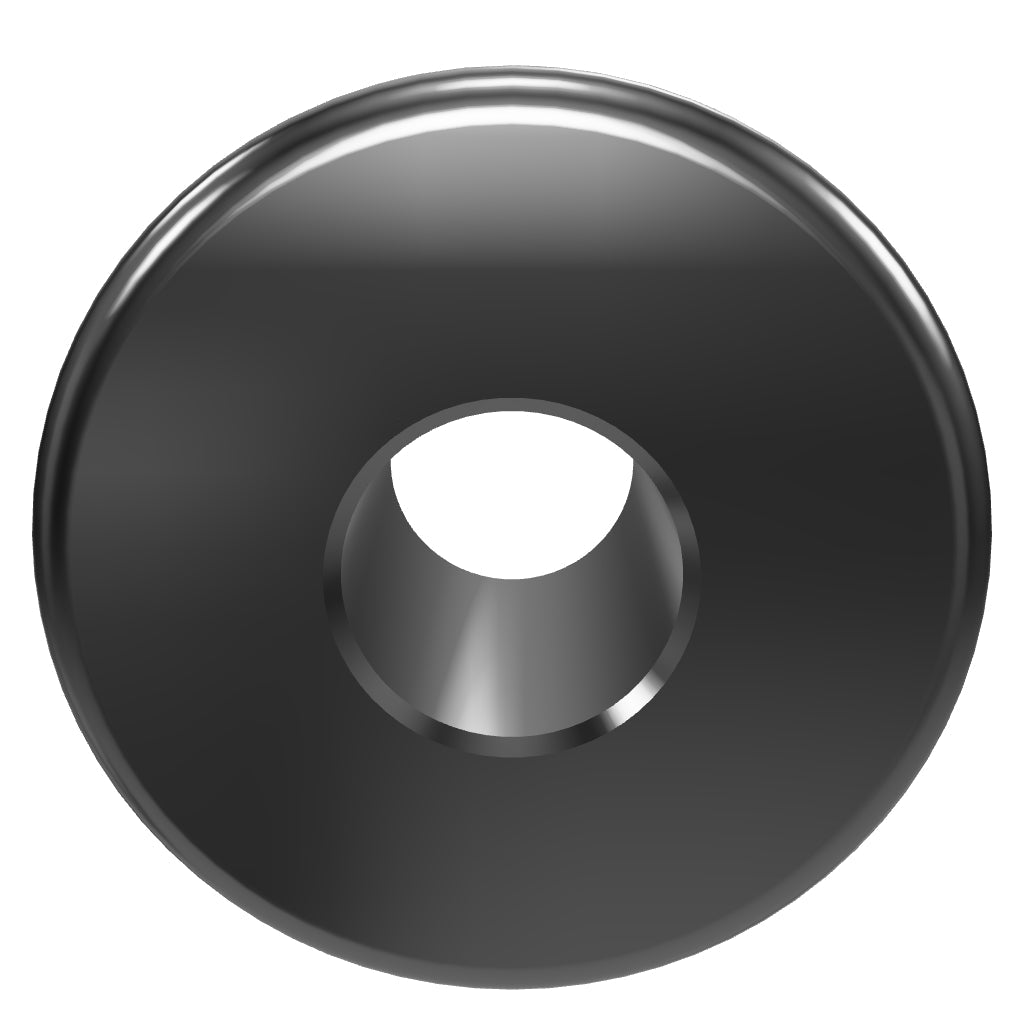

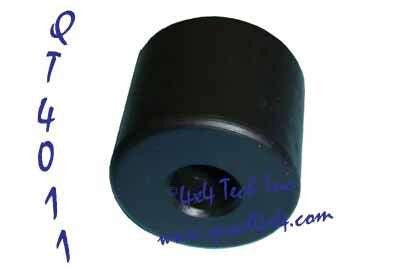

QT4011 1-1/4" Press Tip

QT4011 1-1/4" Press Tip is used with a QT1065M C-frame Press and QT4015 Press Anvil to easily install universal joints with 1-3/8" diameter cups on most heavy-duty 3/4 ton through 1-1/2 ton rear driveshafts and 4x4 front axle shafts. Made by us here in Montana from a solid billet of U.S.A. produced high strength steel.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Product Note
Applications

Tech Note 1: Product Note
QT4011 is made to work on most larger size rear driveshaft and front axle shaft universal joints up to 4-3/8" overall width in heavy-duty 3/4 ton to 1-1/2 ton light trucks. For axle shafts and driveshaft u-joints, QT4011 is made to fit these domestic automotive universal joint sizes:
AAM (Chevy, Dodge, GMC): 1415 (1-3/16"), 1455 (1-3/8")
Spicer (All Makes): 1410 (1-3/16"), 1480 (1-3/8")

Applications:
Spicer 1480 and AAM 1485 series driveshaft and axle shaft universal joints
