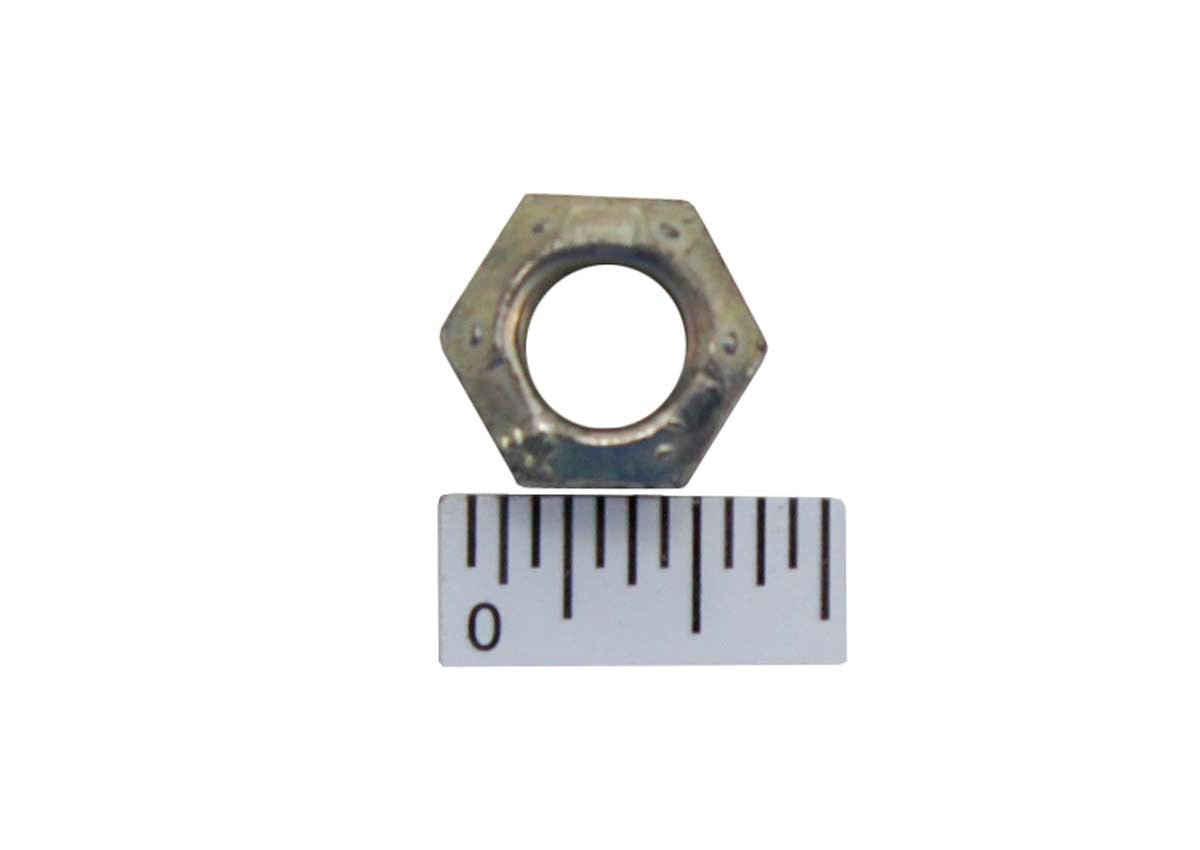

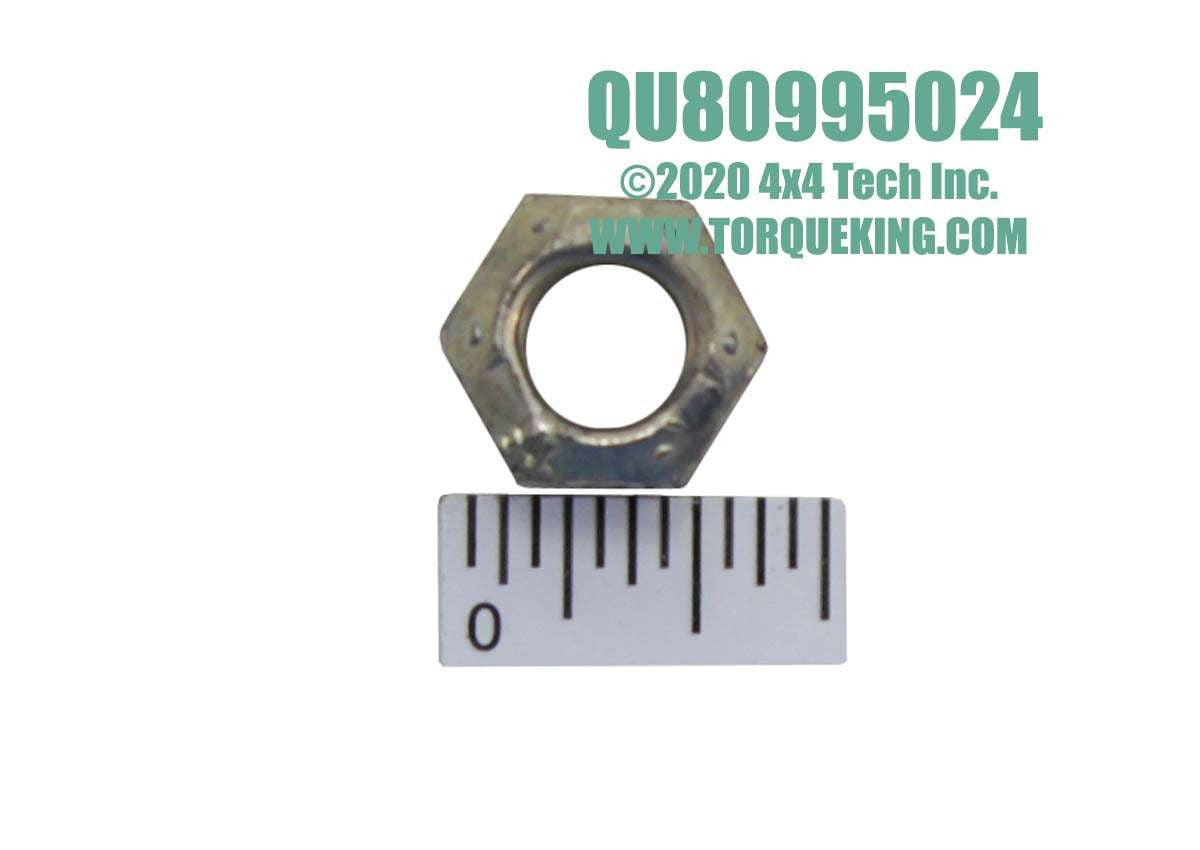

QU8095024 3/8-16 UNC Grade 8 Class C Coarse Thread Lock Nut

QU8095024 3/8-16 UNC USA Made Grade 8 Coarse Thread All Metal Class C Locknut

• Zinc plated for corrosion resistance
• Tensile strength: 150,000 psi minimum
• Rockwell hardness: C26-34
• Specifications: MS51934, NAS 1021, MIL-N-25027B, ASTM F606, E18 & IFI-107
• Withstands temperatures up to 450°F
• Prevailing torque type lock nut
• Resists severe vibration and shock loads
• 9/16 WAF, 21/64 Thick
• Size: 3/8-16

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Matching Parts
Applications

Tech Note 1: Matching Parts
Exploded View XV4009 1973-1979 Ford Direct Mount NP205 Transfer Case
QU8096075 3/8-16 x 3-1/2 Grade 8 Coarse Thread Hex Head Bolt
QU21025 Transmissions or Transfer Case Mount for 1967-1979 Fords
QU21026U Used Transmission Mount Strap for Ford Trucks and 4x4s

Applications:
(Incomplete)

Ford:
Used on NP205 Direct Transfer Case Mounts
