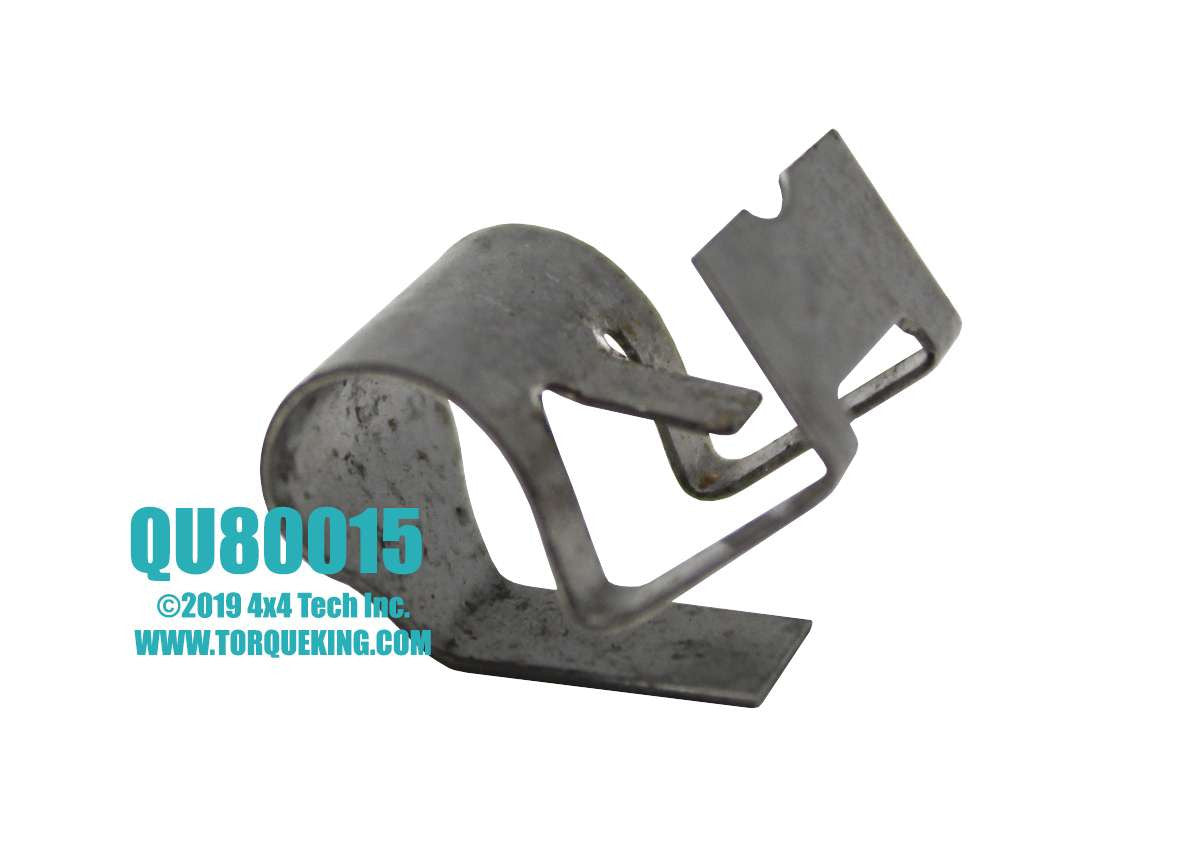

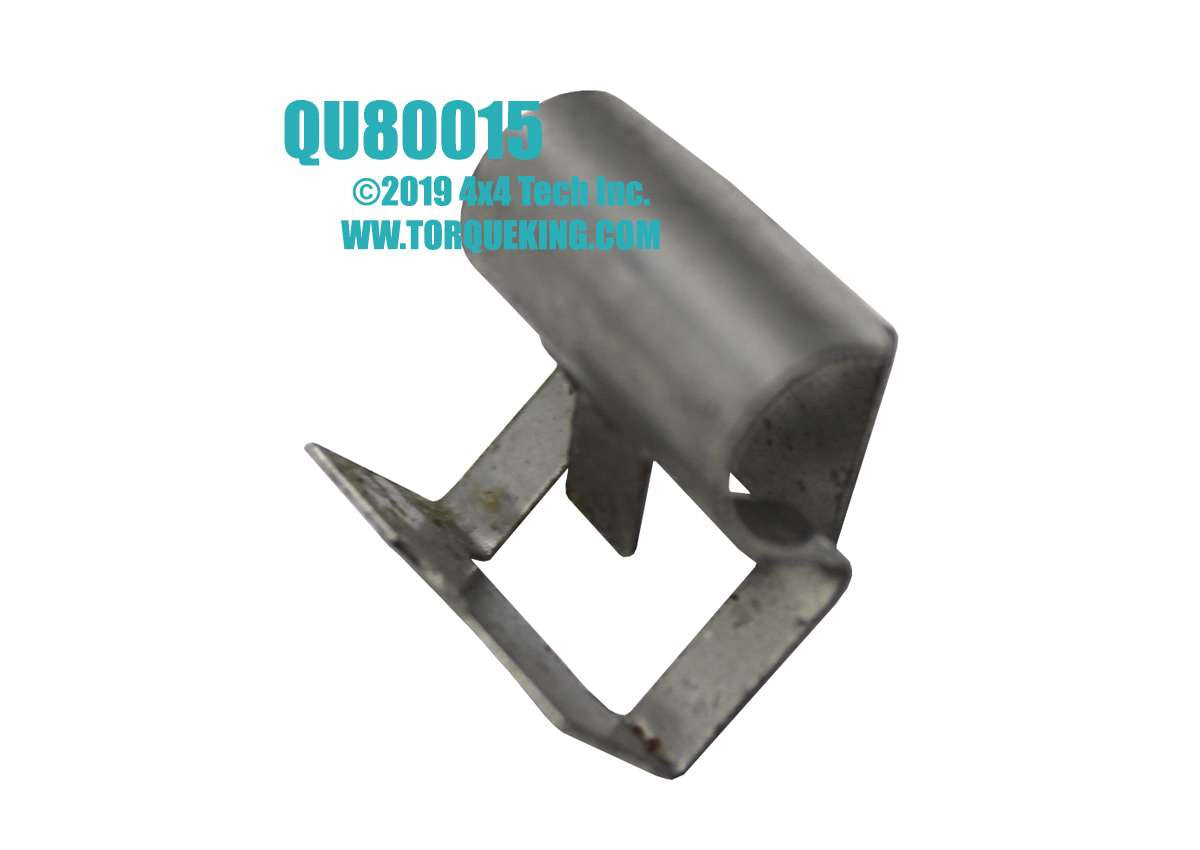

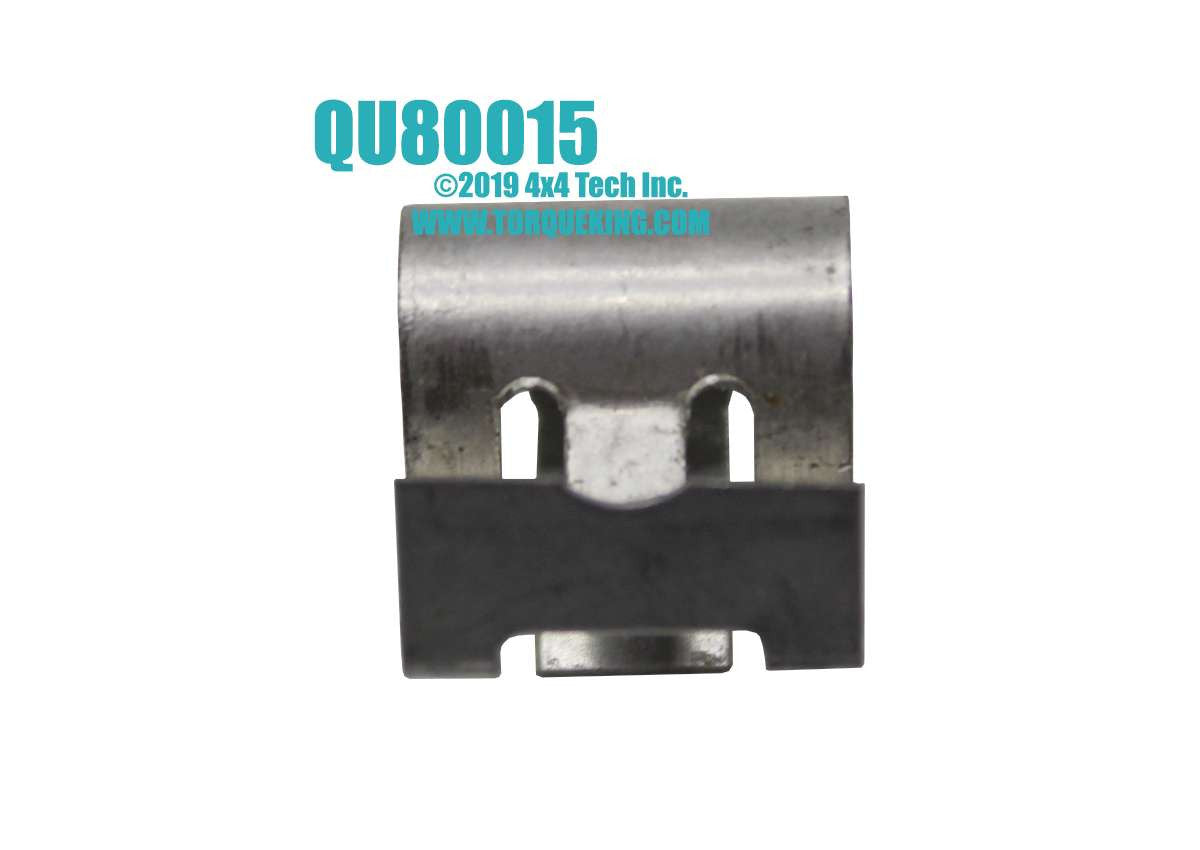

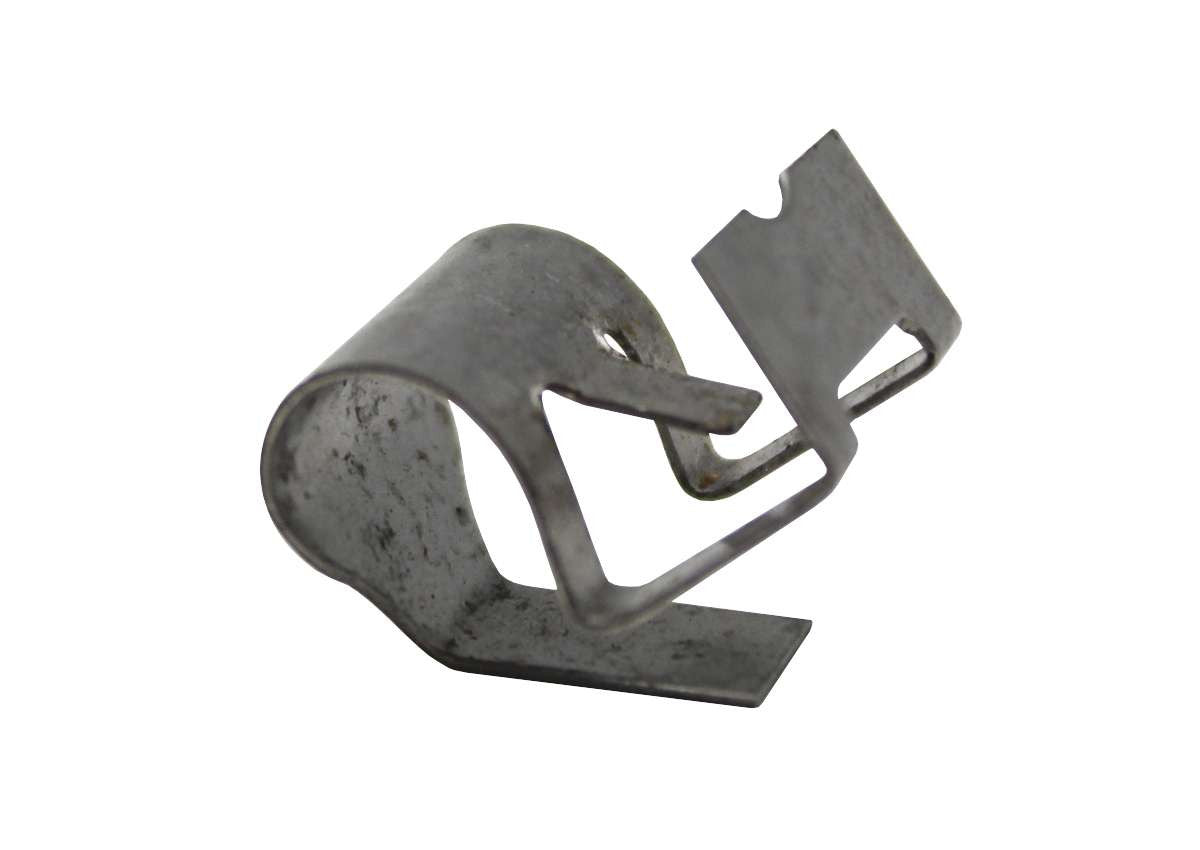

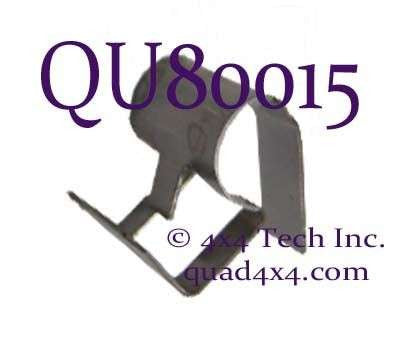

QU80015 Brake Shoe Anti-Rattle Clip

QU80015 Brake Shoe Anti-Rattle Clip fits the lower tab inboard disc brake pad of many late 1960s to 1990s 4x4 front disc brake systems to prevent the pad from rattling.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Exploded View XV1001 1975-1989 Dodge Dana 60/61 Front Axle
Exploded View XV1006 1977-1991 Chevy & GMC Dana 60 Front Axle

Dan the Gear Man® Tech Notes:
To Install
Applications

Tech Note 1: To Install
To install this clip on the pad, simply push it on the tab. Make sure the spring is positioned in the anchor plate slot when you install the pad in the anchor plate.

Applications:
Chevy/GMC:
K30, K35, K3500, V3500 1 ton 4x4 trucks: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Dodge:
All W350 with Dana 60 or Dana 61 front axle: 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
All Cummins Diesel Powered W-250: 1989, 1990, 1991, 1992, 1993
