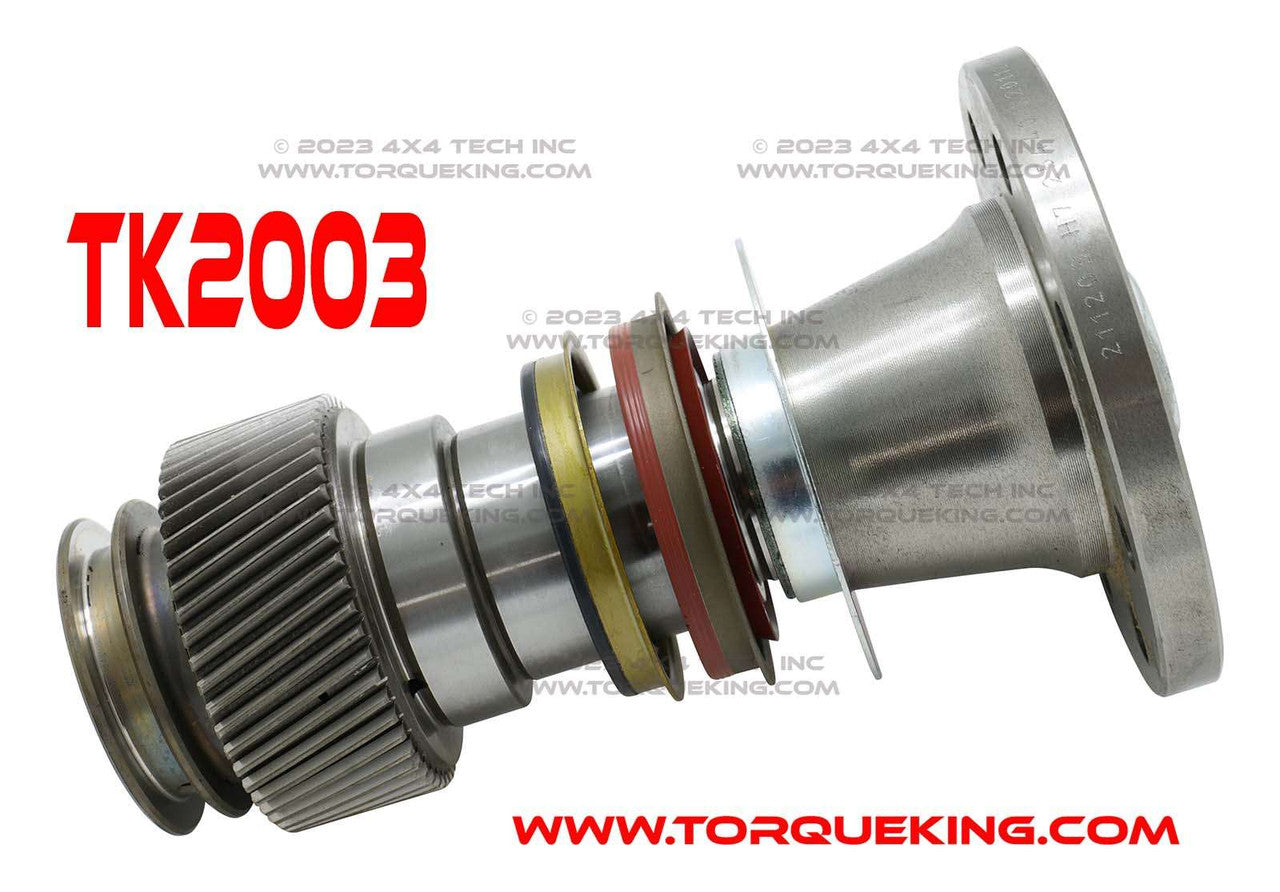

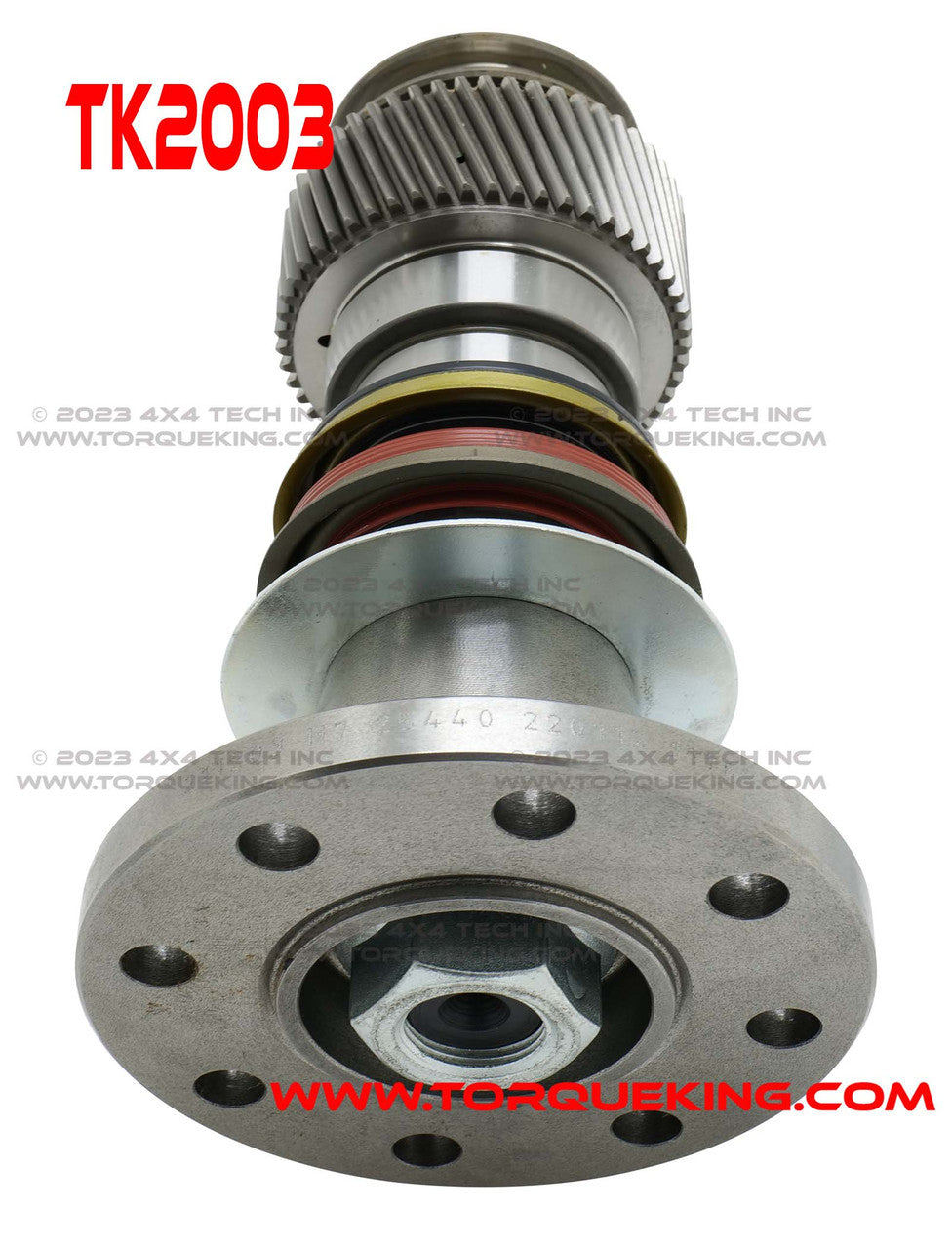

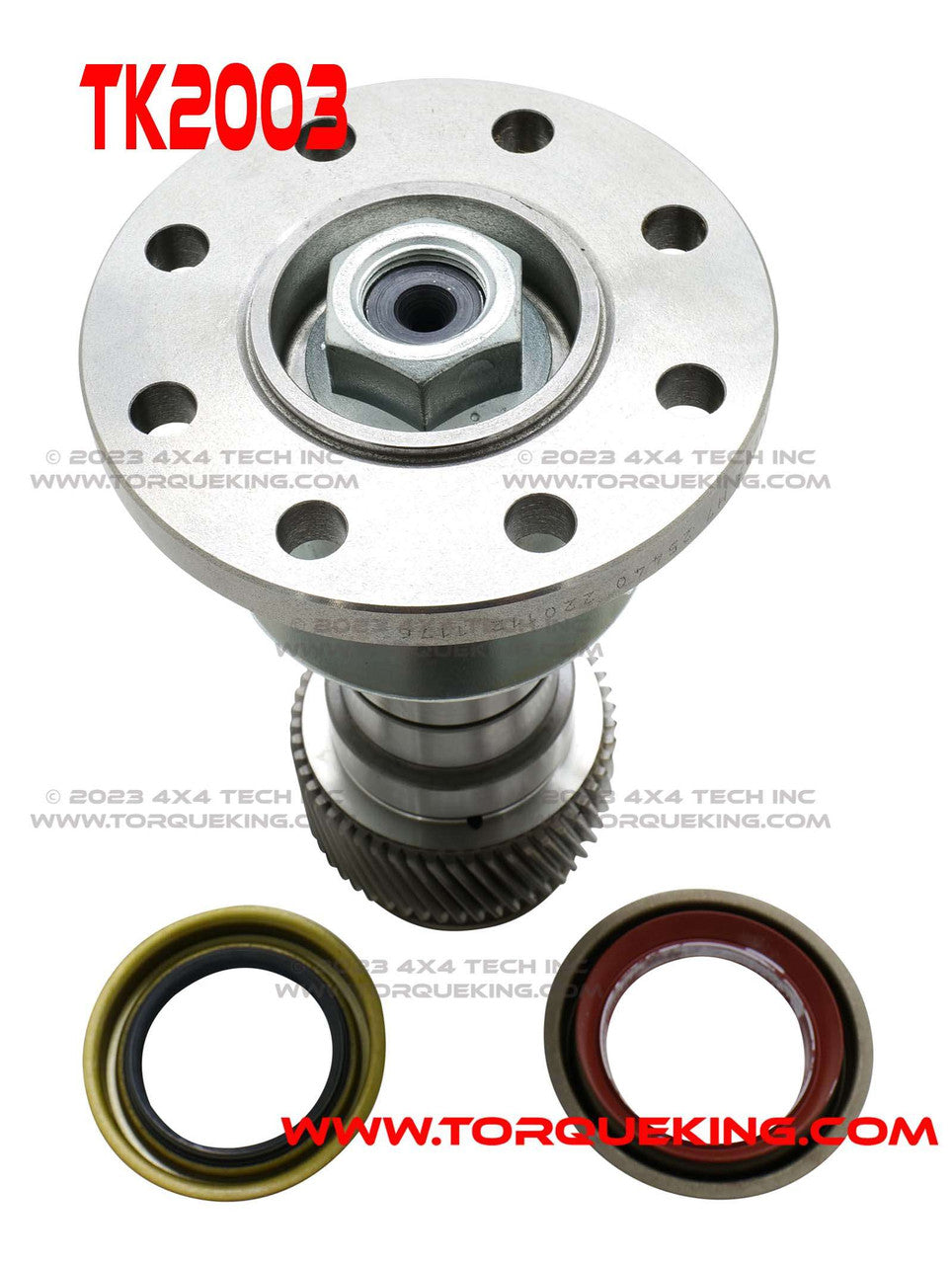

TK2003 Divorce Conversion Kit for Married NV271F/NV273F & NV271D/NV273D Transfer Cases

TK2003 Divorce Conversion Kit for Married NV271F/NV273F and NV271D/NV273D Transfer Cases. This kit allows you to install a modern transfer case in older vehicles with a divorced or remote mount transfer case, convert your 2 wheel drive truck to 4 wheel drive without transmission modifications, or retain your 4x4 capabilities when upgrading to a heavier duty Eaton or other manual transmission in your pickup.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Kit Components
Matching Flange Yokes
Applications

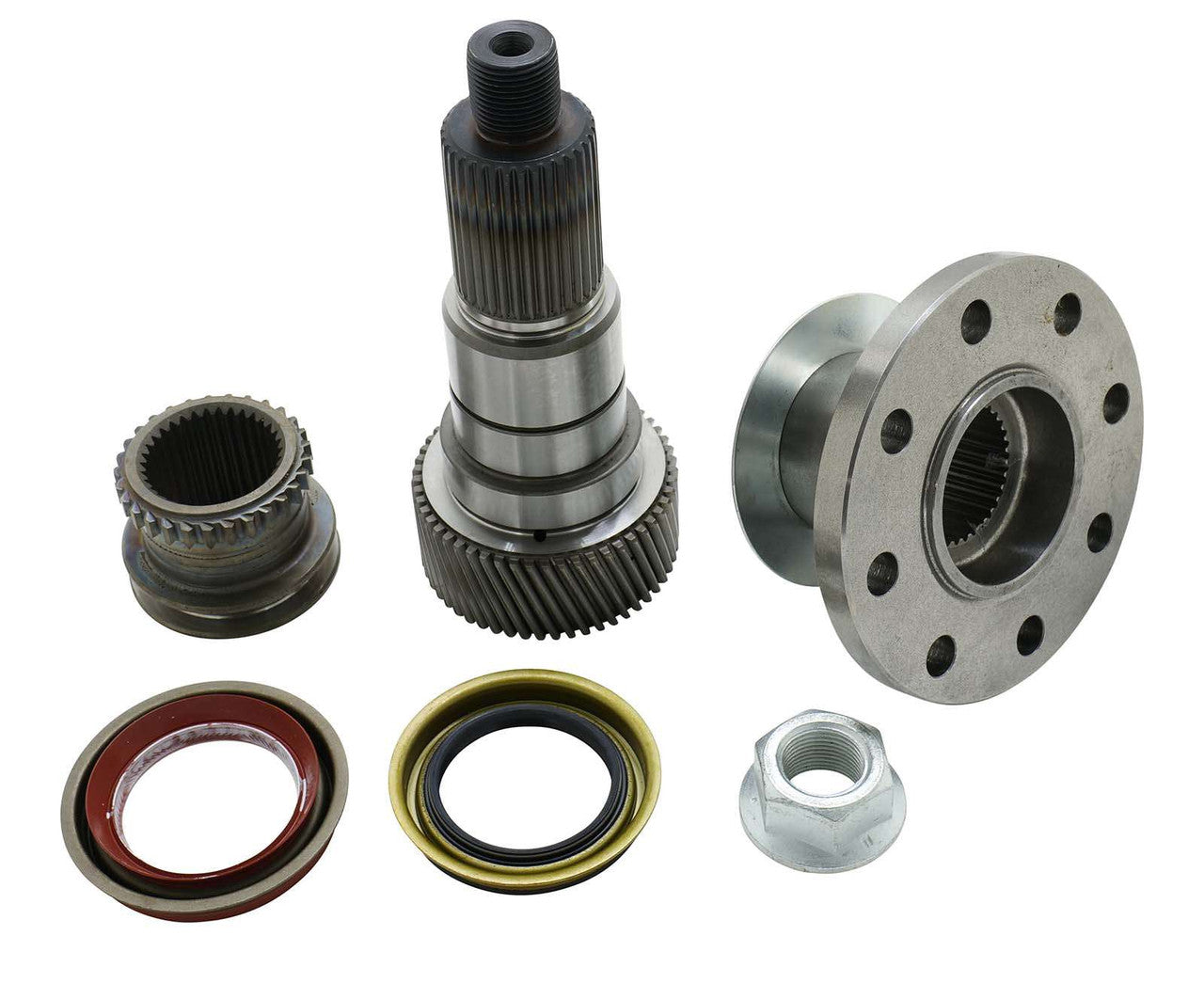

Tech Note 1: Kit Components
QU30177 Input Shaft
QU30387 Input Shaft Flange
QU30383 Range Sleeve
QU20195 Input Shaft Seal
QU50681 Input Shaft Nut

Tech Note 2: Matching Flange Yokes
QU40820 1410 Series Yoke
QU40821 1480 Series Yoke

Tech Note 3: 240-260 series adaptation

Adapting 241-261 transfer cases will require some or all of the following considerations:

Matching an input bearing and seal to your housing. Example: a 241 would need a 55x80mm ball bearing, or machine input shaft to match factory 50x80mm bearing. The seal would also change.

Machining another snap ring groove to match your bearing and housing.

Using QU52415 beariing adapter to match with the small diameter pocket bearing used in early transfer cases.

Applications
Remote Mount New Venture 271 Dodge Transfer Cases
Remote Mount New Venture 273 Dodge Transfer Cases

Remote Mount New Venture 271 Ford Transfer Cases
Remote Mount New Venture 273 Ford Transfer Cases
