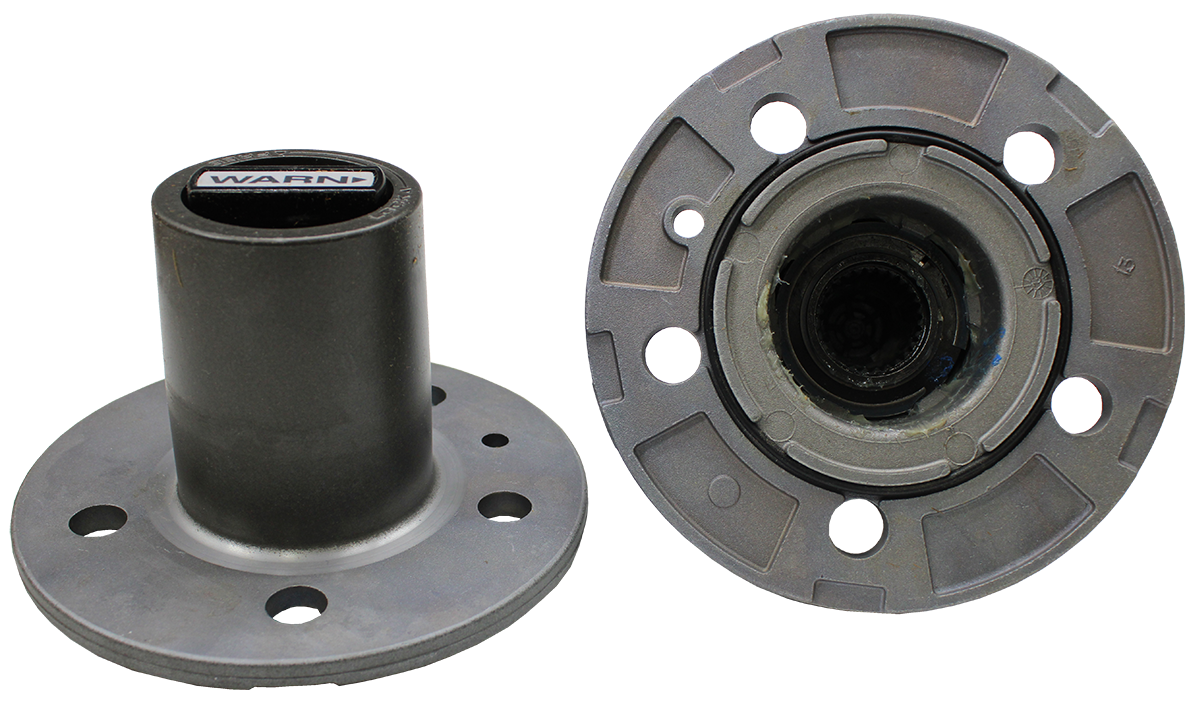

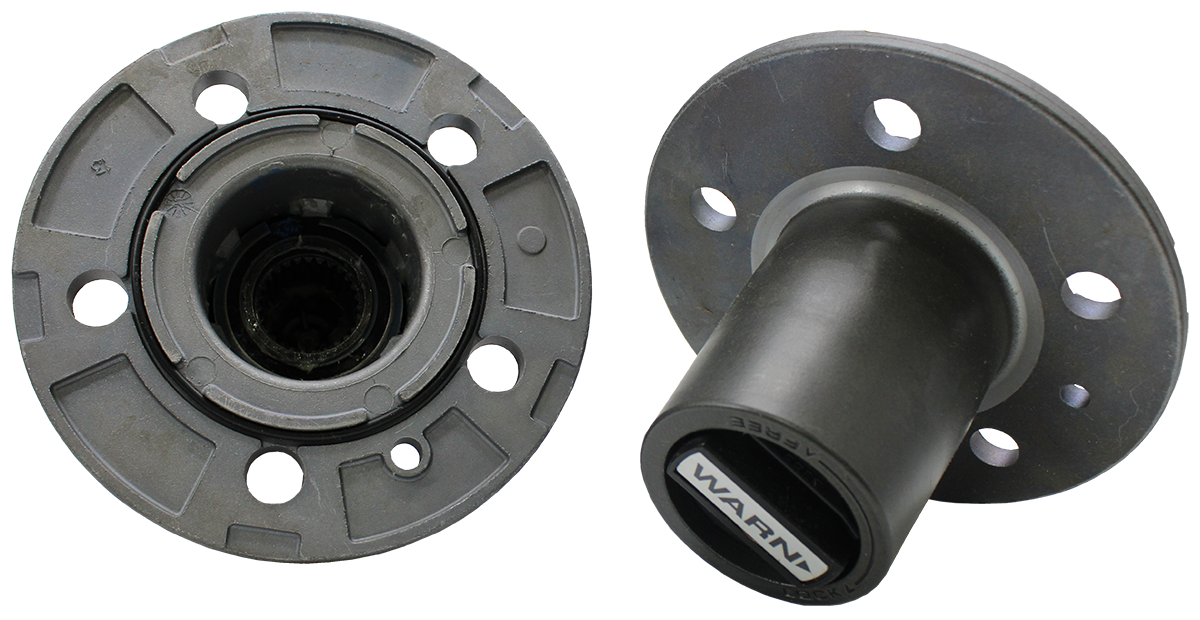

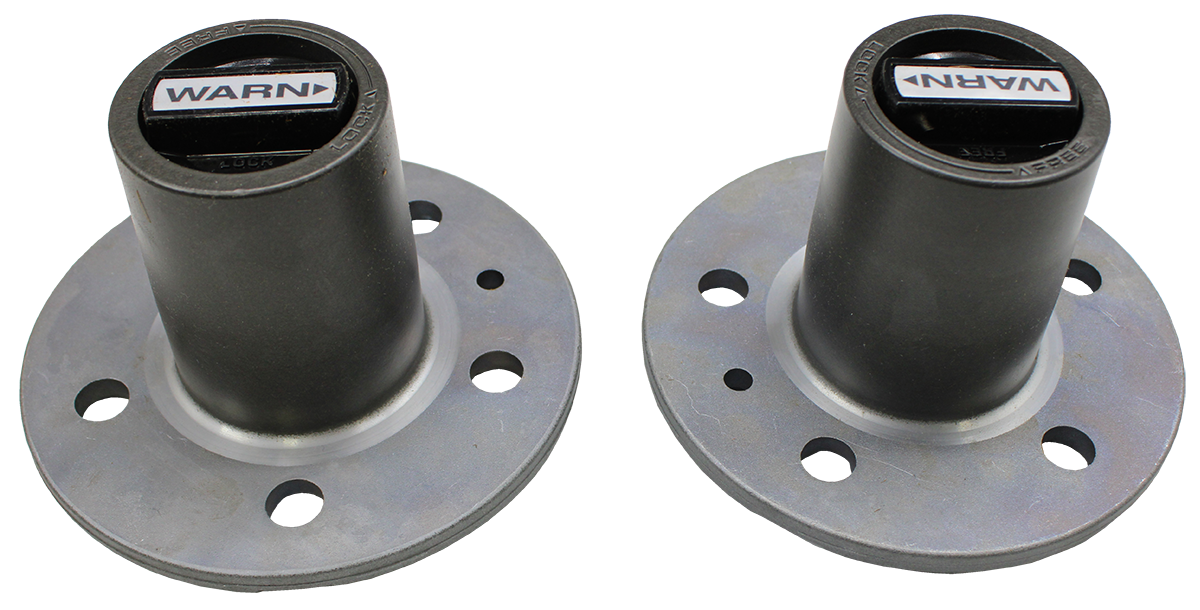

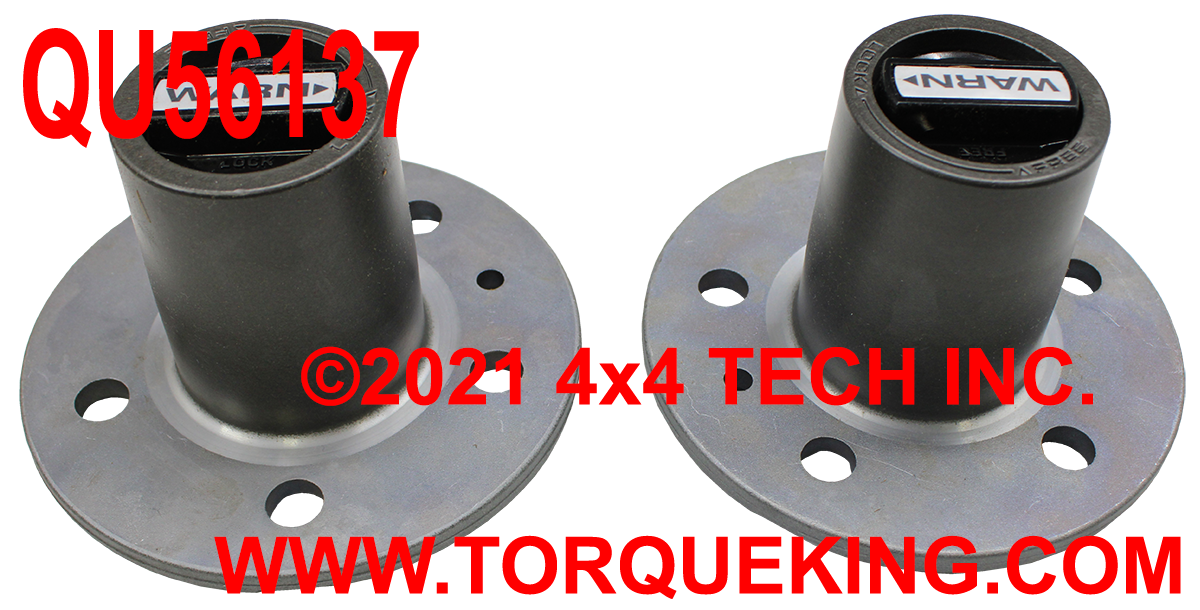

QU56137 Warn 29071 27 Spline Manual Lock Out Hub Set

QU56137 Warn 29071 27 Spline Manual Lock Out Hub Set for 1990-1994 Ford Explorer and 1990-1997 Ford Ranger with Dana 28 or Dana 35IFS front axles.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Axle Shaft Parts
Spindle Nuts
Matching Parts
Applications

Tech Note 1: Axle Shaft Parts
When replacing the factory Auto Hub with Manual Hubs, the factory Axle Shaft Thrust Washers and Snap Rings located on the outer axle shafts at the end of the spindles are reused.

Tech Note 2: Spindle Nuts
For the 1990-1997 Ford Ranger and 1990-1994 Explorer, replacing the factory Auto Hubs also requires changing the spindle nuts. Order (2) QA4769 Spindle Nut Kits separately.

Tech Note 3: Matching Parts
QU56151 Mile Marker Manual Hub Lock Out Set
QA4769 Spindle Nut Kit

Applications
Ford:
Explorer: 1990, 1991, 1992, 1993, 1994
Ranger: 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997

Warn Industries, Inc. (Warn) warrants to the original purchaser that the mechanical components of the WARN® Locking Hubs will be free of defects in material and workmanship for the lifetime of the product. This Warranty applies only to the original purchaser of the product.
