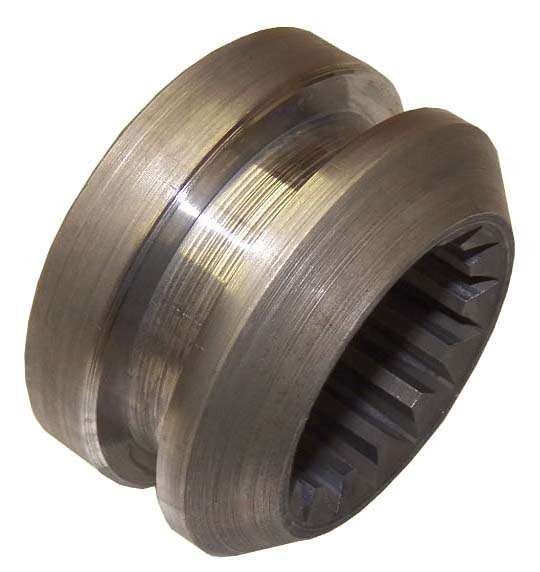

QU40246U USED Clutch Collar
When in stock, this part will have a live Add To Cart Button.
Description
QU40246U USED Clutch Collar couples the differential output shaft and right inner axle shaft when you activate Four Wheel Drive on your 1994-2001 full-size Dodge Ram using a Dana-Spicer front axle equipped with a vacuum controlled Central Axle Disconnect (CAD) system (15 spline shift collar 1500, 2500, 3500, Spicer). Available while supplies Last.
This part has superseded to the new part: QU40246 Clutch Collar
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Reason To Replace
Applications
Tech Note 1: Reason To Replace
The hardened steel coupler usually only needs replacement when a malfunctioning CAD system is unable to complete a full shift. Under load, a partially engaged Clutch Collar will be forced off the Differential Output Shaft splines which causes both the shaft and Clutch Collar splines to wear down.
Applications:
Dodge Ram:
Dana 44: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Dana 60: 1994, 1995, 1996, 1997, 1998, 1999
