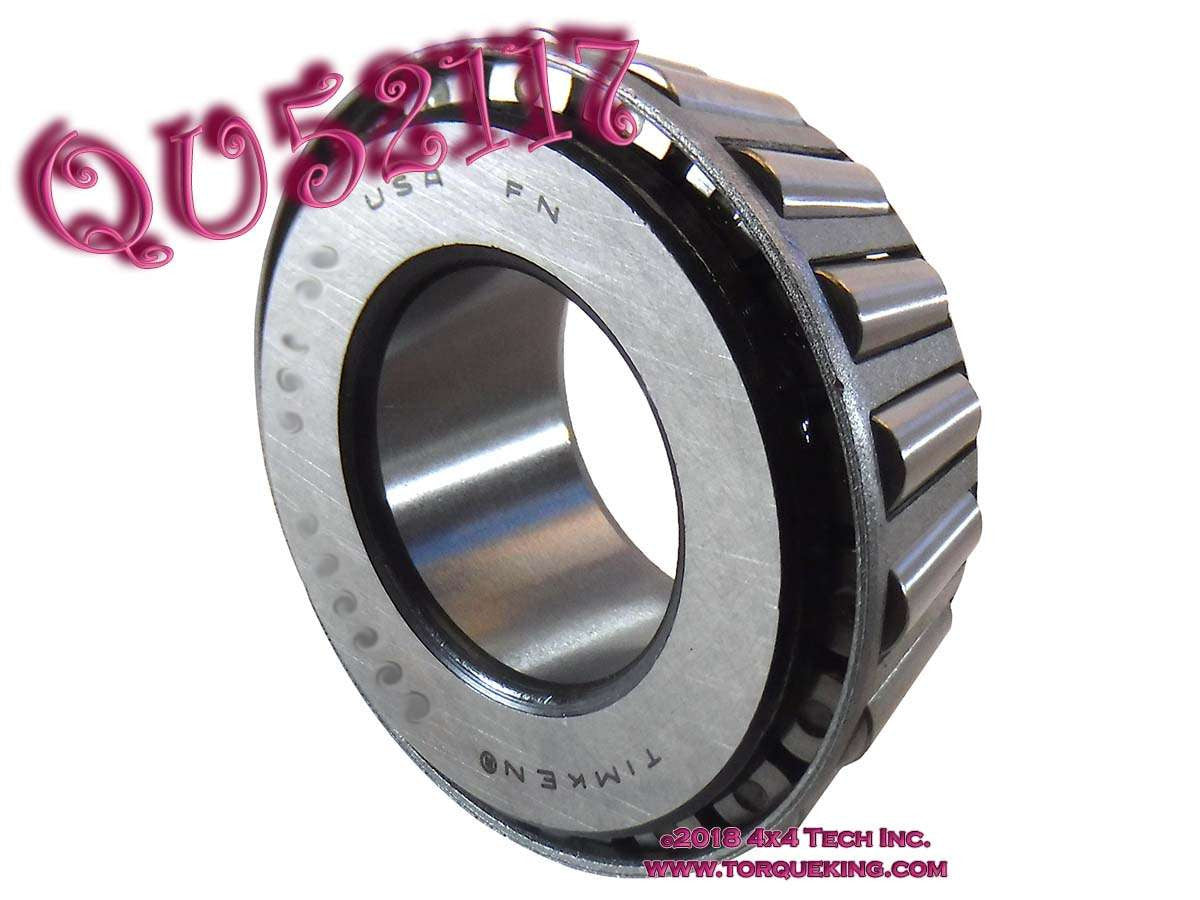

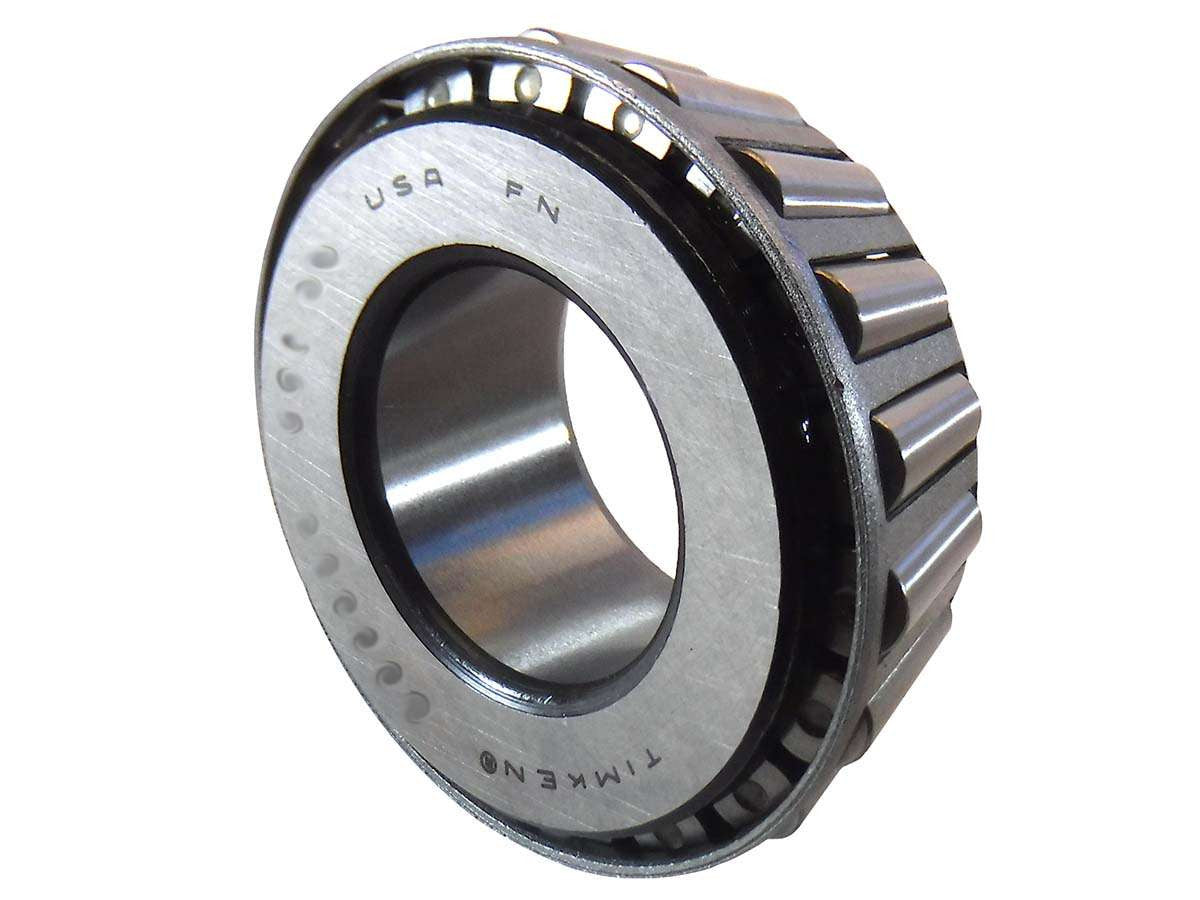

QU52117 1961-1971 Dana 27 Outer Pinion Bearing for Jeep and IHC Scout
Non-Stock Special Order 3-5 Days
Description
QU52117 Timken® Dana 27 Outer Pinion Bearing for 1961-1971 Jeep and early production IHC Scout (prior to serial number FC15544) 4x4s with Dana-Spicer Model 27 closed knuckle front axles.
Matching Bearing Cup
Identifying Dana 25, Dana 27
Applications
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project.
Dan the Gear Man® Tech Notes:
Matching Bearing Cup
Identifying Dana 25, Dana 27
Applications
Tech Note 1: Matching Bearing Cup
Matching Bearing Cup is QU50894
Tech Note 2: Identifying Dana 25, Dana 27
|
Identifying Jeep Dana 25 and Dana 27 Axles by Bearing Cup Size The Jeep Dana-Spicer Model 25 and Model 27 axles use different pinion and differential bearings with the Model 25 having larger diameter bearing cups. Order Number follows dimension. |
||
| Bearing | Model 25 | Model 27 |
| Pinion Inner Bearing Cup Outside Diameter | 3.00" QU50535 | 2.8438" QU50539 |
| Pinion Inner Bearing Inside Diameter | 1.375" QU50536 | 1.375" QU50540 |
| Pinion Outer Bearing Cup Outside Diameter | 2.875" QU50533 | 2.5312" QU50894 |
| Pinion Outer Bearing Inside Diameter | 1.125" QU50534 | 1.125" QU52117 |
| Differential Bearing Cup Outside Diameter | 3.00" QU51089 | 2.891" QU50447 |
| Differential Bearing Inside Diameter | 1.625" QU51090 | 1.625" QU50448 |
Applications:
International:
Scout 80 with FA14 (Dana 27 with open differential) Axle below chassis number FC15544
Jeep:
1961-1964 CJ-3B with Dana 27 Front Axle
1961-1965 CJ-5, CJ-6 with Dana 27 Front Axle
1966-1971 CJ-5, CJ-6 1962-1970 Wagoneer
1967-1971 Jeepster Commando
