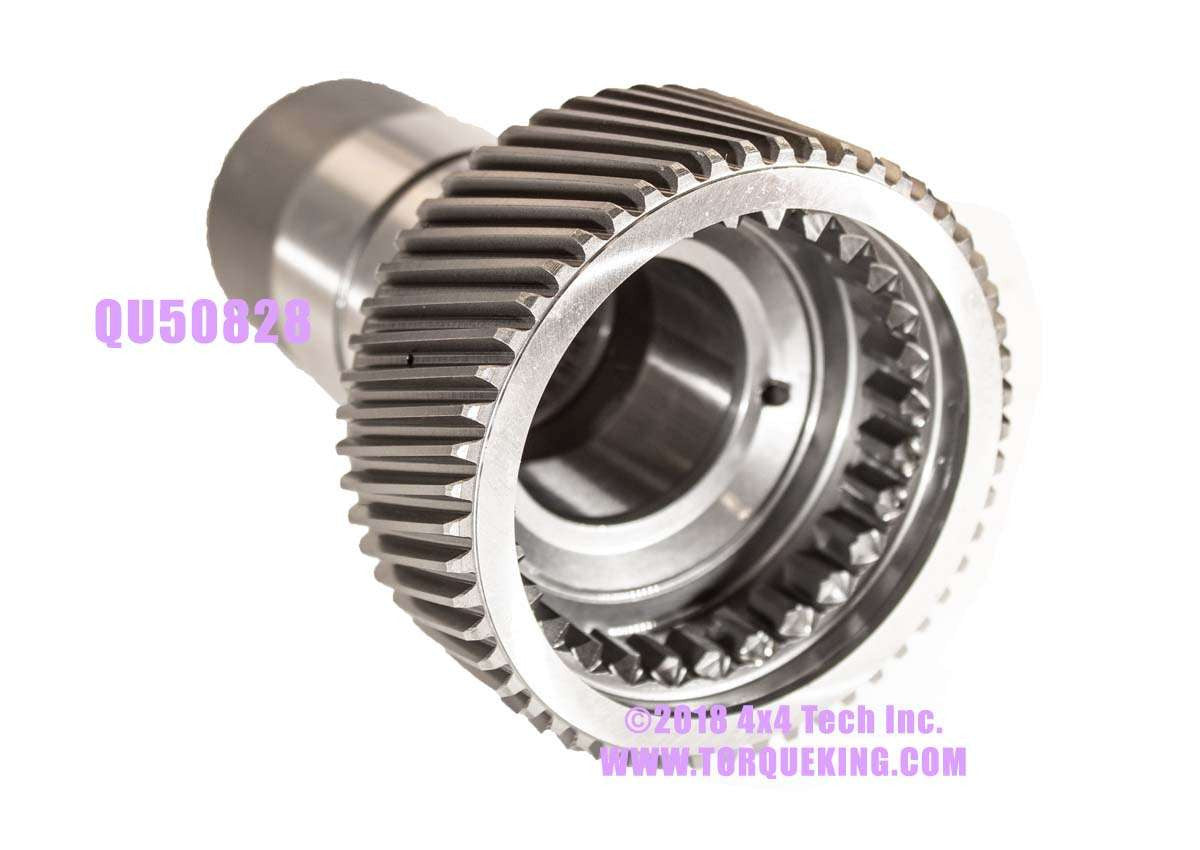

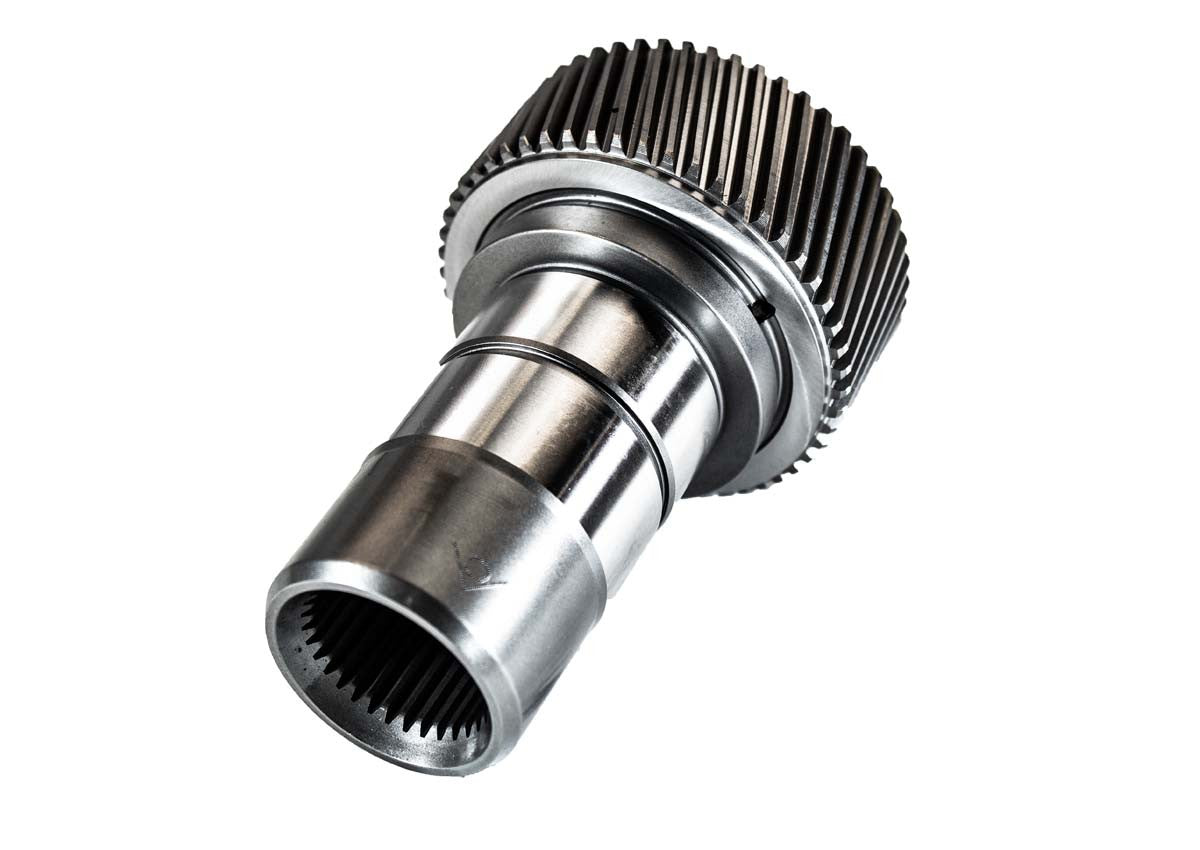

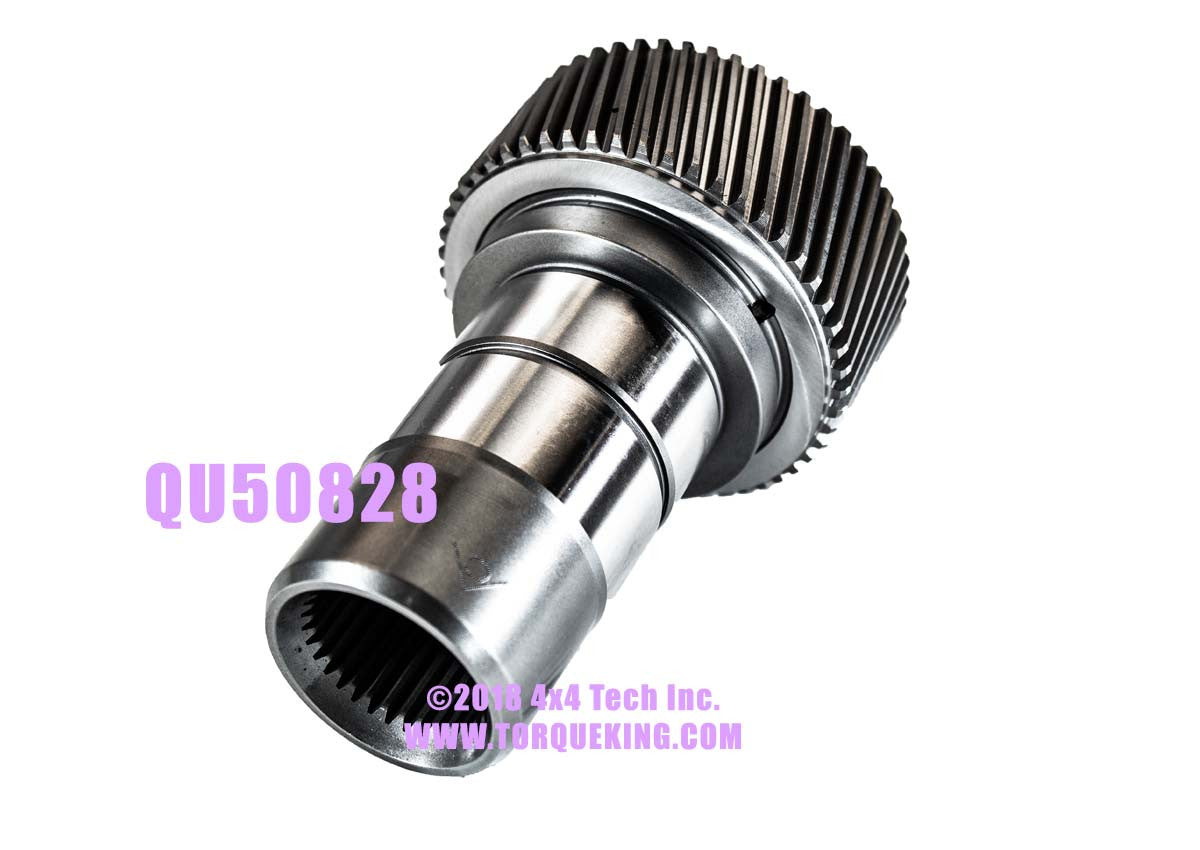

QU50828 32 Spline Input Shaft for 1988-1994.5 GM NP241C

QU50828 32-Spline Input Shaft for 1988-1994.5 GM K1500, K2500, K3500, Suburban K1500 & 2500, K5 Blazer, Full-Size Jimmy, and Yukon with TH400 or 4L80E Automatic or NV4500 Manual transmissions and NP241C transfer cases that use a thick (.940") input bearing. Non-stock, special order. Order QU50244 pocket bearing separately.

Also See: QU50828U Used 32-Spline Input Shaft available while supplies last.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Matching Parts
Applications

Tech Note 1: Matching Parts
QU30580U Used Planetary Assembly
QU50498 Pinion Thrust Washer
QU11039 Carrier Lock Ring
QU10814 Lock Retainer Ring
QU30039 Input Gear Bearing Ring
QU50873 Input Bearing

Applications
Chevy/GMC:
K1500, K2500, K3500, Suburban K1500 & 2500, K5 Blazer, Full-Size Jimmy, and Yukon with TH400 or 4L80E Automatic or NV4500 Manual transmissions and NP241C left drop or right drop transfer cases: 1988, 1989, 1990, 1991, 1992, 1993, 1994.5
