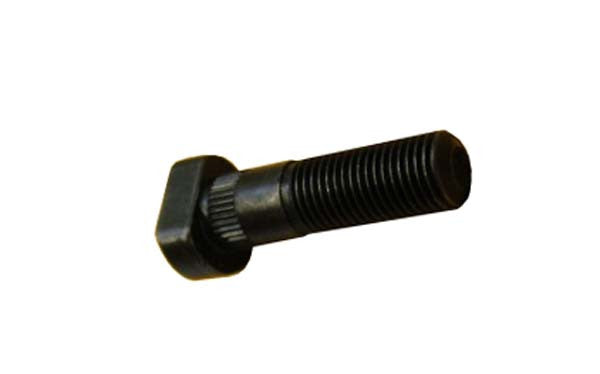

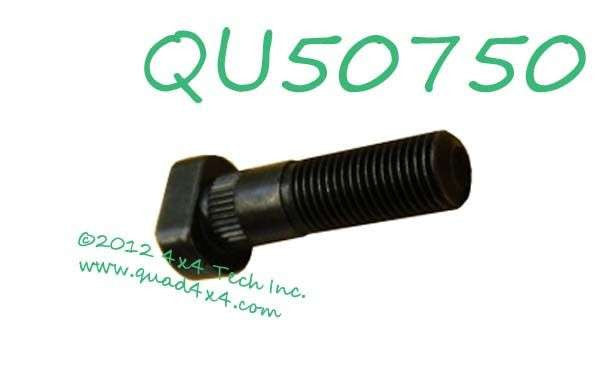

QU50750 Dana Front Spindle to Knuckle Bolt

QU50750 Dana Front Spindle to Knuckle Bolt is a genuine original equipment Dana Knuckle Bolt that fits many 1970's to 1990's Chevy, Dodge, GMC, IHC, and Jeep front axles with disc brakes. A flat on the bolt head provides clearance for the spindle to fit into the knuckle. Serrated shank resists spinning when removing or installing the spindle retaining nut. QU50750 is used on both Dana 30 (Scout, Jeep CJ) and Dana 44 (Chevy, Dodge, GMC) front axles. Sold individually.

NOTE: QU50750 is out of production. We have a limited supply of this part. When this is out of stock, QU40054 Spindle Bolt is still available. It is a little over 1/8" longer than QU50750. QU40054 could be used to replace QU50750 if you shorten the threaded end.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Bolt Specs
If Too Short
Applications

Tech Note 1: Bolt Specs
QU50750 has 3/8" SAE threads. The usable length from inside face of head to end of threads is approximately 1-5/16". Overall length is 1-17/32".

Tech Note 2: If Too Short
If QU50750 is too short for your application, see QU40054.

Applications

Chevy/GMC:
Blazer, Jimmy, K10, K15, K20, K25: 1970, 1971, 1972

Dodge/Plymouth Dana 44 Front Axles:
W150, Ramcharger, Trailduster: 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
W250 with gasoline engine: 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

IHC:
Specific year/models not verified

Jeep:
CJ-5: 1979, 1980, 1981, 1982, 1983
CJ-6: 1979, 1980, 1981
CJ-7: 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Scrambler: 1981, 1982, 1983, 1984, 1985, 1986
