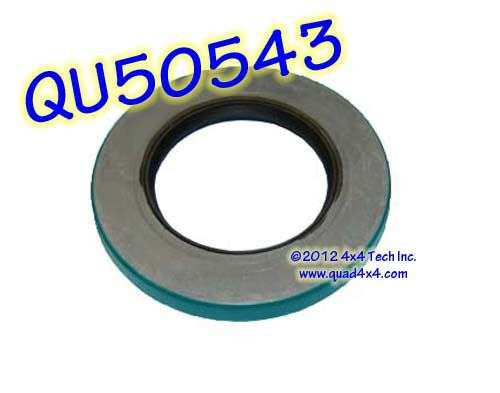

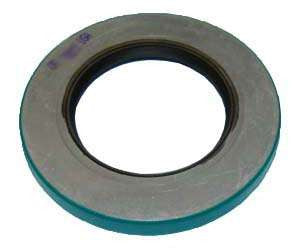

QU50543 1-7/8" ID Output Seal for Ford NP205 Transfer Cases

QU50543 1-7/8" ID Output Seal for Ford NP205 Transfer Cases fits either the front or rear output of NP205 transfer cases in Ford trucks that have 1-7/8" output yoke hub diameters. Mostly used on Fords with QU50619 1310 series or QU40399 1330 series CV output yokes. Ford used as a single seal, but there is enough width in the bearing retainer to install 2 of these seals for maximum oil retention. Seal sold individually.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Before Installing
Two Seals
Verify Size
Applications

Tech Note 1: Before Installing
Lubricate the Seal Lip with clean grease or petroleum jelly before installing the yoke to provide initial lubrication.

Tech Note 2: Two Seals
The Ford NP205 seal retainers are deep enough for two seals. I like to run two of these seals for each yoke to minimize the chances of an oil leak.

Tech Note 3: Verify Size
Ford used output yokes with both 1-7/8" and 2-1/8" ground hub diameters. Verify what size seal you need BEFORE you place your order. The outside diameter is the same for both seal types. If you need 2-1/8" ID Seals, see TK50123 and TK50092.

Tech Note 4: Color or appearance
This seal may be sourced from different vendors and as such may vary in color or appearance but the function will not be effected.

Applications
Fits either the front or rear output of NP205 transfer cases in Ford trucks that have 1-7/8" output yoke hub diameters.
