QK4868 2000-2002 Dana 60, Dana 70 1410 Series Rear Pinion Yoke Kit

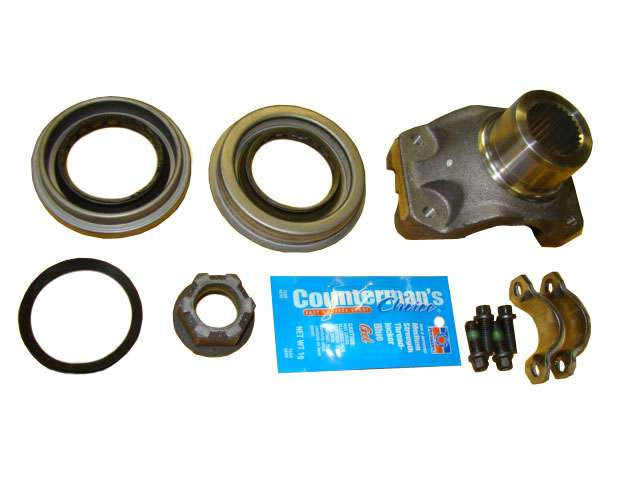

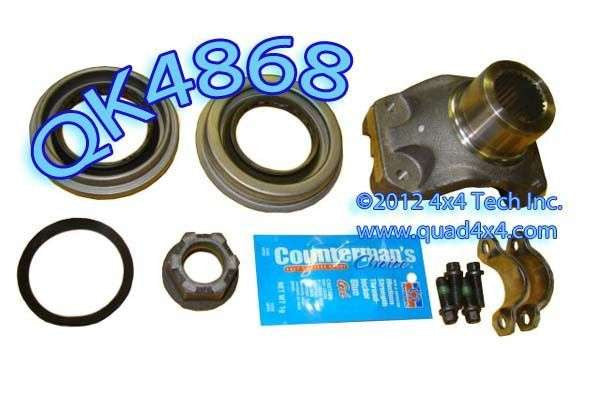

QK4868 2000-2002 Dana 60, Dana 70 1410 Series Rear Pinion Yoke Kit for Dana Model 60 or 70 2000-2002 in Dodge Ram 2500 and Ram 3500 rear axles. This Kit includes (1) QU40727 X Pinion Yoke without Slinger, (1) QU40097 Shallow Shell  Pinion Seal (See Note 1!), (1) QU40402 2nd Design Pinion Seal, (1) QU40397 Pinion Wiper V-Seal, (1) QU40709 Strap & Bolt Kit, (1) QU10918 Pinion Nut/Washer, and (1) S9978 Threadlocker.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
2000-2002 Shallow Shell Seal Substitution
Flat 2000-2002 Slinger NLA
Applications

Tech Note 1: 2000-2002 Shallow Shell Seal Substitution
QU40348 shallow seal for 2000-2001 is out of production and no longer available. We are using QU40097 as the replacement pinion oil seal for QU40348. QU40097 is specific to 1999 and older axles that do not use QU40397 Wiper Seal so do not install your old slinger on the new yoke. QU40097 has the correct ID, OD and shell depth, but it is not compatible with the wiper seal or flat slinger. The shallow shell seal was used on 2000 model year axles plus with these 2001 axle tag numbers:
Model 60 Rear Axles: 2000 and Some 2001 (2001 Tag Numbers: 606239, 606240, 606264, 606265, 606541, 6006542)
Model 70 Rear Axles: Some 2000 and 2001 (Tag Numbers: 606241, 606242, 606249, 606250, 606543, 606544)

Tech Note 2: Flat 2000-2002 Slinger NLA
2000-2002 Model 60/70 flat pinion slingers are no longer available, so you need to reuse your old one if your axle uses the deep shell seal.

Applications

Dodge or Ram:
RAM 2500, RAM 3500: 2000, 2001, 2002 with Dana 60 or Dana 70 Rear Axle
