QK4627 CAD Small Parts Kit for Dodge & Jeep Dana 30, 44, 60 Disconnect Axles

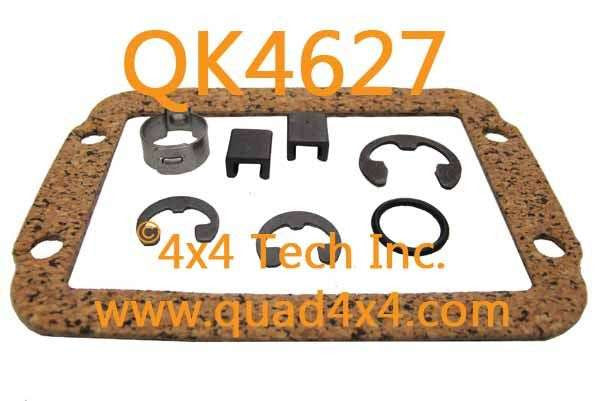

QK4627 CAD Small Parts Kit This Kit includes the small, original equipment quality service parts for most Dodge and Jeep 4x4 vehicles using Dana-Spicer front axles equipped with an ORIGINAL EQUIPMENT vacuum controlled Central Axle Disconnect (CAD) system. The Kit includes: QU40090 Metal reinforced Cork Gasket, QU50048 One Ear Clamp for the Axle Vent Hose, QU40272 O-Ring for the Shift Actuator, two QU40162 C-Clips for retaining the Fork on your original equipment Actuator, QU40223 C-Clip for securing the Actuator in the housing, and a pair of QU40156 Shift Fork Pads. Contains both USA and imported components.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Product Note
Applications

Tech Note 1: Product Note
This Kit is for use with Original Equipment Vacuum Actuators which use two matching QU40162 C-Clips to secure the Shift Fork. Most replacement Actuators such as the one in our QK4904 Kit use two different size clips, most usually use one each QU40162 and one QU40516. The reason for the change is to allow you to install the inboard ring before you install the Actuator in the Housing.

Applications:

Dodge
Ramcharger and W150: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
W250 with gasoline engine: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Ram 1500: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Ram 2500 and Ram 3500 (late production 2002 models did not have CAD): 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002

Jeep
All XJ (Cherokee), YJ (Wrangler) All with CAD: 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

Tools, New Parts, and Torque King® products in a kit or sold individually are warranted to the original purchaser to be free from defects in materials and workmanship for a period of one year from the date of sale. Certain Products, such as Warn® Hubs may be covered by additional manufacturer's warranties. THERE ARE NO OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. THE EXCLUSIVE REMEDIES FOR A WARRANTY CLAIM HEREUNDER IS RETURN OF THE GOODS TO TORQUE KING 4X4 FOR REPAIR, REPLACEMENT, OR REPAYMENT OF THE PURCHASE PRICE. ALL CLAIMS FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES ARE HEREBY EXCLUDED FROM THIS LIMITED WARRANTY.
