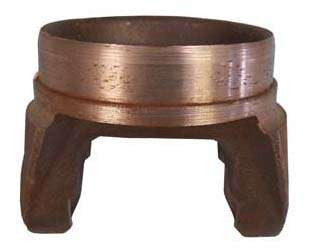

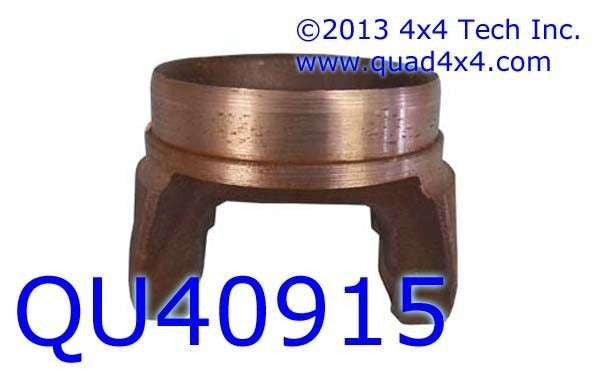

QU40915 1350 Series 3.5" Driveshaft Tube Weld Yoke
Non-Stock Special Order 3-5 Days
Description
QU40915 1350 Series 3.5" Driveshaft Tube Weld Yoke for Chevy, Ford, and GM rear driveshafts with 3-1/2" diameter, 0.083" wall thickness steel tubing. USA Made.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
U-Joint Specs
Specs
Primarily Used
Matching Parts
Applications
Tech Note 1: U-Joint Specs
QU40915 accepts external snap ring universal joints made to Spicer 1350 series dimensions. The cup diameter is 1-3/16" and the installed width of the u-joint is 3-5/8".
Tech Note 2: Specs
The length from the hole centerline to point of weld is 1-13/16". The maximum u-joint angle is 20°.
Tech Note 3: Primarily Used
QU40915 Yoke was primarily used on 3/4 and 1 ton models, however some 1/2 ton trucks and a few old 1-1/4 ton vehicles also used them.
Tech Note 4: Matching Parts
Matching Parts for QU40915 Tube Yoke are:
TK40719 Torque King® Premium Universal Joint with Cold-Forged Cross
QU40731 Greaseable Universal Joint
Applications
Chevy and GMC:
1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Ford:
1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Warranty
Delivery & Returns
