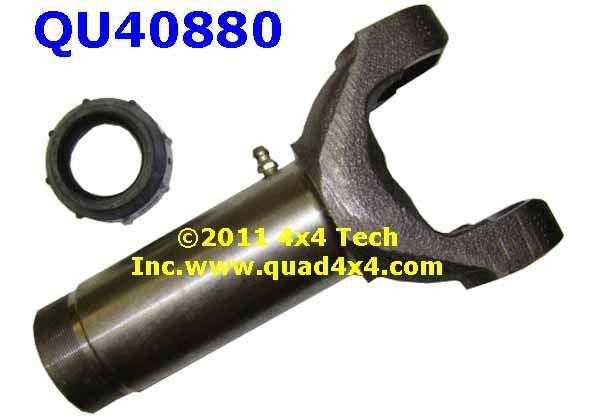

QU40880 31/32 Spline 1350 Series Greaseable Driveshaft Slip Yoke

QU40880 1350 Series Greaseable Driveshaft Slip Yoke replaces original equipment and aftermarket slip yokes on many GM applications from 1987-up. Includes screw on seal.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Specs
U-Joint Size
Matching Parts
Applications

Tech Note 1: Specs
QU40880 fits 1-3/8"-31 spline based on 32 spline male stubs (one male spline will be double width to insure driveshaft is assembled in phase). The yoke length from center of u-joint hole to end (NOT including the seal) is 6-5/8"

Tech Note 2: U-Joint Size
The universal joint for this yoke will have 1-3/16" diameter cups. The overall width of the joint is 3-5/8" (3.625" 92.08 mm). External snap rings are used to retain the U-Joint. Our matching U-Joint part numbers are TK40719 and QU40731.

Tech Note 3: Matching Parts
text

Tech Note 4: Applications
text
