QU40767 Strap and Bolt Kit for GM 1310 Series Yokes

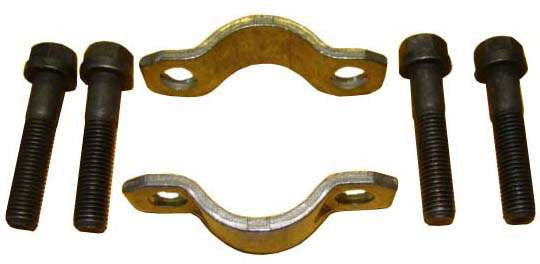

QU40767 Strap and Bolt Kit for GM 1310 Series Yokes includes four hardened, Grade 8, fine thread, Flanged Hex Head Bolts and 2 Straps for General Motors Yokes that are made for 1310 Series universal joints with 1-1/16" diameter cups.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Specs
Matching U-Joints
Applications

Tech Note 1: Specs
The center to center distance for the bolt holes is 1.594". Thread diameter is 5/16". Use 7/16" wrench.

Tech Note 2: Matching U-Joints
The matching TK40720 or QU40769 universal joints are an external lockup type u-joint with 1.0625" diameter cups. The overall installed u-joint width is 3-7/32".

Applications
GM 1310 Series Pinion and Transfer Case Yokes
