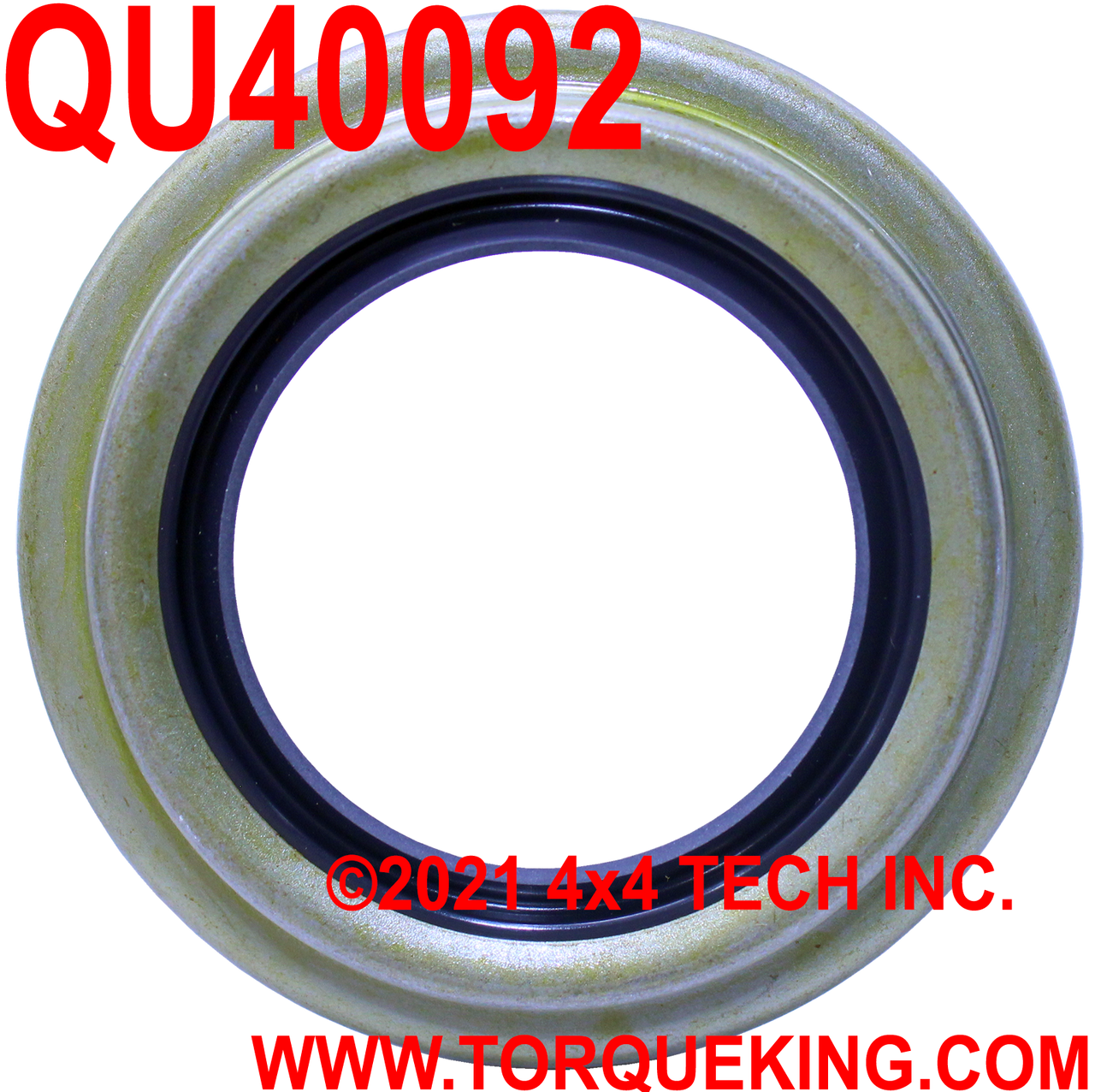

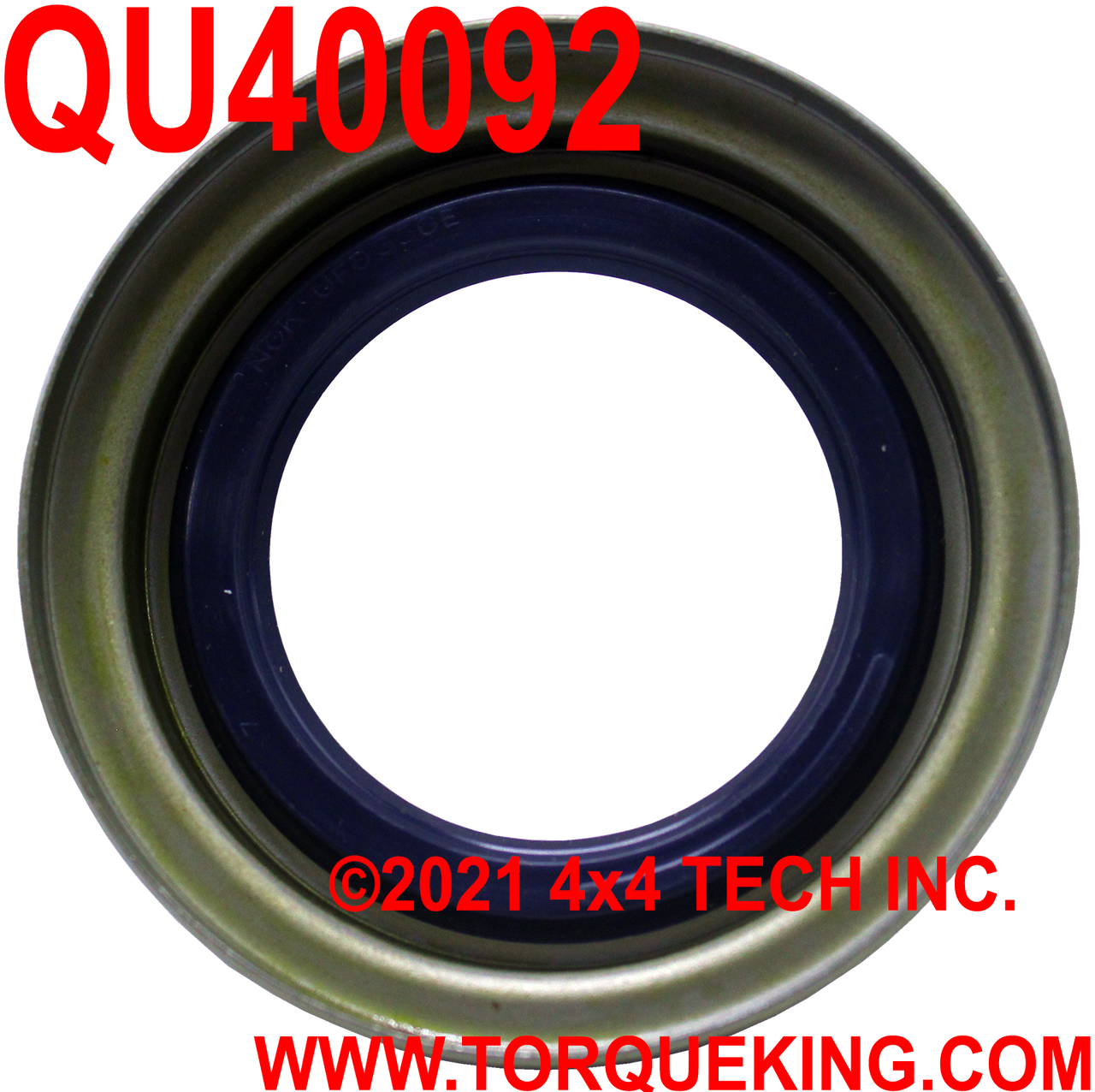

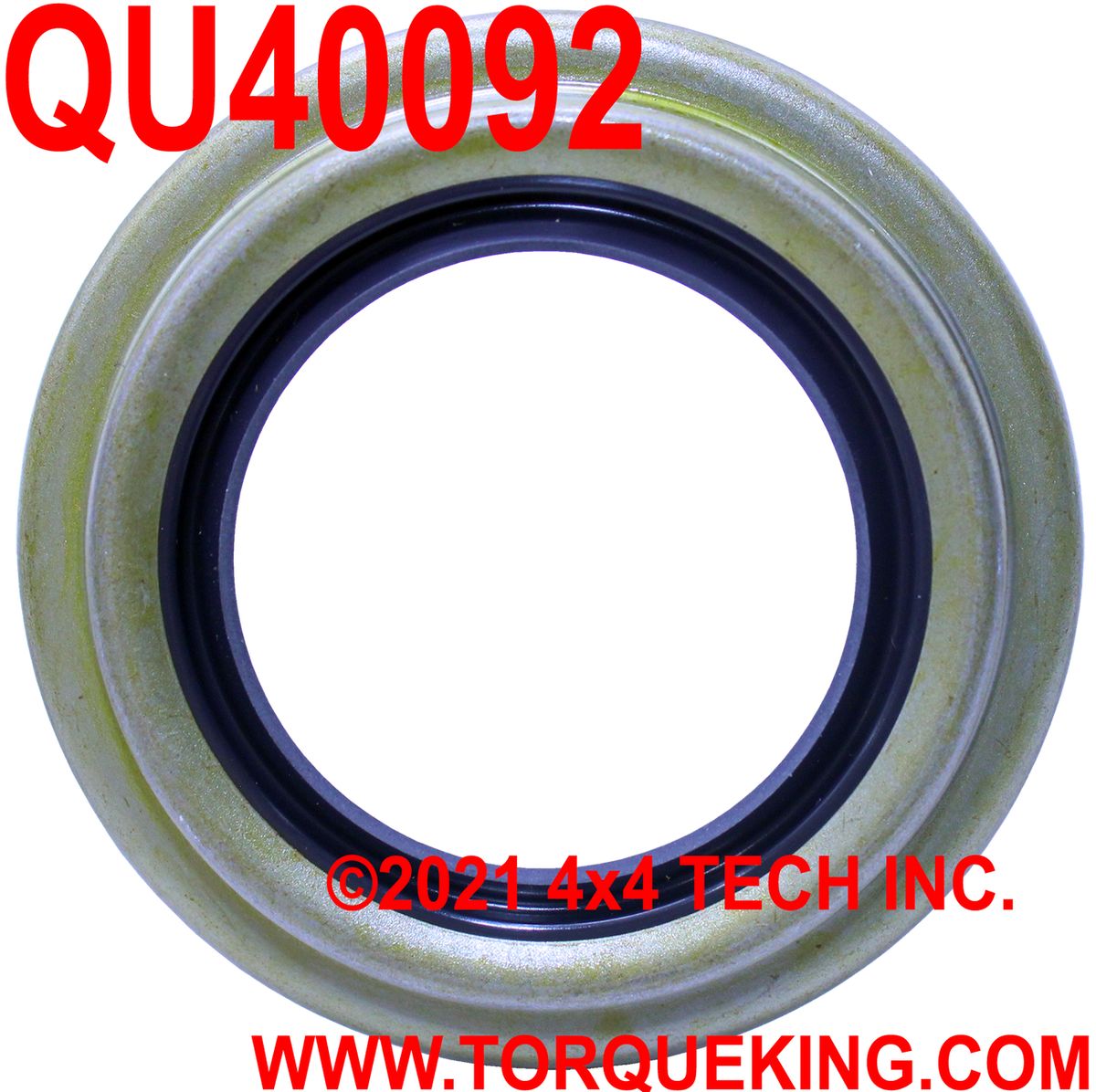

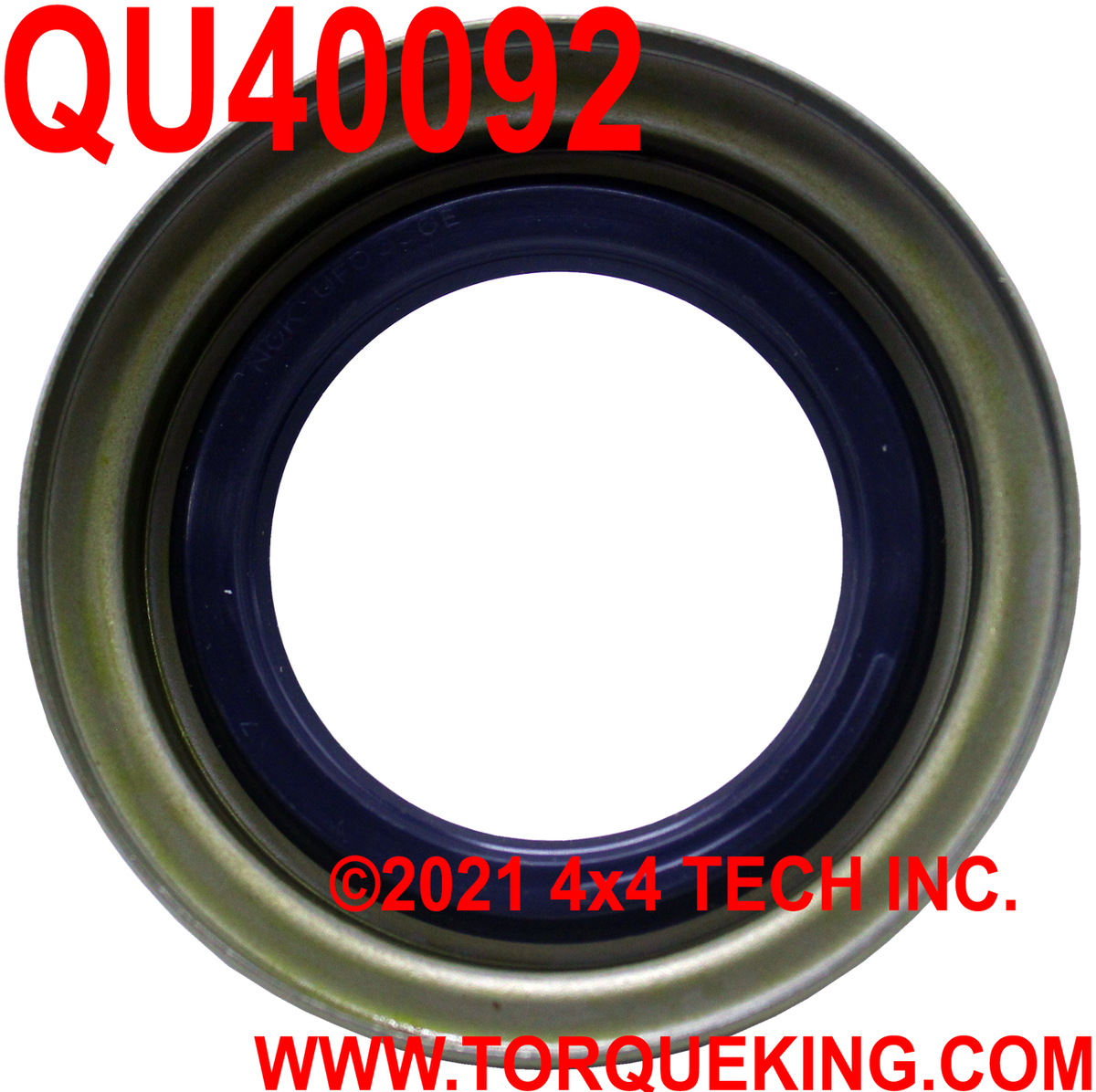

QU40092 1975-1993 Dana 60 Lower King Pin Seal

QU40092 1975-1993 Dana 60 Lower King Pin Seal is a genuine Dana Spicer service part for all 1975-1993 King Pin type Model 60 and Model 61 open knuckle front drive axles. These Seals press into the axle C yoke forging below QU50600 and QU50601 Lower King Pin Bearing and Cup. Use two QU40092 Seals per vehicle. Made in Indonesia.

Also See QK4512 King Pin Kit

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
To Install
Lubricate
Service Guide
Matching Parts
Applications

Tech Note 1: To Install
Use QT1544 Lower King Pin Seal Installer or other suitable tool to install these seals. An old bearing cup can be used if the correct tool is not available. When fully seated, the Seal will protrude slightly below the yoke.

Tech Note 2: Lubricate
Lubricate the Seal lip with grease before installing the steering knuckle and lower king pin.

Tech Note 3: Service Guide
Need help servicing your King Pins? See my VSG4506 King Pin Service Video Service Guide!

Tech Note 4: Matching Parts
Exploded View XV1001 1975-1989 Dodge W250, W350 Dana 60/61 Front Axle
Exploded View XV1006 1977-1991 Chevy & GMC Dana 60 Front Axle
Exploded View XV1004 1990-1993 Dodge W250, W350 Dana 60/61 Front Axle
Exploded View XV1006 1977-1991 Chevy/GMC 1 Ton Dana 60 Front Axle

Applications

Chevrolet Dana 60:
K30, K3500: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
K3500/V3500 1 Ton (square cab models): 1988, 1989, 1990, 1991

Dodge Dana 60, 61:
W-350 1 Ton*: 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
W-250 all with Cummins Diesel: 1989, 1990, 1991, 1992, 1993
*For some reason, a few mid 1980's W-350 single rear wheel trucks have a wimpy Model 44 axle!

Ford Dana 60:
Heavy-Duty F-250, F-350: 1978, 1979
F-350: 1985-1/2, 1986, 1987, 1988, 1989, 1990, 1991

GMC Dana 60:
K35, K3500: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
K3500/V3500 1 Ton (square cab models): 1988, 1989, 1990, 1991

International Dana 60:
1300 Camper Special: 1975
