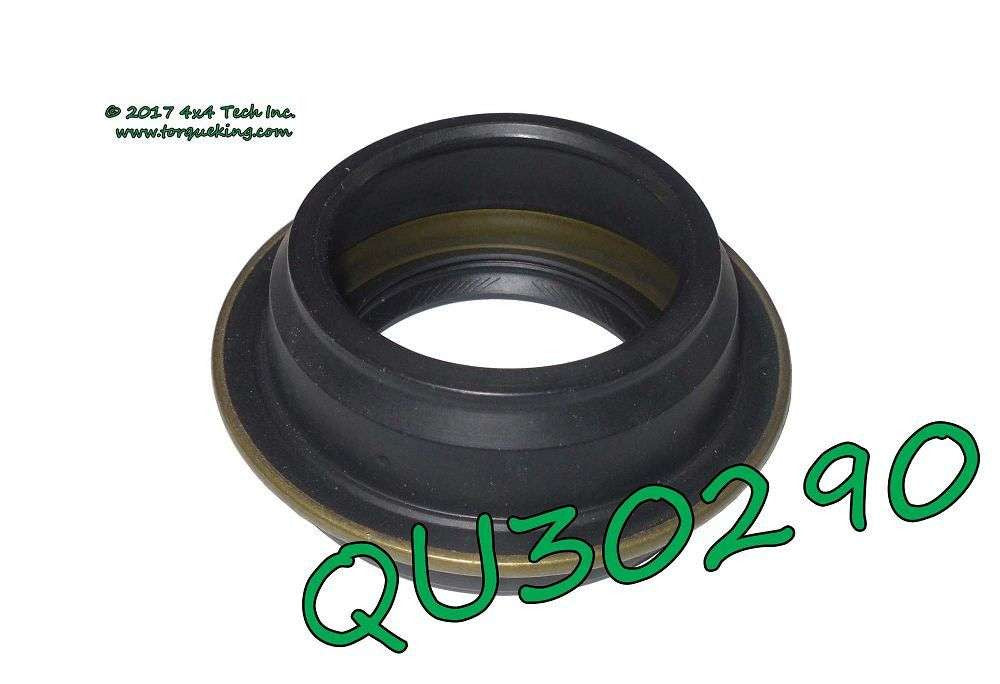

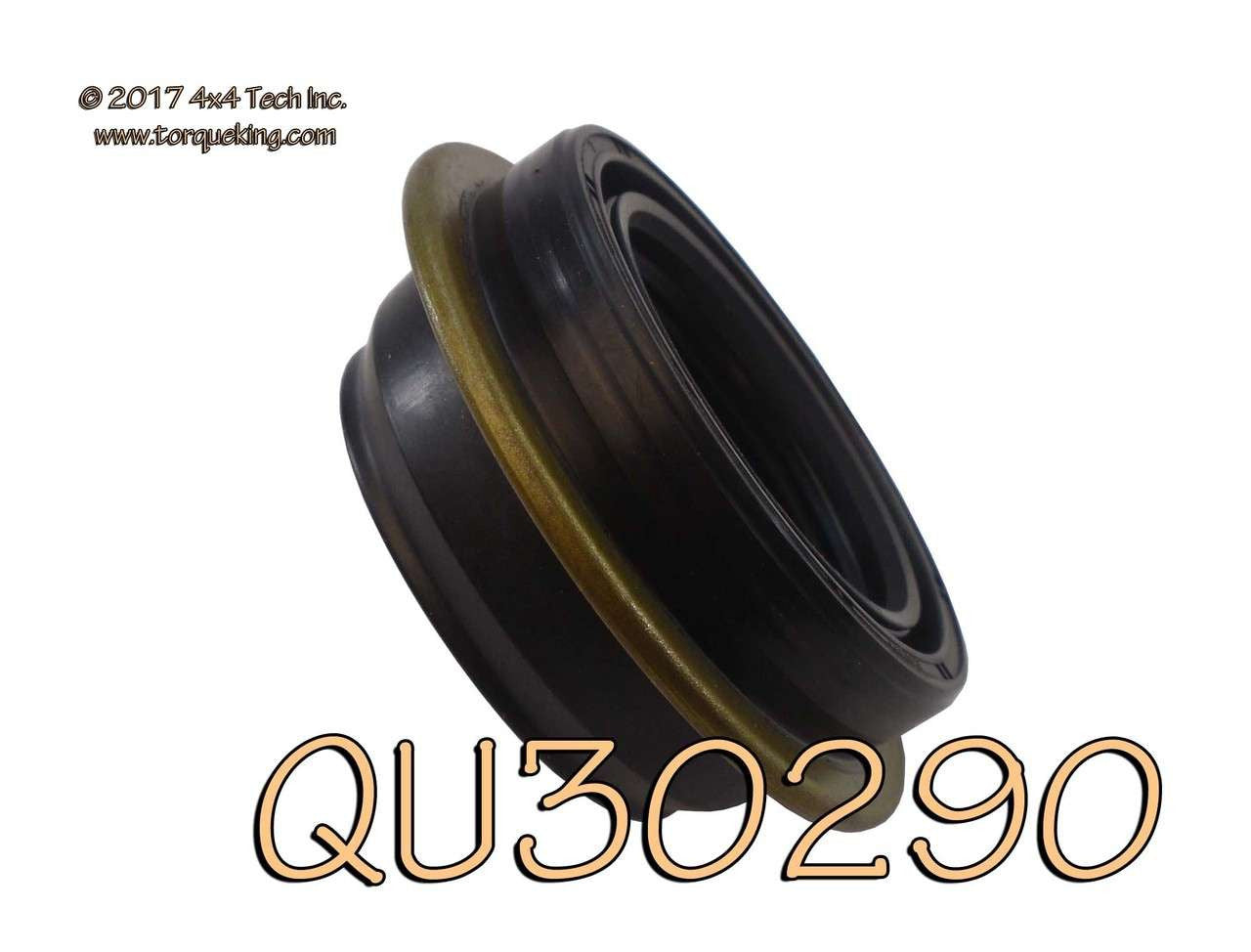

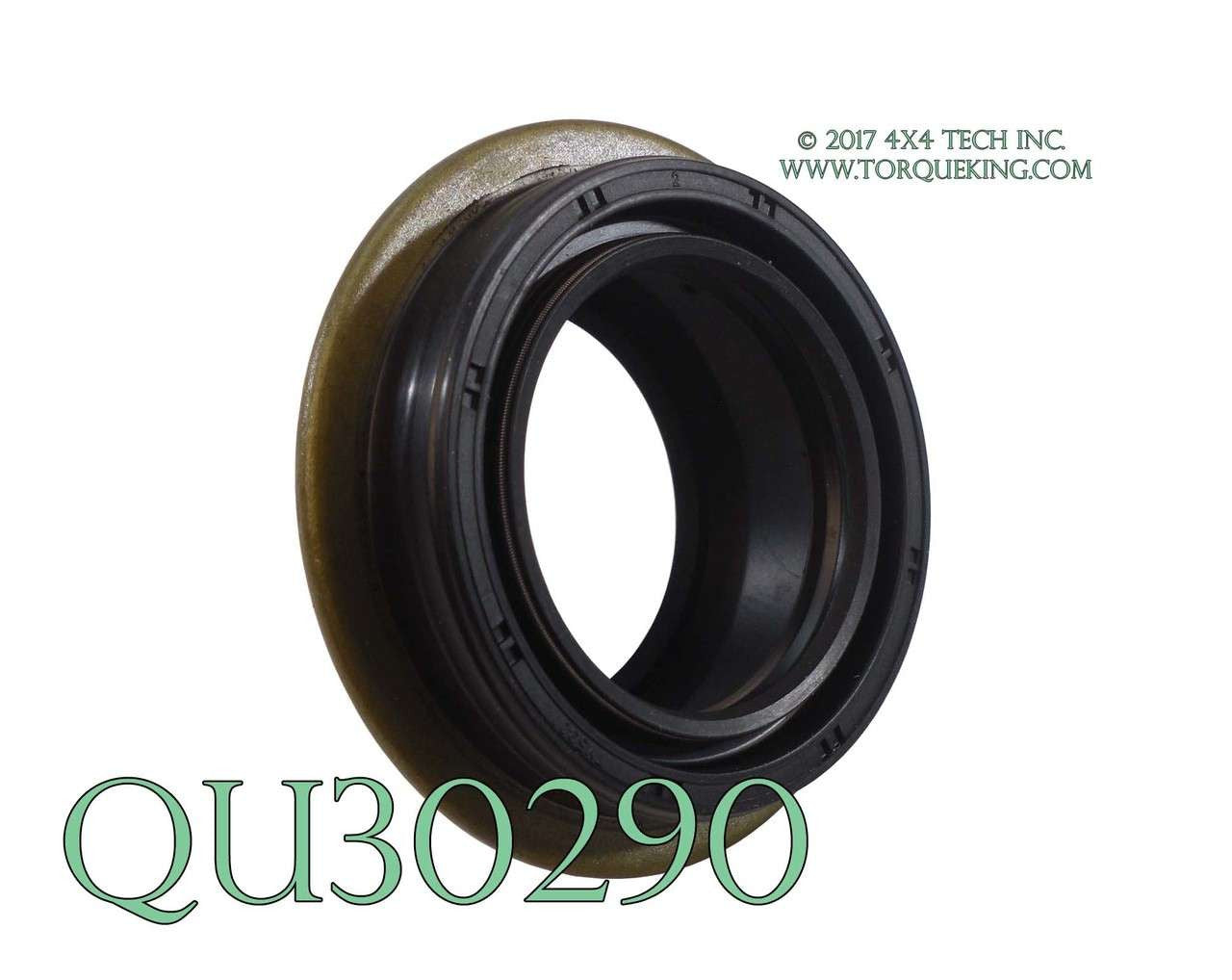

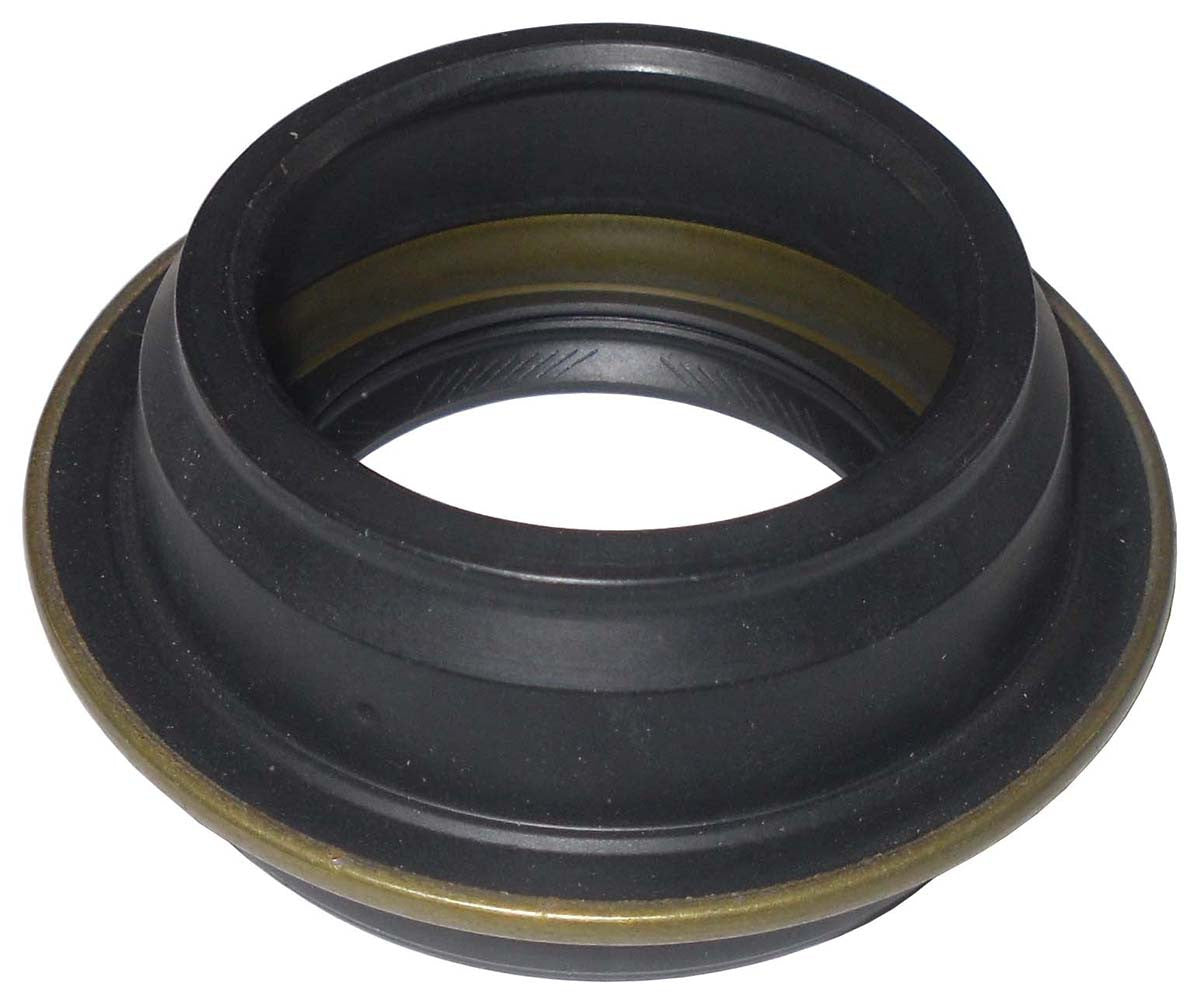

QU30290 2.700" x 1.835" Rear Output Seal

QU30290 2.700" x 1.835" Rear Output Seal for New Process NP149, NP233, NP236, NP242, NP246, NP261 and NP263 transfer cases with slip yoke type rear output.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Applications

Applications:

Chevy/GMC:
NP149:
One Speed 1/2 Ton: 2001, 2002, 2003, 2004, 2005, 2006, 2007
One Speed Yukon XL: 2001, 2002, 2003, 2004, 2005

NP233:
S10 Blazer with Electric Shift: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
S10/S15 Pickup with Electric Shift: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
S10/S15 Pickup Extended or Standard Cab with Electric Shift: 1992, 1993
S15 Jimmy with Electric Shift: 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

NP236:
S10 Blazer and S15 Jimmy, 2 Speed: 1999, 2000, 2001, 2002, 2003, 2004, 2005
S10/S15 Pickup, Two Speed: 1999

NP246:
1/2 and 3/4 Ton Trucks: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Avalanche: 2002, 2003, 2004, 2005, 2006, 2007
Suburban, Tahoe, and Yukon: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Yukon XL: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

NP261:
1/2 Ton Truck LD/HD
3/4 Ton Truck LD/HD/SHD
1 Ton Truck HD/SHD

NP263:
3/4 and 1 Ton Truck HD/XHD

Dodge:
NP233:
Dakota with Electric Shift: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011
Durango with Electric Shift: 2001, 2002, 2003

NP242:
Dakota and Durango with QU50874 Narrow Input Ball Bearing: 1998, 1999
Dakota and Durango with QU50873 Wide Input Ball Bearing: 2000

NP246:
1/2, 3/4, and 1 Ton Trucks: 2006, 2007, 2008, 2009, 2010

Jeep:
NP242:
Cherokee with QU50873 Wide Input Ball Bearing: 1987, 1988, 1989, 1990, 1991, 1992, 1993
Cherokee with QU50874 Narrow Input Ball Bearing: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Comanche: 1987, 1988, 1989, 1990, 1991, 1992
Grand Cherokee with QU50873 Wide Input Ball Bearing: 1993
Grand Cherokee: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
Liberty: 2002, 2003, 2004, 2005, 2006, 2007, 2008
Wagoneer: 1987, 1988, 1989, 1990
Wrangler with QU50873 Wide Input Ball Bearing: 1987, 1988, 1989, 1990, 1991, 1992, 1993
Wrangler with QU50874 Narrow Input Ball Bearing: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
