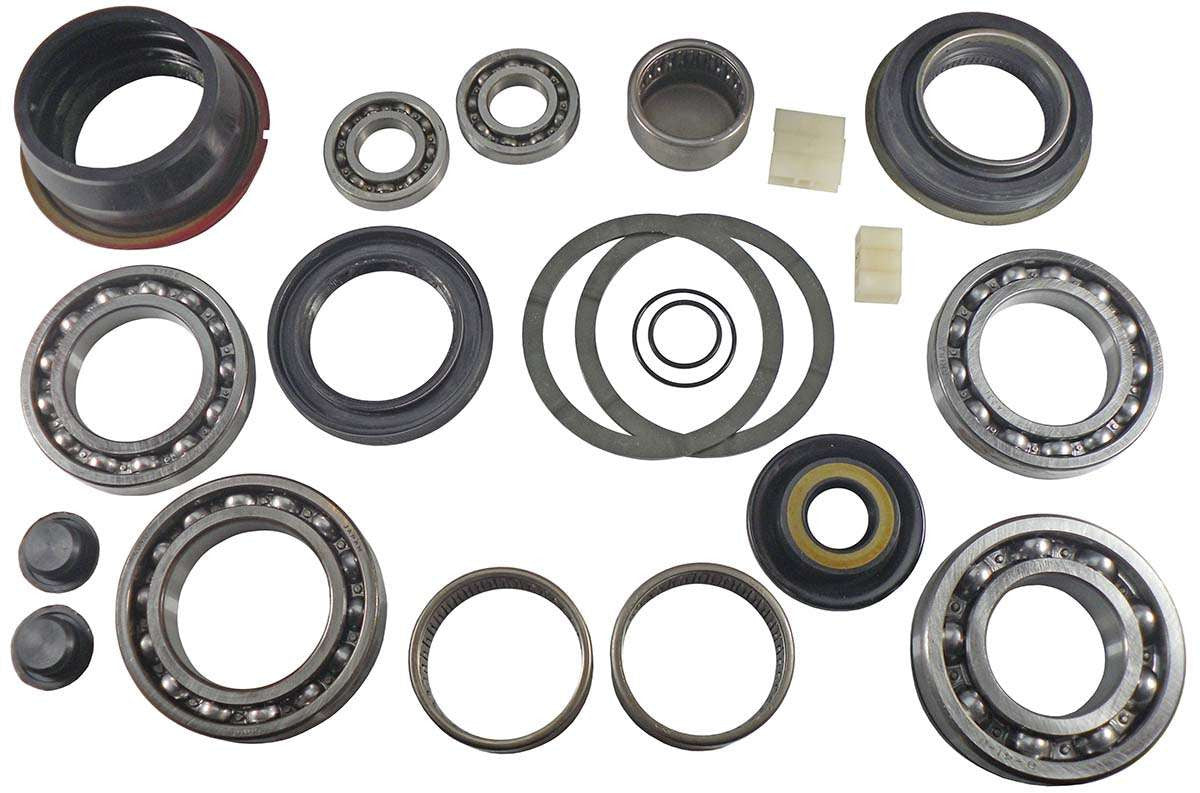

QU30220 Bearing, Seal, & Gasket Kit for 07-11 GM Magna 1625, 1626 Transfer Case

QU30220 Bearing, Seal, and Gasket Kit for GM Magna 1625 and 1626 transfer cases in 2007-2011 GM 2500 and 3500 4x4 trucks with RPO code NQF.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Kit Components
Matching Parts
Applications

Tech Note 1: Kit Components
QU10897 Input Shaft Bearing
QU52332 Front Output Shaft Front Bearing
QU52332 Front Output Shaft Rear Bearing
QU52333 Rear Output Shaft Pilot Bearing
QU52336 Rear Output Shaft Rear Bearing
2 QU52337 Chain Sprocket Bearing
2 QU52339 Shift Actuator Bearing
QU52342 Input Shaft Seal
QU52344 Front Output Shaft Seal
QU52345 Rear Output Shaft Seal
QU52347 Shift Motor Seal
O-Ring
QU30621 Speed Sensor O-Ring
2 QU52348 Planetary Thrust Washer
3 QU52350 Shift Fork Pad
3 QU52351 Range Fork Pad
2 QU52353 Case Access Plug
QU52284 Adapter Gasket

Tech Note 2: Matching Parts
text

Applications

Chevrolet/GMC:
Silverado, Sierra 2500HD, 3500HD 3/4 Ton, 1 Ton Magna 1625/1626 1st Design RPO Code NQF 2007, 2008, 2009, 2010, 2011
