TKA2159 Premium Ball Bearing Set, NP205 Direct Mount Transfer Cases
Stocking Item, usually ships in 1-2 business days
Description

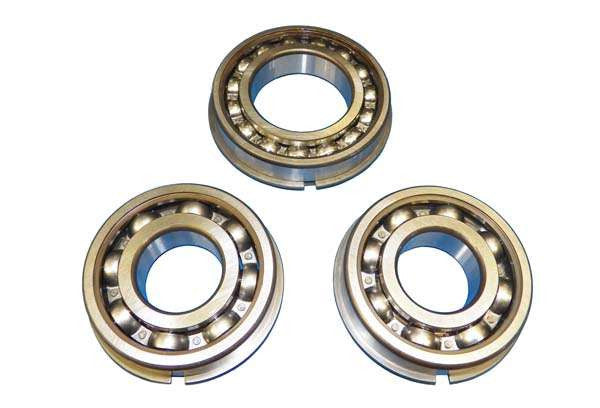

TKA2159 Torque King® Premium Large Bore Ball Bearing Kit for 1973-1993 Direct Mount New Process NP205 Transfer Cases with 29, 31, or 32 Spline input shafts. Kit features high quality, long-lasting North American Made Ball Bearings and includes two TK50105 Output Bearings, plus the correct Input Bearing for your specific NP205 application. All Bearings include a Snap Ring factory installed in the outer race groove. USA Made.
See also TKA2158 for cases with 10, 23, or 27 spline input shafts.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Type of Input Shaft Ball Bearing
Snap Rings
Ball Bearing Kits and Component Parts
Applications
Tech Note 1: Type of Input Shaft Ball Bearing
The Front and Rear Output Ball Bearings on all NP205 Transfer Cases are the same. There are 3 different Input Shaft Ball Bearings used on the various NP205 models. Remote Mount (Divorced) Transfer Cases use the same Deep Groove Type Ball Bearings Bearings as the output shafts. Deep Groove Bearings can handle both combined radial/thrust loads for power transfer plus additional thrust loads from driveshaft articulation. All direct mount NP205 models were designed to use Maximum Capacity Input Bearings which can handle high input torque loads and speeds. Max Capacity Bearings have shallow groove races so TK50119 MUST NOT be used for output or remote input applications even though it has the same ID/OD as TK50105.
Tech Note 2: Snap Rings
The Outside Diameter of the Snap Rings included with our Torque King Ball Bearings is slightly larger than the OD of the original snap rings used by New Process. Consequently, these Rings have greater contact with the case and are much less prone to wear into the case or slip down into the oversize lead-in taper found on some of the case bearing bores.
Tech Note 3: Ball Bearing Kits and Component Parts
| Component Name | Part Number | TKA2157 Remote Mount | TKA2158 Small Bore Direct Mount | TKA2159 Large Bore Direct Mount |
| Input and/or Output Bearing | TK50105 | 3 | 2 | 2 |
| Input Bearing | TK50106 | – | – | 1 |
| Input Bearing | TK50119 | – | 1 | – |
Applications
Direct Mount New Process NP205 Transfer Cases in These Applications:
Chevy/GMC:
4 Turbo 400 (32 Spline Input): 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
All Transmissions (32 Spline Input): 1985, 1986, 1987, 1988, 1989, 1990, 1991
Dodge:
Diesel 5 Speed (29 Spline Input): 1989, 1990, 1991, 1992, 1993
Ford:
All Transmissions (31 Spline Input): 1973, 1974, 1975, 1976, 1977, 1978, 1979
