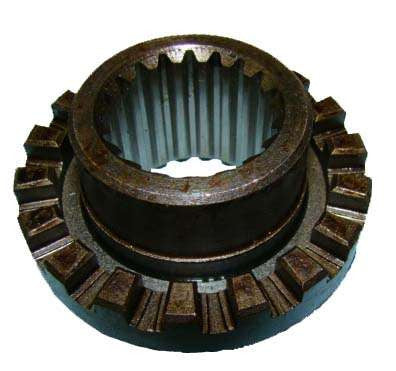

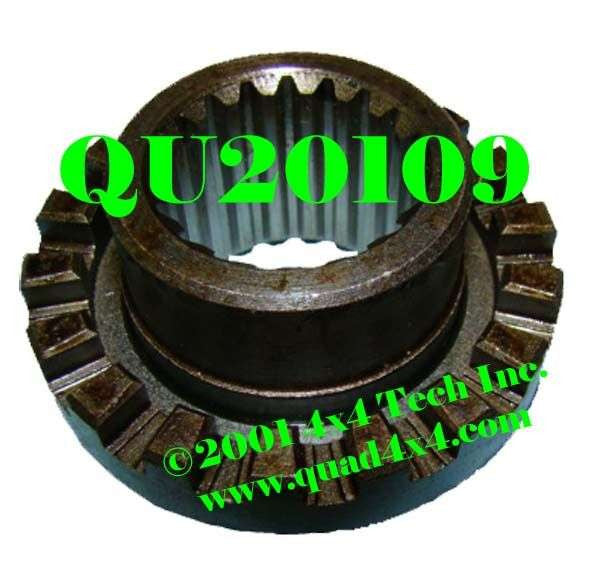

QU20109U Used Spicer Hub Axle Shaft Drive Gear for External Mount Hubs
When in stock, this part will have a live Add To Cart Button
Description
QU20109U USED Spicer Hub Axle Shaft Drive Gear for External Mount Hubs Only for Chevy, Ford and GMC Dana 44 or closed knuckle Dana 60 front drive axles with external mount plastic dial Spicer factory hubs that mount to the wheel hub with 6 long 3/8" Allen Head Bolts. Available while supplies last.
Also See: QU20109 New
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
Limited Parts Supply
Matching Parts
Applications
Tech Note 1: Limited Parts Supply
Spicer made external mount Plastic Dial free-wheel Hub-Locks from 1972 to mid-1977. These Hubs were the factory original equipment parts for both to Ford and GM 3/4 ton 4x4 trucks with Dana 44 front axles. They were also used on Ford F-250 Crew Cab trucks with Dana 60 closed knuckle front axles from 1974-1975. Most parts for these hubs have been out of production for decades so parts availability is becoming quite limited.
Tech Note 2: Matching Parts
Matching Parts for QU20109U Axle Shaft Gear are:
TK40602 Bushing, Axle Shaft Drive Gear Support
QU20114 Hub Drive Gear
QU40032 Axle Shaft Snap Ring
QU40546 Outer Chrome Cap
QU40547 Splined Hub Body
TK40256 Red Hub Dial
TK40471 Dial Sealing Ring
QU40406 Hub Cam
QU40257 Hub Bolt
QU40231 Sealing Washer
QU40395 Metal Inner Hub Gasket
TK40573 Outer Fiber Hub Gasket
Chevy & GMC Shop Manuals
Ford Shop Manuals
Applications
Chevy/GMC 3/4 ton 4x4:
K20, K25 with External Mount Hubs: 1972, 1973, 1974, 1975, 1976
Ford F-250 3/4 ton 4x4:
Closed Knuckle Dana 44HD 3500# Axle with External Mount Hub: 1972, 1973, 1974, 1975
Open Knuckle Dana 44 Axle with 6 Bolt External Mount Spicer Hub: 1976, 1977.5
Crew Cab with Dana 60 Closed Knuckle Axle with External Mount Hub: 1973, 1974, 1975
