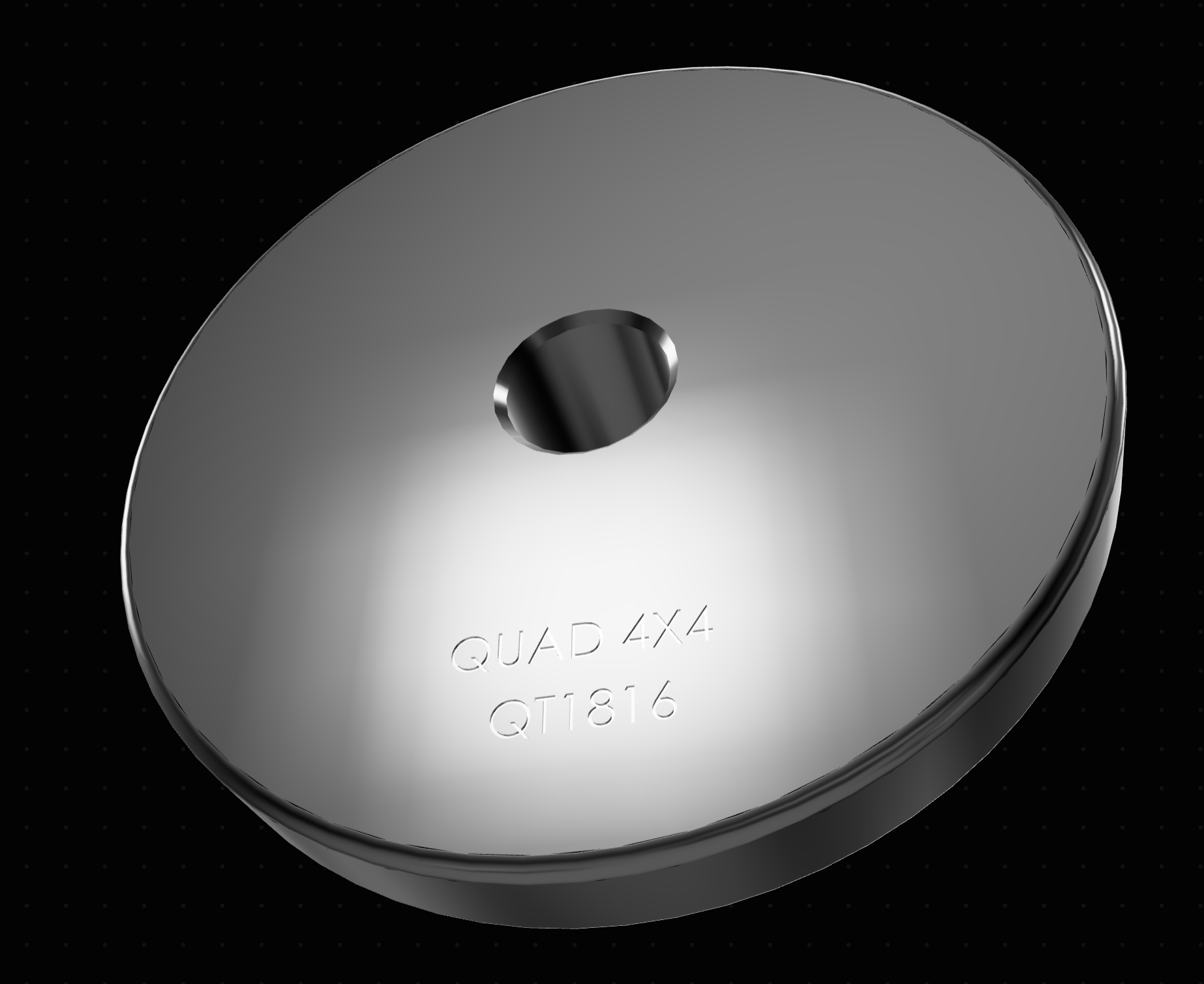

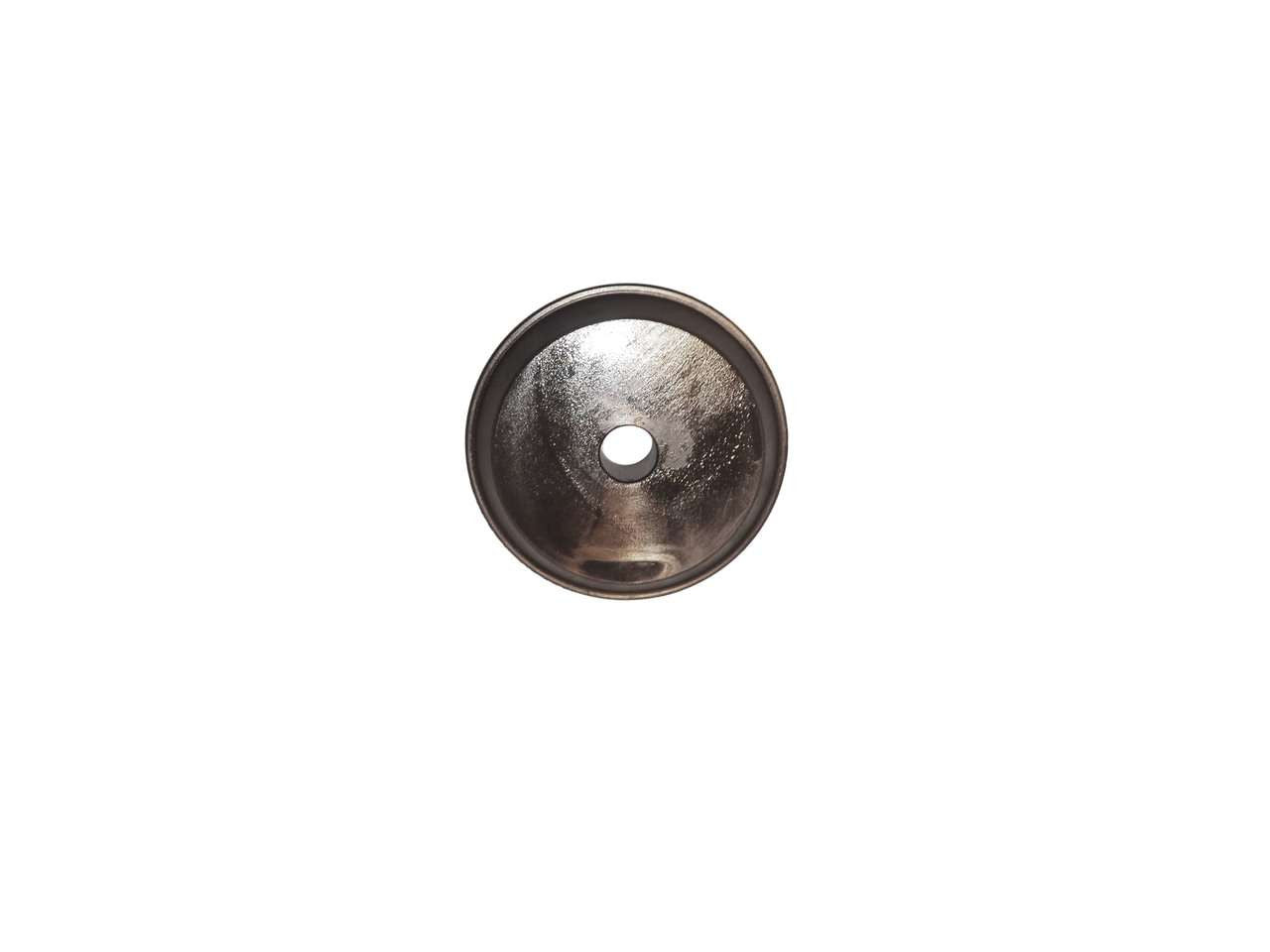

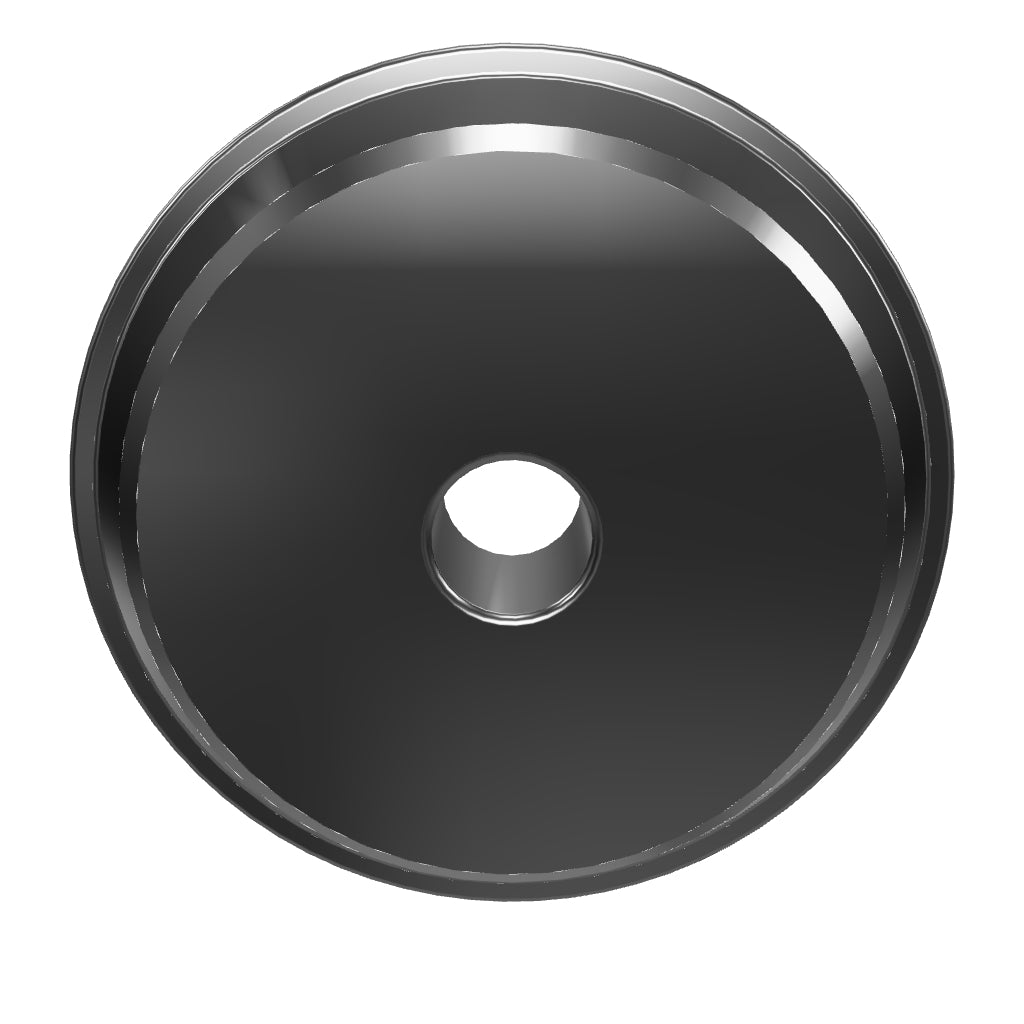

QT1816 Taper Bearing Cup Installer

QT1816 Taper Bearing Cup Installer for installing HM804810 and HM903210 Bearing Cups in many 3/4 and 1 ton Axles. Precision CNC machined solid steel tool is drilled to accept any driver handle with a 5/8" tip. USA Made.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Driver Handle
Applications
Video

Tech Note 1: Driver Handle
I recommend an 8" handle (QT1100, QT1116) for most applications and a 14" handle (QT1101, QT1119) for deep set inner pinion, rear hub and transmission bearing cups.

Applications:
Use QT1816 Cup Installer for These 4x4 Front Inner Pinion Bearing Cup Applications

Chevy and GMC:
K2500, K3500 with 9.25" IFS Front Axle: 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009

Dodge:
Ram 2500, Ram 3500 with AAM 925 Front Axle: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Ram 1500 with AAM 925 Front Axle: 2004, 2005, 2006, 2007, 2008, 2009, 2010

Use QT1816 Cup Installer for These Rear Inner Pinion Bearing Cup Applications

Chevy/GMC:
1500HD and 2500 with 14 Bolt, 9.5" Ring Gear: 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
2500 and 3500 with 14 Bolt 10.5" Ring Gear: 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Dodge:

Ford:
F-150 with 9¾" Axle: 1999, 2000, 2001, 2002, 2003, 2004

Video:
