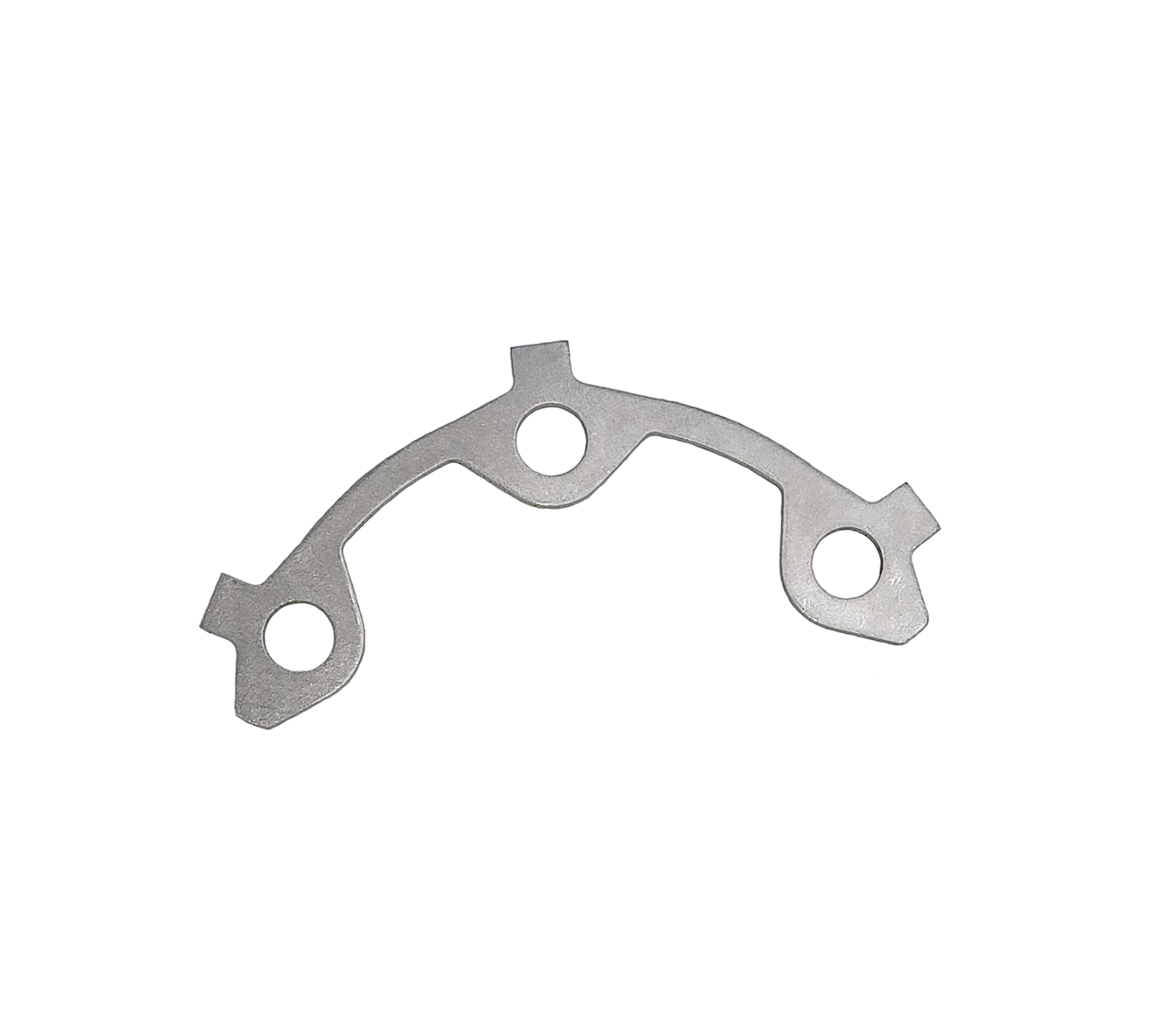

QU15256 Warn Lock-O-Matic Retainer
Description

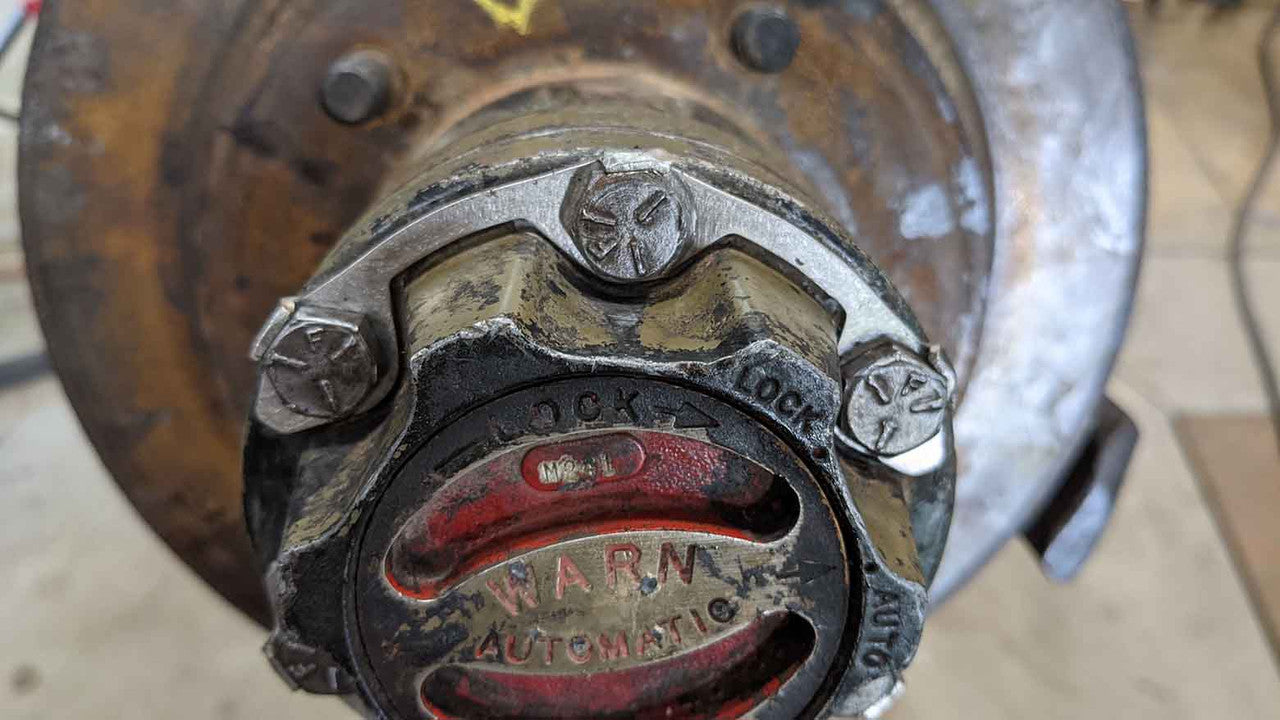

QU15256 Hub Bolt Retainer for Warn Lock-O-Matic vintage hublocks. The original Warn single bend-over lock washer used to secure the 6 hub bolts did not work very well because the washer would rotate clockwise against the hub body as the bolt was tightened. This would allow the nut and washer to back-off enough so the hub body could move under high loads. Our QU15256 Triple Hole Lock Plate cures the problem by replacing 3 individual lock washers with one long-lasting, unitized, stainless steel part.
