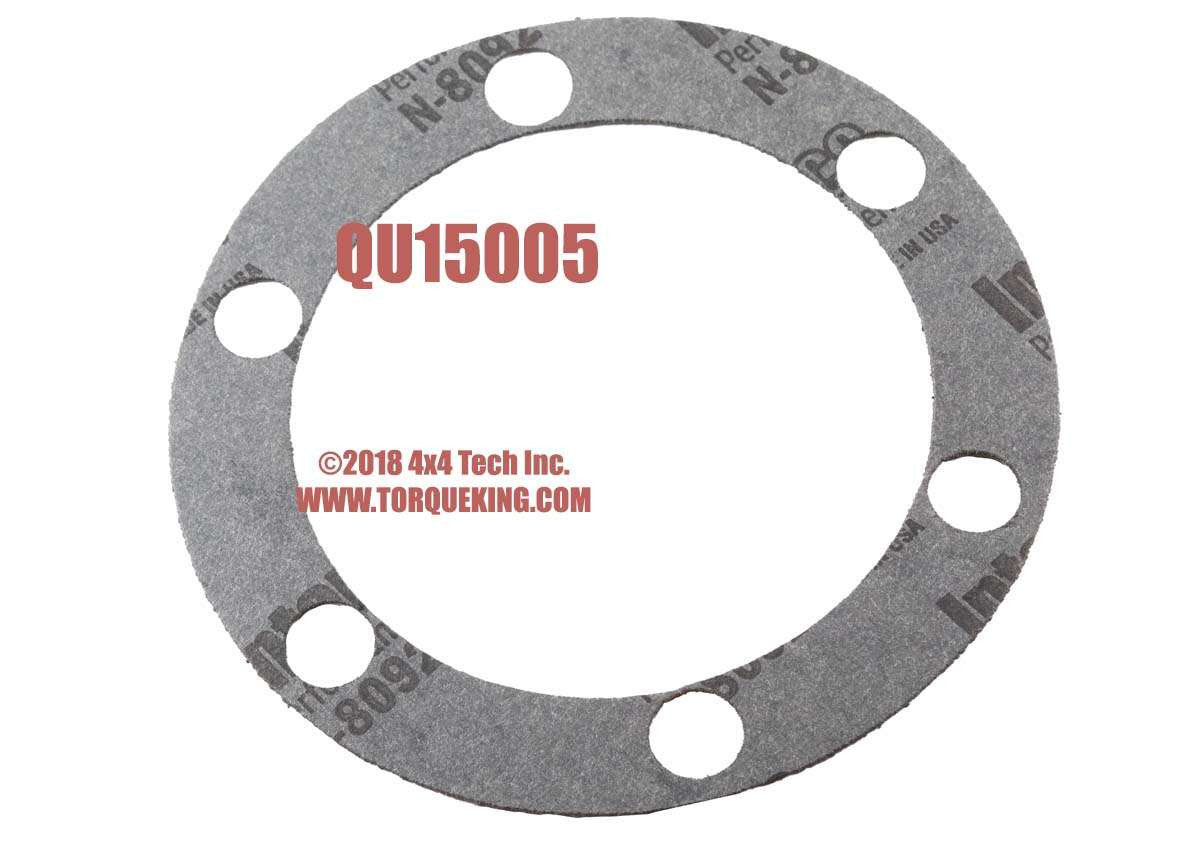

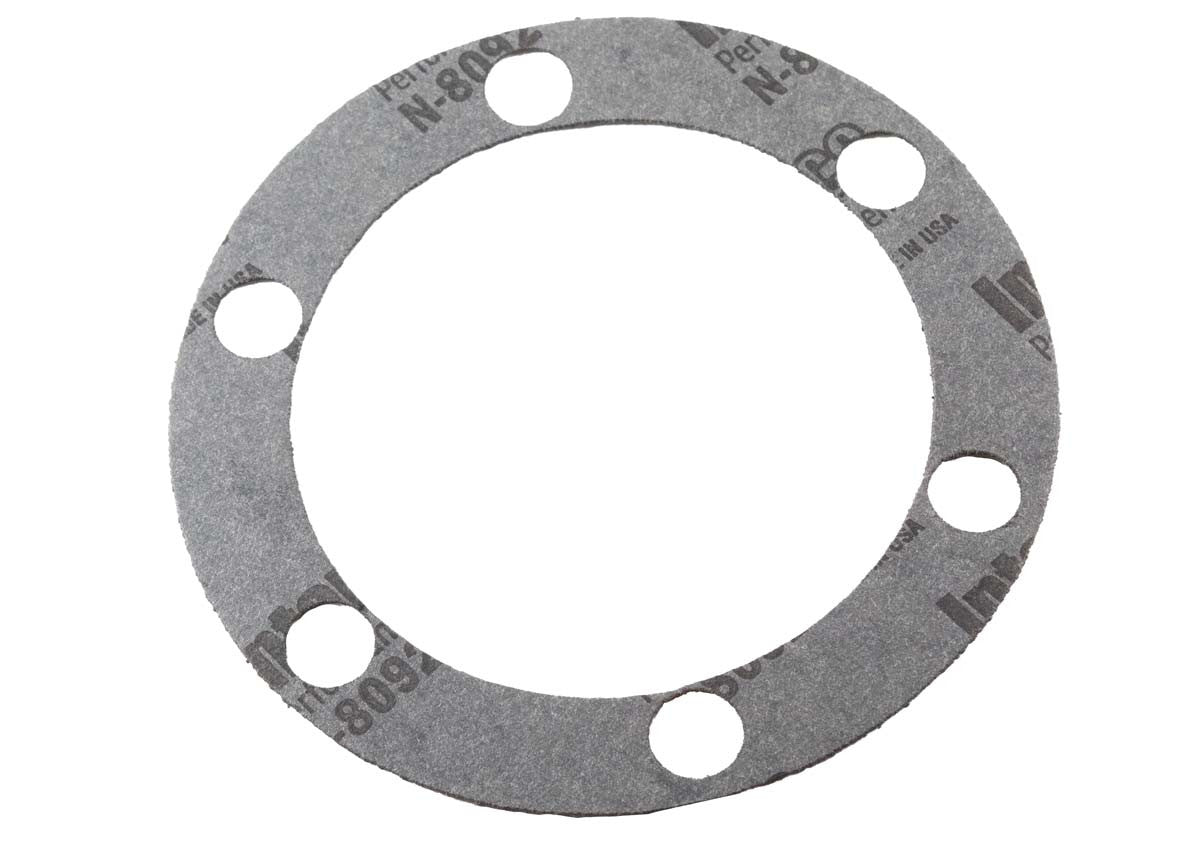

QU15005 6 Bolt Front Hub Gasket

QU15005 6 Bolt Front Hub Gasket fits most 1941-1971 Jeeps with 6 bolt external mount hubs and 1972-1980 Jeep CJ-5, CJ-6, CJ-7. 3-7/16" Bolt Circle. Also fits IHC Scout 1960-1970, 1971-1980 Scout II, Scout Terra, and Scout Traveler (Does not fit Jeep J20, J4800, or M715 series.)

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Fits
Matching Parts
Matching Parts for Warn M2 Hubs
Applications

Tech Note 1: Fits
QU15005 fits Jeep and International Scout models with 3-7/16" bolt circle, 6 bolt front hub mounting faces that use 3/8" diameter studs or bolts to attach the hub drive flange to the wheel hub.

Tech Note 2: Matching Parts
QU15000 Spindle Thrust Washer
QU15002 Spindle Lock Washer
QK4669 Spindle Nut and Washer Kit
QT1011 Thin-Wall 2-1/16" Spindle Nut Socket

Tech Note 3: Matching Parts for Warn M2 Hubs
XV165 Warn M2 Hub Exploded View
QU40225 Snap Ring
QU40292 Support Bearing
QU95090 1/2" Long Torx Screw
QU95091 1/2" Long Hex Screw
TK15096 Warn Hub Pin
QU30075 Warn Hub O-Ring
TK15095 Hub O-Ring
QU95088 3/8" x 2-1/2" Super Grade 8 Bolt
QU95089 3/8" x 3" Super Grade 8 Bolt
TK4036 Hub Service Kit
QT9214 T30 Torx Bit
QT9215 5/32" Hex Bit

Applications

IHC:
Scout: 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970
Scout II, Scout Terra, Scout Traveler: 1971, 1872, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980

Jeep:
With 6-Bolt External Mount Hubs: 1941, 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971
CJ's (CJ5, CJ6, CJ7): 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
*Does not fit Jeep J20, J4800, or M715 series

Jeep with Warn M2 Hubs:
CJ2A: 1945, 1946, 1947, 1948, 1949
CJ3A: 1949, 1950, 1951, 1952, 1953
CJ3B: 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964
CJ5: 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971
CJ6: 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971
C101 Jeepster Commando: 1966, 1967, 1968, 1969, 1970, 1971
C104 Commando: 1972, 1973
Utility Wagon: 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964
Utility Truck: 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964
FC150, FC170: 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965
Wagoneer:  1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973
Gladiator Truck: 1963,  1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1972
