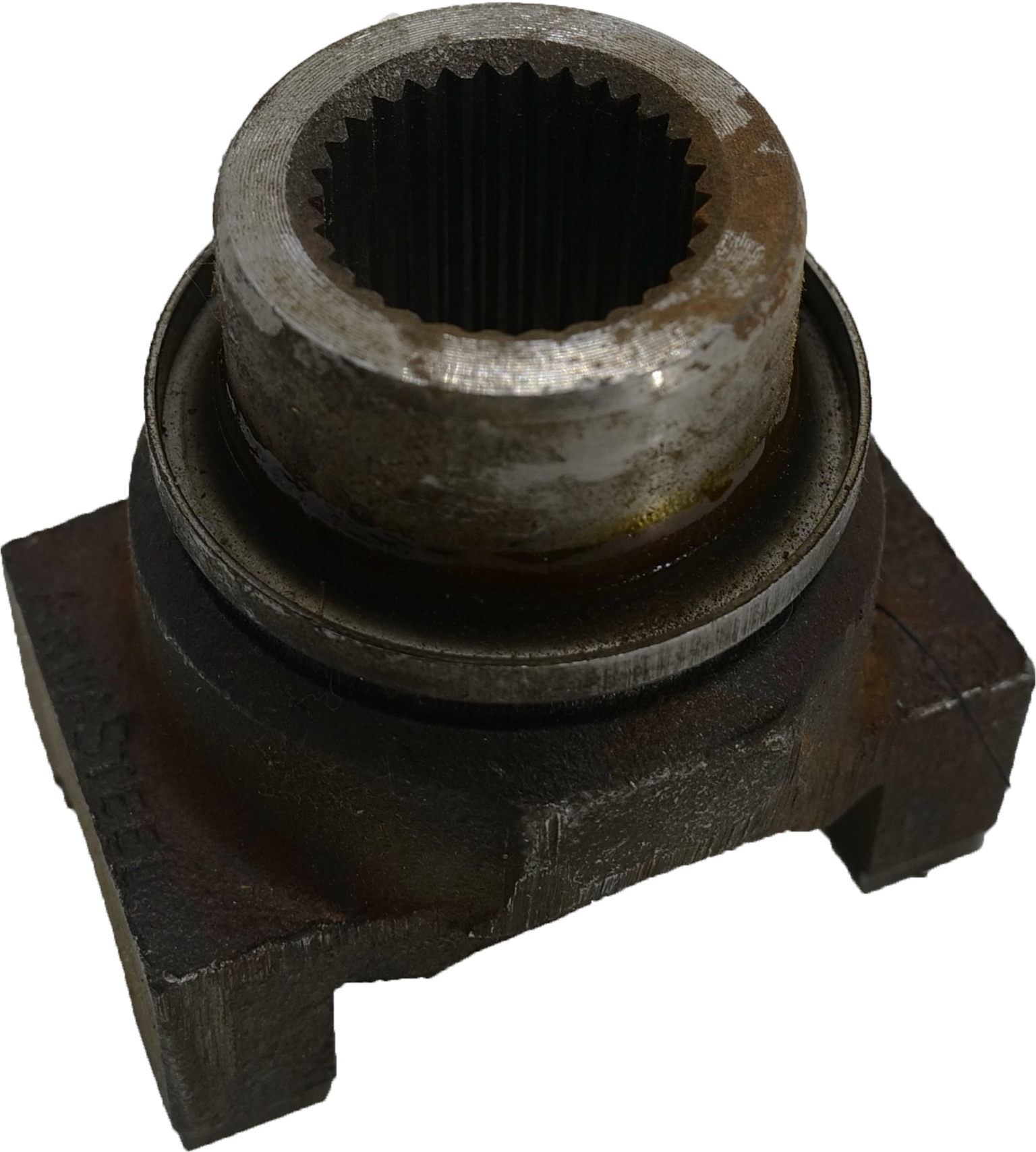

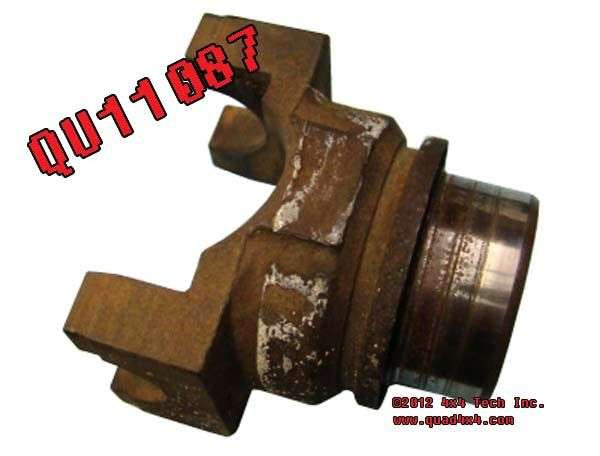

QU11087 7260 Series Pinion Yoke for Dodge Dana 60, Dana 70 Axles

QU11087 7260 Series Pinion Yoke for Dodge Dana 60, Dana 70 Axles for 1993 and older Dodge trucks with Dana 60 or Dana 70 axles for Detroit 7260 series universal joints. New, direct replacement 7260 series Pinion Yokes are no longer available, but we do have QK4878 new Conversion Pinion Yoke Kits in stock.

Also See: QU11074 New Pinion Yoke

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Originally
Matching Parts
Applications

Tech Note 1: Originally
7260 series pinion yokes and u-joints were originally made by Chrysler's (now defunct) Detroit Universal division. 7260 Series u-joints are retained by internal c-clips that fit against the inside of the yoke ears. Width between the yoke ears is 2-1/8". U-Joint cup diameter is 1.078".

Tech Note 2:  Matching Parts
Exploded View XV1001 1975-1989 Dodge W250, W350 Dana 60/61 Front Axle
Exploded View XV1006 1977-1991 Chevy & GMC Dana 60 Front Axle
QU40729 Driveshaft Strap and Bolt Kit
QU40097 Dana 60, Dana 70 Pinion Seal
QU40022 Dana 60, Dana 70 Pinion Nut
QU40023 Dana 60, Dana 70 Pinion Washer
QU40794 Universal Joint

Applications:
1993 and older Dodge trucks with Dana 60 or Dana 70 axles for Detroit 7260 series universal joints
