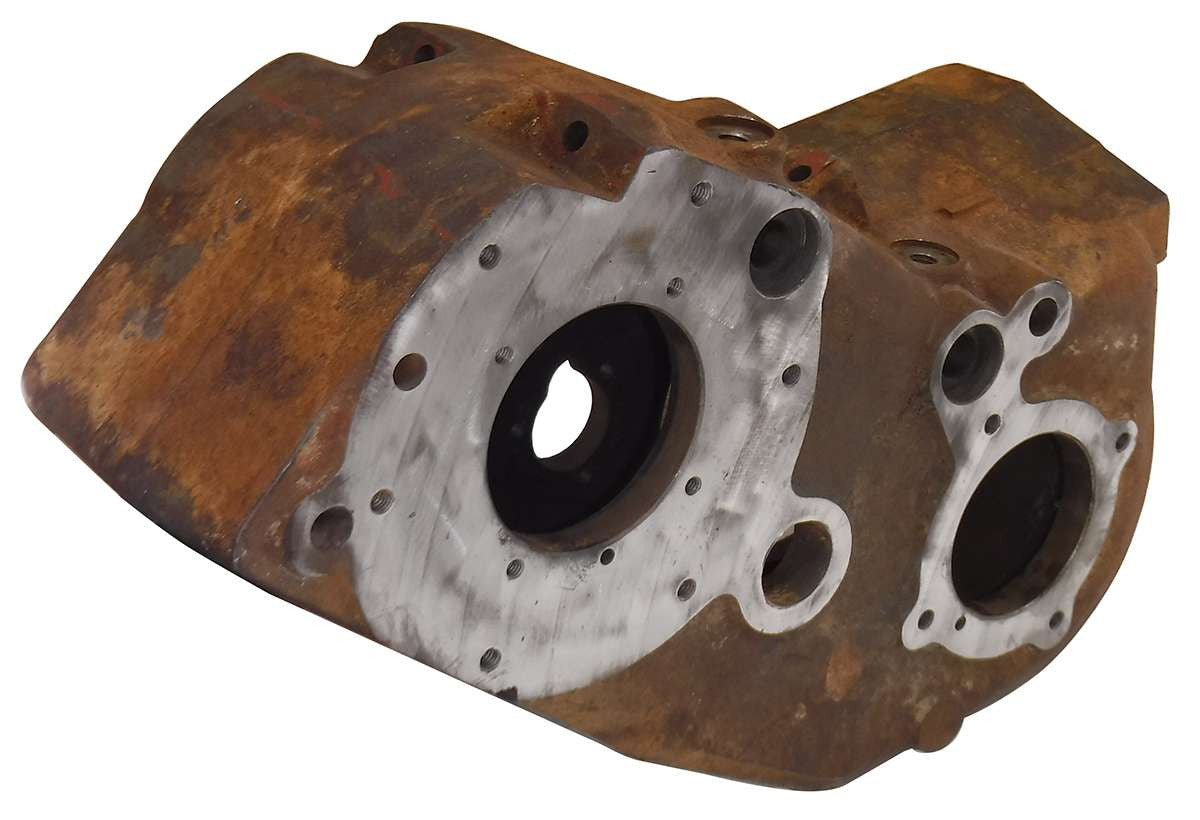

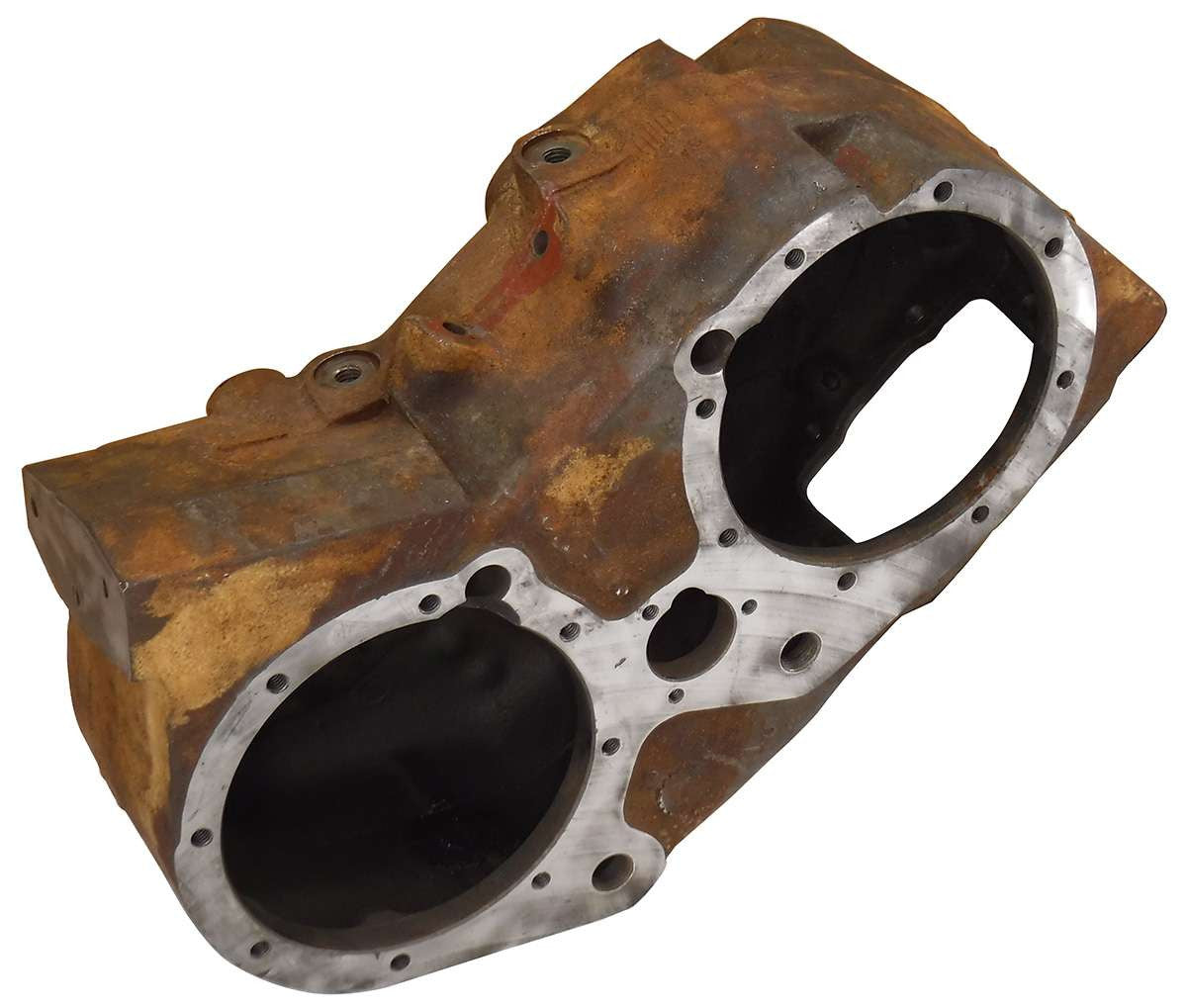

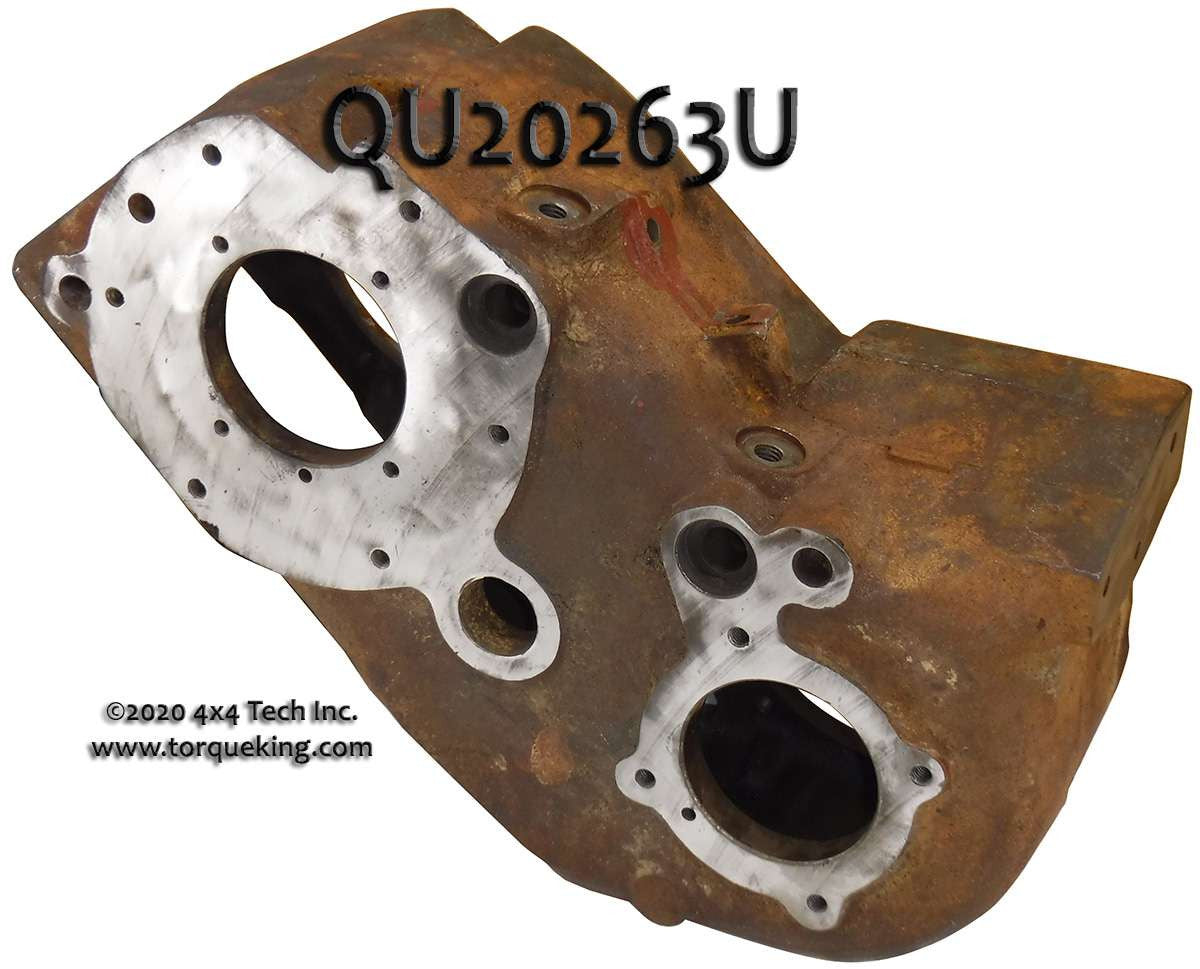

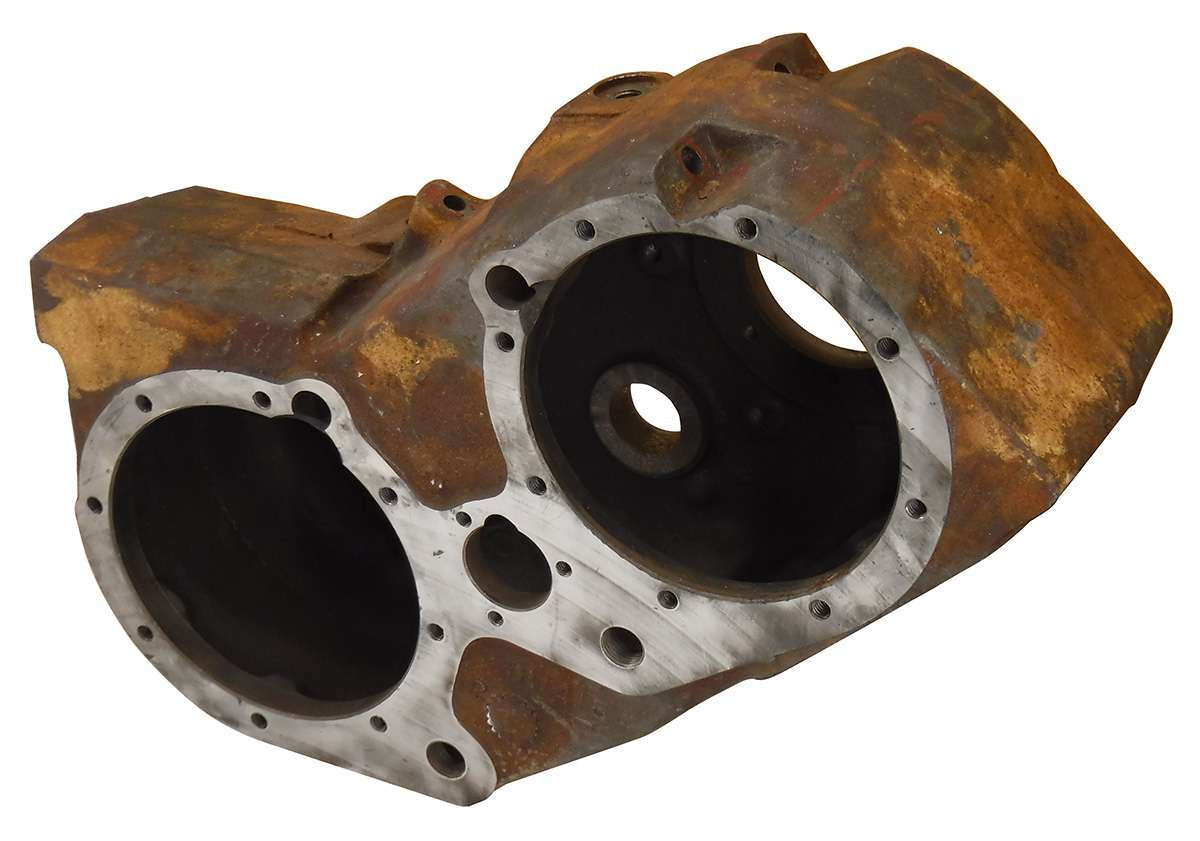

QU20263U Used Bare 1973-1979 Ford NP205 Transfer Case Housing

QU20263U Used Main Case for Ford Direct Mount NP205 Transfer Case Applications are good used, direct mount, bare Main Case castings for 1973-1979 Ford full size 4x4s with New Process NP205 gear drive Transfer Cases that bolted directly to the transmission extension housing. There are two interchangeable versions of these cases. The early production cases have 3/8" case access holes for the interlock rails and shift fork pins, while the later cases have 7/16" holes. These are the later production cases. Case casting number is C11415.

Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!

Dan the Gear Man® Tech Notes:
Case Plugs
Matching Parts
Applications

Tech Note 1: Case Plugs
Early production Cases have 3/8" Access Holes and require four QU50162 Case Plugs. These interchangeable, late production Cases have 7/16" Access Holes and require four QU50224 Case Plugs.

Tech Note 2: Matching Parts
Matching Parts for QU20263 NP205F Direct Mount Main Housing:
Exploded View XV4009 1973-1979 Ford Direct Mount NP205 Transfer Case
TK10604 8 Bolt Rear Housing to Main Case Gasket
TK50175 4 Bolt Round Input Bearing Reatiner Gasket
TK10514 4 Bolt Front Output Bearing Retainer Gasket
TK10680 Poppet Plug Gasket
TK10687 3 Bolt Idler Cover Gasket
QU50039 (Cork) or QU50178 (paper) PTO Cover Gasket
TK20031 6 Bolt Transfer Case to Transmission Gasket
TK50098 Shift Rail Seal
TK50105 Front Output Ball Bearing
TK50106 Input Ball Bearing
QU20260U NP205 Rear Bearing Housing for Ford
QU20256U Rear Output Shift Rail
QU20257U Front Output Shift Rail

Applications
Ford NP205: 1973, 1974, 1975, 1976, 1977, 1978, 1979
