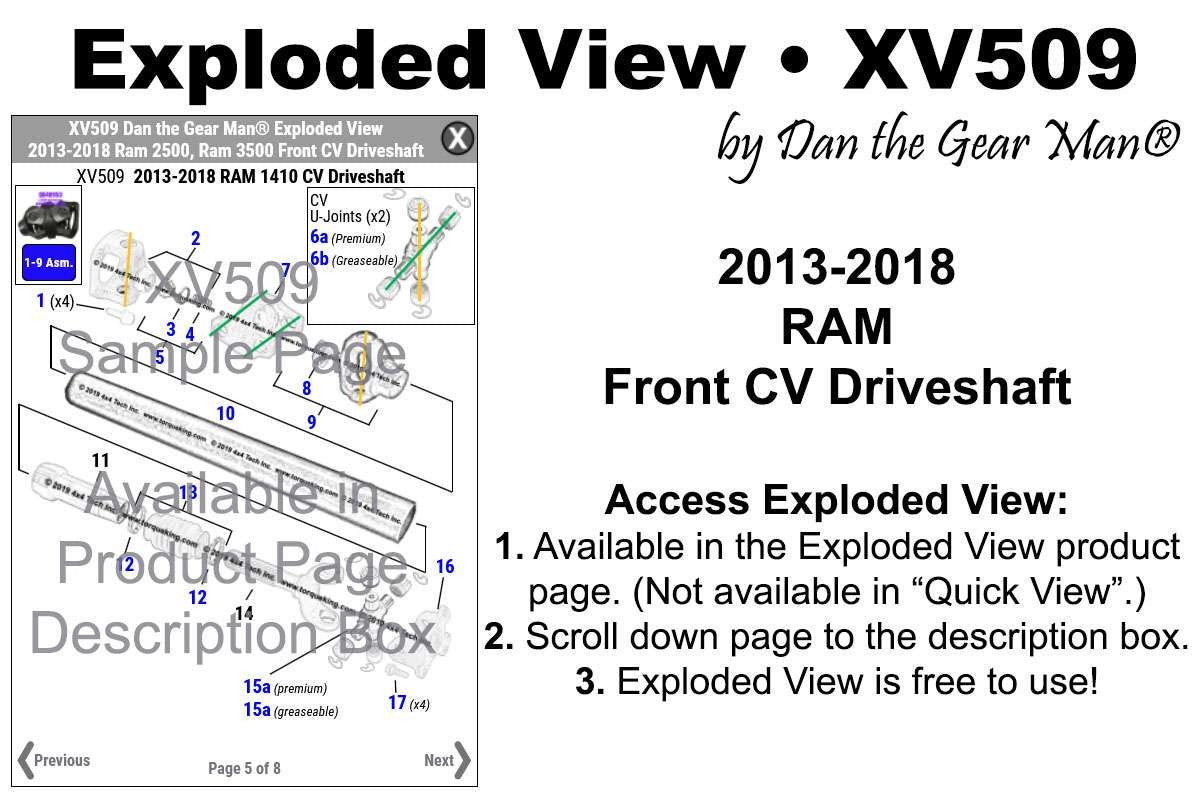

XV509 Exploded View 2013-2018 Ram 2500/3500 Front CV Driveshaft
XV509 Exploded View 2013-2018 Ram 2500/3500 Front CV Driveshaft
Sale price$0.00
Loading parts catalog…
Parts List & Reference
Full part numbers & descriptions for every page
XV509 2013-2018 Dodge Ram 2500, 3500 Front CV Driveshaft
Interactive parts catalog for XV509 2013-2018 Dodge Ram 2500, 3500 Front CV Driveshaft. Browse exploded diagrams, find part numbers, and order replacement parts.
XV509 2013-2018 Dodge Ram 2500, 3500 Front CV Driveshaft
Information and Resources
XV509
Driveshaft Assemblies and Parts
Tools, Kits and Lubricants
XV509 2013-2018 Ram 1410 CV Driveshaft
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 10806 | QU10806 Grade 8 Driveshaft, Transfer Case Shifter, or Trans Mount Bolt | 4 |
| 2 | 41028 | TK41028 1410 Front CV Driveshaft Flange or Centering Yoke for 13-18 Ram | 1 |
| 3 | 40829 | QU40829 CV Ball Seal for Most 1990-up Spicer Type Driveshaft CV Joints | 1 |
| 4 | 40835 | QU40835 CV Joint Tension Spring for Spicer Type Constant Velocity | 1 |
| 5 | 40744 | QU40744 CV Ball and Seal Kit for Spicer Type CV Driveshafts | 1 |
| 6a | 40705 | TK40705 Torque King 1410 Series Cold-Forged Driveshaft U-Joint | 2 |
| 6b | 40789 | QU40789 Greaseable 1410 Series Driveshaft Universal Joint | 2 |
| 7 | 41027 | TK41027 1410 Series Front CV Driveshaft Center or H Yoke for 13-18 Ram | 1 |
| 8 | 40704 | QU40704 CV Joint Ball Seal 1985-up Spicer Type Constant Velocity Joints | 1 |
| 9 | 41026 | TK41026 1410 Front CV Driveshaft Ball Stud Tube Yoke for 2.5"x0.120" Tube | 1 |
| 10 | 51188 | QU51188 2.5" x 0.120" Driveshaft Tubing, Sold by the Inch | 1 |
| 12 | 11051 | QU11051 Dodge Ram Front CV Driveshaft Boot Clamp | 1 |
| 13 | 11382 | QU11382 Front CV Driveshaft Boot for 2003-2019 Ram 2500, Ram 3500 | 1 |
| 15a | 40705 | TK40705 Torque King 1410 Series Cold-Forged Driveshaft U-Joint | 1 |
| 15b | 40789 | QU40789 Greaseable 1410 Series Driveshaft Universal Joint | 1 |
| 16 | 11394 | TK11394 Ram 1410 Front Driveshaft Front Flange Yoke | 1 |
| 17 | 11230 | QU11230 Driveshaft to Pinion Flange or Transfer Case Flange Head Bolt | 4 |
| 18 | 40953 | QU40953 1410 Series Double Cardan CV Head Assembly | 1 |
XV509 Premium Quality 1410 Series OE Type Driveshaft Assemblies
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 11505 | TK11505 1410 Series Front CV Drive Shaft for Gas, Auto 2013-up Ram | 1 |
| 2 | 11506 | TK11506 1410 Front CV Shaft Drive Shaft for 2013-2018 Ram Diesel, Manual Trans | 1 |
| 3 | 11507 | TK11507 1410 Front CV Driveshaft, Cummins, AS69RC Automatic | 1 |
| 4 | 11508 | TK11508 1410 Series Front CV Driveshaft for Cummins/Auto 2013-up RAM | 1 |
| 5 | 52112 | QU52112 1410 Series Unfinished Front CV Driveshaft for 2013-up Ram 4x4s | 1 |
XV509 Tool, Kits and Lubricants
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 90018 | QU90018 Pyroplex Protection ES 2 Synthetic Grease | 1 |
| 2 | 40744 | QU40744 CV Ball and Seal Kit for Spicer Type CV Driveshafts | 1 |
| 3 | 90021 | QU90021 Spicer SPL1051 14 oz. Tube Ultra-Premium Synthetic Grease | 1 |
| 4 | 11394 | TK11394 Ram 1410 Front Driveshaft Front Flange Yoke | 1 |
| 5 | 11382 | QU11382 Front CV Driveshaft Boot for 2003-2019 Ram 2500, Ram 3500 | 1 |
| 6 | 51188 | QU51188 2.5" x 0.120" Driveshaft Tubing, Sold by the Inch | 1 |
| 7 | 4010 | QT4010 1" Press Tip for QT1065M U-Joint Press | 1 |
| 8 | 4016 | QK4016 ORDER INDIV PARTS | 1 |
| 9 | 1065 | QT1065M Long Throat C-Frame Press for Ball Joint and U-Joint Service | 1 |
| 10 | 10806 | QU10806 Grade 8 Driveshaft, Transfer Case Shifter, or Trans Mount Bolt | 1 |
| 11 | 11230 | QU11230 Driveshaft to Pinion Flange or Transfer Case Flange Head Bolt | 1 |
