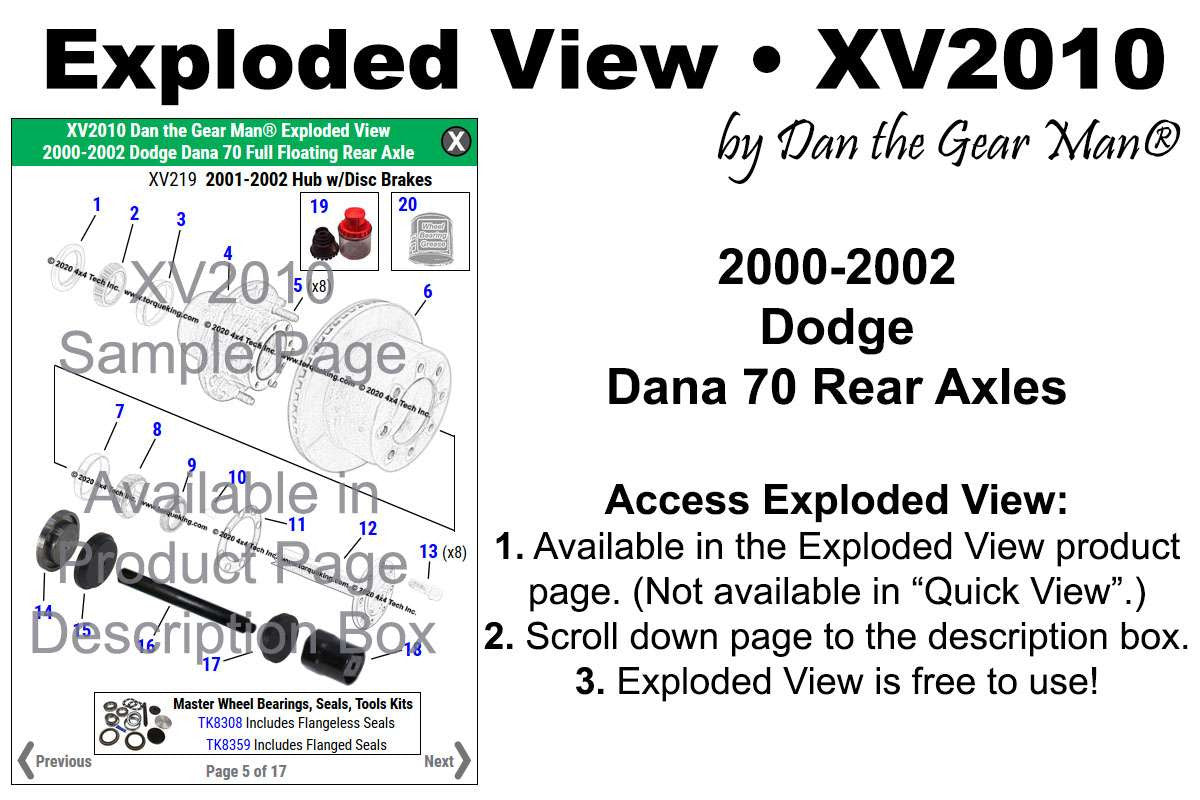

Interactive exploded view of the Dana 70 Rear Axle 2000-2002 Dodge Ram 2500. Click a part in the diagram to see its part number and add it to your cart.
Loading parts catalog…
Parts List & Reference
Full part numbers & descriptions for every page
XV2010 2000-2001 Dodge Dana 70 Full Floating Rear Axle
Interactive parts catalog for XV2010 2000-2001 Dodge Dana 70 Full Floating Rear Axle. Browse exploded diagrams, find part numbers, and order replacement parts.
XV2010 2000-2001 Dodge Dana 70 Full Floating Rear Axle
Information and Resources
XV2010
Gears, Carrier and Parts
Tools, Kits and Lubrication
XV204 Drum Brakes
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 11625 | QU11625 Axle Housing to Backing Plate Bolt for 1969-2001 Ram Rear Axle | 4 |
| 2 | 11503 | TK11503 Left Side Bare Rear Backing Plate for 2000-2001 Ram 2500/3500 | 1 |
| 2 | 5511503 | TK11503U Used Left Side Loaded Rear Backing Plate for 00-01 Ram 2500/3500 | 1 |
| 2 | 11504 | TK11504 00-01 Right Backing Plate | 1 |
| 2 | 5511504 | TK11504U Used 00-01 Right Backing Plate | 1 |
| 3 | 95074 | QU95074 1/2" Fine Thread Class C Hardened Hi-Profile All-Metal Locknut | 4 |
| 4 | 11618 | QU11618 2000-2001 SRW Brake Drum for Dodge Ram 2500, Ram 3500 | 1 |
| 5 | 80072 | QU80072 Brake Holdown Kit-Bendix 12" & 12.125" Rear Brakes for Dodge, Ford, Ram | 1 |
| 6 | 80057 | QU80057 Left Rear Brake Shoe Self Adjuster Repair Kit | 1 |
| 6 | 80036 | QU80036 Right Rear Brake Shoe Self Adjuster Repair Kit | 1 |
| 7 | 11714 | QU11714 Hex Head Bolt for 2000-2001.5 Ram Rear Drum Brakes | 2 |
| 8 | 95033 | QU95033 Class C 1/4" SAE All-Metal Hardened Lock Nut | 1 |
| 9 | 80082 | QU80082 Rubber Brake Adjuster Slot Plug for 1-1/2" Long Slots | 1 |
| 10 | 80081 | QU80081 Self Adjuster Lever and Spring Pivot Pin for Bendix Brakes | 1 |
| 11 | 80075 | QU80075 12-1/8" x 3.5" Bendix Type Rear Brake Shoes for Dodge & Ford | 1 |
| 12 | 80071 | QU80071 1" Bore Left Wheel Cylinder | 1 |
| 12 | 80070 | QU80070 1" Bore Right Wheel Cylinder | 1 |
| 13 | 5580087 | QU80087U Used Brake Wheel Cylinder Push Pin or Link | 1 |
| 14 | 80080 | QU80080 Adjuster Cable Guide for Bendix 12" & 12-1/8" Brakes | 1 |
| 15 | 80079 | QU80079 Left Self Adjusting Brake Lever Spring for Bendix 12" & 12-1/8" | 1 |
| 15 | 80035 | QU80035 Right Side Adjusting Lever Spring for 12" Bendix Rear Brakes | 1 |
| 17 | 20015 | QU20015 Park Brake Lever Pivot Bushing | 1 |
| 18 | 80088 | QU80088 Brake Self Adjusting Cable for Bendix 12" & 12-1/8" Drum Brakes | 1 |
| 19 | 5580084 | QU80084U Used Left Parking Brake Lever Cam for 2000-2001 Dodge Rear | 1 |
| 19 | 5580083 | QU80083U Used Right Parking Brake Lever Cam for 00-01 Dodge Rear | 1 |
| 20 | 5580086 | QU80086U Used Left Parking Brake Lever for 00-01 Dodge Drum Brakes | 1 |
| 20 | 5580085 | QU80085U Used Right Parking Brake Lever for 00-01 Dodge Drum Brakes | 1 |
| 21 | 20012 | QU20012 Bendix Park Lever Spring | 1 |
| 22 | 20013 | QU20013 Park Brake Lever Washer | 1 |
| 23 | 20055 | QU20055 Parking Brake Lever Pivot Bolt for Bendix 12" Rear Brakes | 1 |
XV205 Disc Brakes
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 11578 | QU11578 Nut, Backing Plate to Housing 2001-2002 Dodge Ram 2500, Ram 3500 | 4 |
| 1 | 5511578 | QU11578U Used Backing Plate to Housing Nut | 4 |
| 2 | 5510895 | QU10895U Used Rear Parking Brake/Backing Plate 2001-2002 Ram 2500, Ram 3500 | 1 |
| 3 | 11606 | QU11606 Caliper Mounting Bracket Bolt for 2001.5-2008 Ram 2500, 3500 | 4 |
| 3 | 5511606 | QU11606U Used Caliper Mounting Bracket Bolt for 01.5-08 Ram 2500, 3500 | 4 |
| 4 | 5511577 | QU11577U Used Rear Caliper Mounting Bracket | 1 |
| 5 | 11604 | QU11604 Caliper Bolt for 2001.5-2002 Dodge Ram Rear Disc Brakes | 2 |
| 5 | 5511604 | QU11604U Used Caliper Bolt | 2 |
| 6 | 11619 | QU11619 2001-2002 Left Rear Brake Caliper for Ram 2500, Ram 3500 | 1 |
| 6 | 11620 | QU11620 2001-2002 Right Rear Disc Brake Caliper 2001-2002 Ram 2500, Ram 3500 | 1 |
| 7 | 80077 | QU80077 Premium Rear Disc Brake Pads for 2001-2006 Ram 2500, Ram 3500 | 1 |
| 8 | 5511605 | QU11605U Used Caliper Banjo Bolt | 1 |
| 9 | 80068 | QU80068 Premium Disc Brake Hardware Kit | 1 |
| 10 | 80076 | QU80076 Park Brake Shoe Set for many 1999-2005 3/4 and 1 Ton Trucks | 1 |
| 11 | 80067 | QU80067 Park Brake Hardware Kit for 01-05 Ram 2500 01-08 Ram 3500 | 1 |
| 13 | 9975 | S9975 5 grams Anti-Seize Lubricant | 1 |
| 14 | 9978 | S9978 Medium Strength Blue 242 Threadlocker (1 gram) | 1 |
| 15 | 20356 | S20356 Synthetic Disc Brake Lube | 1 |
XV210 Differential
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 40947 | QU40947 New 2001-2002 Ram 2500 Dana 70 Rear Axle Housing | 1 |
| 2 | 40207 | QU40207 Dana 60 and Dana 70U Master Differential and Pinion Shim Kit | 1 |
| 3 | 50400 | QU50400 Timken Outer Pinion Bearing Cup for Dana 60, 61, 70, 70HD Axles | 1 |
| 4 | 50401 | QU50401 Timken® Outer Pinion Bearing | 1 |
| 5 | 40099 | QU40099 Outer Pinion Slinger for Dana Model 60, 61, 70 Axles | 1 |
| 6 | 40097 | QU40097 Genuine Dana OEM Model 60, Model 70 Pinion Seal | 1 |
| 7 | 40397 | QU40397 Pinion Wiper V-Seal | 1 |
| 8 | 40727 | QU40727 1410 Series Pinion Yoke for Dodge Dana 60 and Dana 70 Axles | 1 |
| 8 | 9940727 | QU40727X 1410 Series Pinion Yoke No Slinger for Dodge Dana 60, 70 | 1 |
| 8 | 5540727 | QU40727U Used 1410 Pinion Yoke with Slinger for 1989-1999 Dodge | 1 |
| 9 | 10918 | QU10918 Flanged Pinion Lock Nut for Dodge Dana 70 Rear Axles | 1 |
| 9 | 40023 | QU40023 Dana 60, Dana 70 Hardened Pinion Flat Washer | 1 |
| 9 | 5540023 | QU40023U Used Dana 60, Dana 70 Hardened Pinion Flat Washer | 1 |
| 10 | 40709 | QU40709 Universal Joint Strap and Bolt Kit for Spicer 1350 or 1410 Yokes | 1 |
| 11 | 40345 | QU40345 Dana 70 Outer Pinion Spacer | 1 |
| 11 | 5540345 | QU40345U Used Outer Pinion Spacer | 1 |
| 12 | 40207 | QU40207 Dana 60 and Dana 70U Master Differential and Pinion Shim Kit | 1 |
| 13 | 50406 | QU50406 Timken® Inner Pinion Bearing Cup | 1 |
| 14 | 50408 | QU50408 Timken Inner Pinion Bearing | 1 |
| 15 | 40030 | QU40030 Inner Pinion Oil Baffle for Dana 60, Dana 61, and Dana 70U Axles | 1 |
| 15 | 5540030 | QU40030U Used Inner Pinion Cup Oil Baffle for Dana 60, 61, 70U Axles | 1 |
| 16 | 40288 | QU40288 Dana 70 3.54 Ratio Ring and Pinion Set | 1 |
| 16 | 40493 | QU40493 4.10 Ratio Spicer Dana 70 Ring and Pinion Kit | 1 |
| 16 | 442311 | D442311 Dana 70 4.10 ratio Gear Set | 1 |
| 17 | 40117 | QU40117 Cross Shaft Retaining Pin for Dana 70 and Dana 80 Axles | 1 |
| 18 | 40343 | QU40343 Bolt, Differential Bearing Cap Dana 44, 50, 60, 61, 70, 70HD, 80 Axles | 4 |
| 18 | 5540343 | QU40343U Used Differential Cap Bolt for Dana Axles | 4 |
| 19 | 50397 | QU50397 Timken Differential Side Bearing Cup for Corporate & Dana Axles | 2 |
| 20 | 50398 | QU50398 2-1/4" ID Timken Wheel or Differential Side Tapered Bearing | 2 |
| 21 | 40206 | QU40206 Differential Shim Kit for Dana 60, 70, or 80 Rear Axles | 1 |
| 22 | 40482 | QU40482 Fast Ratio Bare Differential Case for Dana 70, Dana 71 | 1 |
| 22 | 5540482 | QU40482U Used Fast Ratio Bare Differential Case for Dana 70, Dana 71 | 1 |
| 23 | 40290 | QU40290 Dana 70 Rear Axle ABS Tone Ring | 1 |
| 23 | 5540290 | QU40290U D70 ABS Tone Ring | 1 |
| 24 | 40205 | QU40205 Dana 70 32-Spline Differential Parts Kit | 1 |
| 25 | 40086 | QU40086 Genuine Dana-Spicer Grade 9 Ring Gear Bolt for Dana 60, Dana 70 | 12 |
XV211 Dana Open Differential Cases
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 40205 | QU40205 Dana 70 32-Spline Differential Parts Kit | 1 |
| 2 | 40212 | QU40212 Dana 70 Differential Pinion Mate Gear | 2 |
| 3 | 40049 | QU40049 Dana 70, Dana 80 Pinion Mate Thrust Washer | 2 |
| 4 | 440163 | D440163 Open Differential Side Gear for 1991-2002 Dodge Dana 70 Rears | 2 |
| 5 | 40117 | QU40117 Cross Shaft Retaining Pin for Dana 70 and Dana 80 Axles | 1 |
| 6 | 40116 | QU40116 Differential Cross Shaft for most Dana 70, Dana 70HD, Dana 80 Axles | 1 |
| 7 | 40041 | QU40041 Dana Axle Differential Side Gear Thrust Washer | 2 |
| 8 | 40482 | QU40482 Fast Ratio Bare Differential Case for Dana 70, Dana 71 | 1 |
| 8 | 5540482 | QU40482U Used Fast Ratio Bare Differential Case for Dana 70, Dana 71 | 1 |
| 8 | 708016 | YC D708016 Fast Ratio Loaded Open Diff Case for Dana 70, 71 Rear Axles | 1 |
| 8 | 451335 | YC D706056 Yukon Open Carrier Case for 4.56 & up in 84.5-02 Dodge D70R | 1 |
XV212 Dana OEM Limited Slip Differential Cases
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 40218 | QU40218 Dana 4 Ounce Bottle Limited Slip Lube for Powr-Loc & Trac-Loc | 1 |
| 2 | 4604 | QK4604 Dana 70 Powr-Lok Limited Slip Differential Clutch Kit | 1 |
| 3 | 40503 | QU40503 Clutch Ring for Dana 70 Powr-Lok Limited Slip Differentials | 2 |
| 4 | 40505 | QU40505 Limited Slip Pinion Mate Gear for Dana 70 and Dodge Dana 80 | 4 |
| 5 | 40304 | QU40304 32-Spline Dana 70 Powr-Lok Diff Side Gear for 91-02 Dodge | 2 |
| 6 | 441628 | D441628 Dana LS Diff Carrier Bolt for Dana 70, Dana 80 Rear Trac-Lok, Powr-Lok | 8 |
| 7 | 40504 | QU40504 Limited Slip Diff Powr-Lok Shaft for 91-02 Dodge Dana 70 | 2 |
XV213 Housing
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 40947 | QU40947 New 2001-2002 Ram 2500 Dana 70 Rear Axle Housing | 1 |
| 2 | 10924 | QU10924 5/16" Inside Diameter Fuel or Breather Hose, Sold by the Inch | 1 |
| 3 | 50048 | QU50048 Crimp Hose Clamp for Most 5/16" ID hoses | 1 |
| 4 | 11116 | QU11116 Dodge Rear Axle Brake Block Bolt/Axle Vent Fitting | 1 |
| 17 | 40367 | QU40367 Dana 60, Dana 70 Differential Cover Gasket | 1 |
| 17 | 42030 | QU42030 Reusable Dana 70 Differential Cover Gasket | 1 |
| 18 | 40344 | QU40344 Dana 70 OEM Steel Differential Cover Kit for Model 70, 70HD | 1 |
| 19 | 440055 | D440055 Differential Cover Pan Fill Plug | 1 |
| 20 | 440033 | D440033 3/8" Diff Cover Screw for Dana 60, Dana 70, and Dana 80 Axles | 10 |
XV218 Hub with Drum Brakes
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 40450 | QU40450 Rear Wheel Seal 1972-2002 Dodge Dana Full Floating Rear Axles | 1 |
| 2 | 50414 | QU50414 Timken Inner Wheel Bearing | 1 |
| 3 | 50413 | QU50413 Timken Inner Wheel Bearing Cup | 1 |
| 4 | 11112 | TK11112 Single Rear Wheel Hub fits Drum or Disc Brake 2000-2002 Ram | 1 |
| 4 | 5511112 | TK11112U Used 2000-2002 Ram 2500, Ram 3500 SRW Rear Wheel Hub | 1 |
| 5 | 52165 | QU52165 9/16" Rear Wheel Bolt Dodge SRW 1994-2002 Ram 2500, 3500 | 8 |
| 6 | 11618 | QU11618 2000-2001 SRW Brake Drum for Dodge Ram 2500, Ram 3500 | 1 |
| 7 | 50411 | QU50411 Timken Taper Wheel Bearing Cup for Front and Rear Axles | 1 |
| 8 | 50412 | QU50412 Timken Taper Wheel Bearing for Front and Rear Axles | 1 |
| 9 | 40118 | QU40118 2-9/16" Rounded Hex Rear Spindle Nut with 2" Thread for Dodge & Ford Dana 60, 70, 80 Axles | 1 |
| 10 | 40115 | QU40115 Rear Spindle Nut Lock Wedge 1994-2002 Dodge 2500, 3500 | 1 |
| 11 | 40078 | QU40078 Dana Axle Shaft Gasket for Dana 60, 70, 80 Rear Axles | 1 |
| 12 | 40477 | QU40477 Dana 70 32 Spline SRW Rear Axle Shaft for 1994-2002 Ram2500 | 1 |
| 12 | 5540477 | QU40477U Used Dana 70 32 Spline SRW Rear Axle Shaft for 1994-2002 Ram 2500 | 1 |
| 13 | 40306 | QU40306 Dana Rear Axle Shaft to Hub Bolt for 1972-2002 Dodge Dana 60, 70 & 80 | 8 |
| 14 | 1510 | QT1510 SRW Rear Wheel Seal Installer 1994-2002 Dodge Ram 2500, 3500 | 1 |
| 15 | 1804 | QT1804 Bearing Cup Installer 3-13/16" Approximate Outside Diameter | 1 |
| 16 | 1100 | QT1100 1" X 8" Driver Handle for Installers & Removers with 5/8" Tip | 1 |
| 17 | 1801 | QT1801 Bearing Cup Installer for 82mm -3-1/4" OD Taper Bearing Cups | 1 |
| 18 | 1009 | QT1009 2-9/16" Rounded Hex Rear Spindle Nut Socket 1/2" Drive USA Made | 1 |
| 19 | 5500 | QT5500 Wheel Bearing Packer With Cover | 1 |
| 20 | 707 | QU90017 1 Pound Tub Pennzoil 707L Wheel Bearing and Chassis Grease | 1 |
XV219 Hub with Disc Brakes
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 40450 | QU40450 Rear Wheel Seal 1972-2002 Dodge Dana Full Floating Rear Axles | 1 |
| 2 | 50414 | QU50414 Timken Inner Wheel Bearing | 1 |
| 3 | 50413 | QU50413 Timken Inner Wheel Bearing Cup | 1 |
| 4 | 11112 | TK11112 Single Rear Wheel Hub fits Drum or Disc Brake 2000-2002 Ram | 1 |
| 4 | 5511112 | TK11112U Used 2000-2002 Ram 2500, Ram 3500 SRW Rear Wheel Hub | 1 |
| 5 | 52165 | QU52165 9/16" Rear Wheel Bolt Dodge SRW 1994-2002 Ram 2500, 3500 | 8 |
| 6 | 11622 | QU11622 2001-2002 SRW, DRW Brake Rotor for Dodge Ram 2500, Ram 3500 | 1 |
| 7 | 50411 | QU50411 Timken Taper Wheel Bearing Cup for Front and Rear Axles | 1 |
| 8 | 50412 | QU50412 Timken Taper Wheel Bearing for Front and Rear Axles | 1 |
| 9 | 40118 | QU40118 2-9/16" Rounded Hex Rear Spindle Nut with 2" Thread for Dodge & Ford Dana 60, 70, 80 Axles | 1 |
| 10 | 40115 | QU40115 Rear Spindle Nut Lock Wedge 1994-2002 Dodge 2500, 3500 | 1 |
| 11 | 40078 | QU40078 Dana Axle Shaft Gasket for Dana 60, 70, 80 Rear Axles | 1 |
| 12 | 40477 | QU40477 Dana 70 32 Spline SRW Rear Axle Shaft for 1994-2002 Ram2500 | 1 |
| 12 | 5540477 | QU40477U Used Dana 70 32 Spline SRW Rear Axle Shaft for 1994-2002 Ram 2500 | 1 |
| 13 | 40306 | QU40306 Dana Rear Axle Shaft to Hub Bolt for 1972-2002 Dodge Dana 60, 70 & 80 | 8 |
| 14 | 1510 | QT1510 SRW Rear Wheel Seal Installer 1994-2002 Dodge Ram 2500, 3500 | 1 |
| 15 | 1804 | QT1804 Bearing Cup Installer 3-13/16" Approximate Outside Diameter | 1 |
| 16 | 1100 | QT1100 1" X 8" Driver Handle for Installers & Removers with 5/8" Tip | 1 |
| 17 | 1801 | QT1801 Bearing Cup Installer for 82mm -3-1/4" OD Taper Bearing Cups | 1 |
| 18 | 1009 | QT1009 2-9/16" Rounded Hex Rear Spindle Nut Socket 1/2" Drive USA Made | 1 |
| 19 | 5500 | QT5500 Wheel Bearing Packer With Cover | 1 |
| 20 | 707 | QU90017 1 Pound Tub Pennzoil 707L Wheel Bearing and Chassis Grease | 1 |
