XV1062 1971-1972 Chevy & GMC 3/4 Ton Dana 44 Front Axle Exploded View
1971-1972 Chevy & GMC 3/4 Ton Dana 44 Front Axle

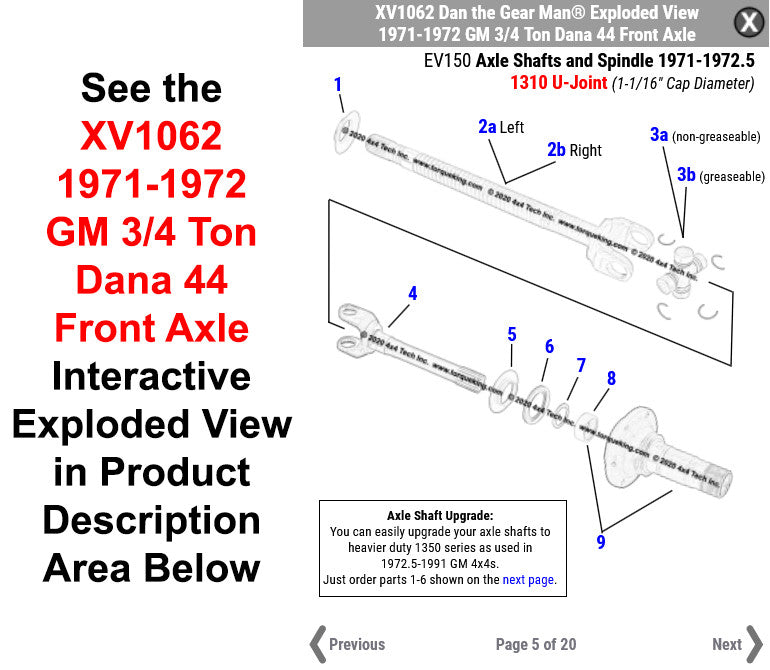

Interactive exploded view of the 1971-1972 Chevy & GMC 3/4 Ton Dana 44 Front Axle. Click a part in the diagram to see its part number and add it to your cart.
Loading parts catalog…
Parts List & Reference
Full part numbers & descriptions for every page
XV1062 1971-1972 GM 3/4 Ton Dana 44 Front Axle
Interactive parts catalog for XV1062 1971-1972 GM 3/4 Ton Dana 44 Front Axle. Browse exploded diagrams, find part numbers, and order replacement parts.
XV1062 1971-1972 GM 3/4 Ton Dana 44 Front Axle
Information and Resources
XV1062
Gears, Carriers and Parts
Tools, Kits and Lubricants
EV149 Hub with Disc Brakes
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 50101 | QU50101 Premium OE Type Front Inner Wheel Seal | 1 |
| 2 | 50569 | QU50569 Timken® Tapered Inner Wheel Roller Bearing | 1 |
| 3 | 50568 | QU50568 Timken® Tapered Inner Wheel Bearing Cup | 1 |
| 4 | 52321 | QU52321 9/16 Front Wheel Stud for 3/4 Ton Chevy, Jeep 4x4s | 6 |
| 5 | 30195 | QU30195 Front Brake Rotor for 1971-1991 3/4 Ton 4x4 Trucks | 1 |
| 6 | 5530159 | QU30159U 1st Design Used Bare 1971-1977.5 4x4 Front Wheel Hub | 1 |
| 7 | 50447 | QU50447 Timken Differential/Wheel Bearing Cup | 1 |
| 8 | 50448 | QU50448 Timken Differential/Wheel Bearing | 1 |
| 9 | 40004 | QU40004 4x4 Front 4 Slot Inner Spindle Nut with Pin Thread Size 1-5/8" | 1 |
| 9 | 5540004 | QU40004U Good Used 4x4 Front Inner Spindle Nut with Pin | 1 |
| 10 | 40060 | QU40060 Round Spindle Lock Washer | 1 |
| 10 | 5540060 | QU40060U Good Used Round Spindle Lock Washer | 1 |
| 11 | 40031 | QU40031 4x4 Front Outer Spindle Nut with 4 Slots and 1-5/8" Thread | 1 |
| 11 | 5540031 | QU40031U USED Outer 4 Slot 4x4 Front Spindle Nut | 1 |
EV150 Axle Shafts and Spindles
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 40460 | QU40460 Inner Axle Shaft Slinger for Early Dana Open Knuckle Front Axles | 1 |
| 2 | 5542099 | QU42099U Used Serviceable Left Inner Axle Shaft for 70-72.5 GM Dana 44 | 1 |
| 2 | 5542100 | QU42100U Used Serviceable Right Inner Axle Shaft for 1970-1972.5 GM | 1 |
| 3 | 40792 | QU40792 1-1/16" Cup Axle Universal Joint, Non-Greaseable | 1 |
| 3 | 40822 | QU40822 1-1/16" Cap Axle Universal Joint, Greaseable | 1 |
| 4 | 40669 | QU40669 New Outer Axle Shaft for 1971-1972 GM 4x4 - 1-1/16" UJnt Cap | 1 |
| 4 | 5540669 | QU40669U USED Outer Axle Shaft for 1971-1972 GM 4x4 - 1-1/16" UJnt Cap | 1 |
| 5 | 40324 | QU40324 Early 2" Outer Axle Shaft Slinger | 1 |
| 6 | 40043 | QU40043 Early Type Dana Front Axle One Piece Spindle Seal | 1 |
| 7 | 40232 | QU40232 Early Type Brass Axle Shaft Spindle Thrust Washer | 1 |
| 8 | 4734 | QK4734 Pair of Spindle Bearings for Dana 30, Dana 44, GM 10 Bolt Front Axles | 1 |
| 9 | 40323 | QU40323 3/4 ton Dana 44 Front Spindle Assembly | 1 |
| 9 | 5540323 | QU40323U Good Used 3/4 ton Dana 44 Front Spindle | 1 |
| 9 | 440323 | Y440323 Yukon 3/4 Ton 4x4 Front Spindle 1971-77 GM and 1974-77 Jeep | 1 |
EV151 Axle Shafts and Spindles
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 40638 | QU40638 30 Spline Left Dana 44 Inner Axle Shaft for 1972.5-1980 Chevy, GMC | 1 |
| 1 | 5540638 | QU40638U Used 30 Spline Left Inner Axle Shaft for 1972.5-1980 Chevy, GMC | 1 |
| 1 | 40637 | QU40637 30 Spline Right Inner Axle Shaft GM Dana 44 Front Axles | 1 |
| 1 | 5540637 | QU40637U Used 30 Spline Right Inner Axle Shaft GM Dana 44 Front Axles | 1 |
| 2 | 40712 | TK40712 Torque King® Non-Greaseable, Axle Shaft Universal Joint | 1 |
| 2 | 90007 | QU90007 Greaseable Front Axle U-Joint for Dana 30, Dana 44, GM 10 Bolt | 1 |
| 3 | 40221 | QU40221 19 Spline Outer Front Axle Shaft for GM Dana 44, GM 10 Bolt | 1 |
| 3 | 5540221 | QU40221U Good Used Outer Axle Shaft | 1 |
| 4 | 40058 | QU40058 2-1/4" 4x4 Outer Axle Shaft Slinger for Dana 30, Dana 44, GM 10 Bolt | 1 |
| 5 | 40070 | QU40070 Plastic Front Axle Shaft to Spindle Thrust Washer | 1 |
| 5 | 5540070 | QU40070U USED Axle Shaft to Spindle Thrust Washer | 1 |
| 6 | 40071 | QU40071 Large Outer Axle Shaft to Spindle V-Seal Dana 30, 44, GM 10B | 1 |
| 7 | 40056 | QU40056 Small Spindle to Axle Shaft V-Seal | 1 |
| 8 | 4734 | QK4734 Pair of Spindle Bearings for Dana 30, Dana 44, GM 10 Bolt Front Axles | 1 |
| 9 | 40323 | QU40323 3/4 ton Dana 44 Front Spindle Assembly | 1 |
| 9 | 5540323 | QU40323U Good Used 3/4 ton Dana 44 Front Spindle | 1 |
| 9 | 440323 | Y440323 Yukon 3/4 Ton 4x4 Front Spindle 1971-77 GM and 1974-77 Jeep | 1 |
| 10 | 40228 | QU40228 Spindle Bearing and Seal Kit for Dana 30, 44, 44IFS, GM 10 Bolt | 1 |
EV152 Knuckle, Anchor, Shield and Spindle
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 5530471 | QU30471U Used 71-72 GM Bare Left Steering Knuckle with Steering Arm | 1 |
| 2 | 5530279 | QU30279U Used Bare Right Steering Knuckle for 1971-1972 Chevy/GMC | 1 |
| 3 | 42200 | QU42200 Steering Arm Stud | 3 |
| 4 | 50750 | QU50750 Dana Front Spindle to Knuckle Bolt | 6 |
| 6 | 40323 | QU40323 3/4 ton Dana 44 Front Spindle Assembly | 1 |
| 6 | 5540323 | QU40323U Good Used 3/4 ton Dana 44 Front Spindle | 1 |
| 6 | 440323 | Y440323 Yukon 3/4 Ton 4x4 Front Spindle 1971-77 GM and 1974-77 Jeep | 1 |
| 7 | 95035 | QU95035 3/8" Fine Thread Class C Lock Nut | 6 |
EV153 Spicer Hub Lock External Mount
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 40602 | TK40602 Hub Gear Bushing for Dana External Mount Hublocks | 1 |
| 2 | 9920109 | QU20109 Spicer Hub Axle Shaft Drive Gear for External Mount Hubs | 1 |
| 2 | 20109 | QU20109U Used Spicer Hub Axle Shaft Drive Gear for External Mount Hubs | 1 |
| 3 | 40032 | QU40032 Axle Shaft Snap Ring for 19 Spline Dana Front Outer Axle Shafts | 1 |
| 3 | 5540032 | QU40032U Used Axle Shaft Snap Ring | 1 |
| 6 | 40395 | QU40395 Metal Hub Gasket for Spicer 6 Bolt External Mount Hublocks | 1 |
| 8 | 20114 | QU20114 Spicer Hub Clutch Gear | 1 |
| 8 | 5520114 | QU20114U Used Hub Clutch Gear | 1 |
| 9 | 40595 | QU40595 Hub Spring for External Mount Lockout Hubs | 1 |
| 9 | 5540595 | QU40595U Good Used Hub Spring | 1 |
| 11 | 9940406 | QU40406 Spicer Hub Cam for External Mount Front Hubs on Ford & GM | 1 |
| 11 | 5540406 | QU40406U Good Used Spicer Hub Cam for External Mount Front Hubs | 1 |
| 13 | 5540546 | QU40546UAS Used Spicer External Mount Lockout Hub Chrome Cap | 1 |
| 14 | 20112 | QU20112 Hub Dial Snap Ring for Spicer External Mount Hub Locks | 1 |
| 14 | 5520112 | QU20112U Good Used Spicer Hub Dial Snap Ring | 1 |
EV155 Housing
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 2 | 40055 | QU40055 Inner Axle Seal for GM 10 Bolt and Many Dana 44 Front Axles | 2 |
| 4 | 40343 | QU40343 Bolt, Differential Bearing Cap Dana 44, 50, 60, 61, 70, 70HD, 80 Axles | 4 |
| 4 | 5540343 | QU40343U Used Differential Cap Bolt for Dana Axles | 4 |
| 5 | 42028 | QU42028 Dana 44 Reusable Diff Cover Gasket | 1 |
| 6 | 442051 | D442051 1967-1991 Dana 44 Differential Cover Kit, Chevy, Ford, Jeep | 1 |
| 7 | 440029 | D440029 .312-18 X .594 Dana 30, 35, 44 Differential Cover Pan or IFS Axle Retainer Bolt | 10 |
| 8 | 440055 | D440055 Differential Cover Pan Fill Plug | 1 |
EV156 Full Time Drive Flange
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 40596 | QU40596 6 Bolt, 19 Spline Front Hub Drive Flange | 1 |
| 1 | 5540596 | QU40596U Used 6 Bolt, 19 Spline Front Hub Drive Flange | 1 |
| 2 | 40032 | QU40032 Axle Shaft Snap Ring for 19 Spline Dana Front Outer Axle Shafts | 1 |
| 2 | 5540032 | QU40032U Used Axle Shaft Snap Ring | 1 |
| 3 | 40597 | QU40597 Hub Cap for 6 Bolt Front Hub Drive Flange for Vintage 4x4 trucks | 1 |
XV179 Ball Joint and Steering
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 95078 | QU95078 1/8"x1.25" Cotter Key | 1 |
| 2 | 40417 | QU40417 3/4" x 16 Flanged Castle Nut for Upper Ball Joints | 1 |
| 3 | 440039 | D440039 Ring Adjusting | 1 |
| 4 | 440042 | D440042 Lock Nut, Lower Ball Joint | 1 |
| 5 | 440078 | D440078 Upper Ball Joint for Dana 30, Dana 44, & GM 10 Bolt Front Axles | 1 |
| 6 | 440079 | D440079 Lower Ball Joint for Dana 30, Dana 44, & GM 10 Bolt Front Axles | 1 |
| 7 | 42305 | QU42305 Lower Ball Joint Snap Ring for Dana 30, Dana 44, GM 10 Bolt | 1 |
| 8 | 5530168 | QU30168U Used Removable Left Side Steering Arm | 1 |
| 9 | 42016 | QU42016 Tapered Split Steering Arm to Steering Knuckle Bushing | 3 |
| 9 | 5542016 | QU42016U Used Tapered Split Steering Arm to Steering Knuckle Bushing | 3 |
| 10 | 8095038 | QU8095038 9/16 - 18 UNF Grade 8 Class C Fine Thread Lock Nut | 3 |
XV181 Differential
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 2 | 40343 | QU40343 Bolt, Differential Bearing Cap Dana 44, 50, 60, 61, 70, 70HD, 80 Axles | 4 |
| 2 | 5540343 | QU40343U Used Differential Cap Bolt for Dana Axles | 4 |
| 3 | 40055 | QU40055 Inner Axle Seal for GM 10 Bolt and Many Dana 44 Front Axles | 2 |
| 4 | 51043 | QU51043 Basic Pinion Preload Shim Set for Many Dana Axles | 1 |
| 5 | 50533 | QU50533 Timken® Outer Pinion Bearing Cup | 1 |
| 6 | 50534 | QU50534 Timken® Outer Pinion Bearing | 1 |
| 7 | 40002 | QU40002 Outer Pinion Bearing Slinger Dana 25, 27, 30, 44, 50, 53 Axles | 1 |
| 8 | 40215 | QU40215 Dana Axle Pinion Seal | 1 |
| 9 | 40849 | QU40849 26 Spline 1310 Series Pinion Yoke | 1 |
| 9 | 5540849 | QU40849U Used 26 Spline 1310 Series Pinion Yoke | 1 |
| 10 | 40010 | QU40010 Dana Axle Pinion Washer | 1 |
| 10 | 5540010 | QU40010U Used Pinion Washer | 1 |
| 11 | 40009 | QU40009 OEM Dana Pinion Lock Nut for Dana 25, 27, 30, 44, 50, 53 Axles | 1 |
| 12 | 40447 | QU40447 Genuine Dana 3.54 Ratio Ring and Pinion Kit | 1 |
| 12 | 40177 | QU40177 Dana 44 4.09 Ratio Spicer OEM Ring and Pinion Kit | 1 |
| 12 | 440709 | D440709 4.09 Dana 44 Gear Set | 1 |
| 12 | 441059 | D441059 Dana 44 SVL 5.13 Gear Set | 1 |
| 13 | 40028 | QU40028 Dana 44 and Dana 50 Inner Pinion Bearing Slinger | 1 |
| 13 | 5540028 | QU40028U Used Dana 44 and Dana 50 Inner Pinion Bearing Slinger | 1 |
| 14 | 50536 | QU50536 Dana 25, Dana 44 Inner Timken® Pinion Bearing | 1 |
| 15 | 50535 | QU50535 Dana 25, Dana 44 Inner Timken® Pinion Bearing Cup | 1 |
| 16 | 51050 | QU51050 Dana 44 Basic Pinion Depth Shim Kit | 1 |
| 17 | 40448 | QU40448 Dana 44 Inner Pinion Bearing Oil Baffle | 1 |
| 17 | 5540448 | QU40448U Used Dana 44 Inner Pinion Bearing Oil Baffle | 1 |
| 18 | 50537 | QU50537 Timken Dana 44 Differential Side Bearing Cup | 2 |
| 19 | 50538 | QU50538 Timken Large Bore Dana 44 or Dana 53 Diff Side Bearing | 2 |
| 20 | 442047 | D442047 Dana 44 Differential Shim Set | 1 |
| 21 | 40209 | QU40209 Dana 44 Ring Gear Bolt | 12 |
| 22 | 40632 | QU40632 Dana 44 3.73 & faster Ratio Empty Open Differential Case Kit | 1 |
| 22 | 40634 | QU40634 Dana 44 3.92-up Slow Ratio Empty Open Diff Case Kit | 1 |
| 22 | 5540634 | QU40634U Used Dana 44 3.92-up Slow Empty Differential Case | 1 |
| 23 | 40001 | QU40001 Differential Cross Shaft Retaining Pin for Dana 30 and Dana 44 | 1 |
| 24 | 40000 | QU40000 Dana 44 Differential Pinion Mate Gear Thrust Washer | 2 |
| 26 | 40003 | QU40003 Differential Cross Shaft for Dana 44 Open Differentials | 1 |
| 27 | 40033 | QU40033 Side Gear Thrust Washer for Dana 44 Front Axles | 2 |
| 29 | 40178 | QU40178 30 Spline Dana 44 Spider Gear Kit for Open Differentials | 1 |
| 29 | 5540178 | QU40178U Used 30 SPL Spider Gear Kit | 1 |
